Tripp Lite PDU1215 15A Rackmount Power Conditioner with 12 Rear Outlets (1-Front)

ITEM #: PDU1215 MFG #: PDU1215

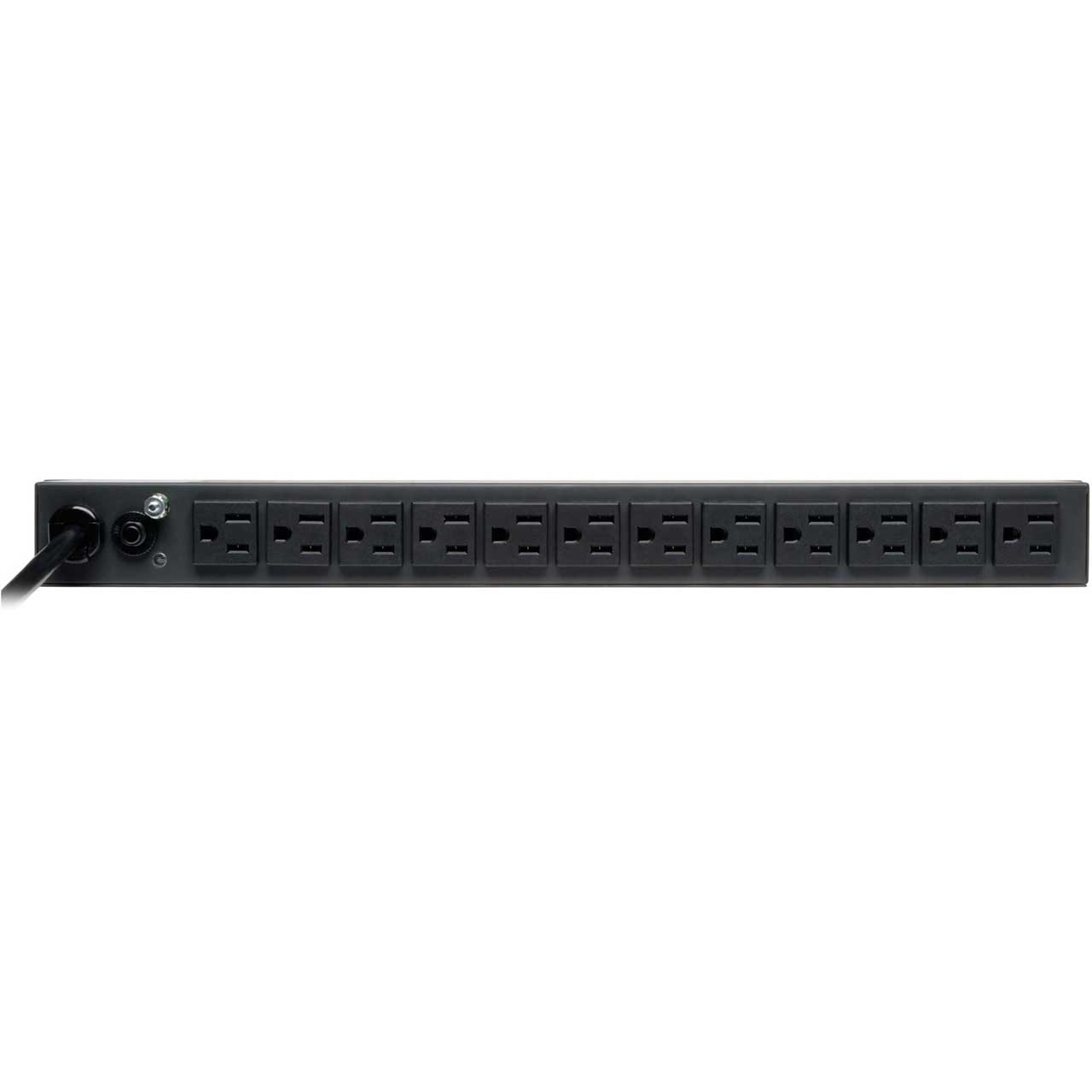

  • Product Image Thumbnail 1 of 2

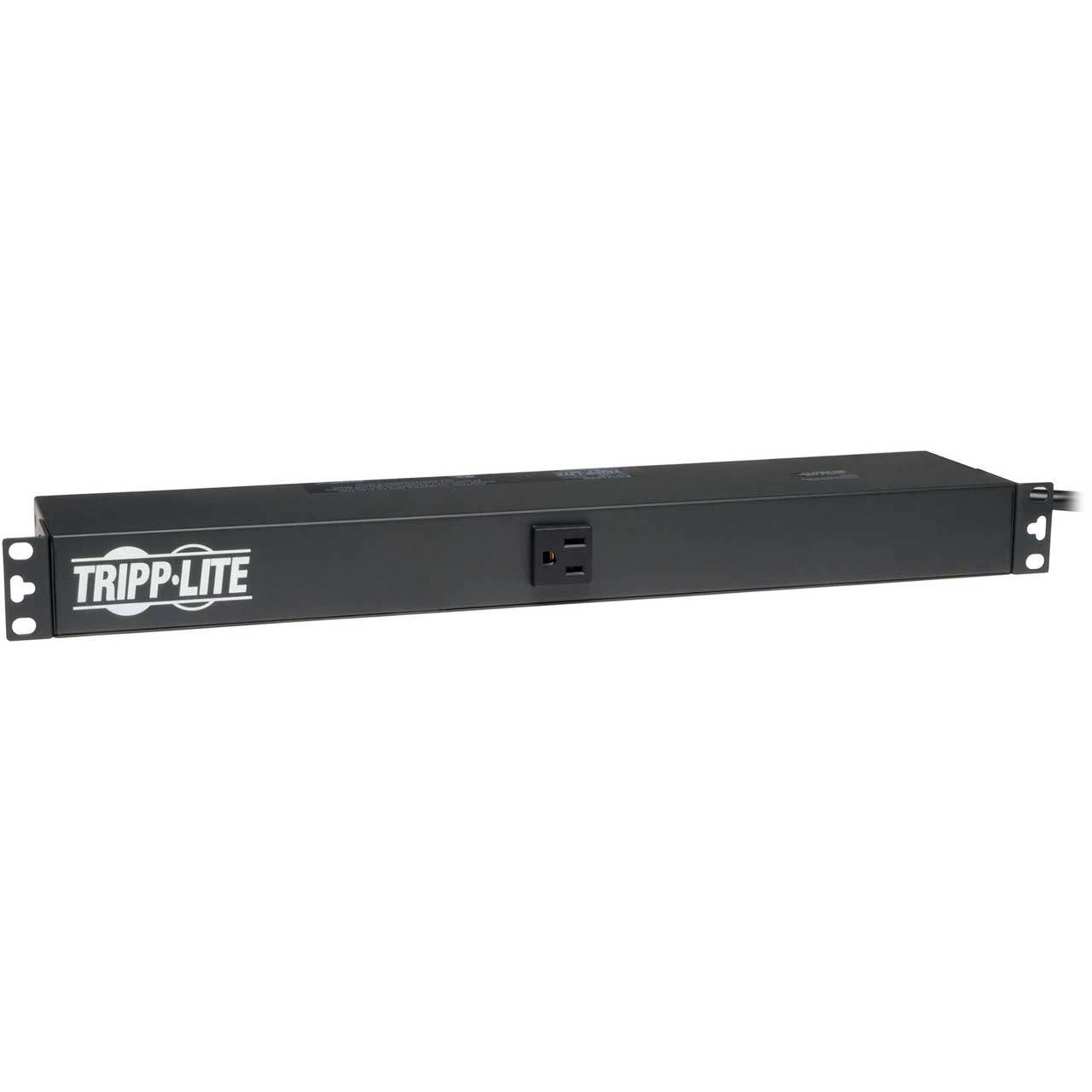

  • Product Image Thumbnail 2 of 2
free ship

List Price:

$162.86

Our Price:

$113.93

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    PDU1215 - Overview

    The Tripp Lite PDU1215 1.8kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1215 features a single breakered load bank with 13 NEMA 5-15R outlets-12-in the rear and one in front. The NEMA 5-15P input plug with long 15-foot (4.5 m) cord connects to your facility's compatible AC power source, generator or protected UPS to distribute power to connected equipment.

    The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite's PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1215 for vertical 0U rack-mounting.

    • Features:

      • NEMA 5-15P input with 15 ft. (4.5 m) cord
      • 13 NEMA 5-15R outlets - 12 rear and 1 front
      • Switchless design prevents accidental shutdown
      • Reversible all-metal housing
      • Installs in rack, on wall or under counter
      • 5-year limited warranty
      • Ideal no-frills PDU for networking, telecom, security, audio/video and sound reinforcement applications
      • 13 NEMA 5-15R outlets in one breakered load bank
      • 15A circuit breaker protects outlets against overloads
      • NEMA 5-15P input plug with 15 ft. cord
      • Rear-panel grounding lug
      • Prevents accidental shutdowns and costly downtime
      • Mounts horizontally in 1U of EIA-standard 19 in. 2- and 4-post racks
      • Reversible all-metal housing faces front or rear in rack
      • Ready for toolless 0U vertical installation with optional PDUSIDEBRKT (sold separately)
      • Also mounts on wall, workbench or under a counter

    • Specifications:

      • Input
      • PDU Input Voltage: 100; 120; 127
      • Recommended Electrical Service: 15A 120V
      • Maximum Input Amps: 15
      • PDU Plug Type: NEMA 5-15P
      • Input Phase: Single-Phase
      • Input Cord Length (ft.): 15

        Output
      • Output Capacity Details: 1.9kW (127V), 1.8kW (120V), 1.5kW (100V) / 15A total capacity; 12A max per 5-15R outlet
      • Frequency Compatibility: 50 / 60 Hz
      • Output Receptacles: (13) 5-15R
      • Output Nominal Voltage: 100; 120; 127
      • Overload Protection: 15A breaker

        User Interface, Alerts & Controls
      • Switches: No power switch

        Physical
      • Form Factors Supported: 1U rackmount, 0U vertical rackmount, wall-mount and undercounter installation supported
      • Material of Construction: Metal
      • Minimum Required Rack Depth (inches): 7.5
      • Outlets Measurement (Center to Center): 30.2mm
      • PDU Form Factor: Horizontal (1U)
      • Shipping Dimensions (hwd / in.): 2.20 x 20.40 x 9.30
      • Shipping Weight (lbs.): 5.27
      • Unit Dimensions (hwd / in.): 1.75 x 17.5 x 4.5
      • Unit Weight (lbs.): 4.9

        Environmental
      • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
      • Relative Humidity: 5 to 95% non-condensing
      • Operating Elevation (ft.): 0-10,000
      • Operating Elevation (m): 0-3000

        Special Features
      • TVSS Grounding: Back panel grounding lug

        Standards & Compliance
      • Certifications: Tested to UL1363 5TH Edition, CAN/CSA-22.2 No. 308-14

    • Item Includes:

      • 1x PDU1215 1.8kW Single-Phase 120V Basic PDU
      • 1x Mounting hardware
      • 1x Owner's manual

    • GTIN:

      0037332116727
