Furman M-8z Merit Z Series 15A 12-Port Power Conditioner with EVS Surge Protection & USB Fast Charging

M-8Z - Overview

• Features:

  • Recording Studios & Home Studios: Clean, filtered power eliminates RFI/EMI interference for quieter audio, while EVS protection safeguards mixers, interfaces, and outboard gear from dangerous voltage events
  • Live Sound & Touring Rigs: The 15A rating handles multiple rack-mounted amplifiers and processors, with wall-wart spacing accommodating bulky power supplies without blocking adjacent outlets
  • Installations (Bars, Clubs & Venues): EVS protection defends against unpredictable AC power in older venues, preventing equipment failures during performances and reducing costly downtime
  • Commercial Workstations: Integrated USB-C and USB-A fast charging ports conveniently power tablets, wireless units, and accessories right from the rack without occupying precious outlets

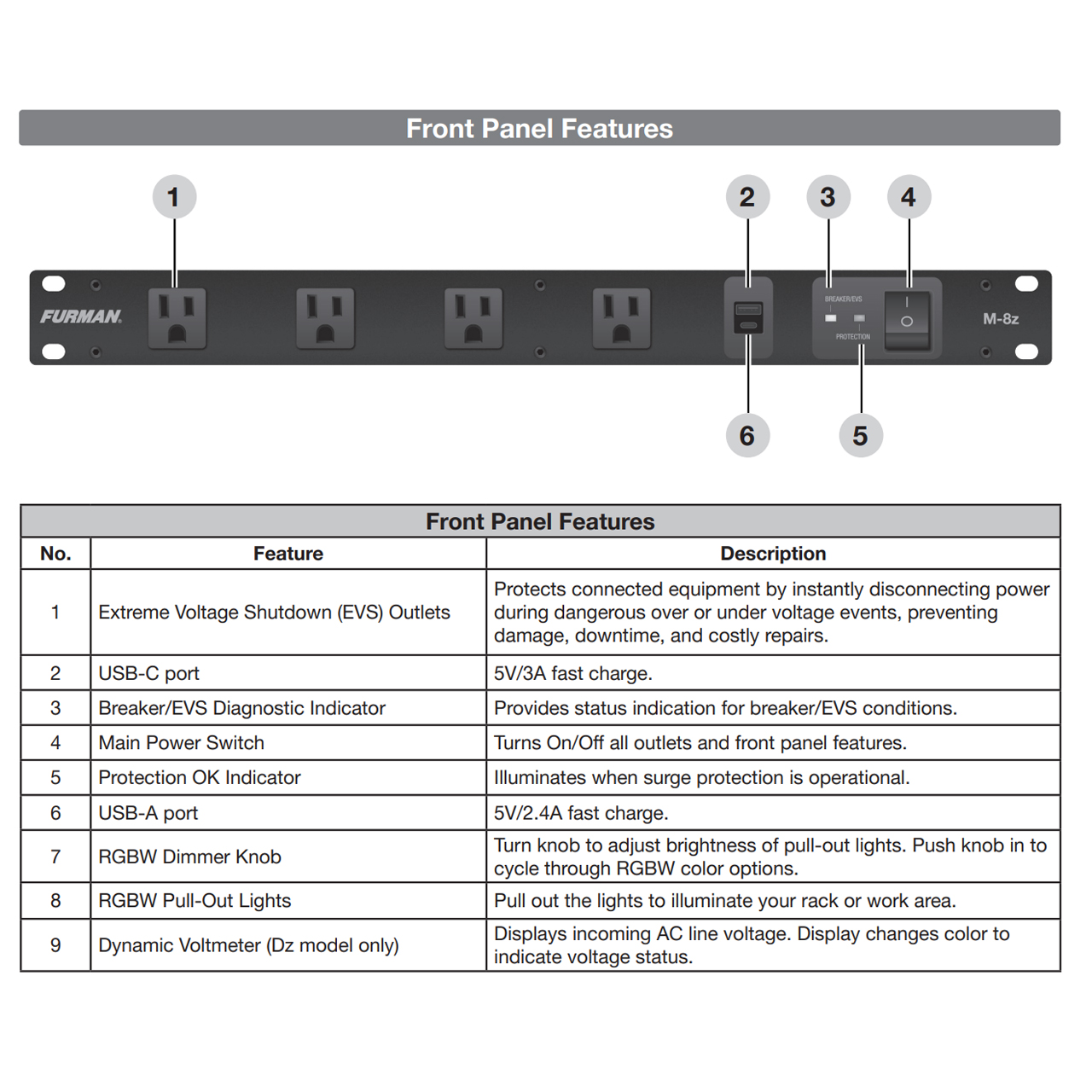

  • AV & Recording Racks: Front-panel diagnostic LEDs provide at-a-glance breaker and protection status, eliminating guesswork when troubleshooting power issues in complex rack configurations


• Specifications:

  • Maximum Output Current: 15A
  • Line Cords: 3x14 AWG
  • Operating Voltage: 120V ~50/60Hz
  • Spike Protection Mode: Line to neutral
  • Energy Dissipation: 126 Joules
  • Peak Impulse Current: 6500A
  • Maximum Continuous Operating Voltage: 225VAC RMS
  • Maximum Clamping Voltage: 455V
  • Noise Attenuation: Greater than 20dB, 200kHz - 10MHz
  • Under-voltage Shutoff: 85VAC ±5%
  • Over-voltage Shutoff: 140VAC ±5%
  • Weight: 4.63lbs (2.1kg)
  • Dimensions (HxWxD): 1.75" x 19" x 3.75"


• Item Includes:

  • 1x M-8z


• Warranty:

  • 3 Year Limited Warranty
