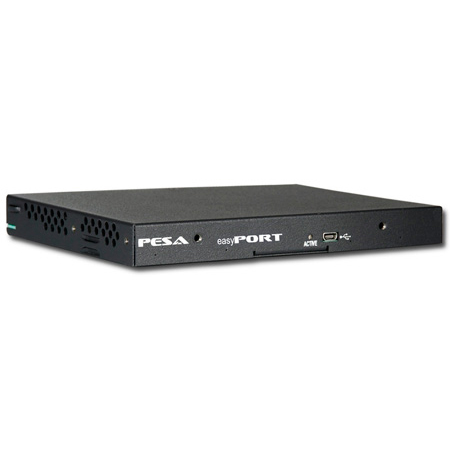

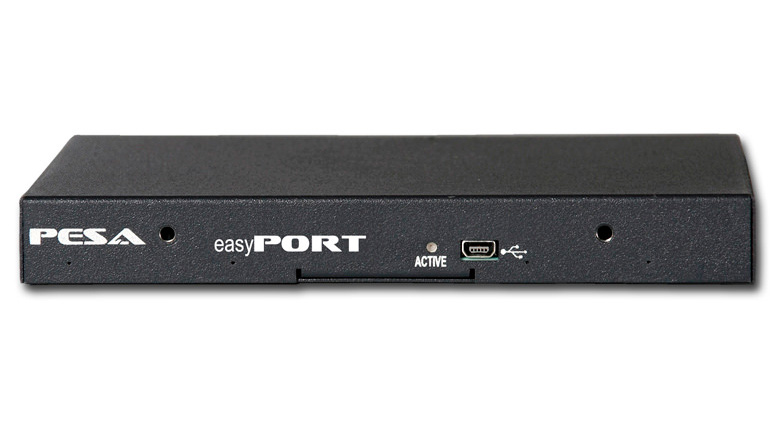

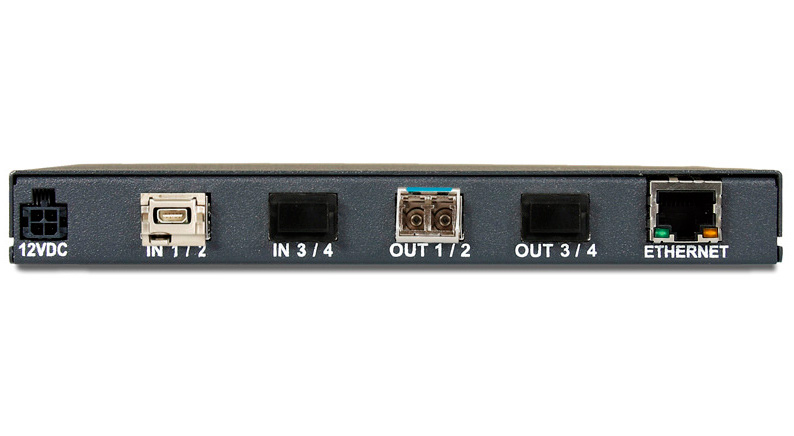

PESA EASY-1HX2F Easyport - 1 HDMI In To 2 Fiber Out

Item #: PESA-EASY-1HX2F   •   MFG #: EASY-1HX2F


Our Price:$2,095.00

free ship
Direct Ship from manufacturer, contact us for availability
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

    California Residents:
    Cancer and Reproductive Harm -


    Required Accessories

        Show More

    PESA's easyPORT boxes are multi-format converters that provide a wide range of port options and port density. The easyPORT converters can be configured to support crosspoint switching or conversion for ASI, SDI, HD-SDI, 3G-SDI, HDMI/DVI, and NTSC/PAL. The basic easyPORT includes four SFP type card cages can be populated to fit practically any combination of input and output signals. Each easyPORT comes with a built-in Ethernet port and USB port for easy setup and diagnostics. Up to four easyPORT converters can be loaded in a 1RU frame with support for redundant power. Setup is simple with the supplied GUI interface.

    • Features

      • 1 HDMI input
      • 2 FIBER SD/HD/3G-SDI outputs
      • Built-in switch fabric
      • Up to 1080p60 video transport
      • Includes setup software and power supply
      • Network & USB control ports
      • Small size : 6.75 W X .825 H X 6.25 D
    • Specifications

      • Network connection 10/100 RJ-45
      • USB mini-USB port
      • Software Cattrax Network GUI
      • Operates with USB or TCP/IP
      • Switching Built-in 4X4 crosspoint
      • Size (inches) 6.75 W x .825 H x 6.25 D
      • Size (mm) 171.45mm x 20.96mm x 158.75mm
      • OPTIONS
      • Mounting wall bracket for a single chassis
      • 1RU rack mount holds four modules
      • includes power supply and power cables
    • Item Includes

      • EasyPort Extender/Converter
      • 1 HDMI input SFP
      • 1 SD/HD/3G fiber output SFP
      • Power supply
      • Software included
      • 1 year warranty
