PESA EASY-4FX1H Easyport - 4 Fiber In To 1 HDMI Out

ITEM #: PESA-EASY-4FX1H MFG #: EASY-4FX1H

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the PESA-EASY-4FX1H

EASY-4FX1H - Overview

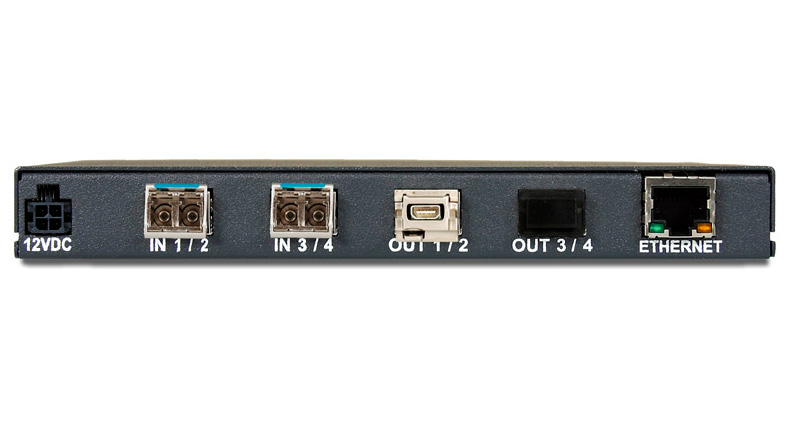

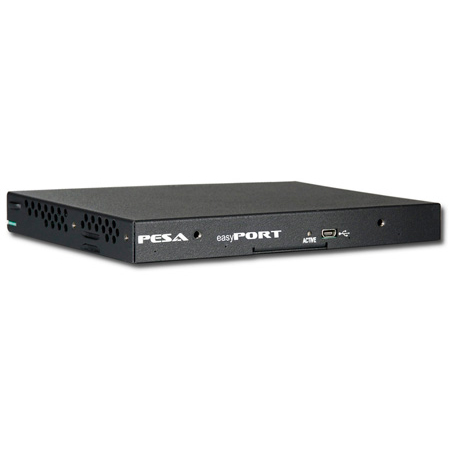

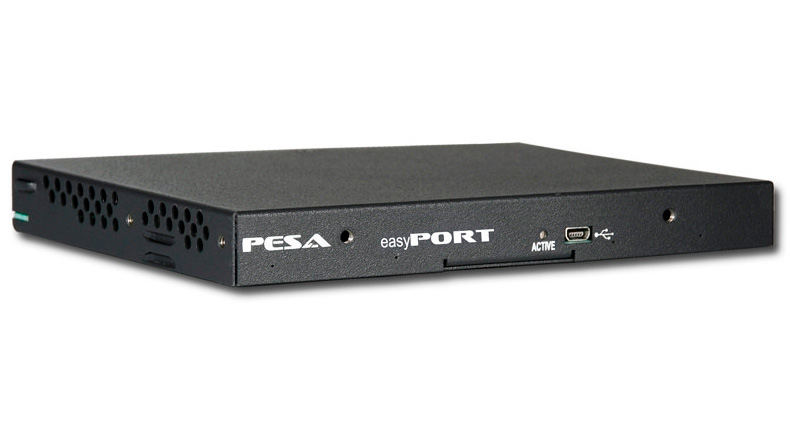

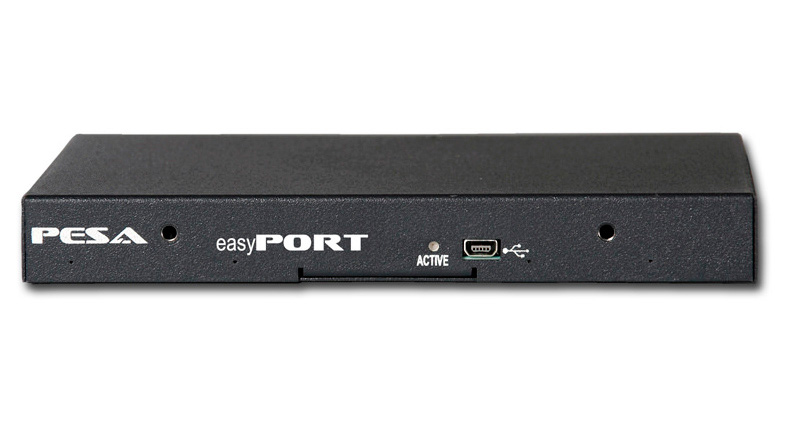

PESA's easyPORT boxes are multi-format converters that provide a wide range of port options and port density. The easyPORT converters can be configured to support crosspoint switching or conversion for ASI, SDI, HD-SDI, 3G-SDI, HDMI/DVI, and NTSC/PAL. The basic easyPORT includes four SFP type card cages can be populated to fit practically any combination of input and output signals. Each easyPORT comes with a built-in Ethernet port and USB port for easy setup and diagnostics. Up to four easyPORT converters can be loaded in a 1RU frame with support for redundant power. Setup is simple with the supplied GUI interface.

  • Features:

    • 4 FIBER SD/HD/3G-SDI inputs
    • 1 HDMI outputs
    • Built-in 4X1 Switch
    • Up to 1080p60 video transport
    • Includes setup software and power supply
    • Network & USB control ports
    • Small size : 6.75 W X .825 H X 6.25 D

  • Specifications:

    • CONTROL & INTERFACES
    • Network connection 10/100 RJ-45
    • USB mini-USB port
    • Software Cattrax Network GUI
    • Operates with USB or TCP/IP
    • Switching Built-in 4X4 crosspoint
    • MECHANICAL
    • Size (inches) 6.75 W x .825 H x 6.25 D
    • Size (mm) 171.45mm x 20.96mm x 158.75mm
    • OPTIONS
    • Mounting wall bracket for a single chassis
    • 1RU rack mount holds four modules
    • includes power supply and power cables

  • Item Includes:

    • EasyPort Extender/Converter
    • 2 SD/HD/3G fiber input SFPs
    • 1 HDMI output SFP
    • Power supply
    • Software included
    • 1 year warranty
