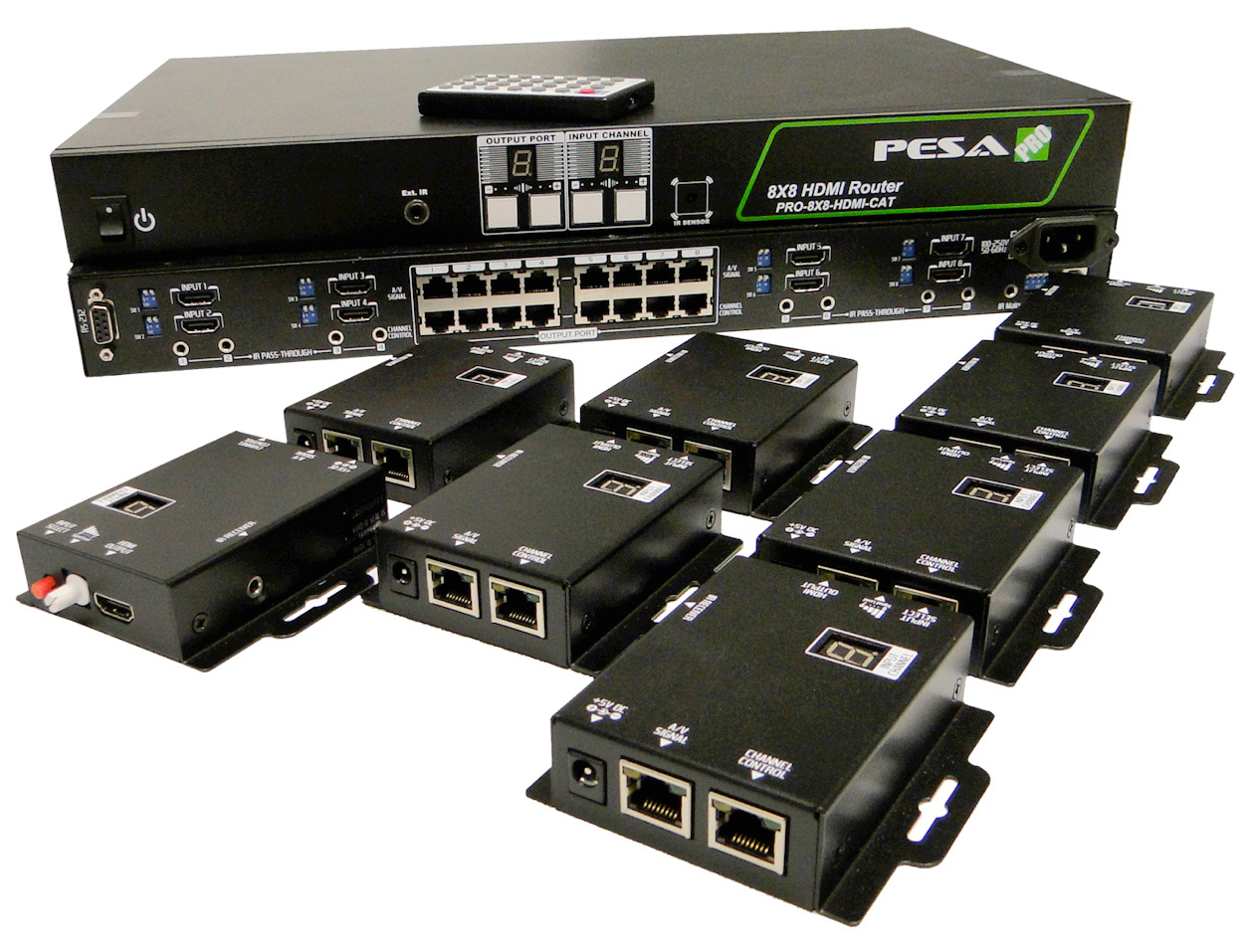

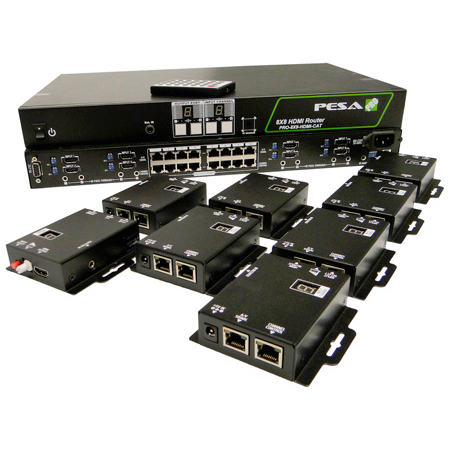

PESA PRO-8X8-HDMI-CAT Pro 8X8 HDMI Matrix Switcher
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    PESA PRO-8X8-HDMI-CAT Pro 8X8 HDMI Matrix Switcher

    Item #: PESA-PRO-8X8HDMI   •   MFG #: PRO-8X8-HDMI-CAT


    Our Price:$4,999.00

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • Drop-shipped (normal delivery time 2-7 business days) shipping UPS ground. (Sales tax may apply.)



    The PESA PRO-8X8-HDMI-CAT 8X8 HDMI Router provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1-channel) digital audio from any of the eight HDMI source devices to the remote displays at the same time. Through low cost CAT 5/5e/6 cables, not only high quality video and audio can be transmitted to the display sites, but also users can switch among eight HDMI sources using the push button on the receiver or remote control. With single power design at the source site, each remote module is easily installed without power supply. Furthermore, the built-in IR extension allows users to control the HDMI source devices such as the Blu-Ray Disc player or satellite receiver at display site.

    • Features

      • HDMI founder Silicon Image chipsets embedded for superior compatibility and reliability
      • HDMI 1.3c compliant
      • HDCP compliant
      • Allows any source to be displayed on multiple displays at the same time
      • Allows any HDMI display to view any HDMI source at any time
      • Supports 7.1 channel digital audio
      • Purely unaltered uncompressed 7.1ch digital HDMI transmission
      • Minimizes the cable skew by adjustable 8-level equalization control at receiver units
      • Supports default HDMI EDID and learns the EDID of displays
      • Switch every output channel to any HDMI input by push button control, IR remote control, USB or RS-232 serial control
      • Control the local HDMI sources by IR extender passing through the IR commands
      • Control the router through control line at remote receiver sites
      • Extends video signal up to 115 feet (35m) over CAT5e at 1080p and likely longer with better
      • HDMI source device, better grade HDMI display, and better quality solid CAT6 cable
      • Easy installation with rack-mounting and wall-mounting designs for router and receiver units respectively
      • Fast response time: 2~5 seconds for channel switch
    • Specifications

      • HDMI Compliance: HDMI 1.3c
      • HDCP Compliance: Yes
      • Video Bandwidth Singlelink 225MHz (6.75Gbps)
      • Video Support: 480i/480p/720p/1080i/1080p60
      • Audio Support Surround Sound (up to 7.1) or Stereo Audio
      • HDMI over Cable (1080p) 35m (115ft) over CAT5e; 40m (130ft) over CAT6
      • HDMI over Cable (1080i/720p) 50m (165ft) over CAT5e; 55m (180ft) over CAT6
      • HDMI Equalization 8 level digital rotary control
      • Input TMDS signal 1.2V p-p
      • Input / Output Switcher Ports: Inputs - HDMI
      • Outputs - RJ-45 (TMDS)
      • Outputs - RJ-45 (DDC)
      • Outputs - 5X IR socket for IR blaster
      • Input / Output on
      • Remote Modules Input - RJ-45 (TMDS)
      • Input - RJ-45 (DDC)
      • Output - HDMI
      • Ouput - IR socket for IR receiver
      • HDMI Connector Style Type A (19 pin female)
      • RJ-45 Connector Style WE/SS 8P8C with LED indicators
      • IR Remote Electro-optical 38kHz
      • RS-232 Connector Style 9 Pin D-Sub
      • IR Connector Style 3.5mm earphone jack
      • DIP Switch Settings (SW-1 - SW8) EDID and audio settings
      • (SW Main) 4 Pin mode and firmware updates
    • Item Includes

      • PRO-8X8-HDMI-CAT router
      • 8 receiver units
      • IR blaster cable
      • IR receiver cable
      • IR remote control
      • Power cord
      • User Guide
      • Rack mount kit
      • 1 year warranty
