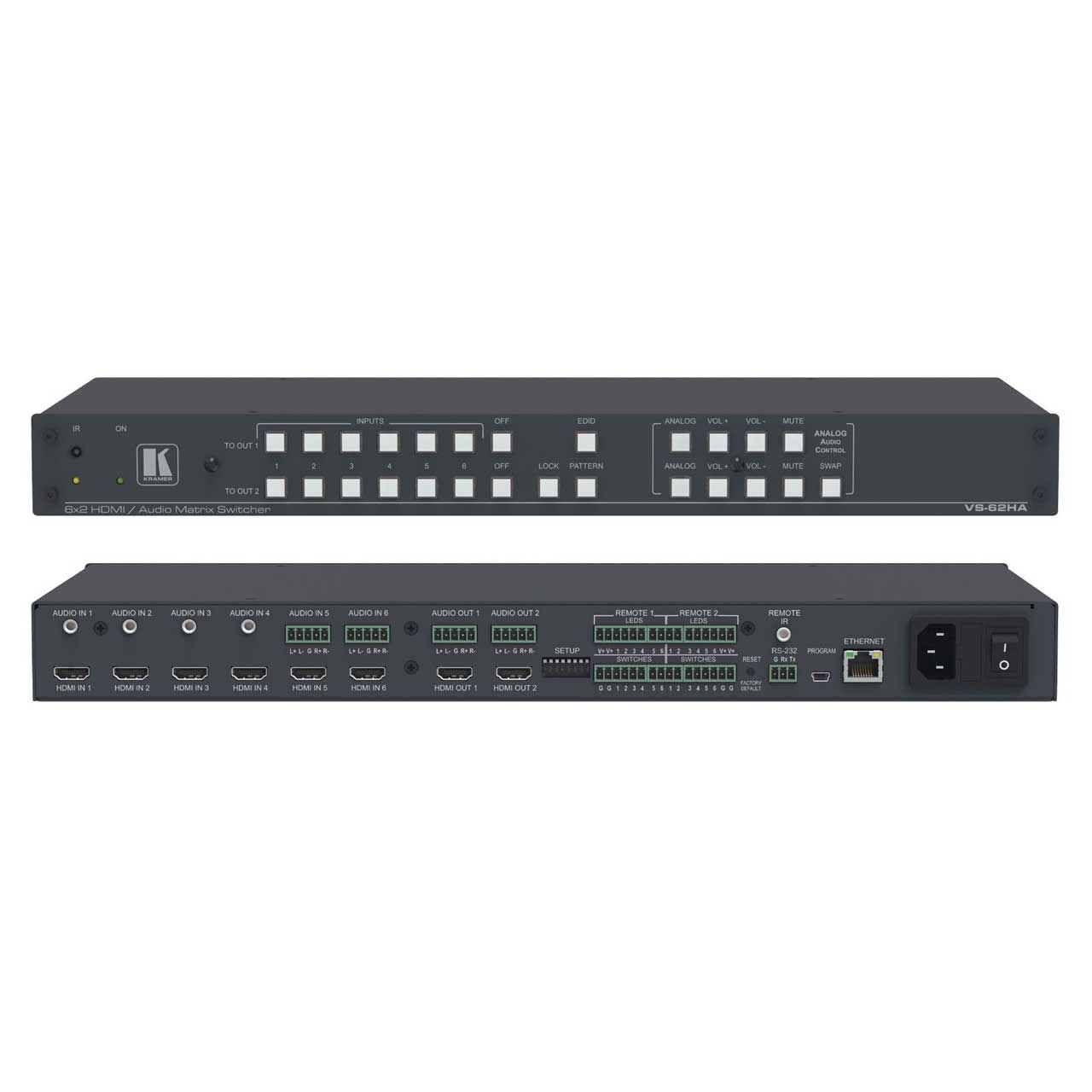

Kramer VS-62HA 6x2 4K60 4:2:0 HDMI/Audio Automatic Matrix Switcher

VS-62HA/110V - Overview

Supports 4K@60Hz (4:2:0)!

• Features:

  • Max. Data Rate - 8.91Gbps (2.97Gbps per graphics channel).
  • Max. Resolution - 4K@60Hz (4:2:0) and WUXGA.
  • HDCP Compliant.
  • HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus, DTS-HD®, and 7.1 PCM.
  • EDID Capture - Copies and stores the EDID from a display device.
  • Advanced Auto AV Switching Option - For either or both outputs, last-connected or priority switching, manual override mode to allow intuitive controller-free operation.
  • Audio Routing - Independent (breakaway) audio routing of embedded HDMI and analog audio content to two balanced audio ports.
  • Programmable Step-In over HDMI Functionality - When used in conjunction with compatible step-in devices, such as the SID-X3N and DIP-31 (using an HDMI cable that supports HEC, the HDMI Ethernet Channel).
  • True Video Clock Detection.
  • Non-Volatile EDID Storage.
  • Kramer reKlocking™& Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • Lock Button - Prevents unwanted tampering with the front panel.
  • Internal Pattern Generator.
  • Embedded Web Pages - Provide remote configuration and operation.
  • Static or Dynamic DHCP IP Addressing.
  • Flexible Control Options - Front panel buttons, IR remote (available upon request) , optional external remote IR receiver, RS-232, Ethernet, buttons and LED over contact closure, embedded Web server, Kramer Protocol 3000 support.
  • USB Port - For upgrading firmware.


• Specifications:

  • INPUTS
  • 6 HDMI connectors, 4 unbalanced stereo audio on 3.5mm mini jacks, 2 balanced stereo audio on 5-pin terminal blocks


  • OUTPUTS
  • 2 HDMI connectors, 2 balanced stereo audio on 5-pin terminal blocks


  • PORTS
  • 1 RS-232 on a 3-pin terminal block, 1 Ethernet on an RJ-45 connector, 2 x 6 remote LED outputs on terminal blocks, 2 x 6 remote contact closure switches on terminal blocks, 1 USB Type-C, 1 optional remote IR on a 3.5mm mini jack


  • CONTROLS
  • Front panel buttons, infrared remote control transmitter, RS-232, Ethernet, remote input selection switches and LEDS, built-in Web browser


  • LED INDICATORS
  • IR active - red, ON - green


  • MAX. DATA RATE
  • Up to 8.91Gbps data rate (2.97Gbps per graphic channel)


  • COMPLIANCE WITH HDMI STANDARD
  • HDMI and HDCP


  • RESOLUTION
  • Up to 4K@60Hz UHD (4:2:0)


  • SUPPORTED BAUD RATES
  • 9600, 115200bps


  • SUPPORTED WEB BROWSERS
  • The following operating systems and Web browsers are supported:
  • Windows 7: Google Chrome v25, FireFox v15, Opera v12, Microsoft Internet Explorer v9
  • Windows XP: Google Chrome v25, FireFox v15
  • Apple Mac: Google Chrome v25, FireFox v20, Opera v12.14, Safari v6


  • POWER CONSUMPTION
  • 100-240V AC, 22VA


  • OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)


  • STORAGE TEMPERATURE
  • -40° to +70°C (-40° to 158°F)


  • HUMIDITY
  • 10% to 90%, RHL non-condensing


• Item Includes:

  • VS-62HA Switcher
  • Power Cord
  • Rack ears (1 Set)
  • Rubber Feet (4)
  • Quick Start Guide


• Warranty:

  • Limited 7 Year Warranty
