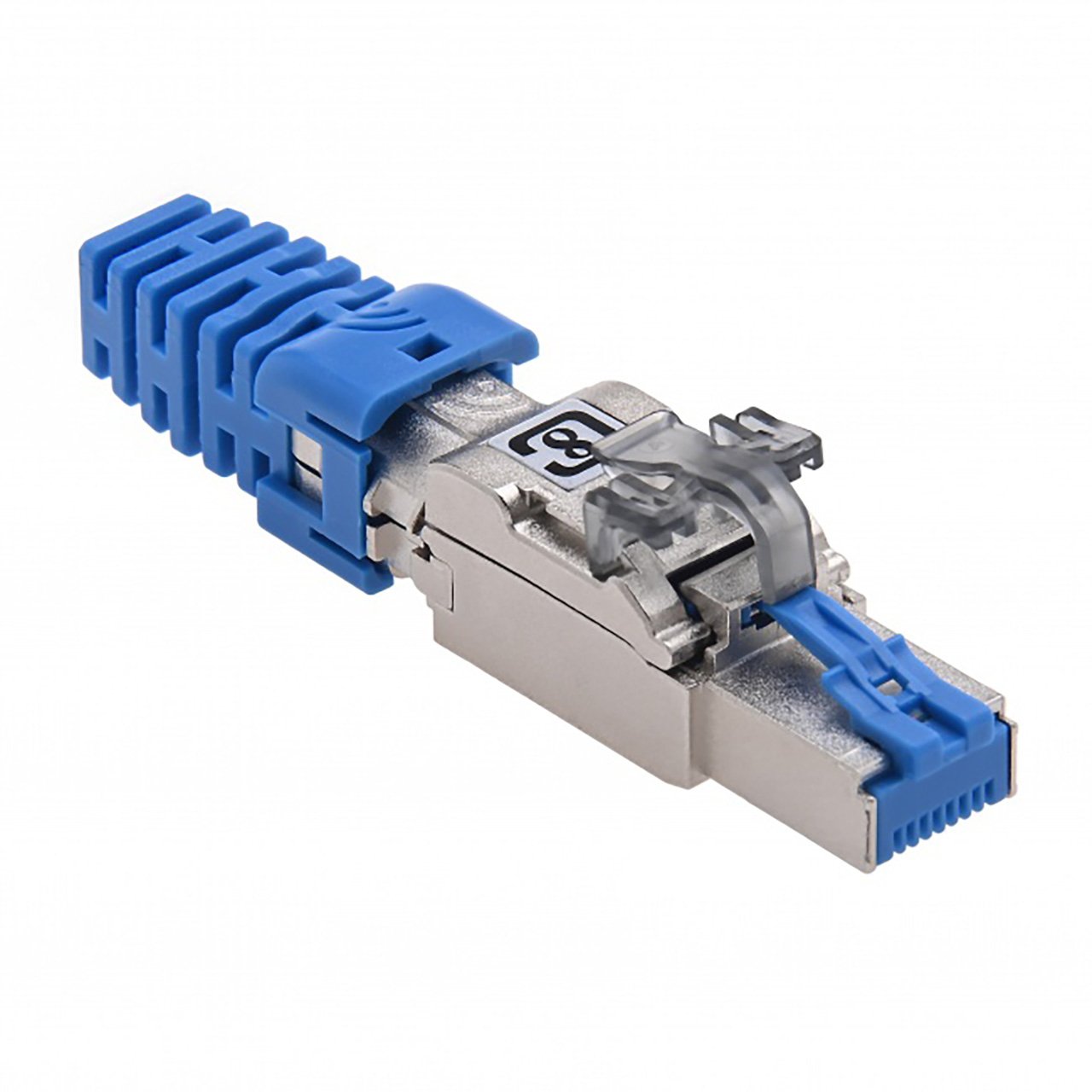

Platinum Tools 106270 Cat8 Shielded Toolless RJ45 Connector

106270 - Overview

• Features:

  • Shielded Connectors and Jacks - For better performance

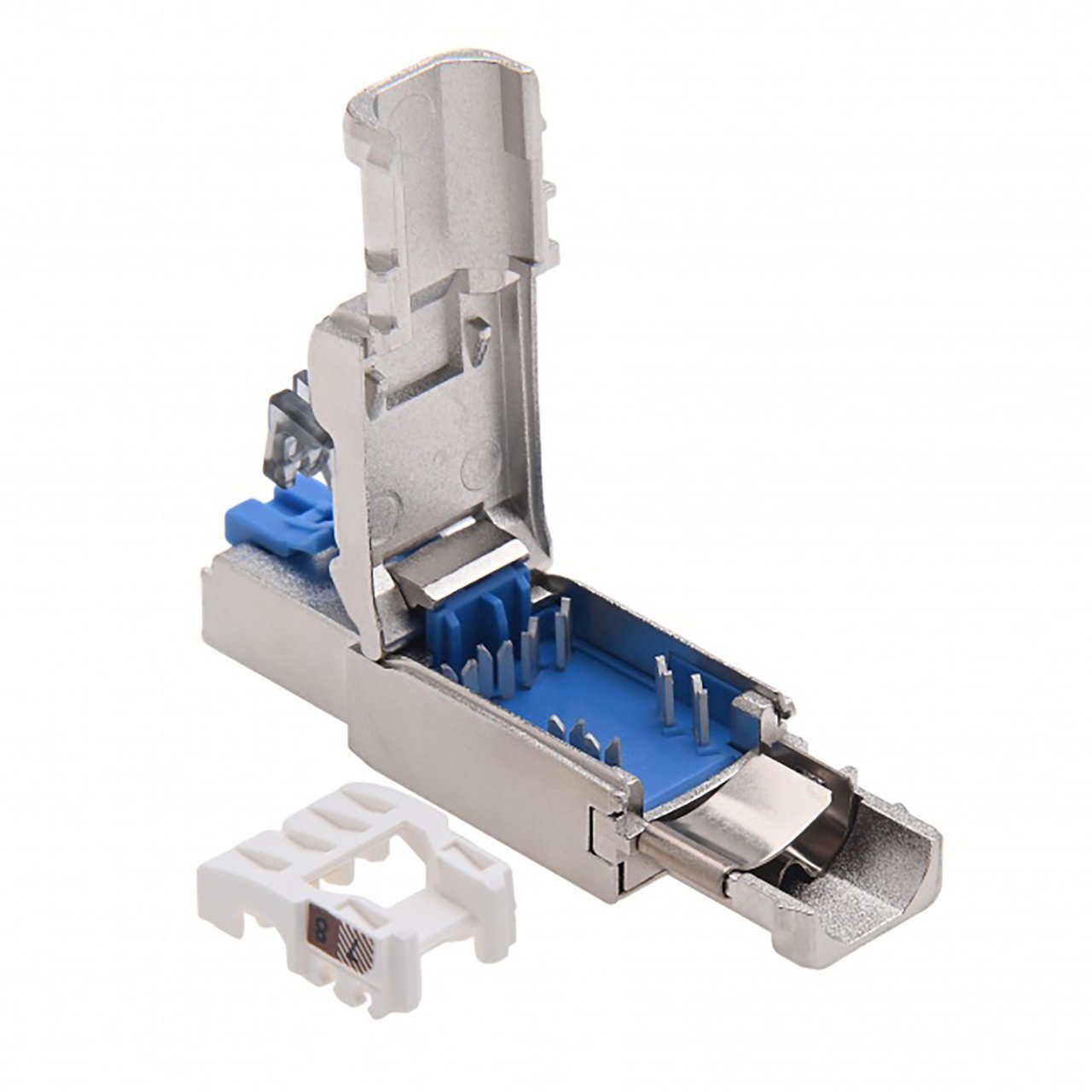

  • Toolless Design - Snap Closed to terminate
  • No special crimp tool required
  • Works on all Standard Cables - Cat8, Cat7, Cat6A, Cat6, Cat5e
  • Plenum Rated, UL and RoHS compliant
  • 50 micron gold plated contacts
  • Solid or stranded, 26 - 23 AWG


• Specifications:

  • Insulation Diameter: 0.032” - 0.057” (0.8mm - 1.47mm)
  • Cable OD: 0.197” - 0.390” (5.0mm - 9.9mm)


• Item Includes:

  • 1x Platinum Tools 106270 Cat8 Shielded Toolless RJ45 Connector


• Warranty:

  • 1 Year Warranty


• GTIN:

  0849160015581
