Platinum Tools TNC950DX Net Chaser Deluxe Cable Test Kit - Li-Ion


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    TNC950DX - Overview

    The new TNC950DX Net Chaser Deluxe Test Kit, complete with a protective hard case Made in the USA, offers a complete solution to test and speed certify the data-carrying capabilities of Ethernet network cables up to 1 Gb/s. The Net Chaser tests for noise in the network, detects faults in the cable wiring, and ensures that cables are able to support the speed capabilities of active equipment. The Net Chaser's advanced discovery gives the clearest vision of network layout and interfaces between active components like servers, switches, routers, etc. All the information is collected, stored, and ready for reporting.

    Installers have asked for a tester that validates data cables by testing all the parameters they need to test beyond verifying proper terminations. The Net Chaser is a proven product that does just that, and the new Deluxe Kit puts everything the installer needs within arm's length and with protection from whatever the job site throws at them.

    To certify Ethernet speed performance of cable runs, the Net Chaser conducts Bit Error Rate (BER) tests by sending data packets down specified cable runs at defined data rates to check for errors at the maximum throughput of the link. The Net Chaser reports on signal quality that can impact high-speed data transmission by measuring signal-to-noise ratio (SNR). Skew measurements report on the signal time delay between pairs that can impact Gigabit data transmission. Finally, the Net Chaser unit provides continuity testing that detects opens, shorts, miswires, split pairs, reversals, and high-resistance faults while accurately measuring distance to faults and total cable length.

    PLEASE NOTE: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.

    • Features:

      • Measures and displays length for each pair in feet or meters
      • Improperly terminated cables are clearly displayed on a color graphical wire-mapping display
      • Verifies continuity for RJ45 and coax cables
      • Generates professional test reports with company details and logo
      • Tone generation
      • ID only remotes (Network and Coax) - up to 20 available
      • Testing and ID remotes - up to eight available
    • Specifications:

      • Screen Size: 3.5-inch color touch screen display
      • Overall Size: Compact form factor
      • Battery: 3rd generation rechargeable Lithium-Ion batteries
      • Use: Benchtop, handheld, or hung up
      • Interface: Modular cable interfaces
      • Memory: SD card for data file transfer of cable tests
      • Upgradeable: Field-upgradeable firmware
      • Languages: EN, FR, ESP, DEU, ITA

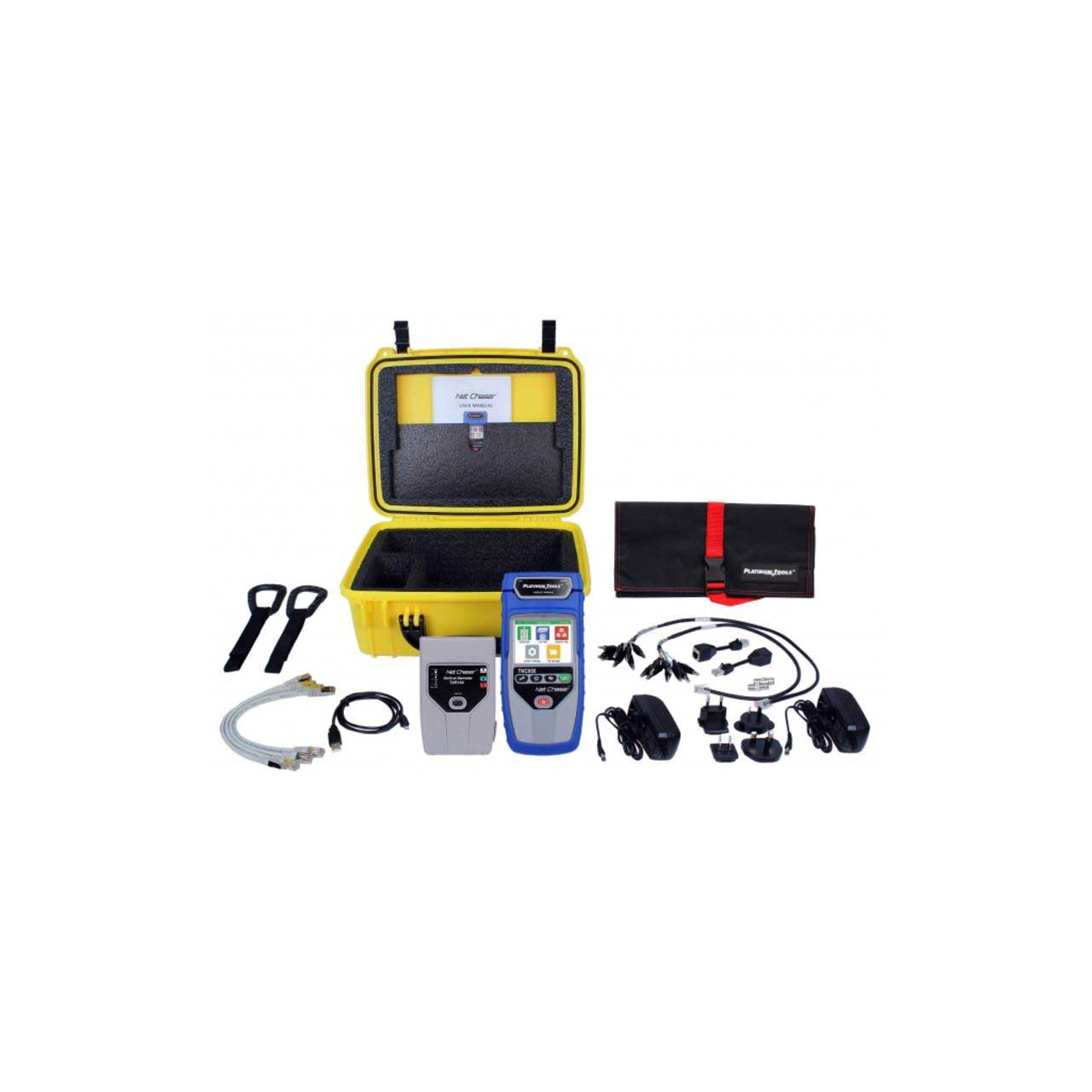

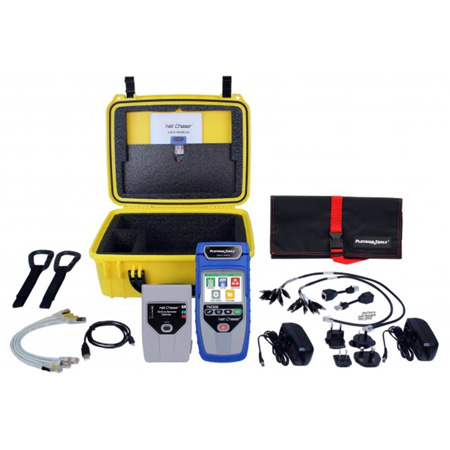

    • Item Includes:

      • Net Chaser Main Unit
      • Net Chaser Active Remote
      • Protective Hard Case
      • 2x Power Supply
      • 4 GB SD Card
      • Micro USB Cable
      • 4x FTP Patch Cable, 12" CAT5e
      • 2x RJ45 Port Saver
      • 2x Cable Assembly, RJ45 to 8 Way Alligator Clip
      • 2x F-Jack to BNC Adapter
      • 2x Hanging Strap and Clip
      • Hanging Pouch
    • GTIN:
