Platinum Tools T130 VDV MapMaster 3.0 - Cable Tester

ITEM #: PLAT-T130 MFG #: T130

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    T130 - Overview

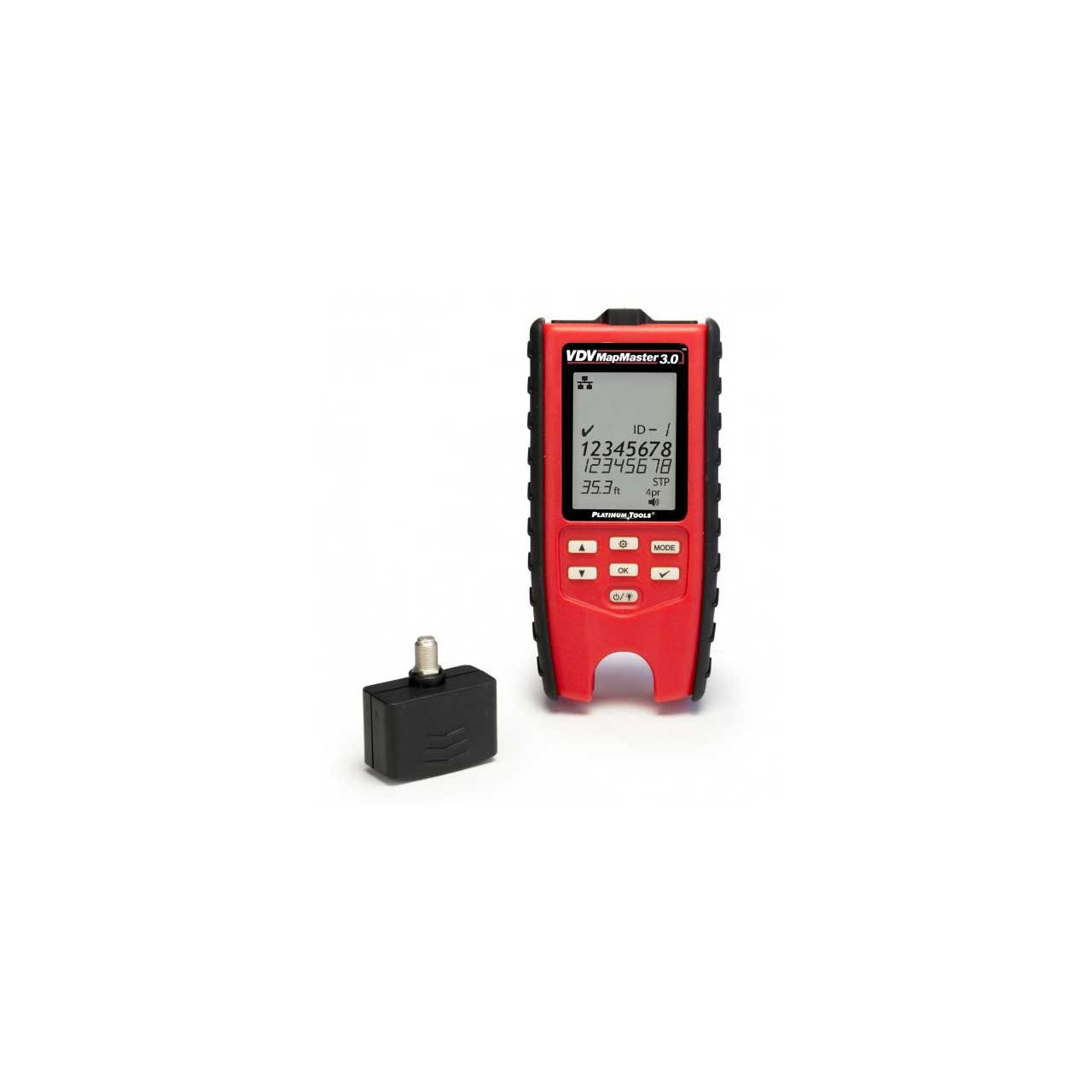

    The T130 VDV MapMaster 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer!

    • Features:

      • Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
      • Single-ended Testing for Shorts & Split Pairs
      • Measures Length in Feet/Meters
      • Identifies cable location on active ports using flashing Port Link Light

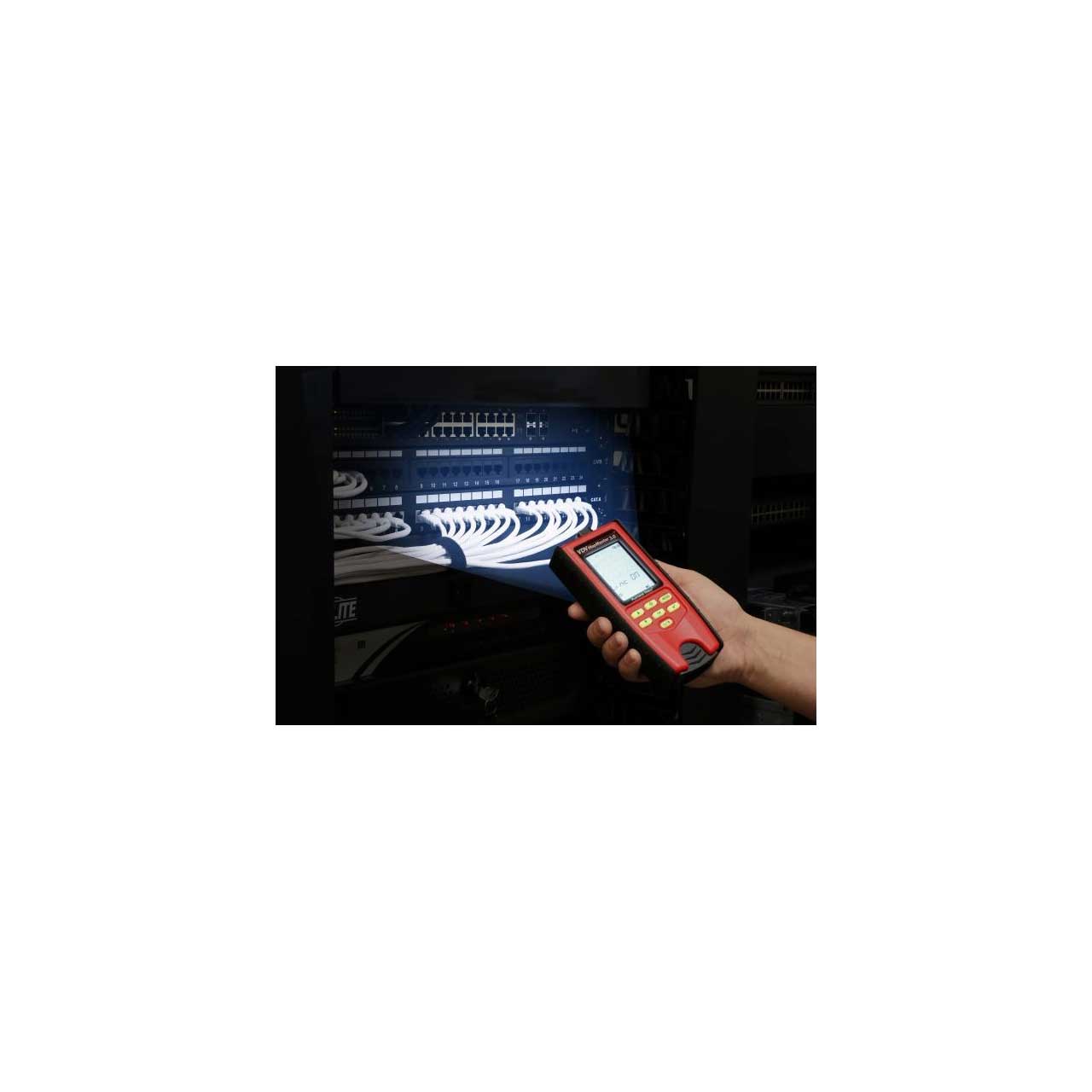

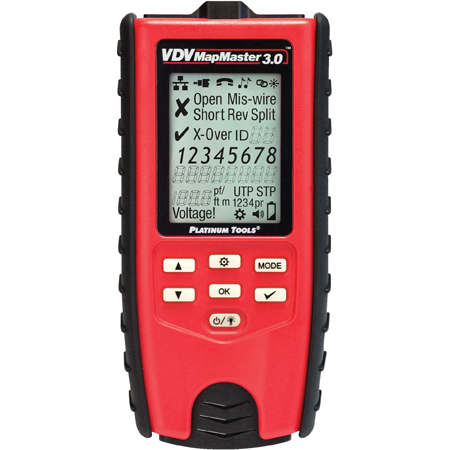

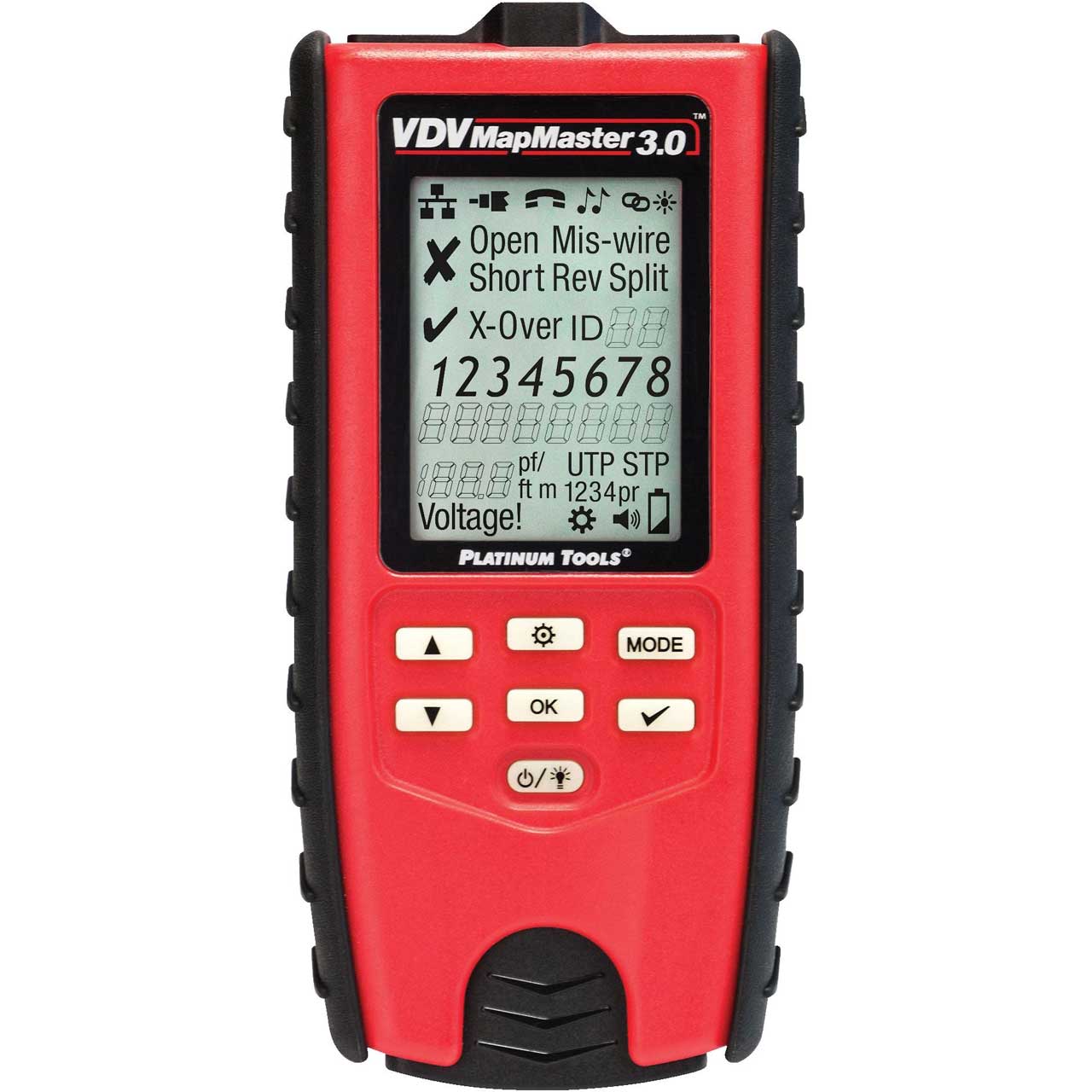

      • Easy to read, backlit LCD screen with large icons, glow-in-the-dark keypad and built-in LED flashlight for use in dark areas
      • Identify up to 20 network or coax cable runs at a time
      • Audible Tone Generator, 4 selectable cadences
    • Specifications:

      • Display: Large 2.75" Backlit Monochrome LCD
      • Dimensions: 6.8" x 3.2" x 1.4"
      • Weight: 10.8 oz. with battery and remote
      • Operating Temperature: 32° F to 122° F
      • Storage Temperature: -4° F to 140° F
      • Humidity: 10% to 90%, non-condensing
      • Maximum Voltage between any two connector pins without damage: RJ12/RJ45/F: 50V DC or AC
      • Battery Life 9V alkaline battery typical: Standby: 4 years; Active: 425 hours
      • Cable Types: Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
      • Maximum RJ Cable Length Testing: 0 to 1,000 feet (305 meters)
      • Minimum Cable Length for Split Pair Detection: 1.5 feet (0.5 meters)
      • Maximum Coax Cable Length: Varies depending on cable resistance varies
      • Low Battery: Icon flashes when battery voltage falls below 6V
      • Measurement Technology: Capacitance testing
      • Length Accuracy Without Length Constant: ± 3% plus + 1 foot
      • Default Length Constant (Restored with power on reset): Voice (Twisted pair): 17.4 pF/ft; Video (Coax): 16.5 pF/ft; Data (Twisted pair): 15 pF/ft
      • Warranty: Limited 1 yr
    • Warranty:

      • 1 Year
    • GTIN:
