PureLink PS-610 HDTools 6x1 HDMI / USB-C 4K60 Seamless Presentation Switcher with Dante

ITEM #: PLK-PS-610 MFG #: PS-610

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$3,499.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    PS-610 - Overview

    The PureLink HDTools™ PS-610 is a 6x1 seamless presentation switcher with true 4K Don't Blink instant switching. The PS-610 features flexible input options including (4) HDMI, (1) DisplayPort, and (1) USB-C, as well as balanced audio embedding, phantom microphone input, and audio mixing. the PS-610 provides multiview of up to four sources. Together with convenient control options including CEC / Display control and relay control, the PS-610 provides a feature-rich solution for conference rooms, home theater, broadcast studios, hotel AV, auditoriums, and staging/rental environments that require seamless 4K video and audio distribution.

    Versatile Connectivity
    The PS-610 supports HDMI, DisplayPort, and USB-C inputs, providing compatibility with a wide range of devices such as laptops and media players for maximum versatility.

    Instant Switching
    Enjoy PureLink's Don't Blink™ swift and seamless switching between input sources, ensuring uninterrupted and professional presentations.

    Multiview Functionality
    With the ability to display up to four sources simultaneously on a single screen, the PS-610 is ideal for control rooms and collaborative environments where monitoring multiple sources is crucial.

    Display Control
    Take direct control of the connected display, eliminating the need for multiple remotes or third-party controllers, making operation simple.

    Microphone Input Mixing
    Benefit from a dedicated phantom microphone input with mixing capabilities, enhancing audio performance during presentations.

    Audio Insertion and Extraction
    Easily insert external audio into selected sources or extract audio for independent processing or distribution.

    User-Friendly Control API
    Seamlessly integrate the PS-610 into your existing control systems or develop custom software applications for advanced control and automation.

    Complete Control Options

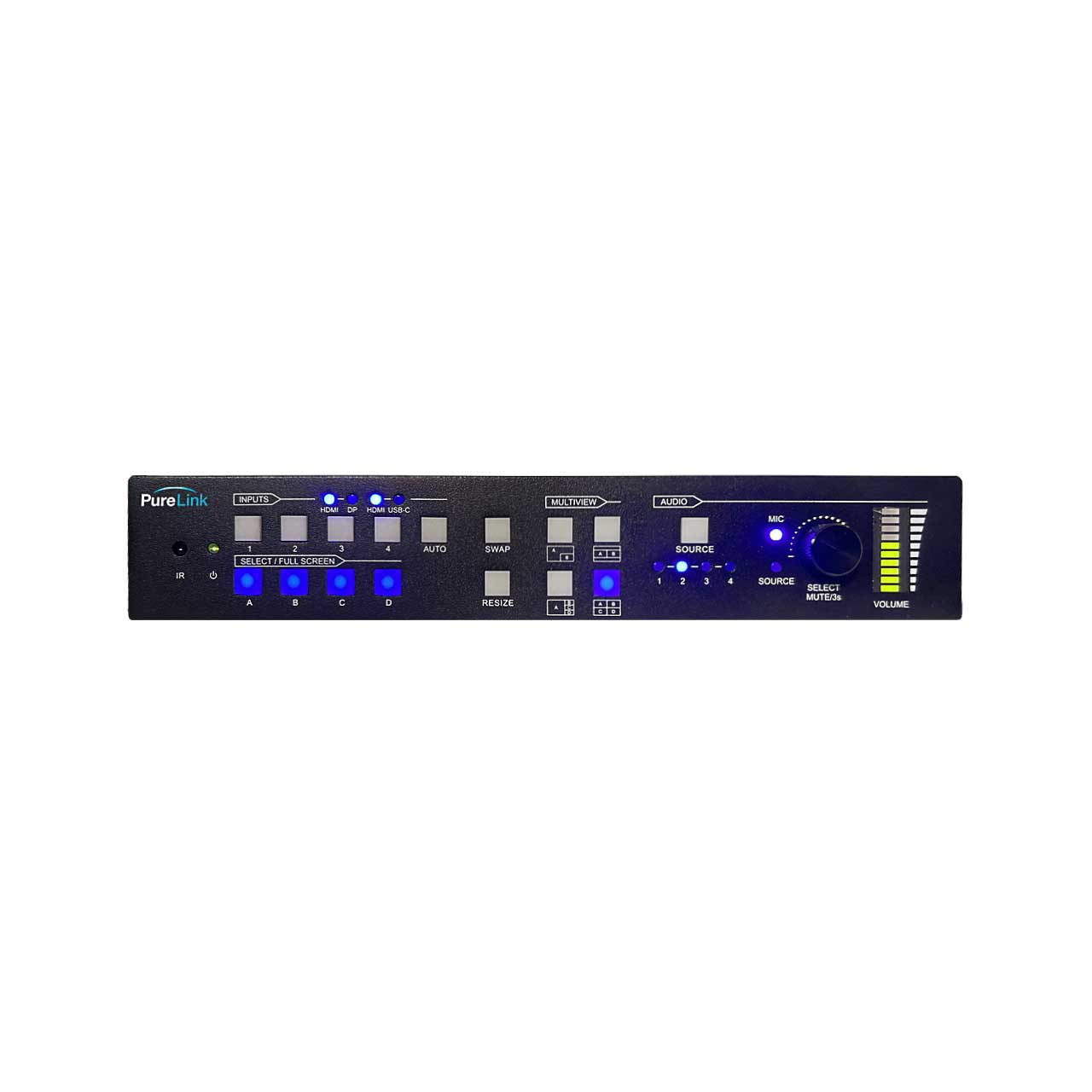

    Experience comprehensive control capabilities from any control system, including PureLink's iCON controllers. Take advantage of our iCON, Crestron, and QSYS modules for easy integration and operation. The PS-610 can also be conveniently controlled from the front panel (lockout option) or the Infrared remote control.

    HDBaseT Output Receiver
    The PS-610 includes an HDBaseT receiver along with mirrored HDMI output, expanding your connectivity options.

    Auto-Select Last Input
    The PS-610 intelligently auto-selects the last input used, simplifying the switching process for effortless operation.

    • Features:

      • 4K@30Hz with Don't Blink Instant Switching Technology
      • (6) inputs including (4) HDMI, (1) DisplayPort, and (1) USB-C
      • Audio embedding and mixing with volume control via balanced audio inputs
      • HDCP 2.2 compliant
      • Complete EDID management for individual inputs
      • CEC control
      • HDBaseT Distance: 40m@4K and 70m@1080p
      • Auto-switching on HDMI and HDBaseT outputs
      • Audio de-embedding with volume control via balanced analog and S/PDIF audio outputs
      • Local/pass-through IR and RS-232, TCP/IP, relay, CEC and OSD

    • Specifications:

      • Performance
      • Supported Resolutions: HDBaseT/HDMI/DP - up to 4K@30Hz 4:4:4 |
      • Compliance: HDMI 2.0, HDCP 2.2
      • Control Options: RS-232, IR, LAN
      • Power Consumption: 85W (max)
      • Power Supply: Input: AC100~240V, 50/60Hz / Output: 24V DC6A
      • Operating Temperature: 14°F ~ 131° F
      • Storage Temperature: -13°F ~ 158° F
      • Relative Humidity: 10~90% non-condensing
      • MTBF: 50,000 hours

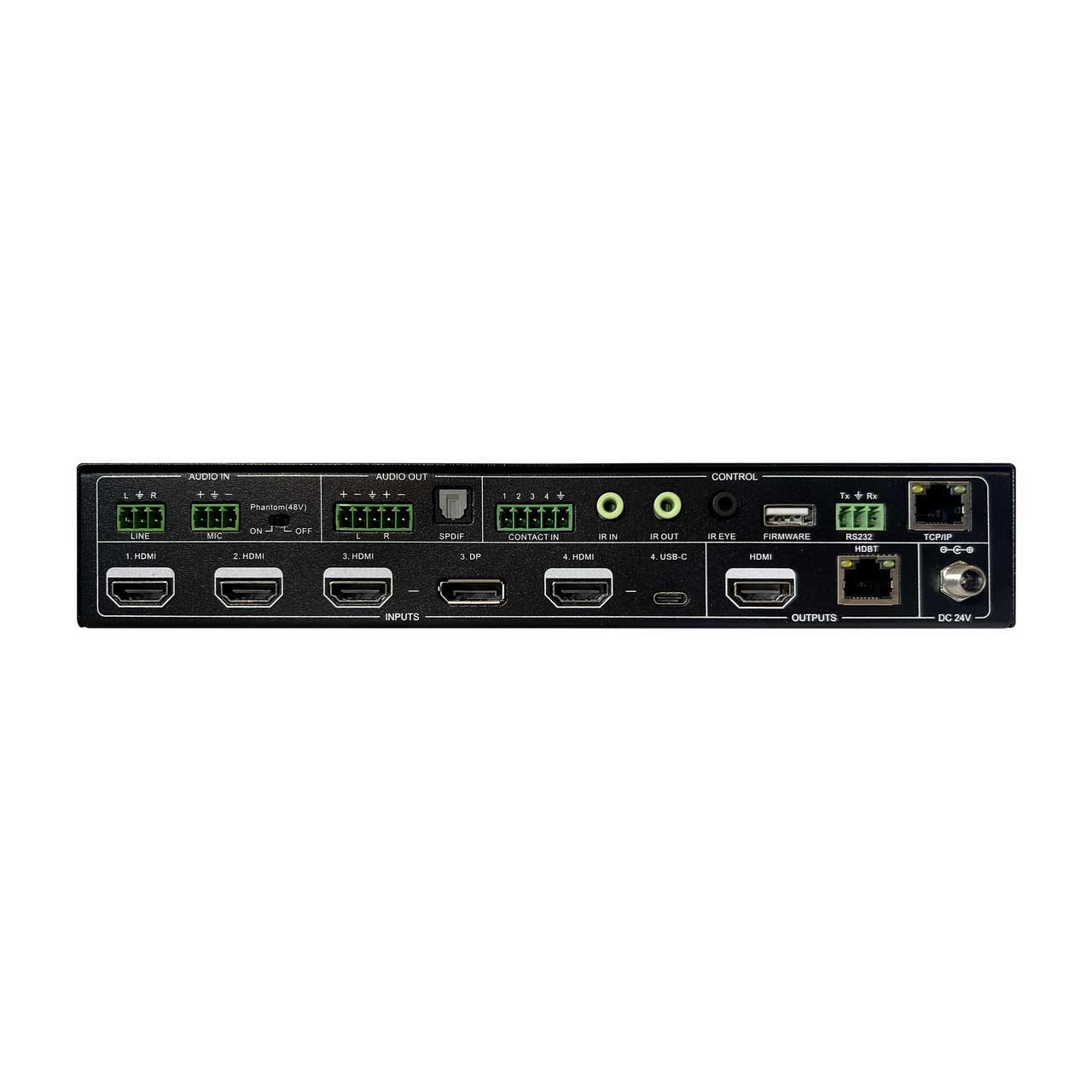

        Connections
      • Input Type(s)
        HDMI [Type-A female]
        (1) Display Port [Type-A]
        (1) USB-C [Type-C USB 3.0]
      • Output Type(s)
        (2) HDMI [Type-A female]
        (1) HDBaseT [RJ45]
      • Audio Input Type(s)
        (1) External balanced audio (L+R) for 1-HDBT input port [5-pin terminal block]
        (1) External balanced audio (L+R) for 2-HDBT input port [5-pin terminal block]
        (1) External balanced audio (L+R) for 3-HDBT input port [5-pin terminal block]
        (1) Stereo auxiliary audio for 6-VGA input port [3.5mm jack]
        (1) Balanced MIX audio [5-pin terminal block]
      • Audio Output Type(s)
        (1) Balanced audio (L+R) for 1-HDMI output audio de-embedding [5-pin terminal block]
        (1) Digital SPDIF audio (L+R) for 1-HDMI output audio de-embedding [Toslink connector]
        (1) Balanced audio (L+R) for 2-HDBT output audio de-embedding [5-pin terminal block]
        (1) Digital SPDIF audio (L+R) for 2-HDBT output audio de-embedding [Toslink connector]
      • Control Ports
        (1) RS232 [3-pin terminal block], (2) Relay [3-pin terminal blocks]
        (1) IR Eye [3.5mm jack], (2) IR in [3.5mm jacks]
        (1) IR out [3.5mm jack], (1) TCP/IP [RJ45]
        (1) Firmware [Type-A USB]

        Enclosure
      • Enclosure Type: All metal, black powder coat finish

    • Item Includes:

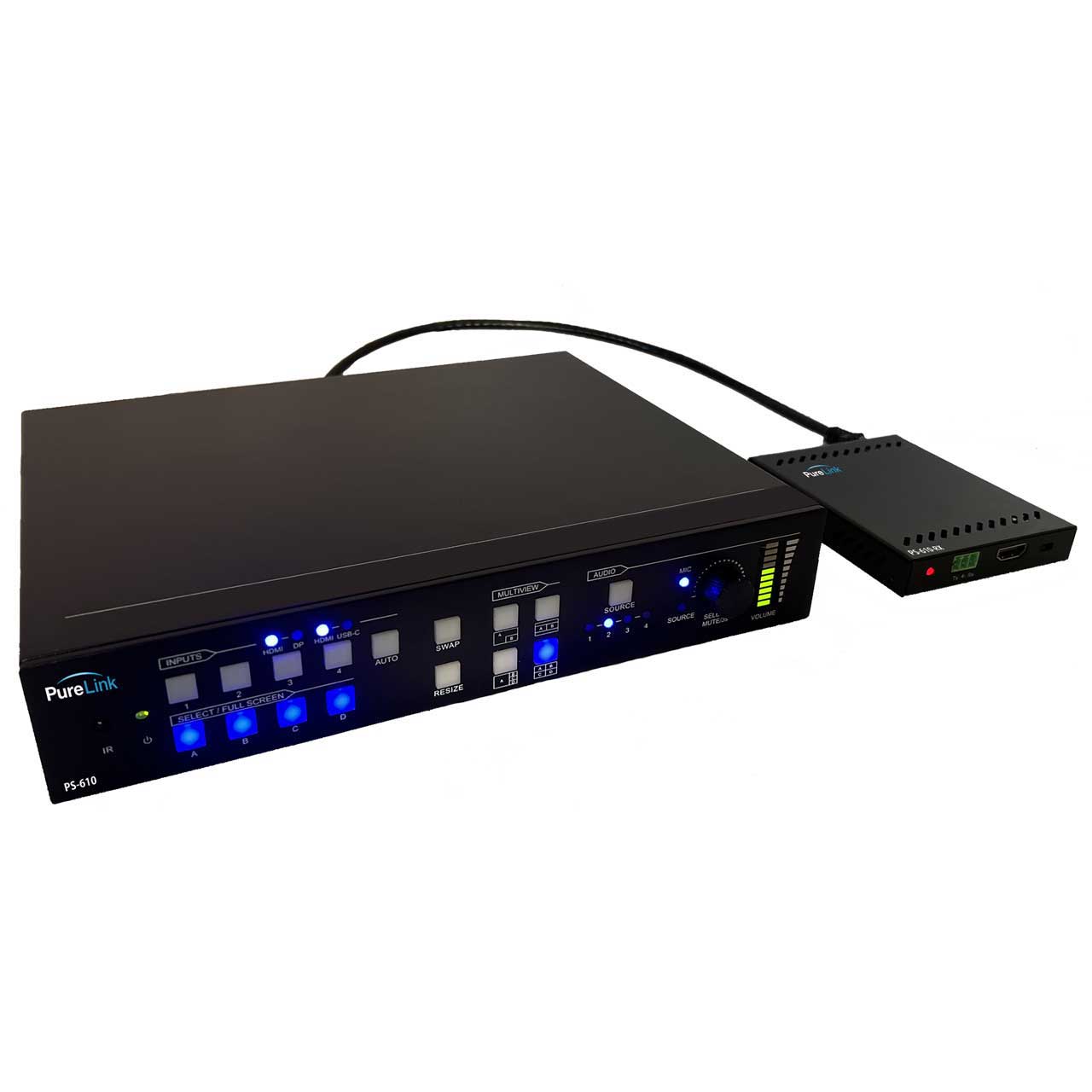

      • 1x PureLink PS-610 HDTools 6x1 4K30 Seamless Multiview Presentation Switcher - HDMI/DisplayPort/USB-C

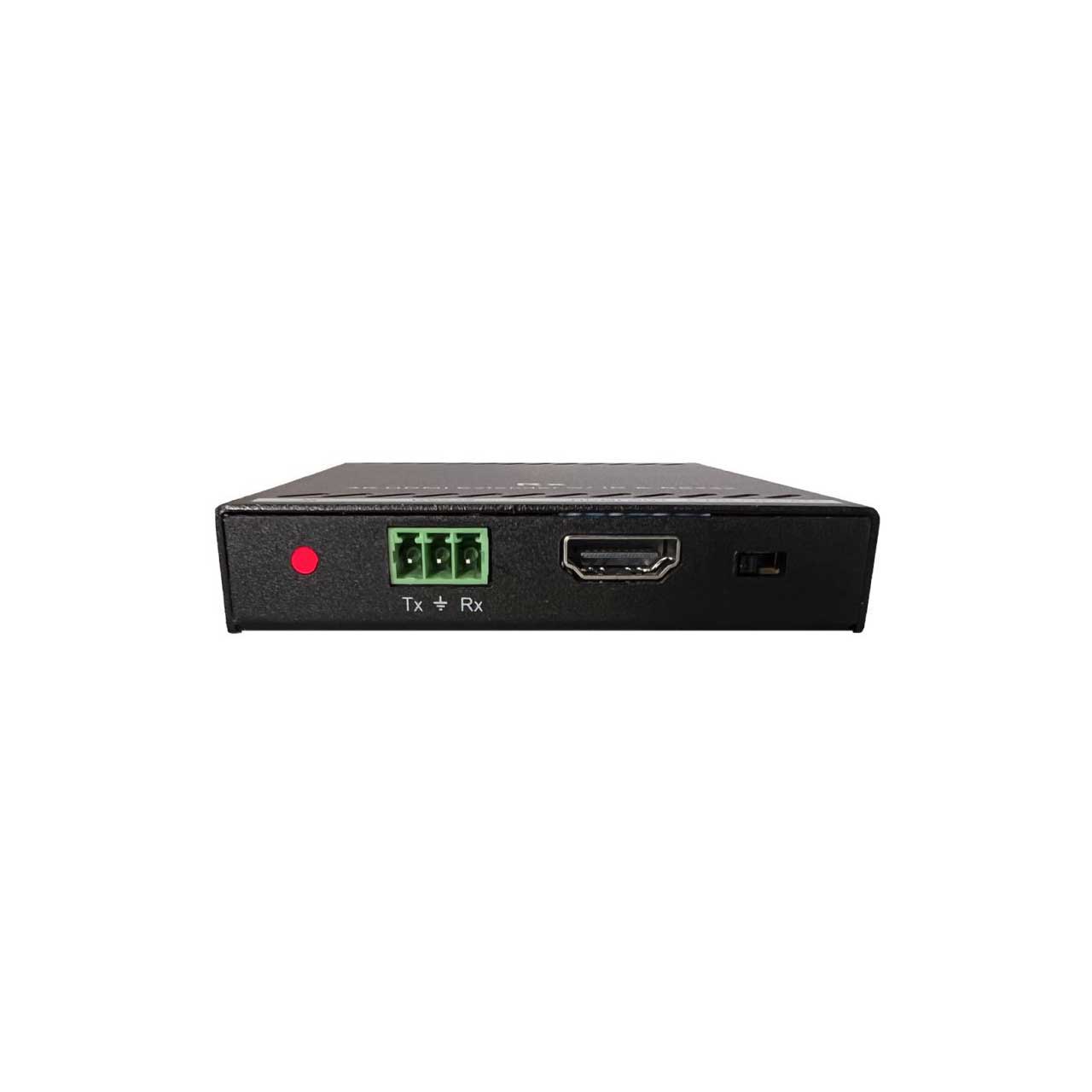

      • 1x PS-610-RX HDBaseT Receiver

    • Warranty:

      • 3-Years
