PureLink PushGO ALTA Pre-Programmed 4 Person Meeting Room Solution w/ Touch Screen Controller and 8-Port Network Switch

PUSH-GO-ALTA - Overview

• Features:

  • Pre-Programmed: Ready to use out of the box, eliminating installation complexity.
  • Complete Solution: Includes all essential components for a a fully functional meeting space.
  • Plug-and-Play: Deploy in minutes with no technical expertise required.
  • Built-In Compatibility: Works seamlessly with Zoom, Teams, Webex and more.
  • Scalable: Adapts to any room type, from small huddle rooms to large presentation environments.


• Specifications:

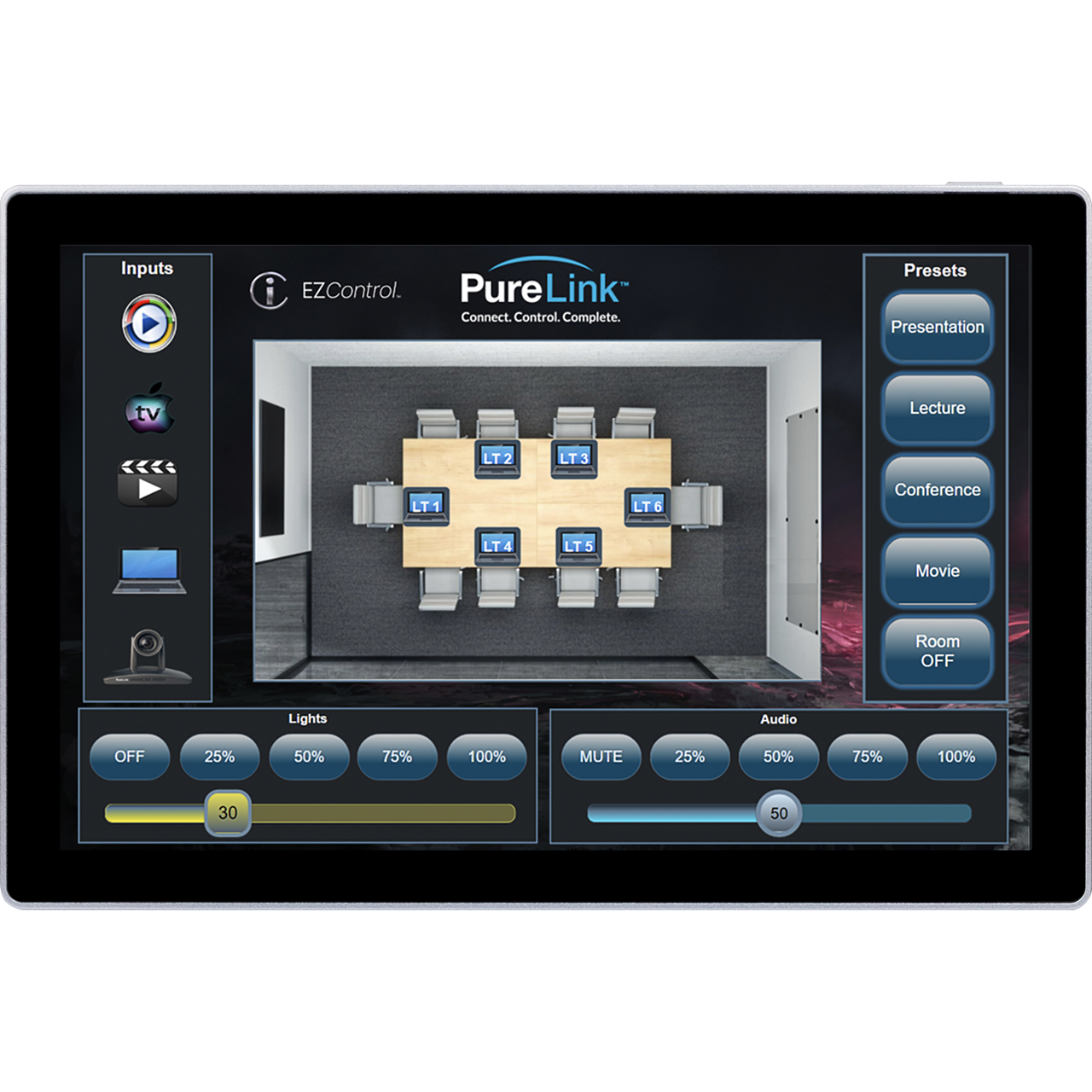

  iCON-T10 Touch Screen Controller
  • Power Supply: 100VAC - 240VAC 50/60Hz
  • Power Supply Output: PoE 802.3af
  • Operating Temperature: 32°F - 117°F (0°C - 47°C)
  • Storage Temperature: 40°F - 158°F (-40°C - 70° C)
  • Relative Humidity: 0% - 90% non-condensing

    MVS-41 4K60 4x1 Switch
  • Input Signal Type: HDMI
  • Resolutions: 4K60/4K2K60 4:4:4
  • Supported Digital Audio Formats: 5.1/7.1CH, Dolby Digital/Plus, DTS, DTS High Res
  • Supported Audio Formats: PCM 2.0
  • HDCP Compliance: 2.2, 1.n
  • Compliance: HDMI 2.0b
  • Data Transfer Rate: 18 Gbps
  • Supported HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
  • Control Options: Front panel; IR remote, RS232 API
  • Power Consumption: 85 Watts (max)
  • Power Supply: 100VAC - 240VAC 50/60Hz
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% non-condensing
  • Inputs: 4x HDMI Type A
  • Outputs:
    - 1x HDMI Type A
    - 2x RCA L/R Audio Out
    - 1x SPDIF Toslink
  • Enclosure Type: All metal, black powder coat finish
  • Product Dimensions: 8.7" x 3.9" x 1.2"
  • Product Weight: 1.37lbs

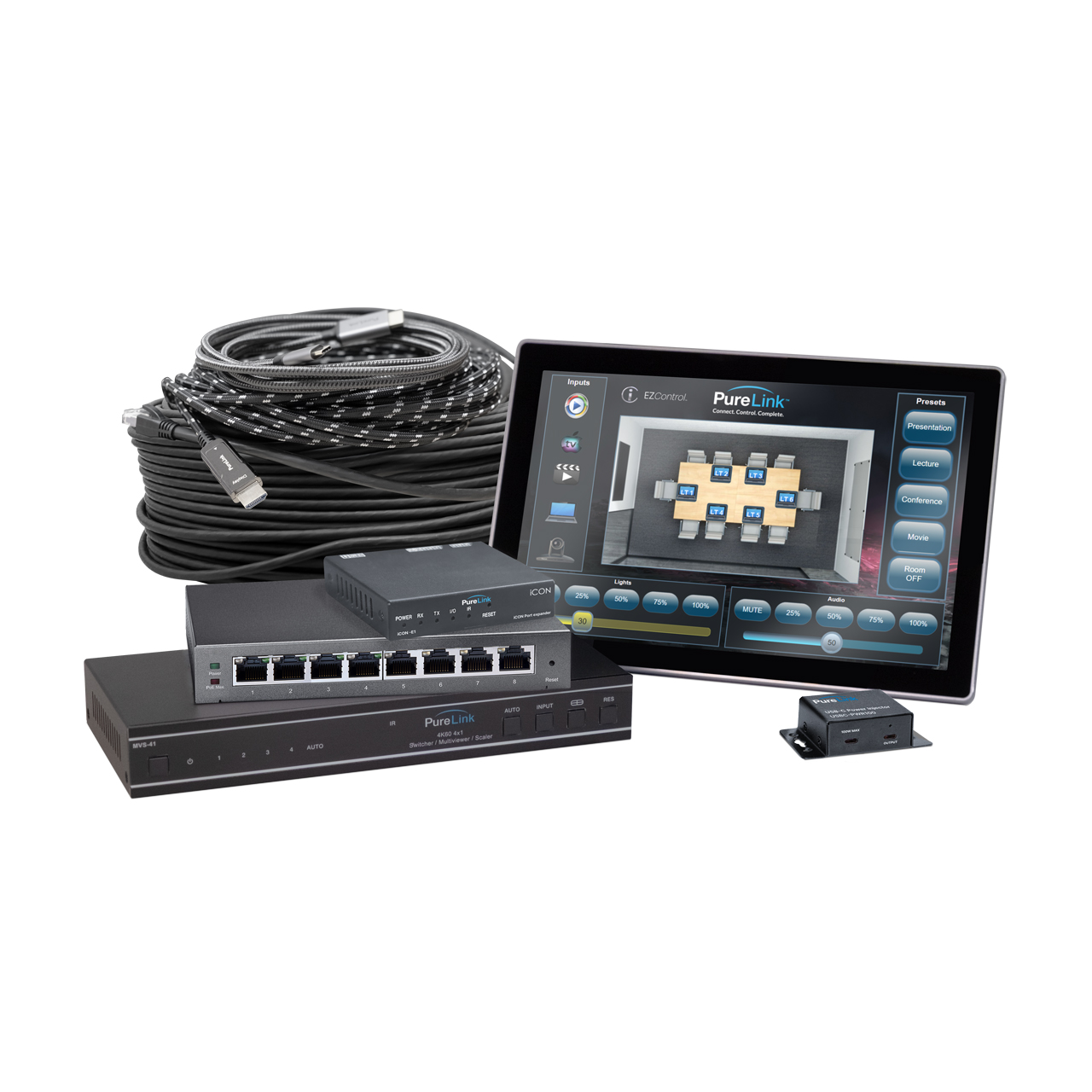

• Item Includes:

  • 1x iCON-T10 Touch Screen Controller
  • 1x iCON-E1 Control Port Expander
  • 1x 8 Port PoE Network Switch
  • 1x 8 Port PoE Network Switch Power Supply
  • 1x MVS-41 4K60 4x1 Seamless Switcher
  • 1x MVS-41 Power Supply
  • 1x USB-C Power Injector
  • 1x USB-C Power Injector Power Supply
  • 5x 3 Meter HDMI to HDMI Cable
  • 1x 15 Meter Mini Phoenix RS-232 Cable
  • 3x 10 Meter Ethernet Cable
  • 4x 3 Meter USB-C to HDMI Cable
  • 1x 3 Meter USB-C to USB-C Cable
  • 1x 7.6 Meter Mini Phoenix to 3.5mm Female Cable
  • 1x 10 Meter 3.5mm to IR Blaster Cable


• Warranty:

  • 5 Year Warranty
