Belden 9842 2 Pair 24 AWG RS-485 Computer Cable - 100 Foot

ITEM #: BL-9842-100 MFG #: 9842 060100

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$458.73

Our Price:

$259.96

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    9842 060100 - Overview

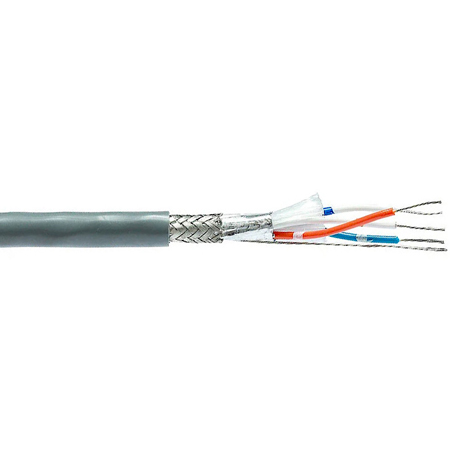

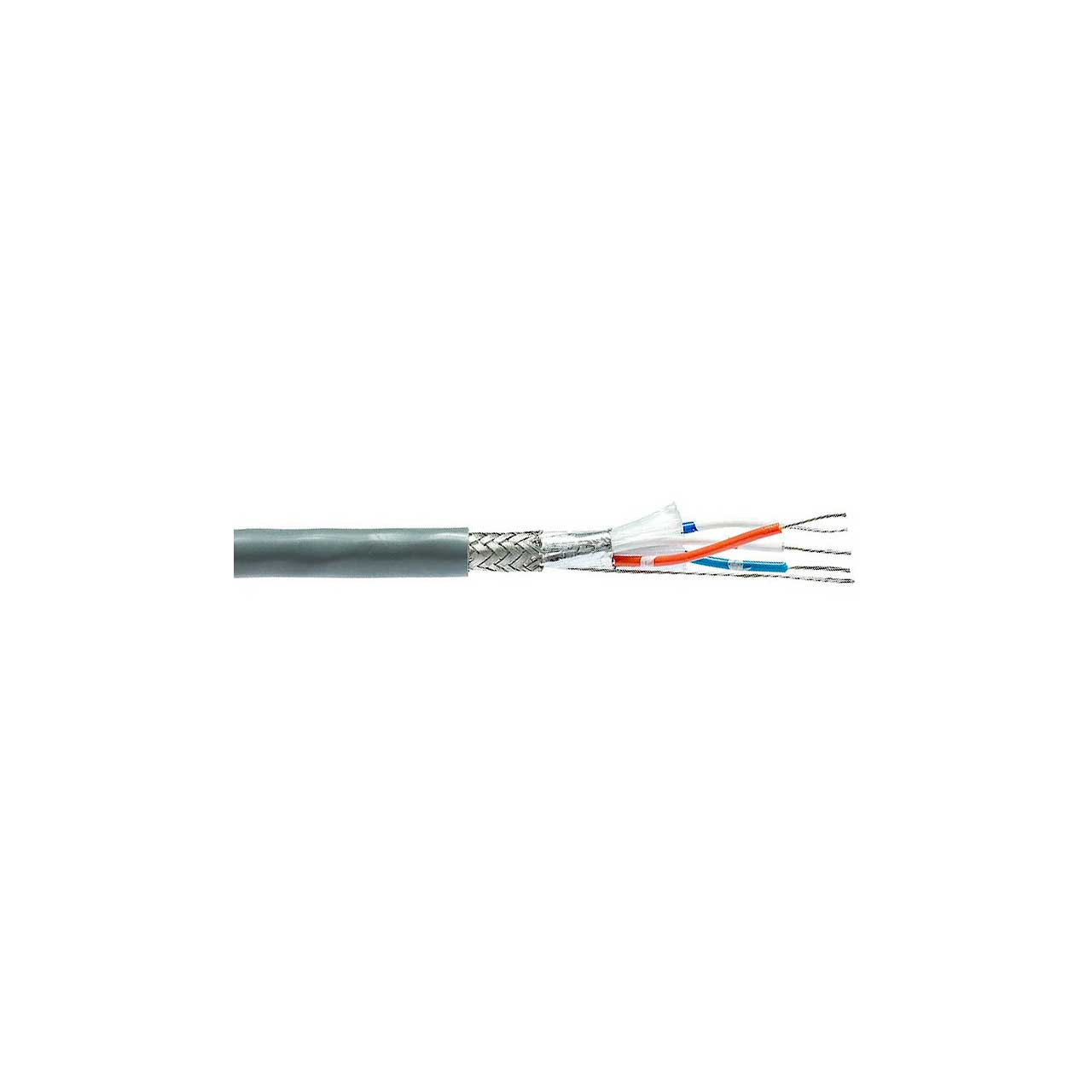

    Belden 9842 is a 2 pair, 24 AWG, stranded (7x32), RS-485 Computer cable with TC conductors, polyethylene insulation, twisted pairs, overall Beldfoil TC braid shield ® (100% coverage) in a PVC jacket. Suitable for RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v,); Low Voltage Digital Control (24v,); Line Level Audio; Panel Wiring; serial communications (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc.

    • Specifications:

      • AWG: 24
      • Stranding: 7x32
      • Material: TC - Tinned Copper
      • Nominal Diameter: 0.021 in
      • Conductor Count: 2
      • UL Voltage Rating: 300 V (CM), 30 V (UL AWM 2919)
      • UL Rating: 80°C (UL AWM 2919)
      • Operating: -30°C to +80°C
      • Stationary Min.: 3.5 in
      • Max. Pull Tension: 87 lbs
      • Bulk Cable Weight: 49 lbs/1000ft
      • Environmental Suitability: Indoor
      • Flammability / Fire: Resistance: IEC 60332-1-2
      • NEC / UL Compliance: Article 800, CM
      • AWM Compliance: 2919
      • CEC / C(UL) Compliance: CM
      • CPR Euroclass: Eca
      • European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)

    • Item Includes:

      • 1x Belden 9842 2 Pair 24 AWG RS-485 Computer Cable - 100 Foot

    • GTIN:

      0612825259510
