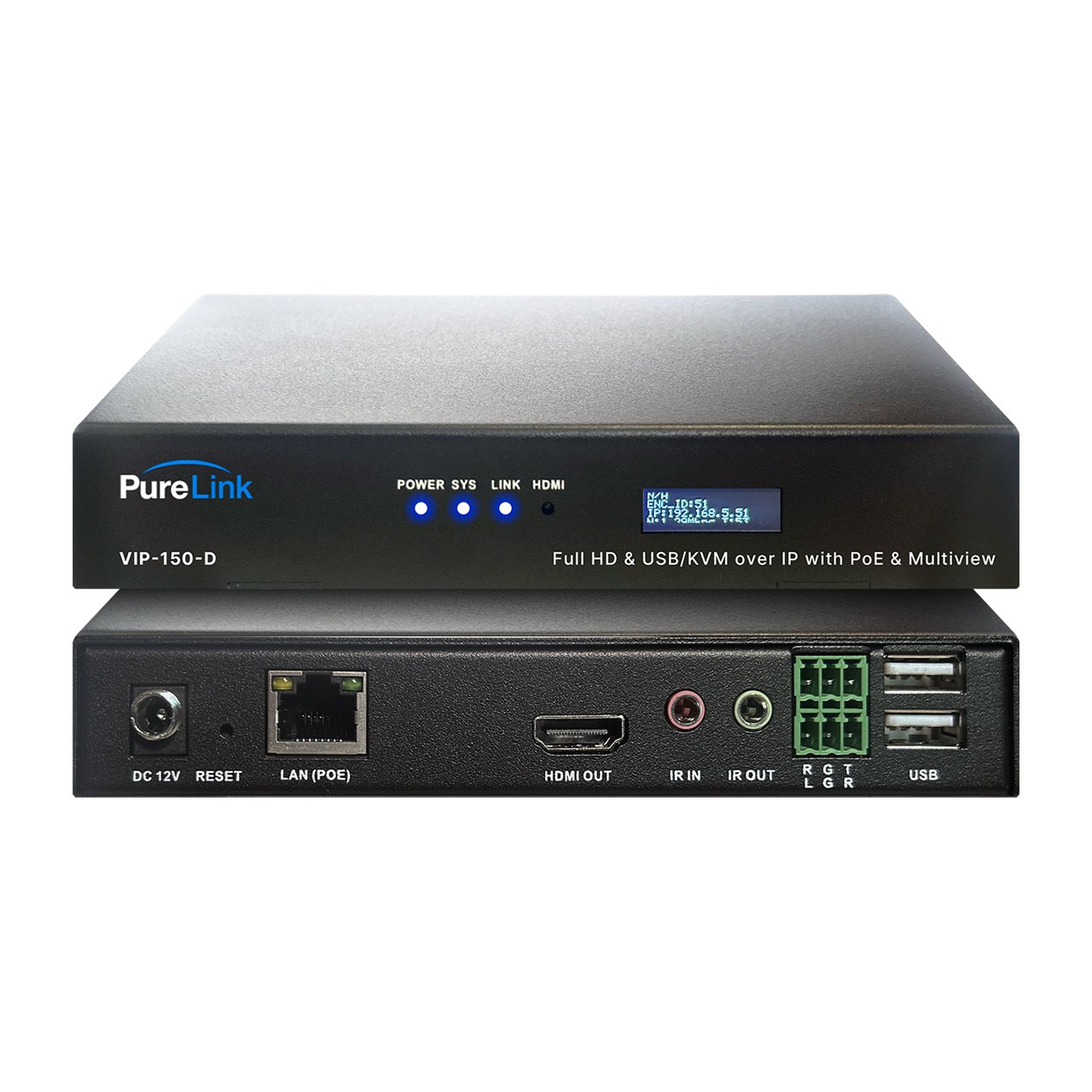

PureLink VIP-150-D Full HD HDMI and USB/KVM over IP with PoE and MultiView - Decoder

ITEM #: PLK-VIP-150-D MFG #: VIP-150-D

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$599.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


VIP-150-D - Overview

The PureLink VIP-150-D is a Full HD HDMI & USB/KM AV over IP Decoder, part of the VIP-150 Multiview AV over IP system, delivering high-quality 1080P60 4:4:4 video, USB, and high-res audio over IP networks. It supports point-to-point extension up to 394ft (120m) via Cat6a and accommodates various signal types for dependable distribution, switching, and matrixing needs. The VIP-150 AV over IP system provides instant image switching and easy connection of inputs and outputs via the visual VIP-150 iCON Lite control interface. VIP-150 iCON Lite also makes creating a multiview arrangement on your display simple with drag and drop. Also, build up to 10x10 video walls easily, and embedding and de-embedding audio is automatic by simply connecting your auxiliary audio input, or connecting the audio output of the decoder to your audio system or processor. Grab the RTSP stream to display thumbnails on your control interface for easy identification of the source program, for assignment to your displays.

The VIP-150 is designed as a perfect solution for:
Restaurants and Bars
Fitness Centers
House of Worship
Museums
Hospitality
Retail Stores and Malls
Bowling Centers

  • Features:

    • Easy and Simple operation using PureLink’s iCON and iCON Lite control
    • Designed for quick deployment and fast implementation time
    • VIP-150-D: HDMI Output, analog two-channel audio insertion
    • Extend encoders and decoders up to 328 ft. (100m) over CAT5e
    • Up to Full HD 1080P60
    • HDMI 1.3, HDCP 1.3
    • Multiview: up to four encoder streams displayed on decoder(s)
    • H.264/H.265 codec for high-quality, ultra-low bandwidth efficiency streams
    • Audio de-embedding on the encoder
    • USB 1.1 keyboard, mouse extension
    • Comprehensive diagnostics via API – device discovery, signal data, etc.
    • Instant switching (same resolutions)
    • Multiple control interfaces – iCON Control, and 3rd party control development via API
    • Video wall processing (up to 10x10)
    • Bi-directional IR and RS-232 extension
    • RTSP stream, useful for preview of inputs and outputs
    • Powered via PoE 802.3af from a PoE network switch
    • Matrix switching up to 999 sources and 65K displays
    • Rack-mount options

  • Specifications:

      Performance
    • Supported Distance: 328ft (100m) CAT5e and above
    • Supported Resolutions: Up to 1080P60
    • Video Input Format: HDMI 1.3
    • Video Output Format: HDMI 1.3
    • Supported Audio Formats: LPCM
    • Power Supply: 90-240 VAC to DC 12V wall adapter
    • RS-232: Extension
    • IR Extension: Bi-directional
    • PoE (Power Over Ethernet): 802.3af
    • Data Rate: 7-40 Mbps
    • Power Supply: DC 12V 5A, 20W
    • Connections
    • Control Ports:
      - RS-232 - 3-pin mini phoenix
      - LAN - RJ45
    • Audio Output Type(s): Decoder - 3-pin mini phoenix - Unbalanced analog L/R embedding
    • IR Receiver In/Out - 3.5mm jack
    • Control/Automation
    • Control AutomaYon: iCON, iCON Lite
    • API: UDP/TCP - JSON

  • Item Includes:

    • 1x VIP-150-D

  • Warranty:

    • 5-Year Limited Warranty
