Palmer Audio PDACCAPO Re-Amplification Box


  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.


Items similar to the PLM-PDACCAPO

PDACCAPO - Overview

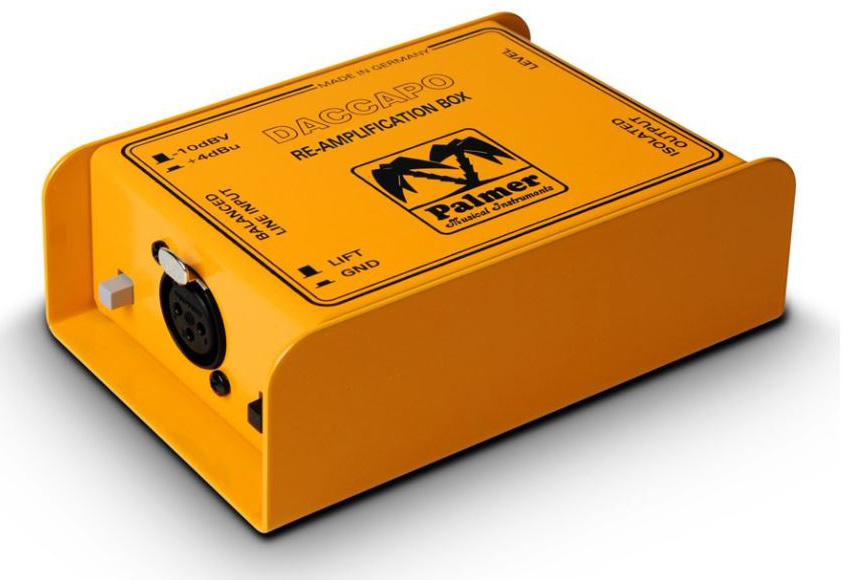

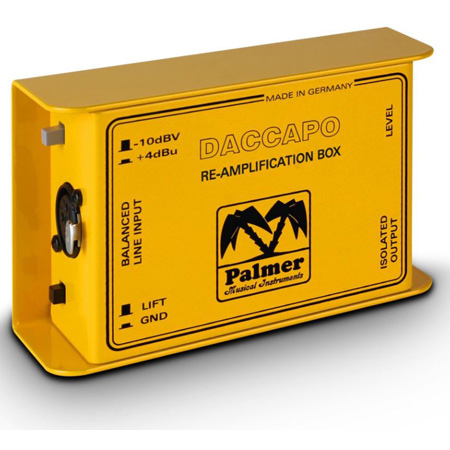

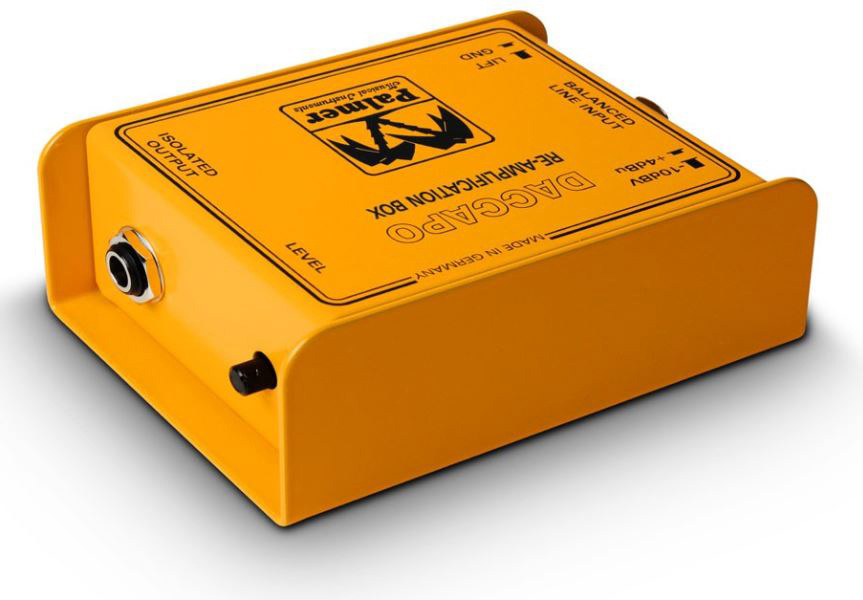

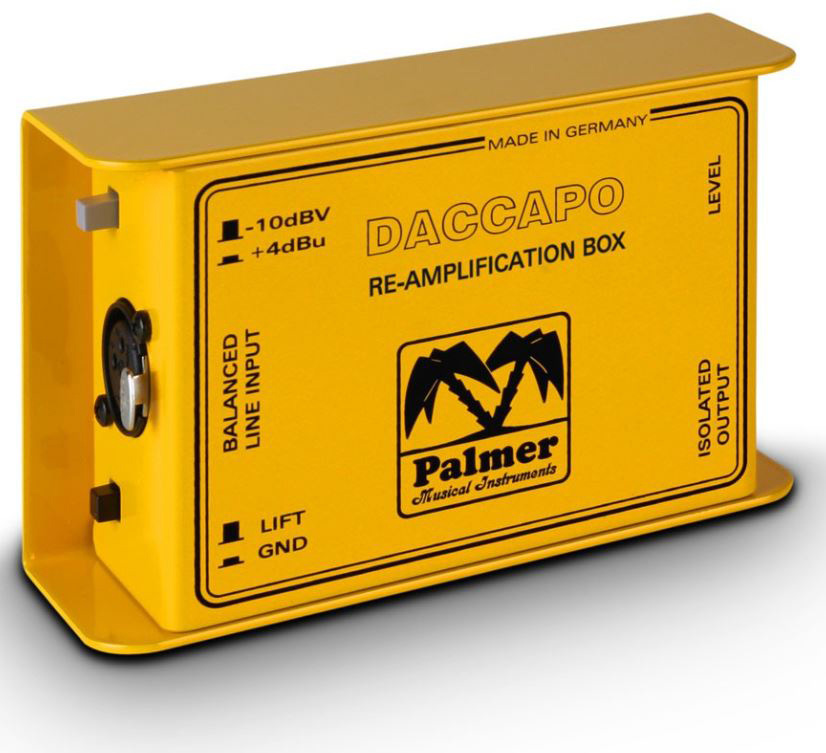

A Reamping box is mainly used in studios, with this box you can play back a recorded guitar signal (or any other instrument signal) and send it to an amplifier where it is picked up by microphones and recorded again. This way the recording engineer can experiment with the sound of an instrument. The Daccapo takes care of all impedance matching issues and also eliminates ground loop humming thanks to the use of a Transformer. The signal level to the amplifier can also be adjusted with a level pot.

  • Features:

    • Plays back a recorded guitar signal back through your amplifier + takes care of all impedance matching issues + eliminates ground loop humming + adjustable signal level
  • Specifications:

    • Product type: DI box
    • Type: passive
    • Channels: 1
    • Inputs: 1
    • input connectors: XLR
    • max. input level: +22 dBu
    • input impedance: 600 Ohm(s)
    • Outputs: 1
    • output connectors: 6.3 mm Jack
    • max. output level: + 22 dB
    • output impedance: 100 k Ohm(s)
    • frequency response: 20 - 20000 Hz
    • transformer balanced: yes
    • Ratio: Variabel
    • controls: Gain
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated
