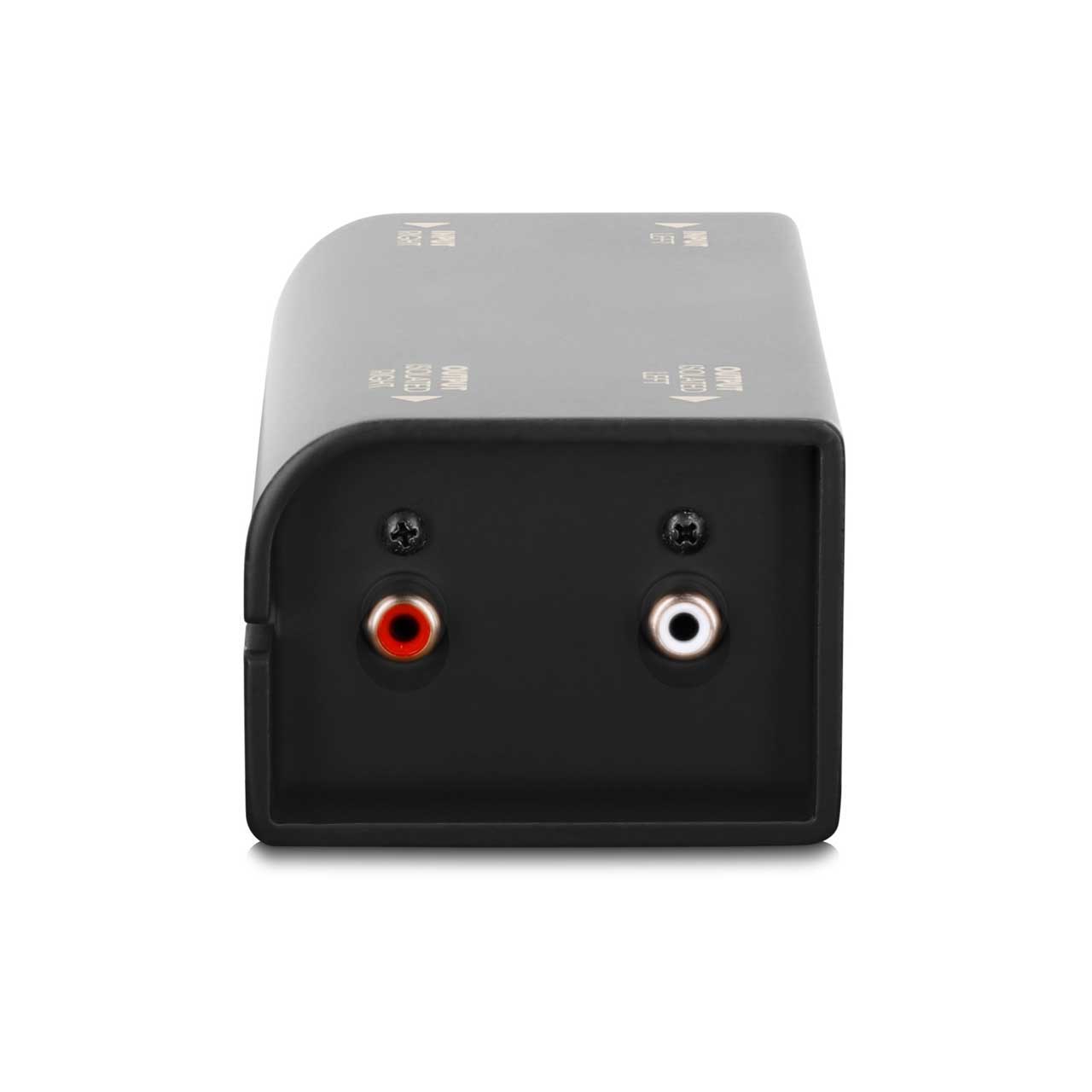

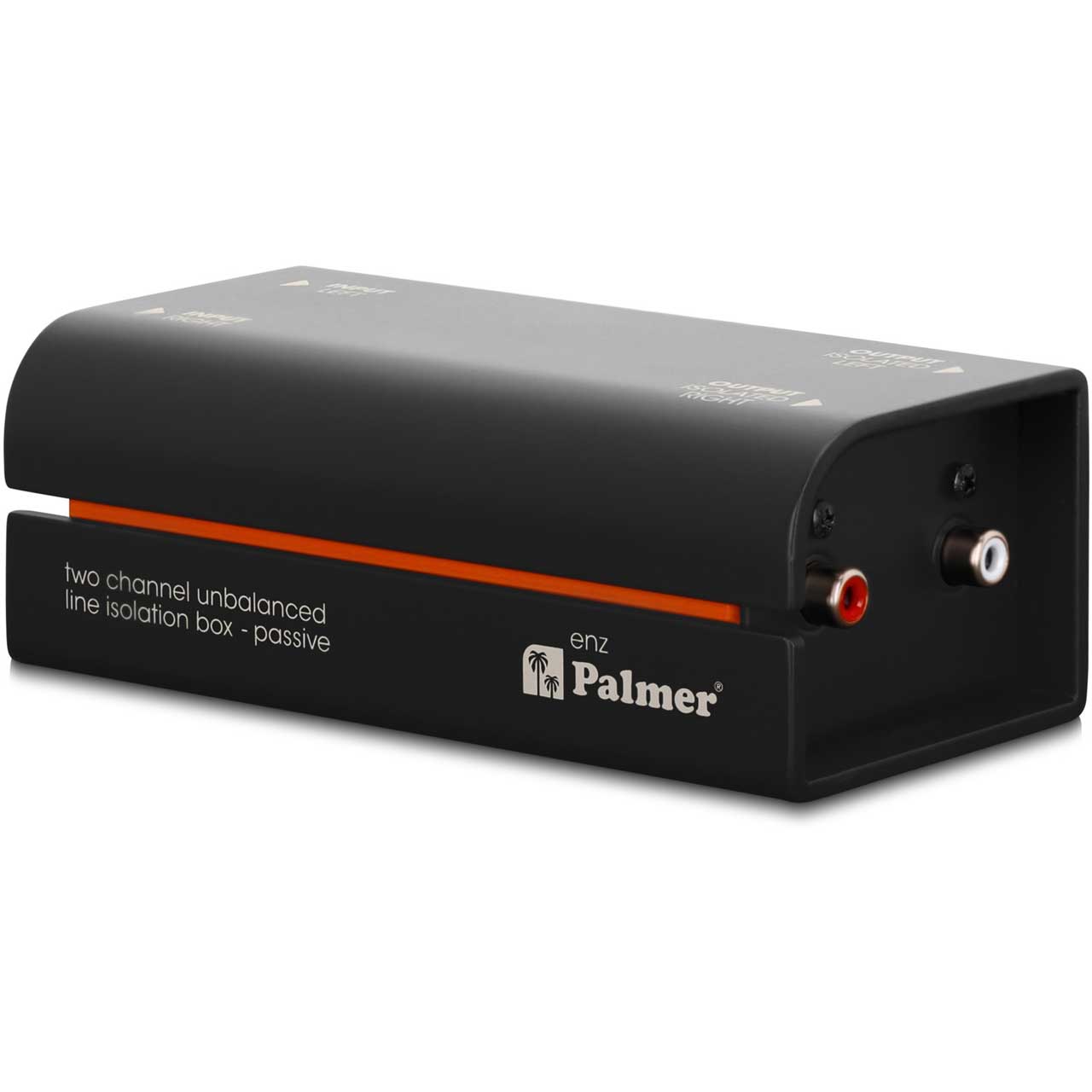

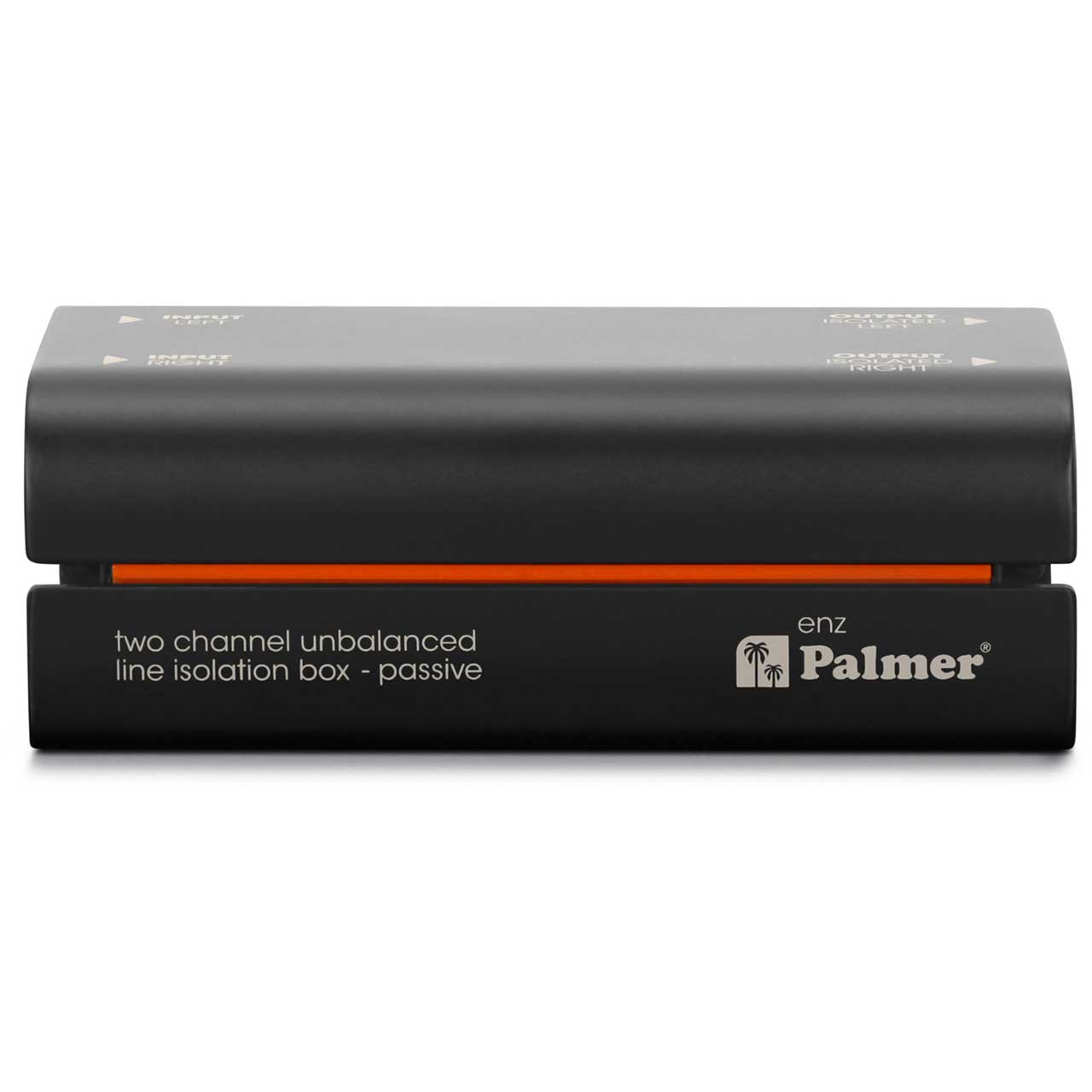

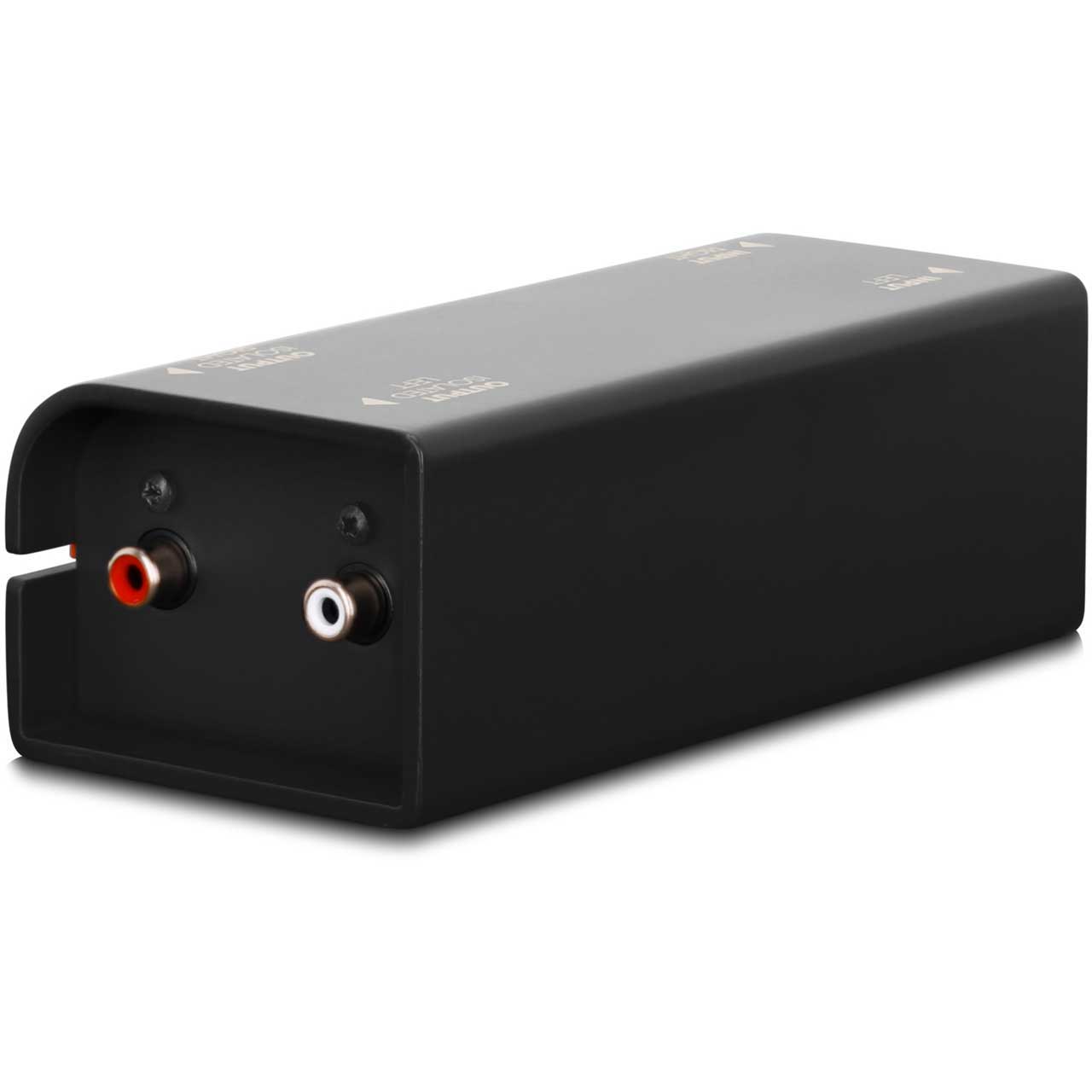

Palmer Audio ENZ Two Channel Unbalanced Line Isolation Box

PAL-PENZ - Overview

• Features:

  • Eliminates ground loop hum and interfering signals
  • Two channel
  • 2 RCA inputs
  • 2 RCA outputs
  • Galvanic isolation via transformer
  • No loss of sound quality
  • Perfect for HiFi systems, car stereos, presentations and installations
  • No power supply needed
  • Solid casing made of aluminium and steel

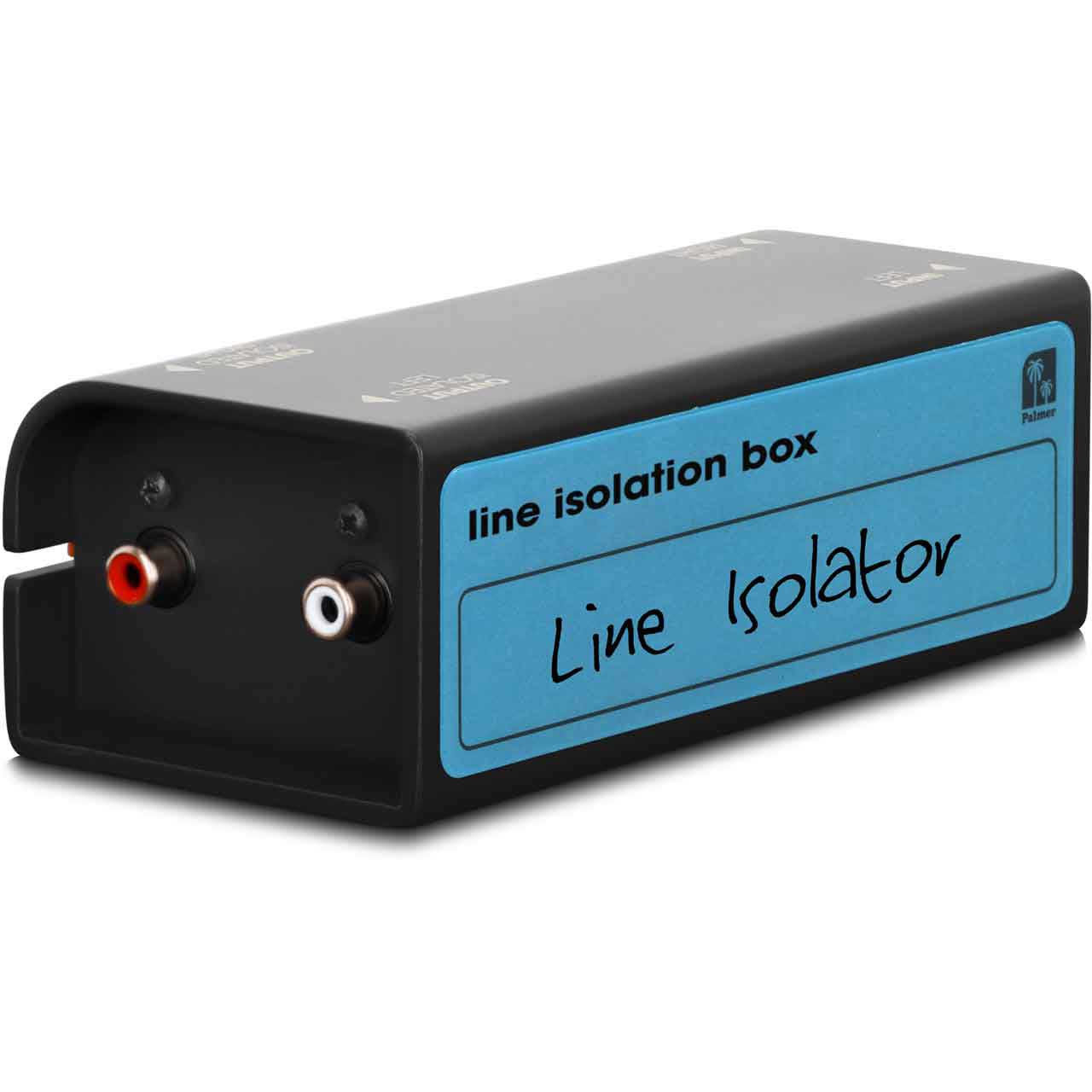

  • Incl. rewritable tour label for attachment onto the back of the enz
  • Engineered in Germany


• Specifications:

  • Product type: line isolator
  • Type: passive
  • Channels: 2
  • Transformer isolated: Yes
  • Inputs: 2
  • Input type: unbalanced
  • Input connectors: RCA
  • Outputs: 2
  • Output type: Unbalanced
  • Output connectors: RCA
  • Max. input level (< 1% THD, 20 Hz): + 14 dBu
  • Max. input level (< 1% THD, 1 kHz): +32 dBu
  • Frequency response (±0,2dB, relative 1kHz): 5 Hz - 20 kHz
  • Input impedance (1 kHz, Setting: 0 dB Pad, THRU): 16 kOhm
  • Output impedance (1 kHz, Setting : 0 dB Pad, THRU): 1,3 kOhm
  • THD (30 Hz, +4 dBu, unity, unweighted): < 0.15 %
  • THD (1 kHz, +4 dBu, unity, unweighted): < 0,003 %
  • IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0,003 %
  • Transformer ratio: 1 : 1
  • Ground lift switch: Yes
  • Housing: Aluminium continuous casting
  • Dimensions (W x H x D): 50 x 140 x 68 mm
  • Weight: 0,42 kg
  • Ambient temperature (in operation): - 20 - 70 °C
  • Relative Humidity: < 80% (non-condensing)
  • Accessories (included): Inscription label (tour label), rubber feet


• Warranty:

  • 5 Years


• GTIN:

  4049521659454
