Palmer Audio PRMPLS 4-channel Line Splitter
  • Palmer Audio PRMPLS 4-channel Line Splitter
  • Palmer Audio PRMPLS 4-channel Line Splitter
Questions? Ask a Markertek Expert:
800-522-2025 Email

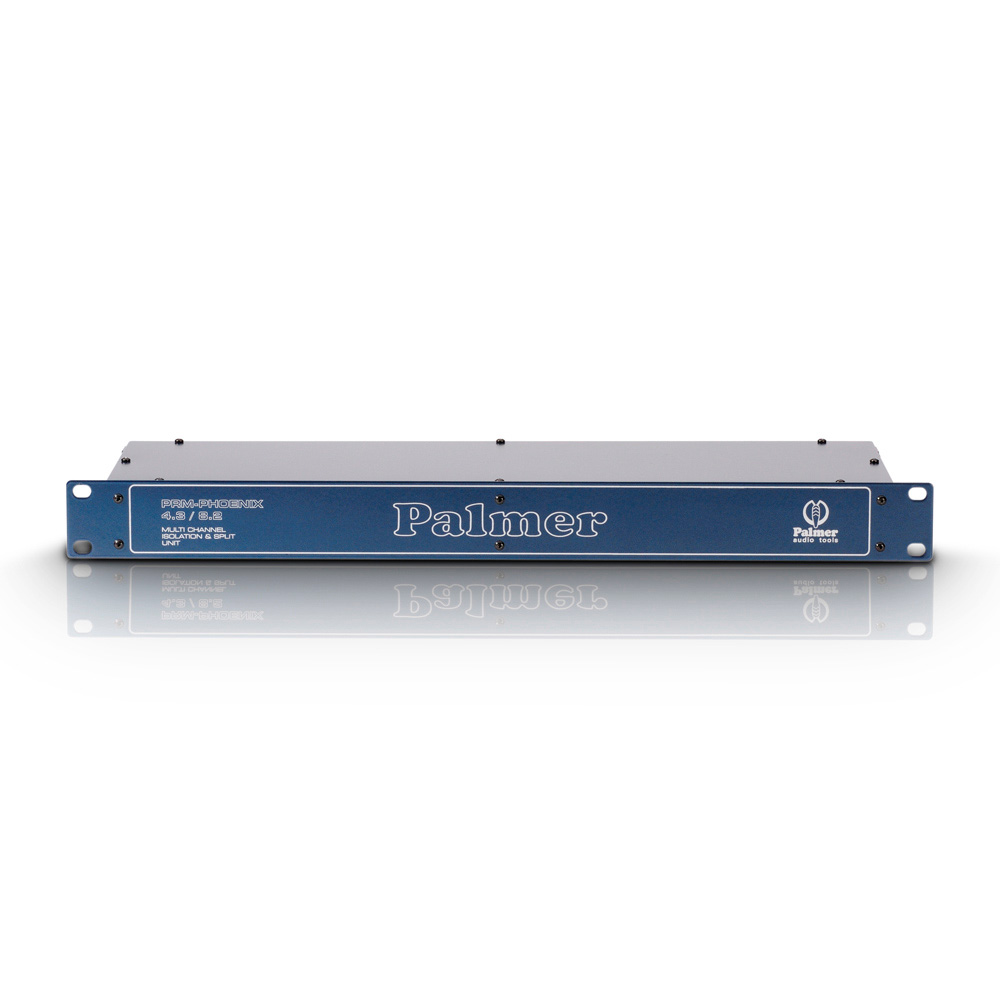

Palmer Audio PRMPLS 4-channel Line Splitter

Manufacturer: Palmer Audio

Item #: PLM-PRMPLS   •   MFG #: PRMPLS




In the installation sector, classic XLR-plug connectors are frequently impractical because for one thing they have to be soldered on site and for another they also require substantial space in the depth dimension. Thus the connectors know in technical jargon as Phoenix clamps are encountered much more often. The connection is pluggable on the one hand and the connections are screwed and not soldered. With the PRM-PHOENIX, Palmer is providing a 19” 1 U unit that is equipped with various high-quality transformers and solves ground loops and signal splitting problems. Up to four channels can be implemented with the following features: Input, parallel output (THRU), and two transformer balanced and galvanically isolated outputs.

  • Features

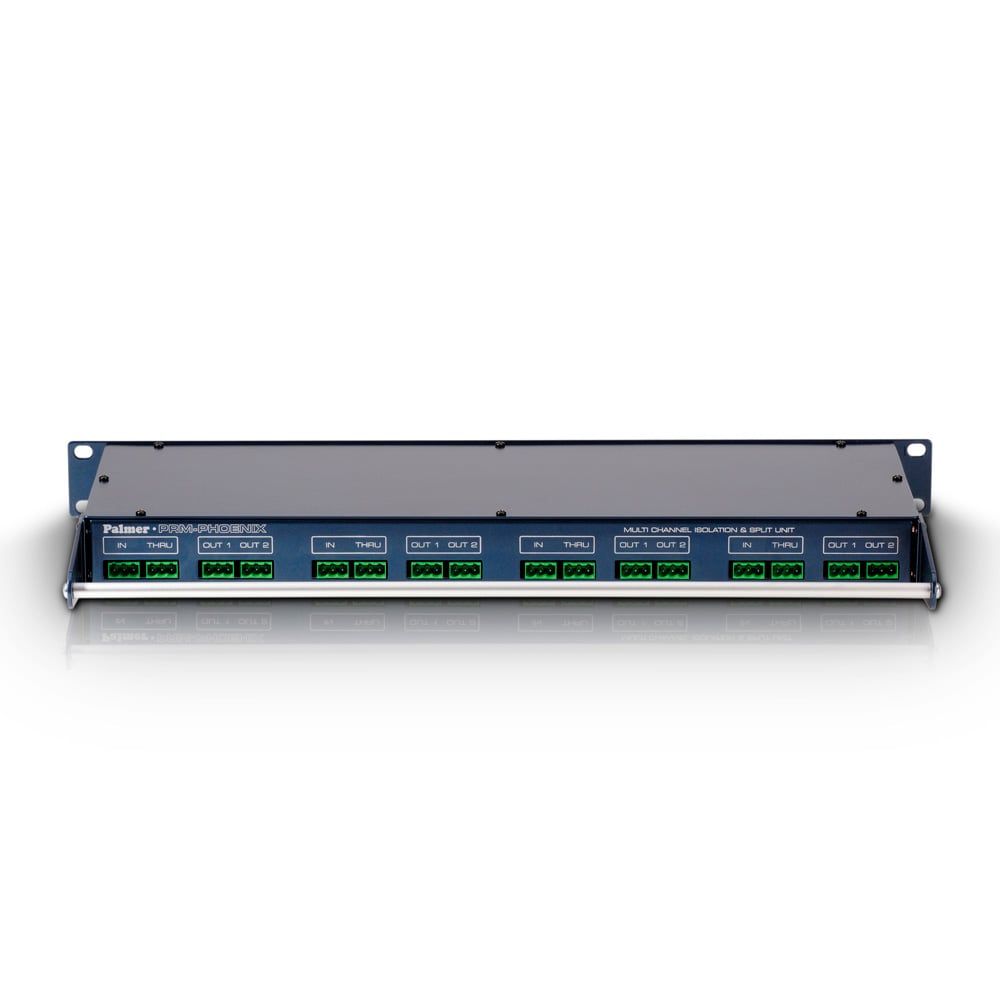

    • Multi channel isolation & split unit + 4 channels with: input, thru, and 2 transformer balanced and galvanically isolated outputs + Transformers optimized for line level + Resistance matrix for signal decoupling included
  • Specifications

    • Product type: splitter
    • Type: line split
    • split type: 1 in 2 + 1
    • Channels: 4
    • Inputs: 4
    • input connectors: Euroblock
    • max. input level: + 20 dB
    • number of split-outputs per canal: 2
    • THRU outputs/channel: 1
    • max. output level: + 20 dB
    • output connectors: Euroblock
    • transformer isolated outputs: yes
    • cabinet material: sheet steel
    • Cabinet / Housing surface: powder coated
