RDL EZ-ADA4 1x4 Stereo Audio Distribution Amplifier

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

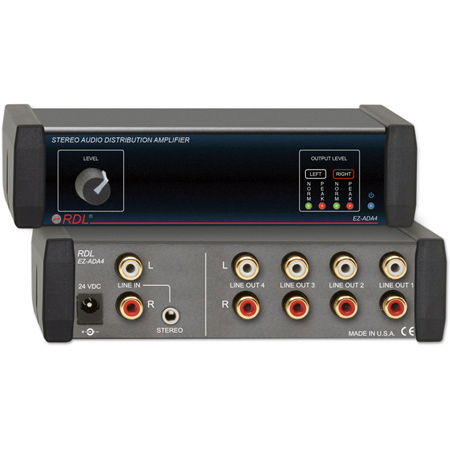

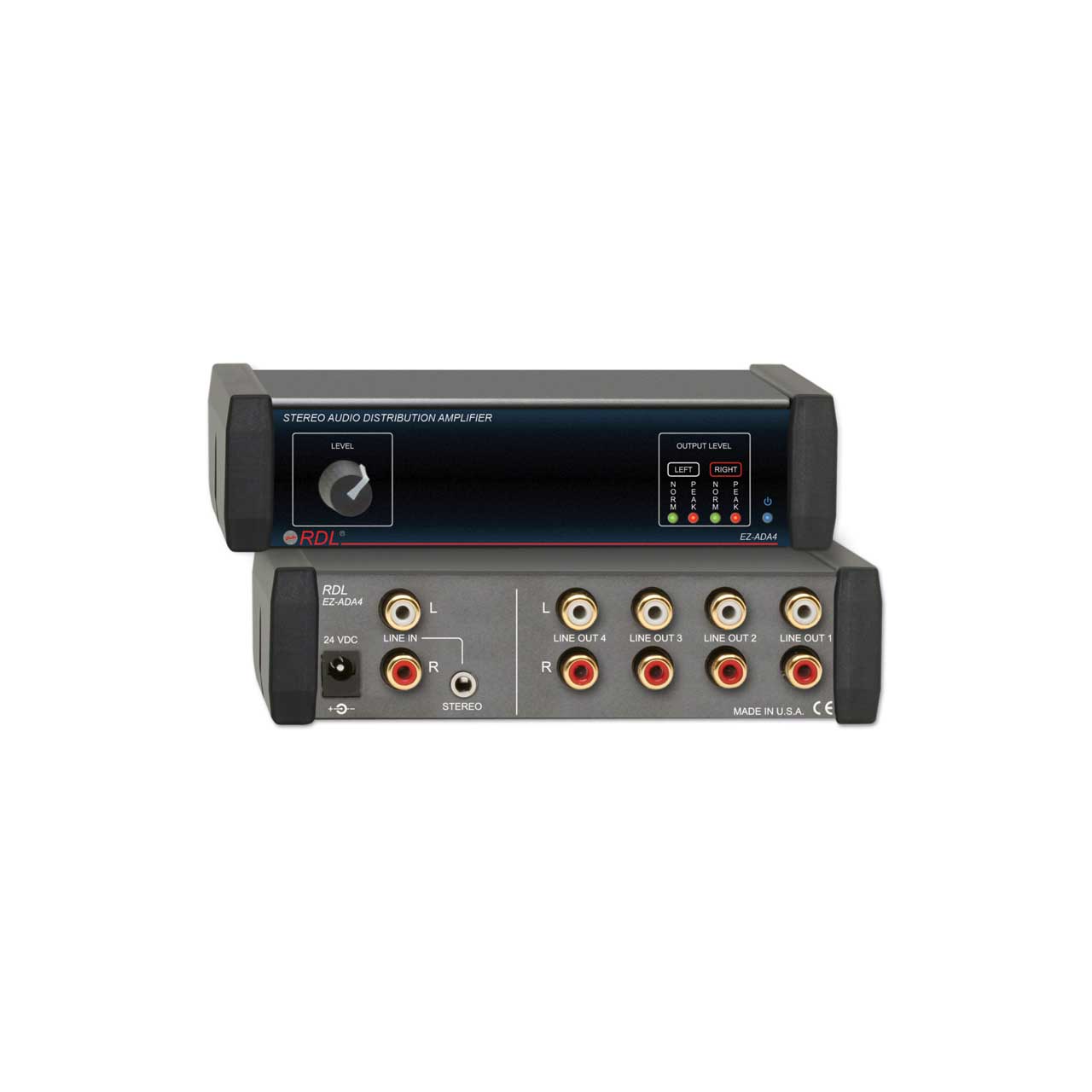

    RDL EZ-ADA4 1x4 Stereo Audio Distribution Amplifier

    Manufacturer: Radio Design Labs

    Item #: EZ-ADA4   •   MFG #: EZ-ADA4




    Share!





    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.


    • Features

      • One Stereo Input to Four Stereo Outputs
      • Unbalanced Inputs on MINI or RCA Jacks
      • Unbalanced Outputs on RCA Jacks
      • Inputs and Outputs on Rear Panel
      • Front-Panel LEVEL Control
      • Dual-LED VU Meter for Each Channel

    • Specifications

      • Inputs (2): Stereo on dual RCA jacks or stereo mini jack, > 10 k Ohm, -10 dBV nominal, +22 dBV max.
      • Level control: Off to 12 dB gain above nominal
      • Outputs (4): Stereo on dual RCA jacks, -10 dBV nominal, +16 dBV max.
      • Frequency Response: 10 Hz to 20 kHz (±0.01 dB)
      • THD+N: < 0.03%
      • Crosstalk: < -80 dB (1 kHz)
      • Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output
      • Noise: <-85 dB (below -10 dBV output)
      • 24 Vdc power supply current: 20 mA (idle), 60 mA (max.)
      • Case dimensions: 5.75" (14.6 cm)W x 3" (7.6 cm)D
      • Mounting size: 1/3 rack width.
      • Power supply included




    Add Accessories for your EZ-ADA4:
