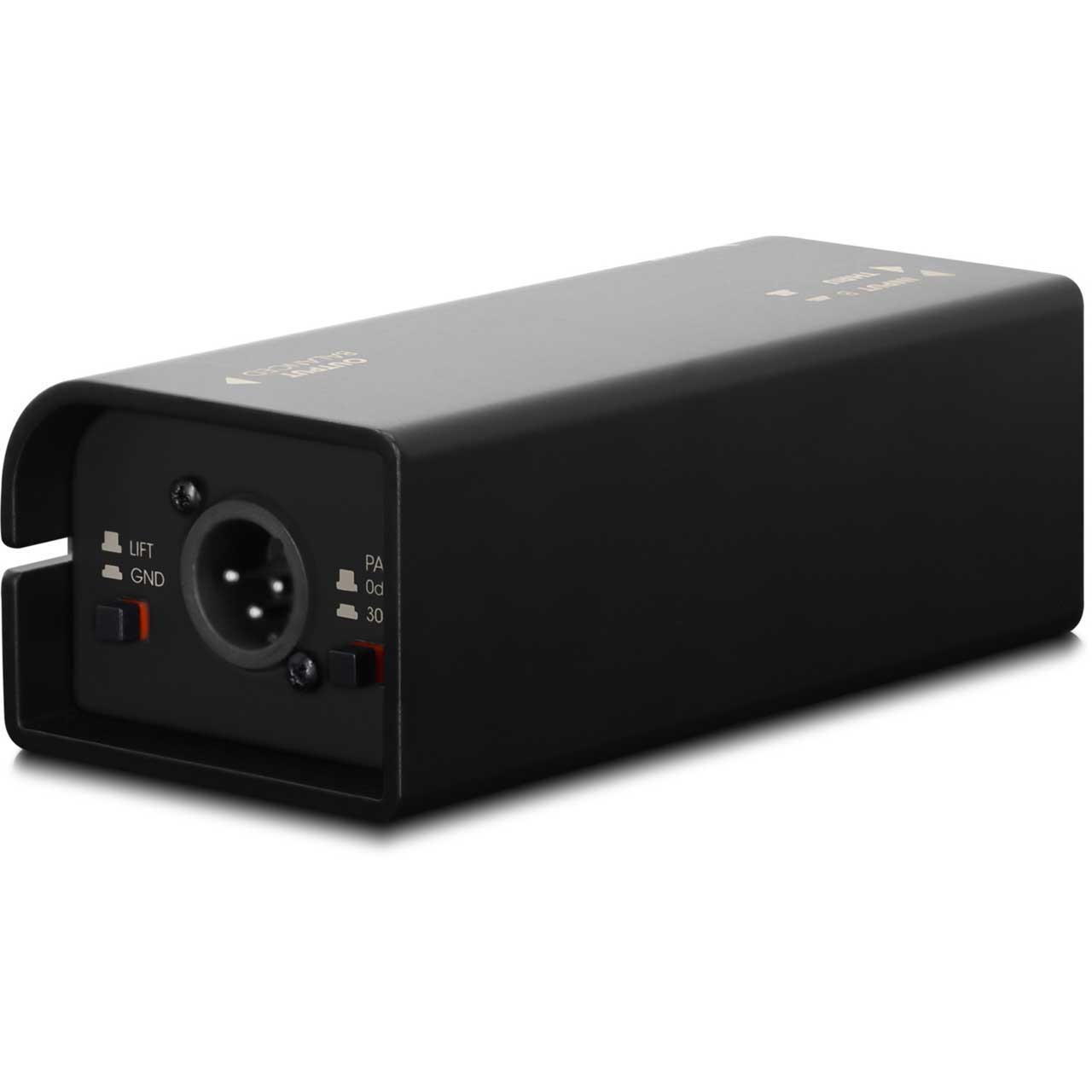

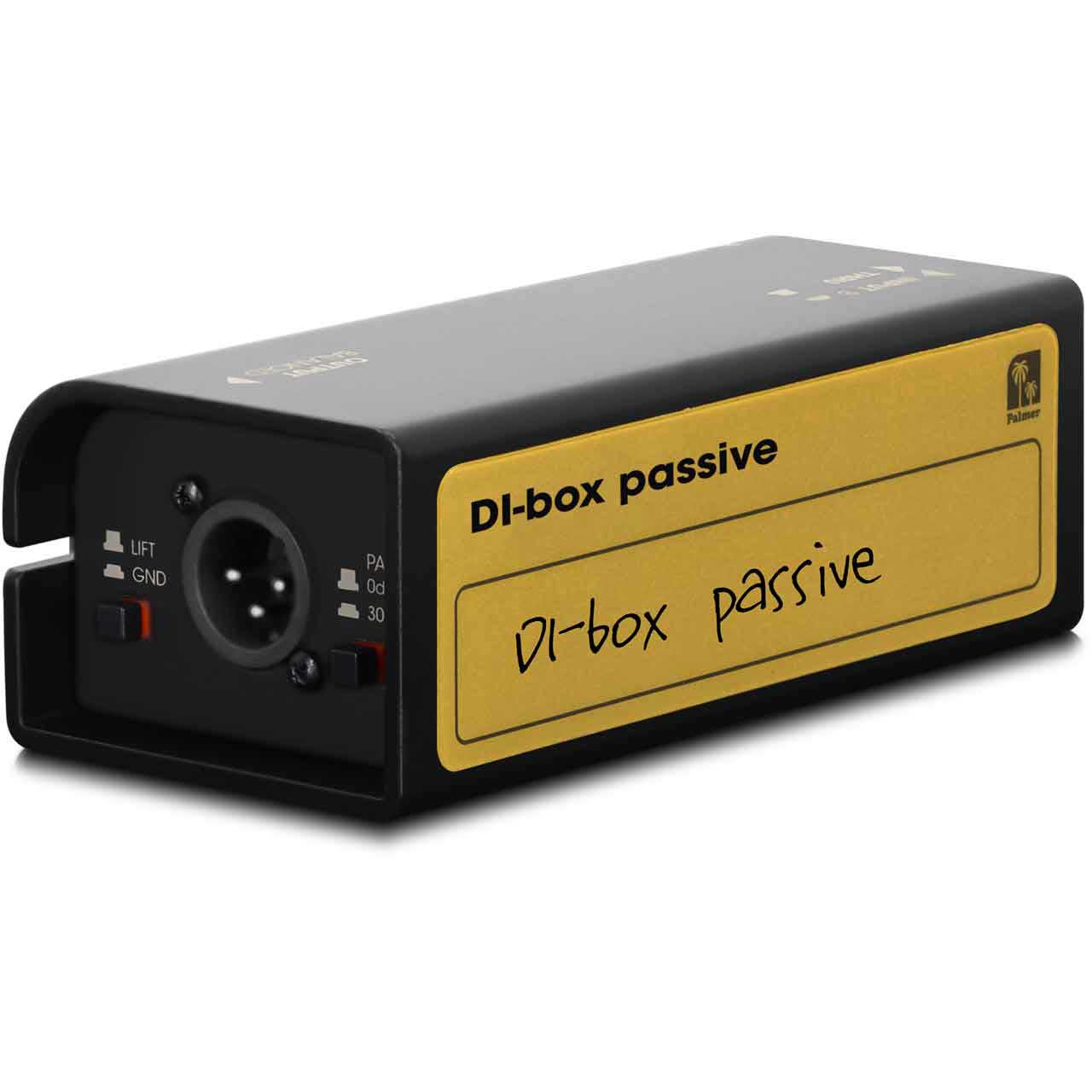

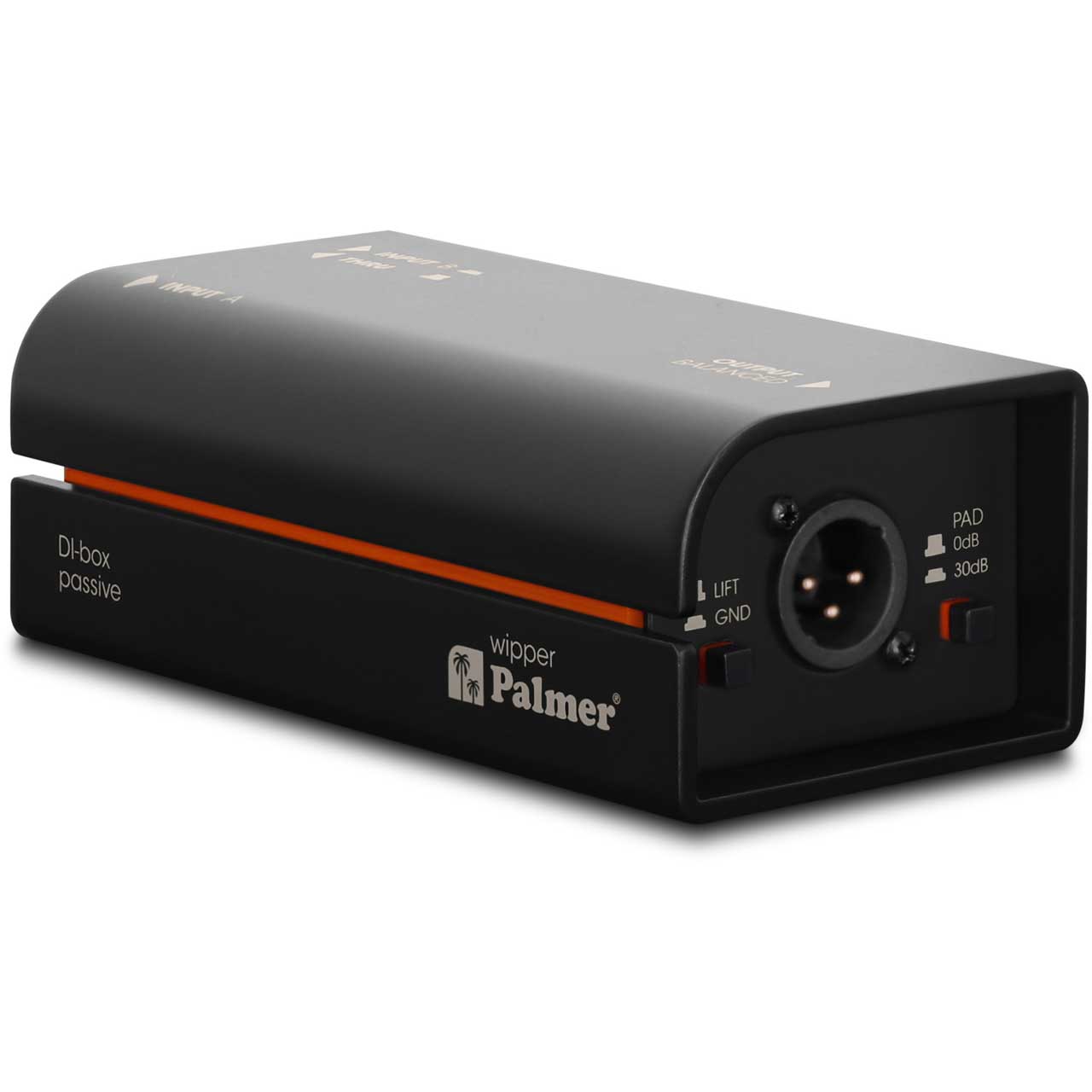

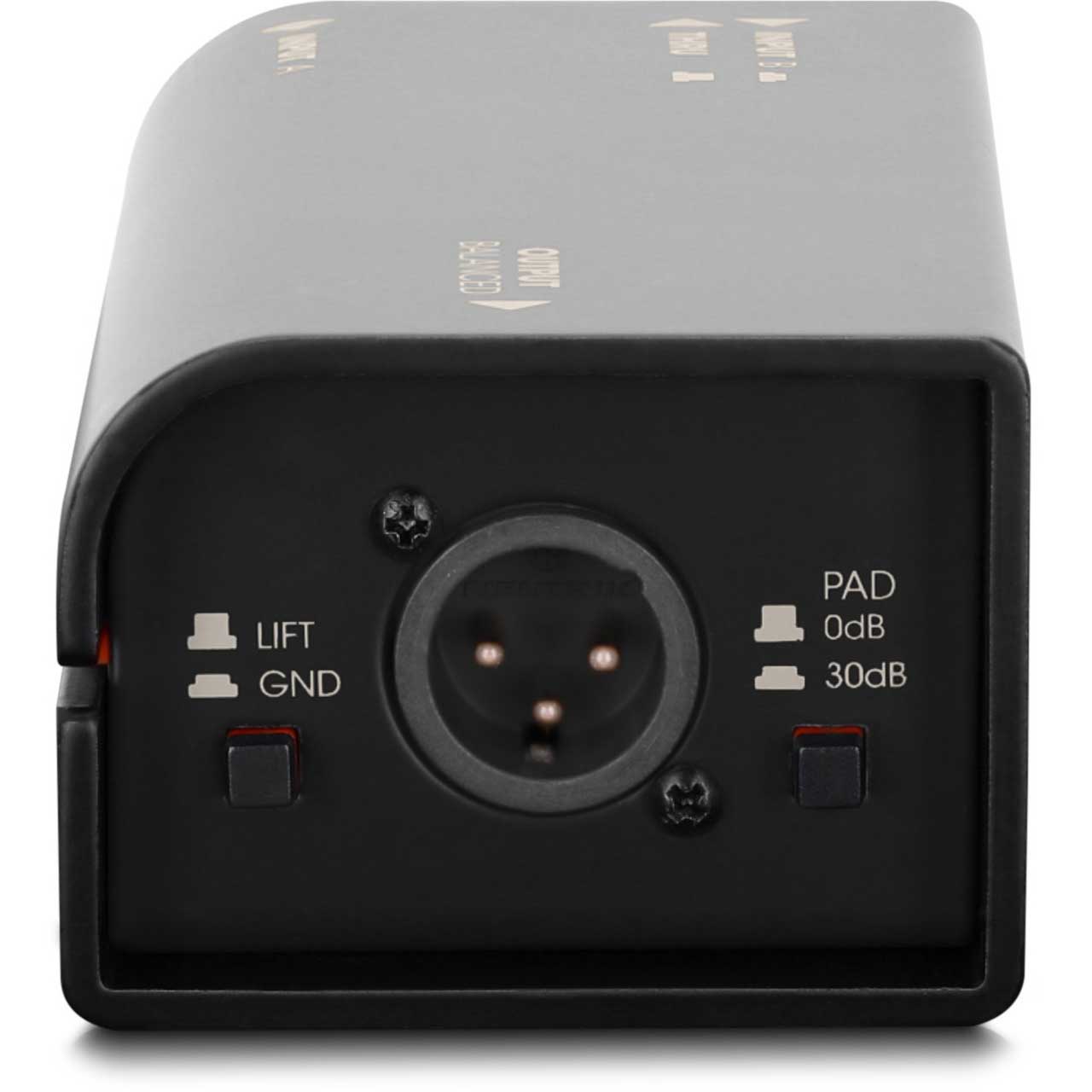

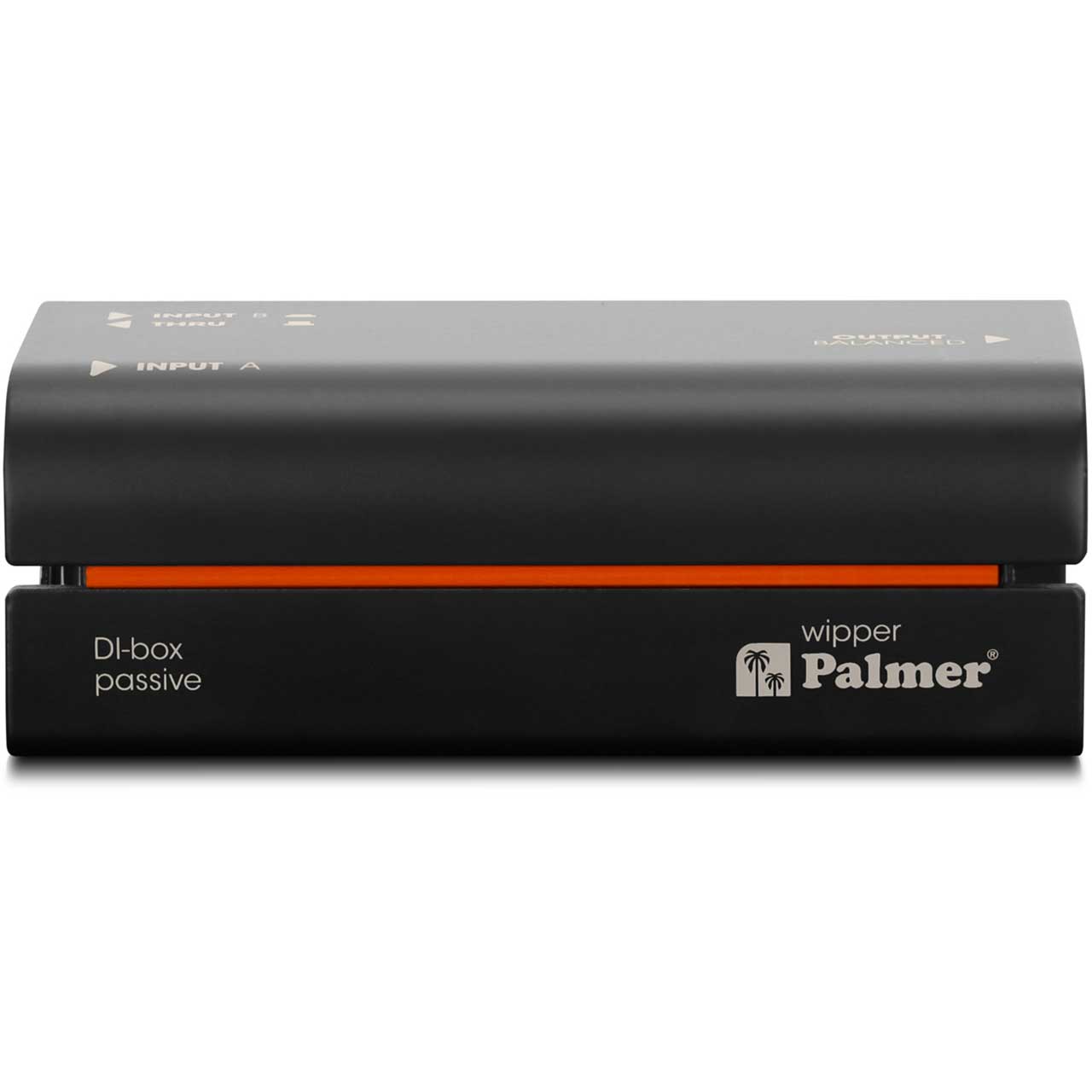

Palmer Audio WIPPER Passive DI Box with Balancing and Impedance Matching

ITEM #: PLM-PWIPPER MFG #: PAL-PWIPPER

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$99.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    PAL-PWIPPER - Overview

    If you need to pick up the pure sound of your guitar, bass or keyboard, you need a high-quality DI-Box which does not alter the natural sound or add any noise.

    The Palmer wipper is a single channel passive DI box with a high-quality transformer, which also handles high levels without distorting or losing the pure sound of your instrument. With a ratio of 10:1, it can be used for optimal impedance and level adjustment to connect instrument signals from guitars, bass, keyboards or synthesisers to a balanced microphone input. At the same time galvanic isolation prevents ground loop hum, so that the signal remains pure, clear and ultra-low noise, without any interference. Thanks to a switchable 30 dB pre-attenuation, the wipper can also be looped in between amplifier output and the loudspeaker.

    The Palmer wipper is an easy-to-use problem solver. Its passive construction means it does not need any batteries or a phantom power. This makes it extremely fail-safe and also virtually indestructible thanks to its aluminum and steel casing. With its ability to retain the natural sound of your instrument, it also cuts a fine figure studio and live environments. This way you can simply be true to your sound.

    • Features:

      • Balancing and impedance matching for guitar, bass, keyboards & synthesizers
      • Eliminates ground loop hum thanks to galvanic transformer isolation
      • Extremely fail-safe, no power supply required
      • THRU-output for passing the input signal to the amplifier
      • THRU-output jack can also be used as second input to sum two input signals
      • Pure and unaltered low-noise audio
      • Handles even high-level inputs without distortion
      • Switchable 30 dB pad for extremely high input levels (e.g. amplifier output)
      • Solid casing made of aluminium and steel
      • Incl. rewritable tour label for attachment onto the back of the wipper
      • Engineered in Germany

    • Specifications:

      • Product type: DI box
      • Type: passive
      • Channels: 1
      • Transformer isolated: yes
      • Inputs: 2
      • Input type: unbalanced
      • Input connectors: 6.3 mm jack
      • Outputs: 1
      • Output type: balanced
      • Output connectors: XLR
      • THRU outputs per channel: 1
      • Input attenuation (Pad): 0 / 30 dB
      • Max. input level (< 1% THD, 20 Hz): +24 dBu
      • Max. input level (< 1% THD, 1 kHz): +32 dBu
      • Frequency response (±0,2dB, relative 1kHz): 10 Hz - 60 kHz
      • Input impedance (1 kHz, Setting: 0 dB Pad, THRU): 47 kOhm
      • Output impedance (1 kHz, Setting : 0 dB Pad, THRU): 33 Ohm
      • THD (30 Hz, +4 dBu, unity, unweighted): < 0,02 %
      • THD (1 kHz, +4 dBu, unity, unweighted): < 0,0007 %
      • IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0,002 %
      • Transformer ratio: 10 : 1
      • Ground lift switch: Yes
      • Additional Features: mono merge
      • Housing: Aluminium continuous casting
      • Dimensions (W x H x D): 50 x 140 x 68 mm
      • Weight: 0,43 kg
      • Ambient temperature (in operation): - 20 - 70 °C
      • Relative Humidity: < 80% (non-condensing)
      • Accessories (included): Inscription label (tour label), rubber feet

    • Warranty:

      • 5 Years

    • GTIN:

      4049521659393
