Radial Engineering BT-Pro V2 Bluetooth Stereo Direct Box-Wireless Receiver with Balanced Stereo Direct Interface Outputs

ITEM #: RAD-BT-PRO-V2 MFG #: R800 1057 B

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$420.00

Our Price:

$349.99

Availability: In Stock
iAvailability Description Popup


    R800 1057 B - Overview

    The BT-Pro V2 is a Bluetooth-enabled direct box that connects wirelessly to smartphones, tablets, and other mobile devices and provides a pair of balanced analog audio outputs to feed a PA system. Each BT-Pro V2 has a unique identifier, allowing multiple units to be used within the same building. The latest model of the BT-Pro can also be powered via 48V phantom from a mixing console.

    Wireless connection, professional audio
    The BT-Pro V2 makes it easy to quickly connect to any smartphone, tablet, or mobile device for high quality audio playback through a sound system. It wirelessly pairs over Bluetooth, eliminating the need to search for adaptor cables and providing you with the freedom to move around while staying connected. Superior audio quality is provided using the Bluetooth 5.0 protocol, allowing the BT-Pro to be used for playback even in critical listening environments. While the BT-Pro V2 is designed to last with a 14 gauge steel outer shell and high durability connectors and controls, it also has an enhanced reception range thanks to the plastic injection-molded insert, which allows wireless signals to pass through unimpeded. Balanced XLR outputs are provided for connection to pro audio equipment, with a level control to allow for easy volume adjustments, a headphone output for testing purposes, and a mono switch to reduce channel requirements when needed.

    48V operation & unique device identifiers
    For ease of use in live sound applications, the BT-Pro can be powered via 48V phantom from the PA console. This provides the ability to use the included external power supply as a redundant backup, or to eliminate it from the setup altogether. Under 48V phantom power, the BT-Pro provides mic-level signals at the XLR outputs, but when the external power supply is used it is capable of generating line-level signals that can be connected to the line inputs of a PA console and avoid using additional mic-level channels. Each individual BT-Pro V2 also has a unique Bluetooth identifier, allowing multiple units to be successfully used in close proximity to one another. This makes it easy for commercial multi-room facilities to employ a number of BT-Pro units without any confusion when trying to connect to a receiver in a specific part of the building.

    Applications
    Presentations
    Use with Tablet for Performance
    Professional Audio

    • Features:

      • Wirelessly connect smartphones and tablets to a mixer
      • Bluetooth reception of up to 30 meters (100ft)
      • Dual balanced XLR outputs feed the PA system
      • Powered via external supply or 48V phantom power
      • Unique device ID allows multiple BT-Pro's in a single location

    • Specifications:

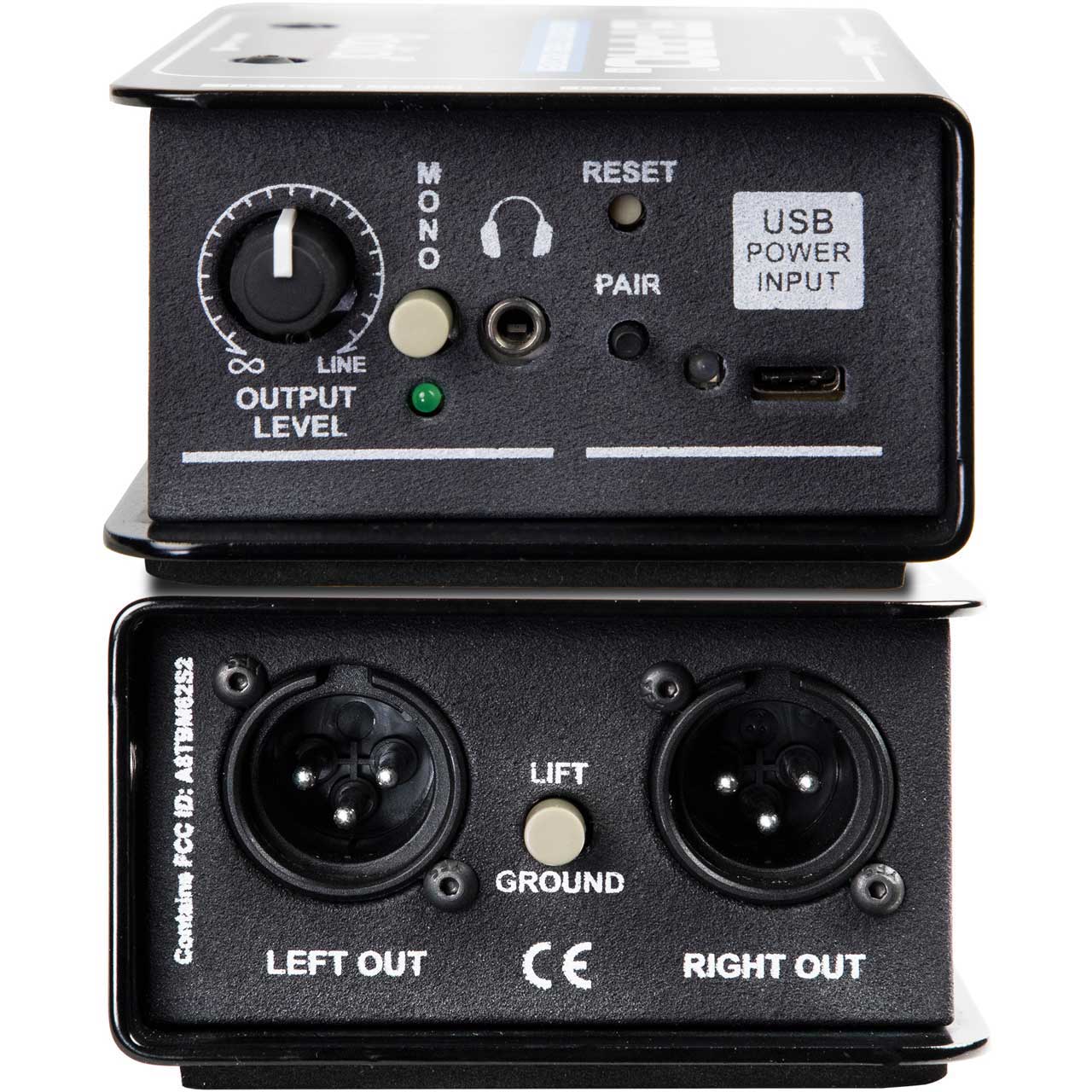

      • Output Level: Used to set the overall output level at the XLR and Headphone Outputs
      • Mono Sum: Sums the stereo output from the stereo digital audio
        converter to mono. When active, the red LED illuminates.
      • Pair: Press and hold the Pair button for 3s to disconnect from any
        Bluetooth devices and force the BT-Pro into pairing mode.
      • USB Power: - Employs standard USB Type C for easy connection to a
        laptop or to the included power supply.
      • Phones: Mini 3.5mm TRS stereo headphone connection used to check
        signal coming from the Bluetooth receiver and digital audio converter output.
      • XLR Out: - Standard male XLR outputs provide balanced analog
        audio at mic or line-level to feed a PA system. The BT-Pro can be powered remotely
        by providing 48V phantom power to these outputs.
      • Ground Lift: Used to elminate hum and buzz caused by ground
        loops. Lifts pin-1 on both XLR outputs.

    • GTIN:

      0676101044962
