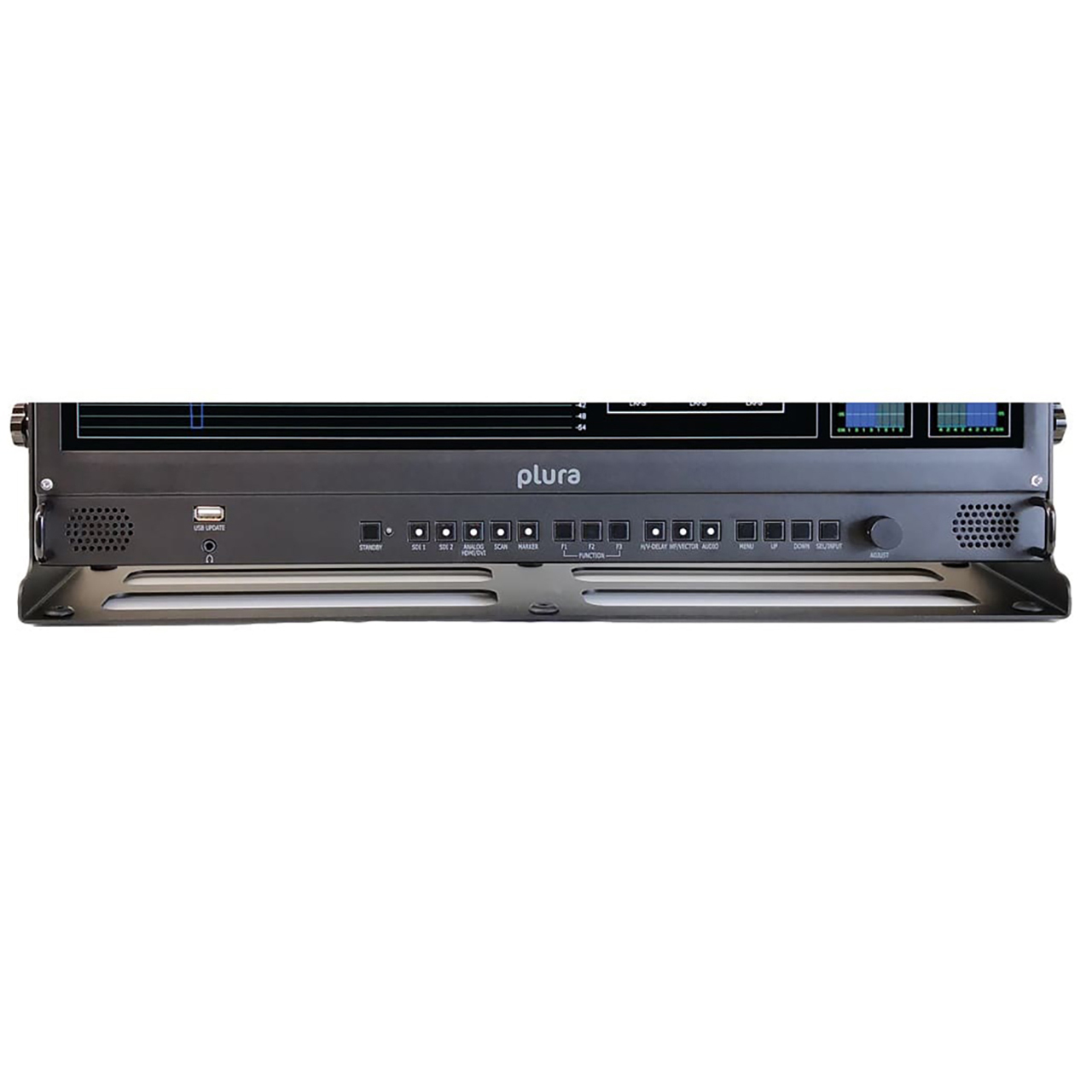

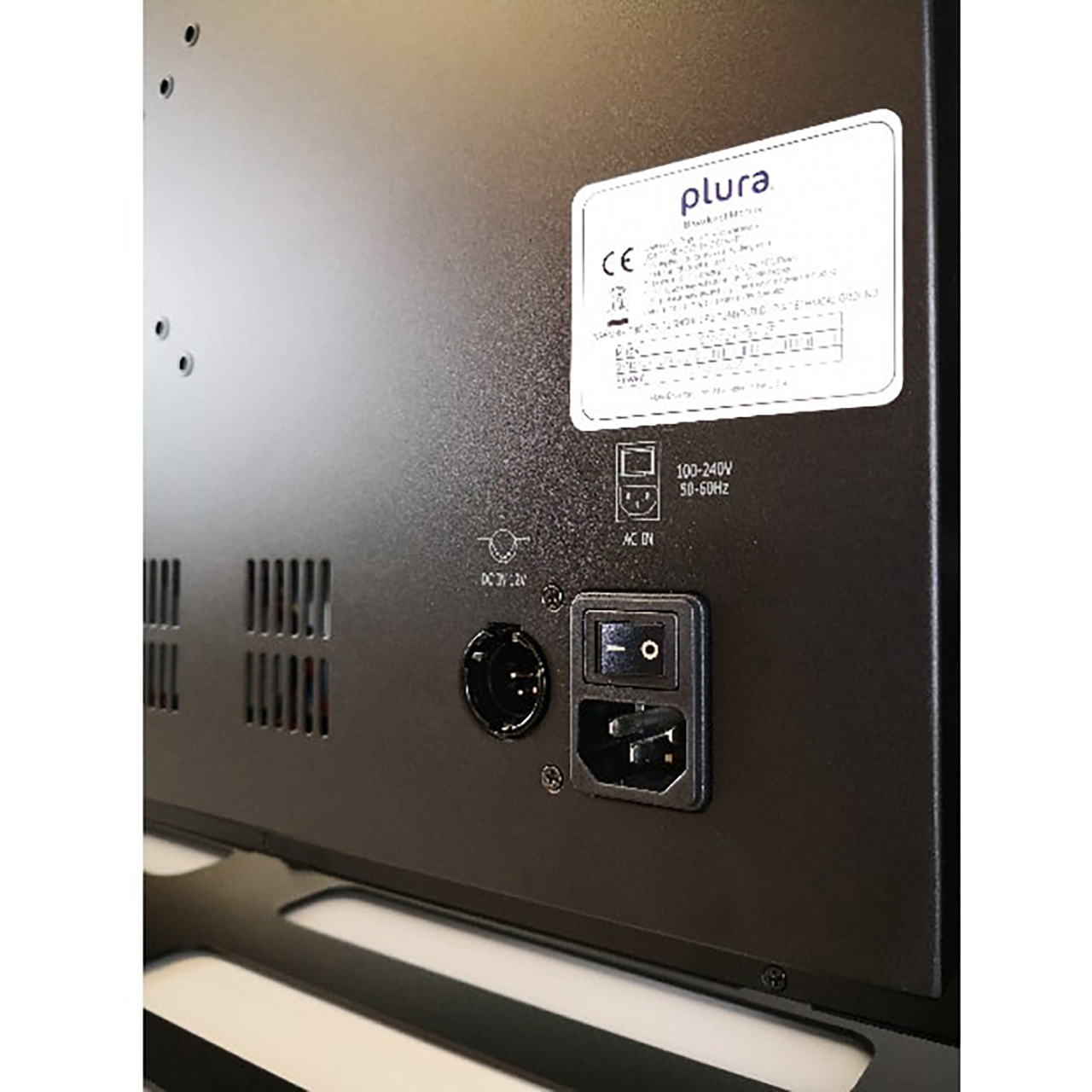

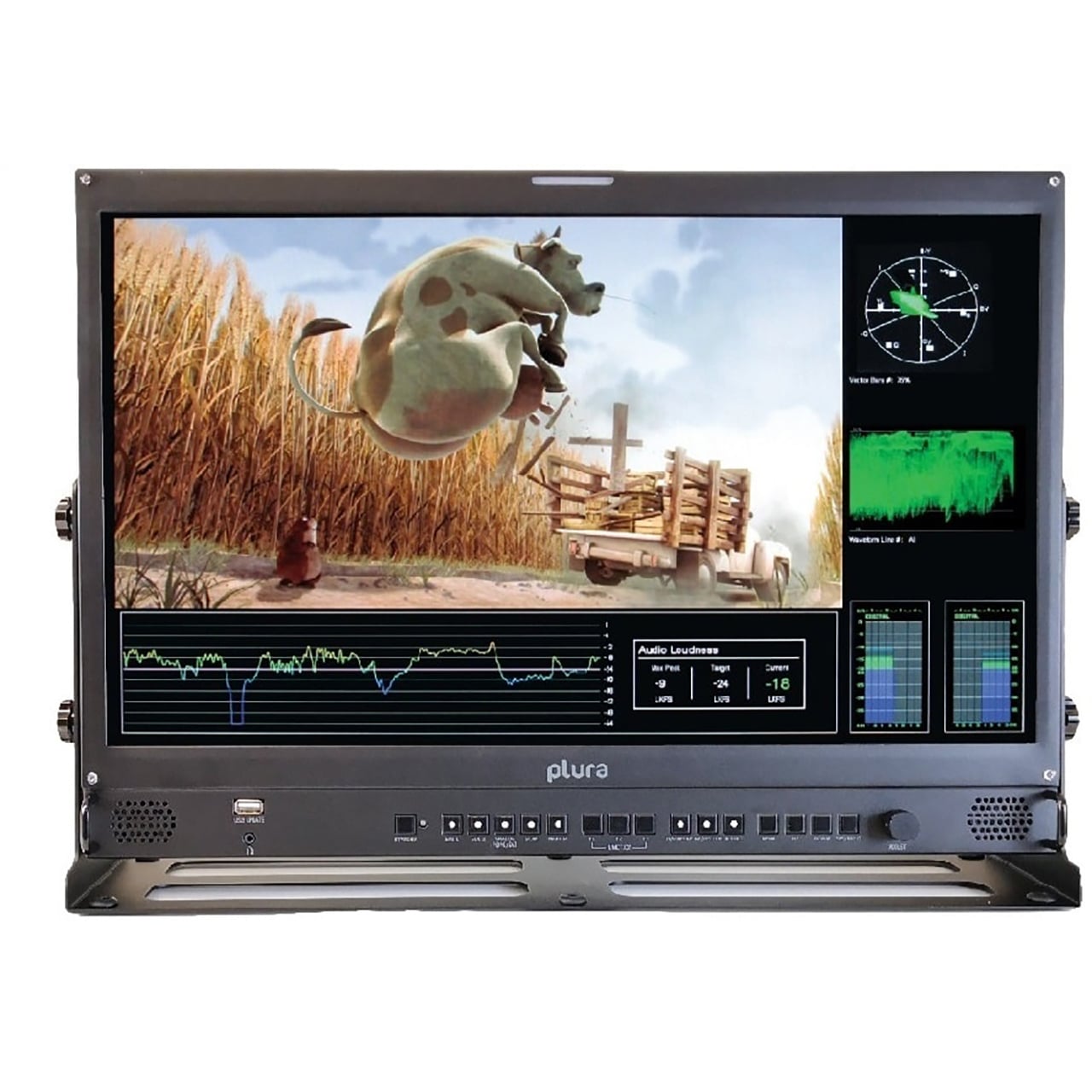

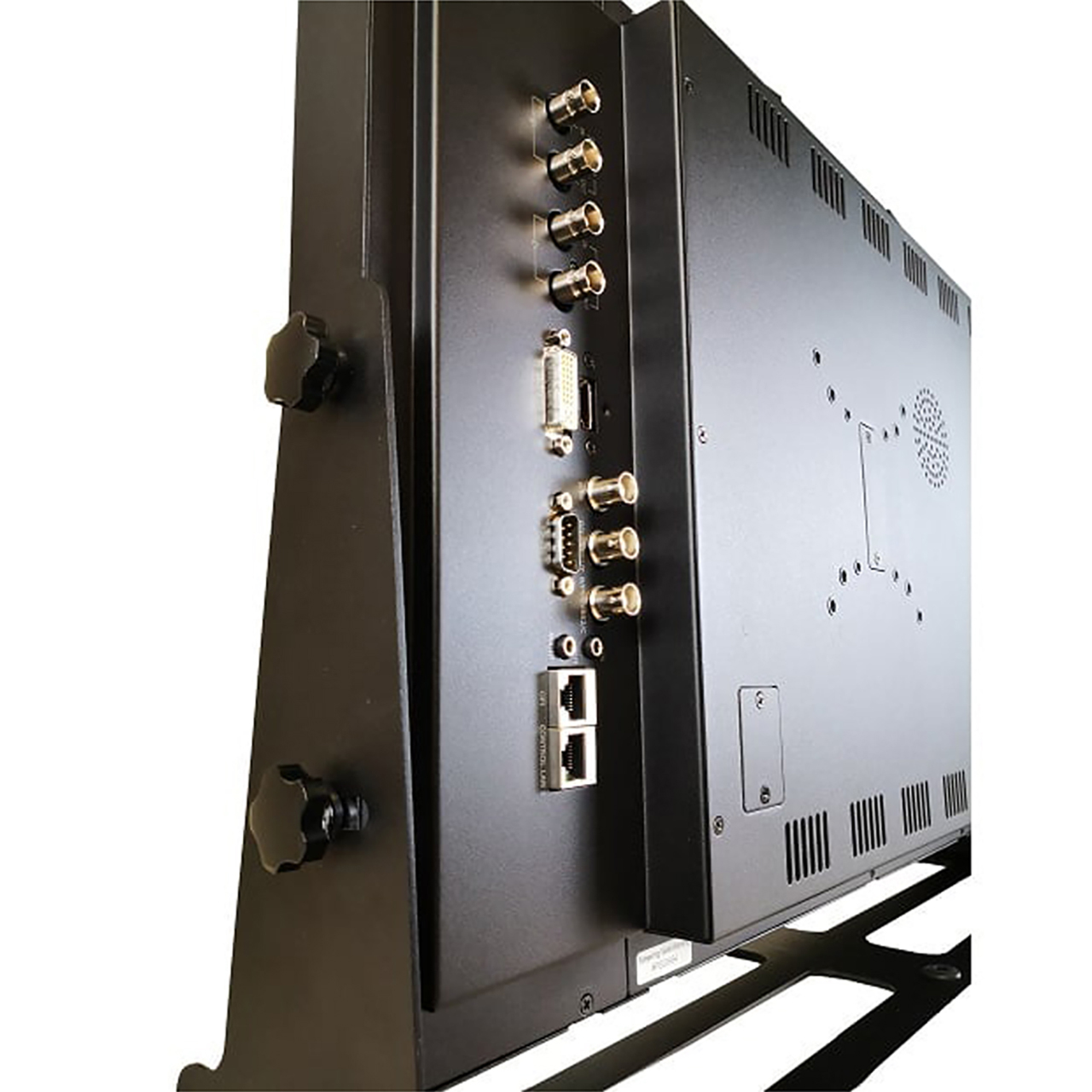

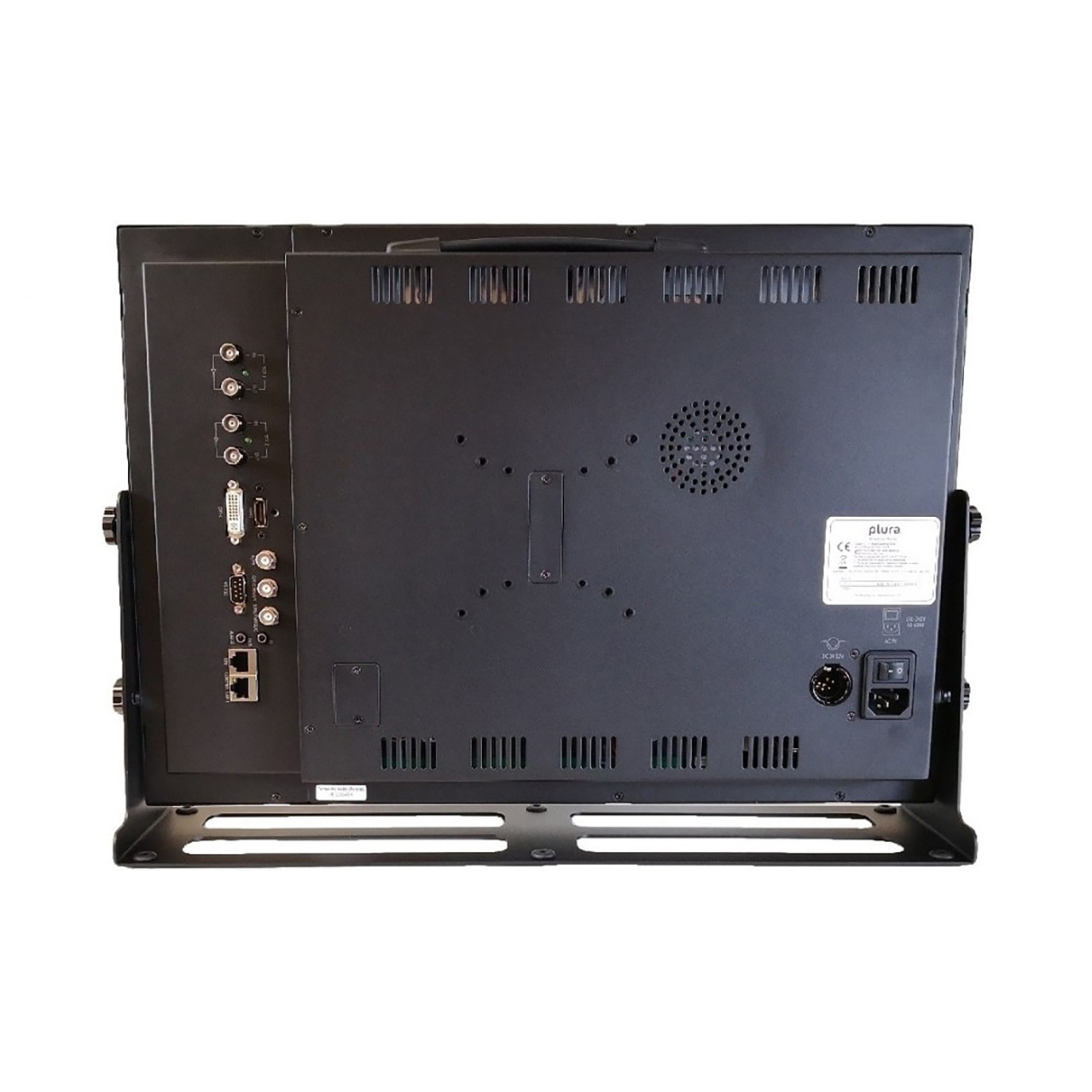

Plura PBM-221-3G-V2 21-Inch 3Gb/s 1080/60P Portable & Rack-mountable 8RU Broadcast Video Monitor

Name: Plura PBM-221-3G-V2 21-Inch 3Gb/s 1080/60P Portable & Rack-mountable 8RU Broadcast Video Monitor
Brand: Plura Broadcast, Inc.
SKU: PLUR-PBM-2213GV2
Price: 3656.55 USD
Availability: Backorder

ITEM #: PLUR-PBM-2213GV2 MFG #: PBM-221-3G-V2

Plura Broadcast, Inc.

List Price:

$3,849.00

Our Price:

$3,656.55

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Notify when in stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

PBM-221-3G-V2 - Overview

Portable & rack-mountable LCD panel for maintaining quality & performance to give broadcast & production facilities an edge in Full HD monitoring.

Plura PBM-221-3G-V2, 21" Portable & Rack-mountable monitor enhanced V2 series consists of high quality portable LCD panel, specifically designed for multiple video server inputs program & preview monitoring, camera output & return feed side by side and multiple camera preview wall monitoring. PBM-3G series designed for every possible broadcast mobile environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast standards. The PBM-3G is compatible with Plura (ICAC) calibration tool and provides 10 bit look up table (LUT) (1024 steps of grayscale).

Features:
- 21" Portable & Rack-mountable Monitor - Enhanced Version
- 3Gb/s - 1080/60P
- 2x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
- Dual HD SDI YPbPr 4:2:2 - Dual HD SDI YPbPr/RGB 4:4:4 & 2K
- HDMI 1.4 HDCP 1.2, DVI, RGB, YUV, Y/C, Composite, UXGA
- Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
- LKFS Audio Measurement - Digital Loudness Audio metering in LKFS scale
- (ICAC) - Plura Intelligent Connection for Alignment & Calibration
- 3D LUT & Wide range of Gamma selection (0.8 - 3.0)
- ColourSpace PRO integration for advanced and accurate display profiling and calibration functionalities
- HDR (High Dynamic Range) capabilities
- PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
- Closed Caption (608/708) - North American Market
- Teletext 801 & Subtitle OP-47 - Australia & NZ Market
- Cutting edge De-interlacing and Scaling Technology
- Ethernet & RS232 Remote Control
- TSL 5.0 UMD Support
- Internal Monitor Display (IMD)
- Ember+ compliant control system capabilities ™
- Fast Response Time for high motion video
- RGB 12 bit Digital Signal Processing
- Underscan/ Overscan/ Normal / Zoom
- Pixel to Pixel Mode, Tally, DC Operation
- False Color and Peaking Filter / Focus Assist
- Video Range Test with adjustable Y & C values
- Display LTC & DVITC time code with line select
- Internal Pattern Generator and Wall Control System
- Built In Stereo Speaker, 16 CH Audio Metering Display
- Analog & Embedded Audio Input, Digital Audio Decoding
- Color Temperature - User, VAR, Adjustable (9300K TO 3200K)
- Various and User defined Markers Display, Safe Area in HD & SD
- Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
- Dual display modes with dual Wfrm & Vect
- Display Advanced Waveform & Vector Scope simultaneously with line select
- Programmable Front Pushbutton Controls & GPI
- Intuitive OSD Display and Graphic based system
- OPTIONS: Rackmount, Battery Mount, Carry Case
Specifications:
- Screen Size: 21"
- Style: Desktop
- Screen Resolution: 1920x1080
- Backlight: LED
- Color Depth: 8bit
- Advanced Features:
  - Closed Caption 708/608
  - Ember+
  - Teletext 801 & OP-47
  - Vectorscope / Waveform
  - Battery Operation
  - HDR
  - LKFS Measurement
- Control:
  - Optional Ember+
  - Ethernet
  - RS232
  - Wall Control System
- ICAC: Yes
- Video:
  - 3G
  - CCVS
  - DVI
  - HD-DL
  - HDMI
  - HDSDI
  - SDSDI
  - VGA
  - Y/C
  - YUV
- Audio: Analog Audio, Embedded Digital Audio
- Housing:
  - VESA (100x100) & (75x75)
  - Optional 19" Rack
- Ember+ Complaint: Optional
- RU: 8
- Weight: 17 lbs (7.7 kg)
- Dimensions: 19.81" x 13.74" x 2.55" (503.2 x 349.0 x 64.8 mm)
Item Includes:
- 1x Power Cord
- 1x Desk Stand
