Plura PBM-347-3G 47 Inch - 3G Broadcast Monitor Narrow Bezel (1920x1080) Class A- 3Gb/s

ITEM #: PLUR-PBM-347-3G MFG #: PBM-347-3G

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

PBM-347-3G - Overview

The Most Powerful 3G Broadcast Monitor Series Ever!

The PBM-3G Series offers an elegant slim design with fast response time for smooth videostreaming in 7", 17", 20", 24", 32", 40", 46" & 55" display sizes, native full HD resolution with high contrast ratio, wide viewing angles, accurate color reproduction and quality picture consistency that meets your HD SD Monitoring application.

It features intelligent connection for Calibration Alignment and Adjustable Colormetry and Gamma Correction. Multiple monitors can be controlled by a centralized Wall control system which can be utilized to connect different size monitors in any combination.

PBM-3G Series also provide many powerful display functions such as Powerful Dual 3Gb/s input display. Auto Calibration. Advanced Waveform. Vectorscope. Closed Caption (708/608) or Teletext 801 & Subtitle OP-47 for North American or Australian markets respectively. VPID. IMD. UnderScan/ZeroScan/OverScan/Zoom. 1:1 Pixel mode. PIP PAP. Various Digital Audio Metering Scales Digital Audio Decoding. Built-In Speaker. Time Code Display. Tally Lamp and Wall Control System.

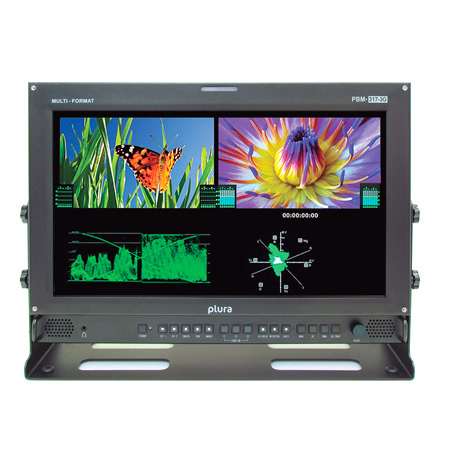

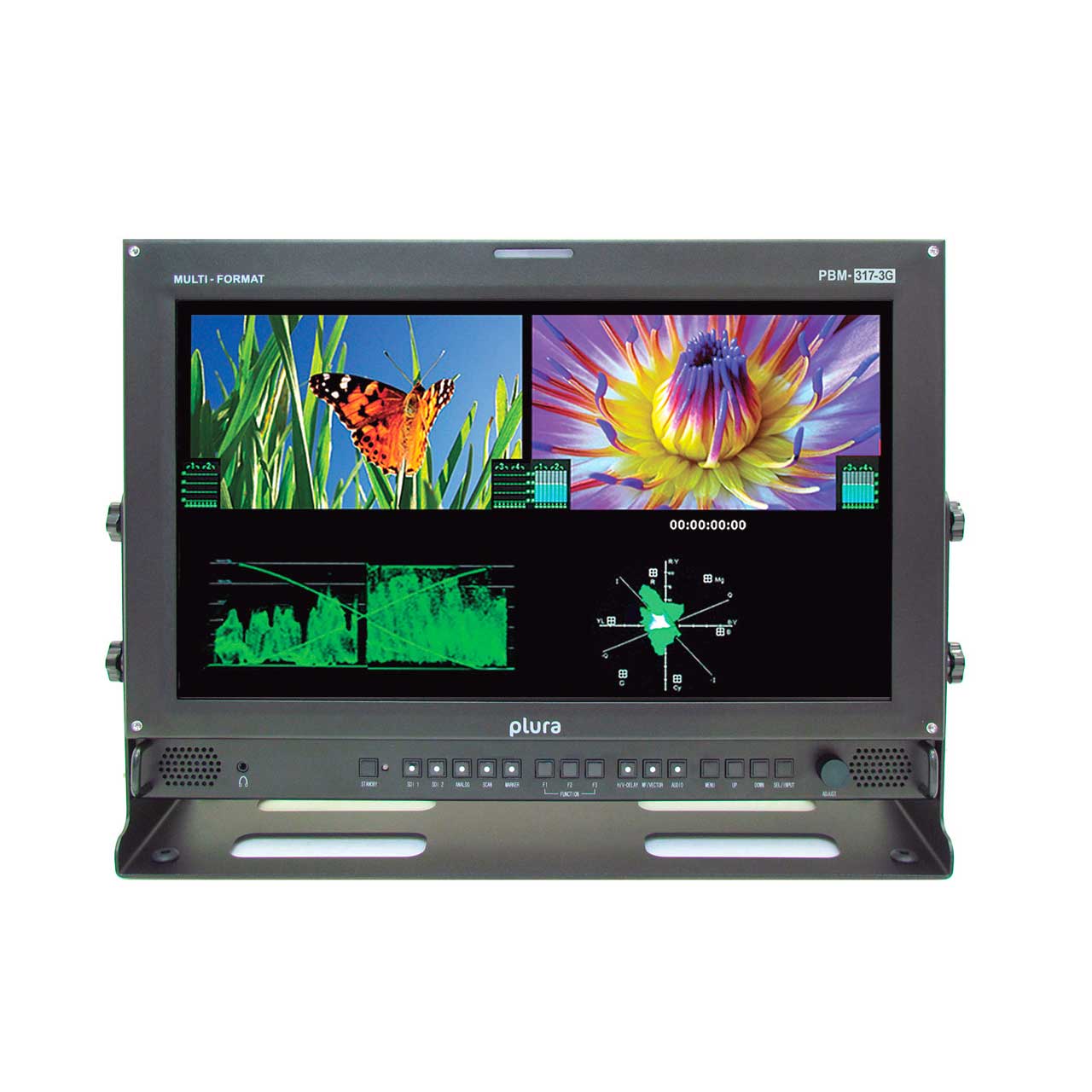

** Item pictured is PBM-317-3G

  • Features:

    • 3Gb/s ready, 1080/60P
    • Advanced waveform (Y Cb Cr selectable), vectorscope
    • 2 x auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 standards
    • (ICAC) Plura intelligent connection for alignment and calibration
    • Dual HD SDI YPbPr 4:2:2, dual HD SDI YPbPr/RGB 4:4:4 and 2K
    • RGB, YUV, Y/C, composite, UXGA, DVI (DHCP) and HDMI (DHCP)
    • Cutting edge de-interlacing and scaling technology
    • Fast response time for high motion video
    • RGB 10-bit digital signal processing
    • 178° viewing angle display
    • Closed caption (608/708)
    • Color temperature, user, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
    • Various and user defined markers display, safe area in HD and SD
    • Picture and picture (PaP), picture in picture (PiP) display/blend
    • Analog and embedded audio input, digital audio decoding
    • Built in stereo speaker, 16-channel audio metering display
    • IMD and time code display and wall control system
    • Pixel to pixel mode, Tally, DC operation
    • Underscan/overscan/normal/zoom
    • Programmable front pushbutton controls, GPI and RS232 remote control
    • Intuitive OSD display, graphic based, 6 languages (Unicode system)
