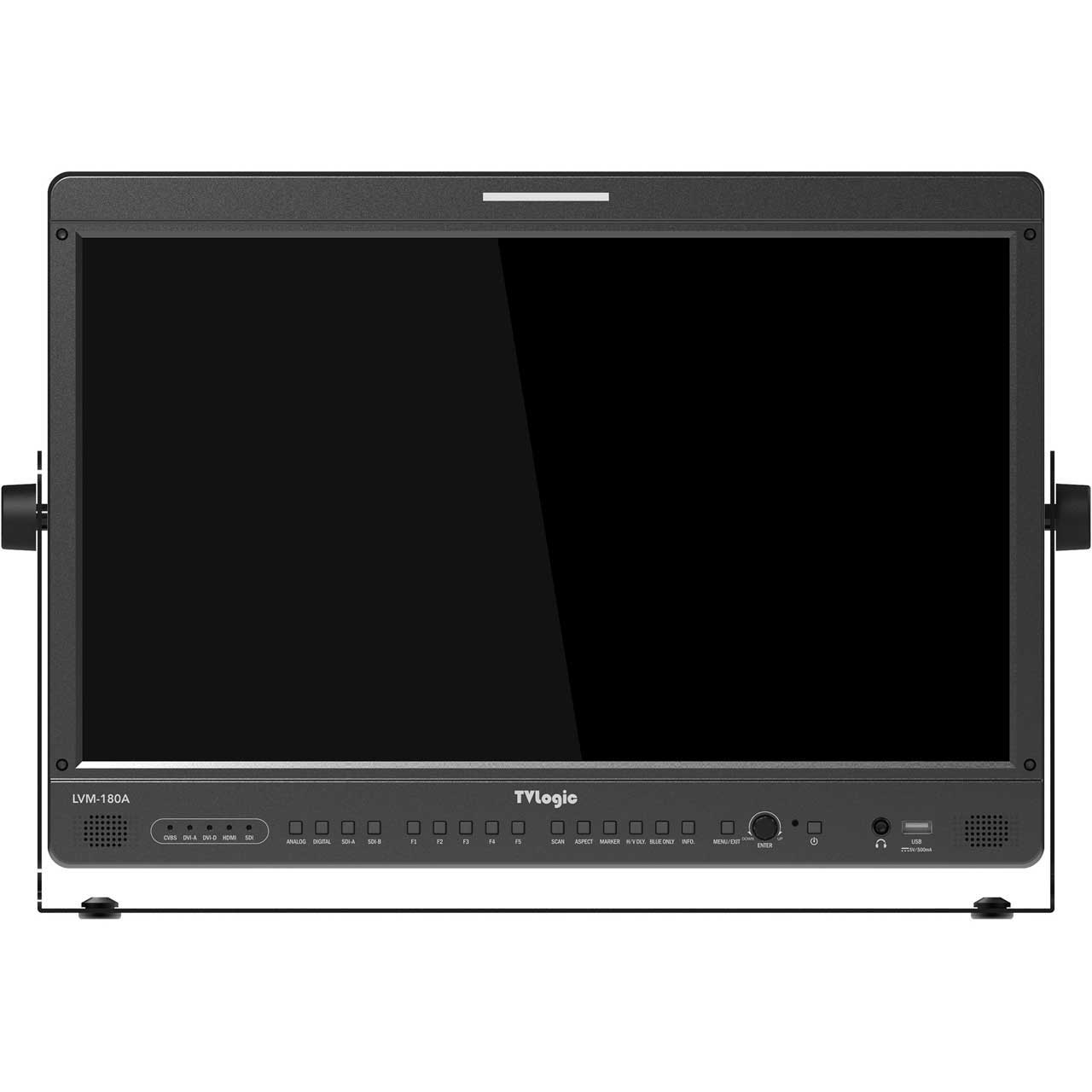

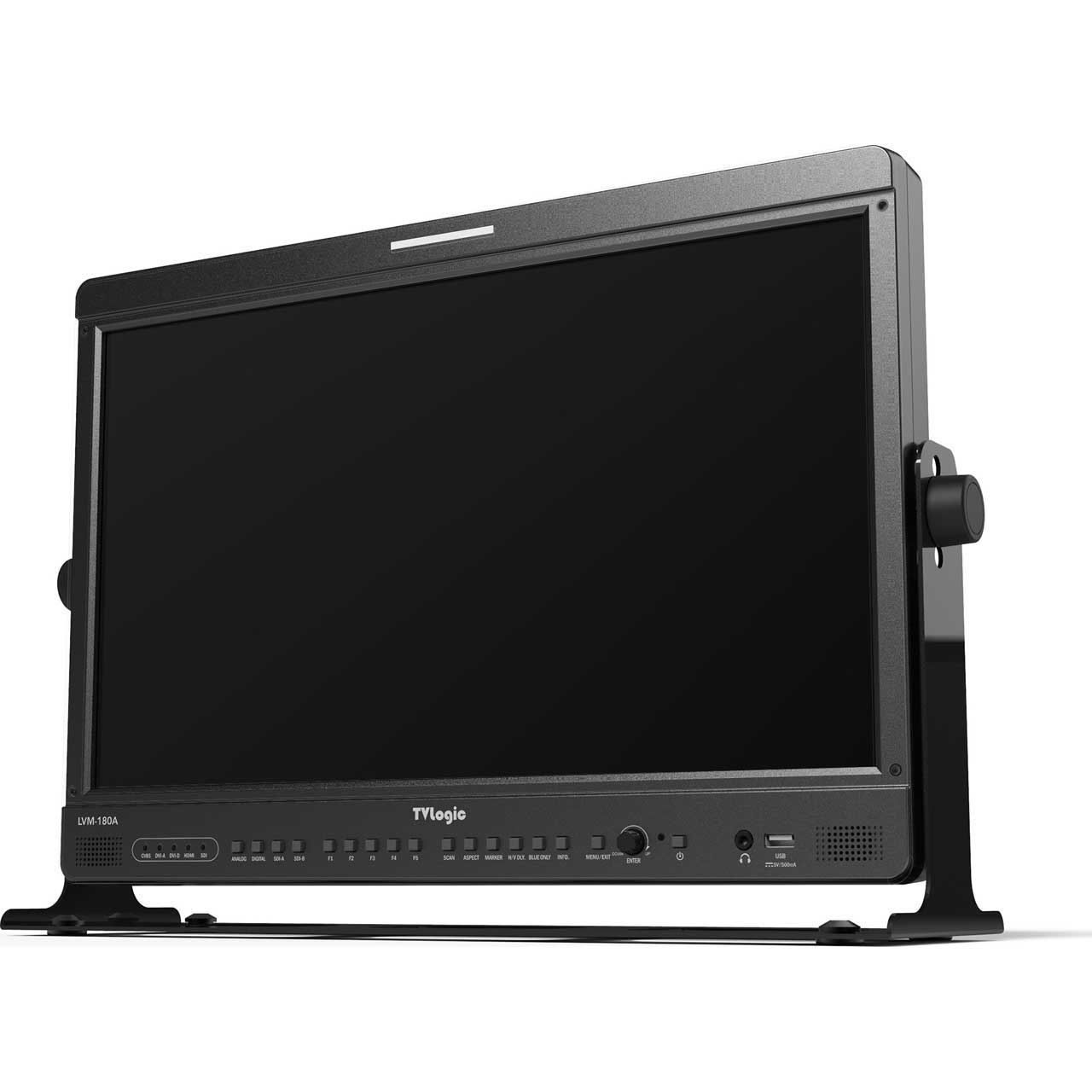

TV Logic LVM-180A 18.5-Inch Wide Viewing LCD Monitor

LVM-180A - Overview

• Features:

  • 3G-SDI Level A/B
  • Audio Level Meter Display
  • Blue Only / Mono
  • Focus Assist
  • H/V Delay
  • Key Lock
  • Marker
  • Luma(Y') Zone Check
  • Range Error
  • Time Code Display
  • UMD
  • Various Scan Modes
  • Waveform/Vector Scope


• Specifications:

  • Display:
  • Size: 18.5"
  • Resolution: 1920 x 1080 (16 : 9)
  • Color Depth: 16.7M
  • Viewing Angle: 178°(H) / 178°(V)
  • Luminance: 500cd/m2
  • Contrast Ratio: 1,000:1
  • Display Area: 408(H) x 203(V) mm

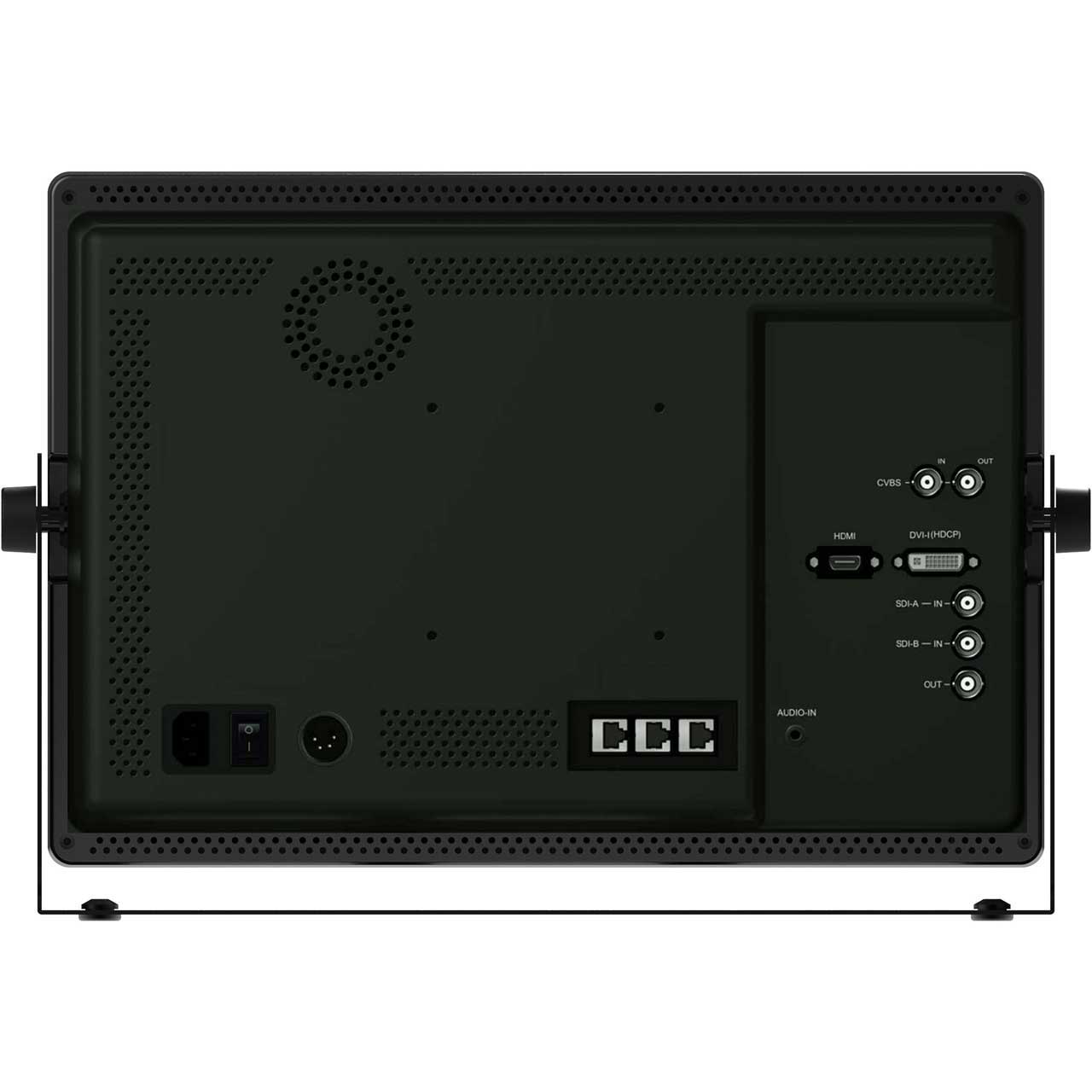

    Input:
  • 1 X BNC Analog Input (Component)
  • 2 X BNC 3G-SDI A/B Channel Input
  • 1 X HDMI Input
  • 1 X DVI Input

    Output:
  • 1 X BNC Analog Output (Component)
  • 1 X BNC 3G-SDI Output

    Input Signal:
  • 3G SDI: 2.970Gbps
  • HD SDI: 1.485Gbps
  • SD SDI: 270Mb/s
  • HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1280x1024/1366x768
  • DVI Analog: 640x480/720x400/800x600/1024x768/1366x768
  • DVI DP: 640x480/720x400/800x600/1024x768/1366x768
  • DVI DH: X

    SDI Input Signal Formats:
  • SMPTE 425M-A/B: "1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF)

    Audio:
  • Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Stereo)

    FPGA Functions:
  • 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP)

    Closed Caption:
  • CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47

    Calibration:
  • TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
