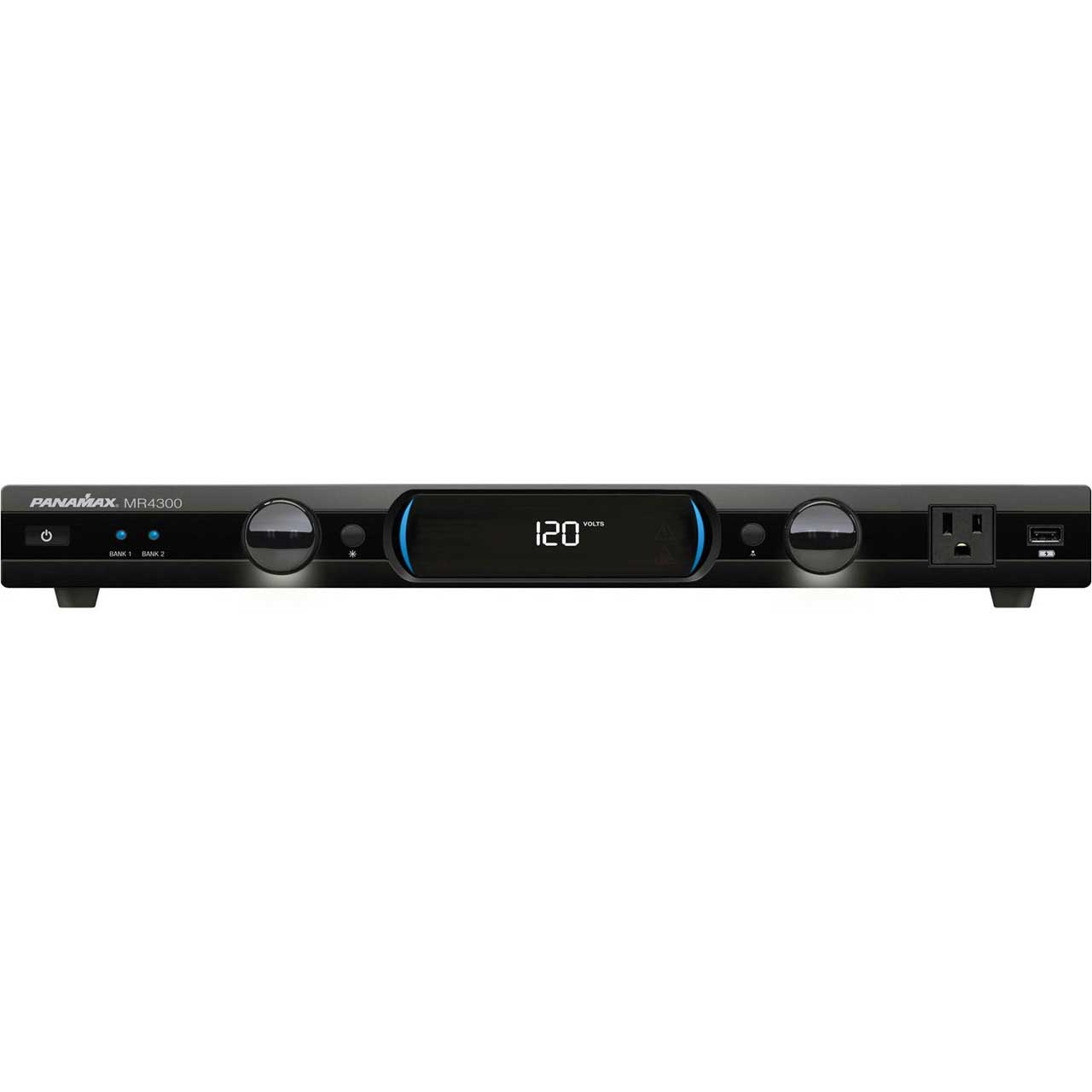

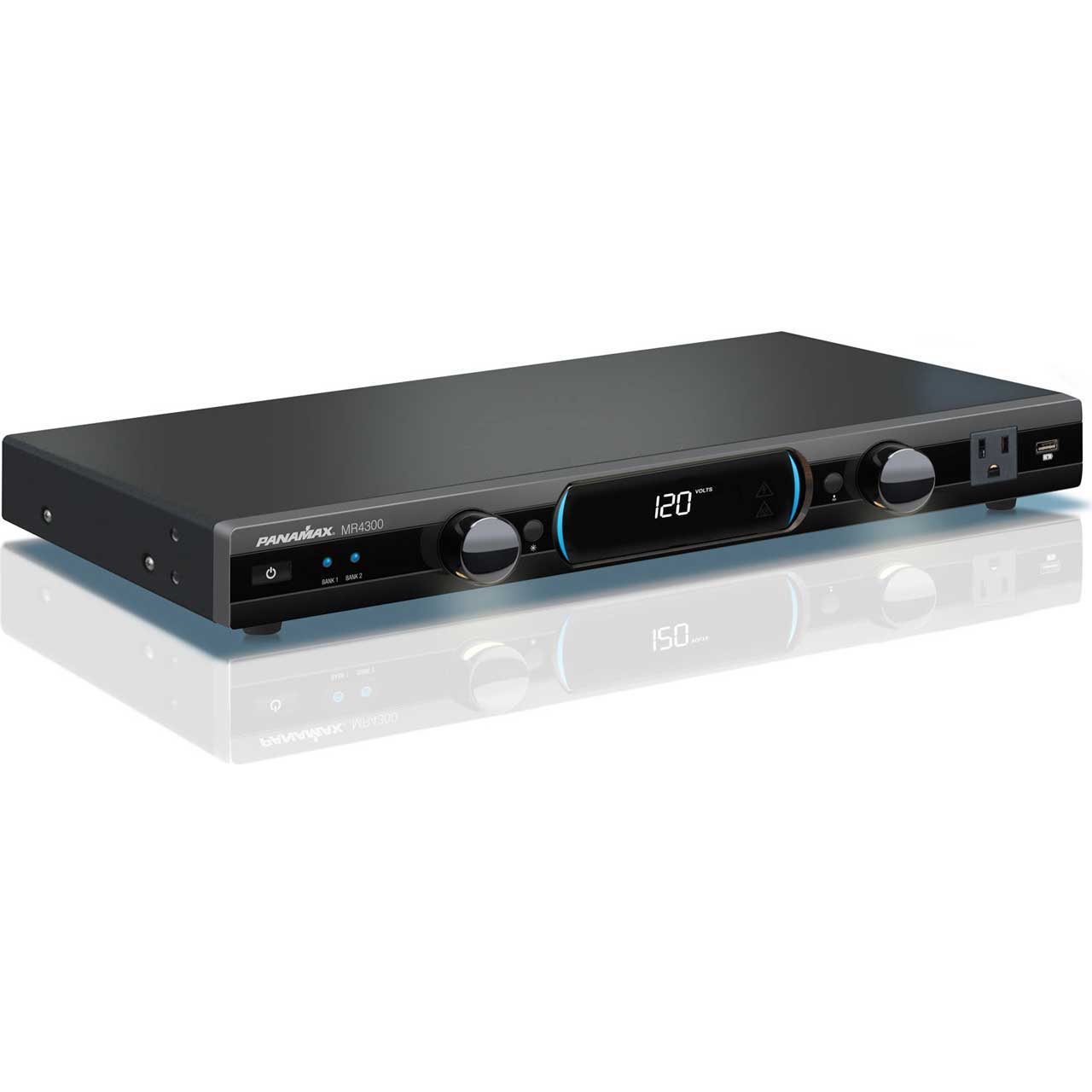

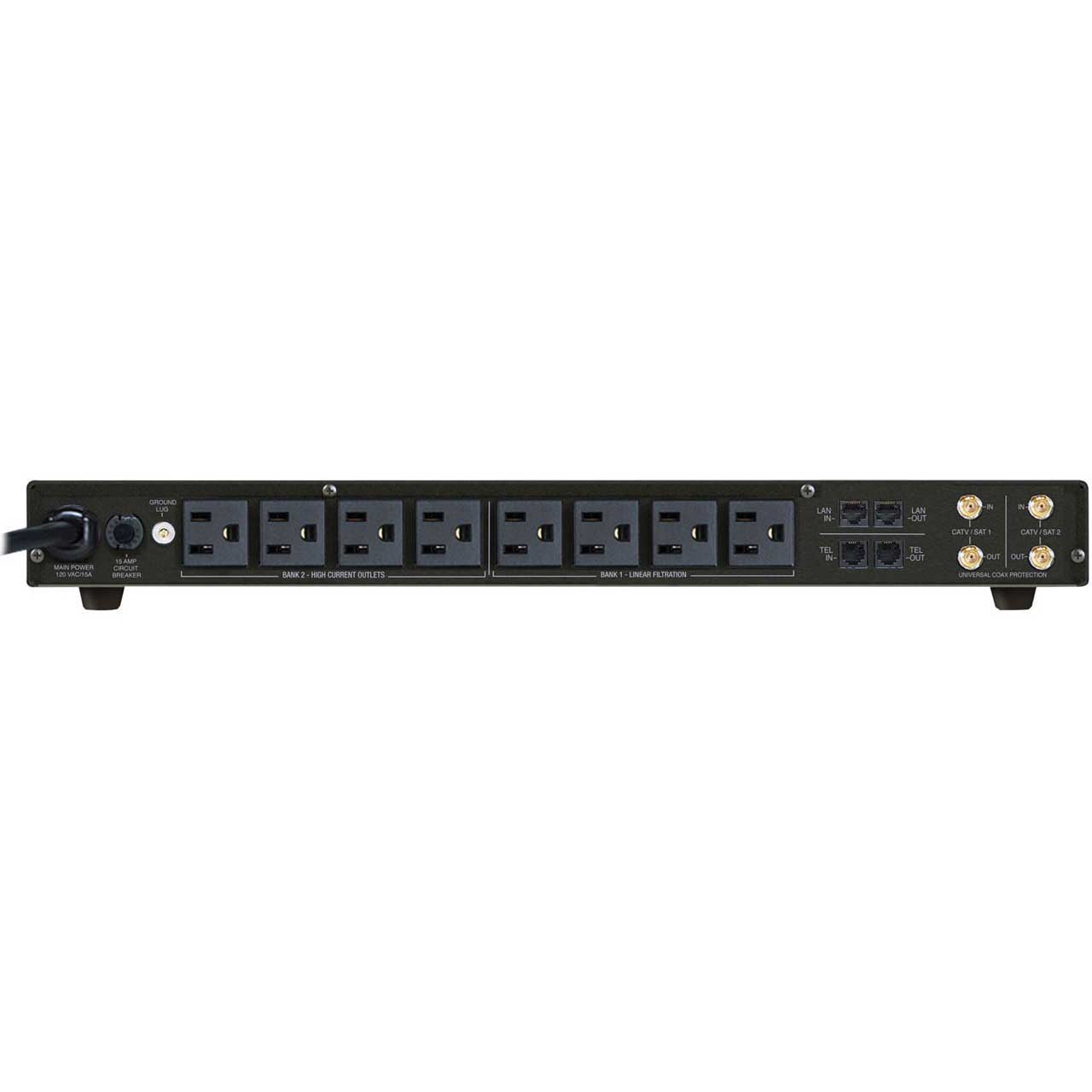

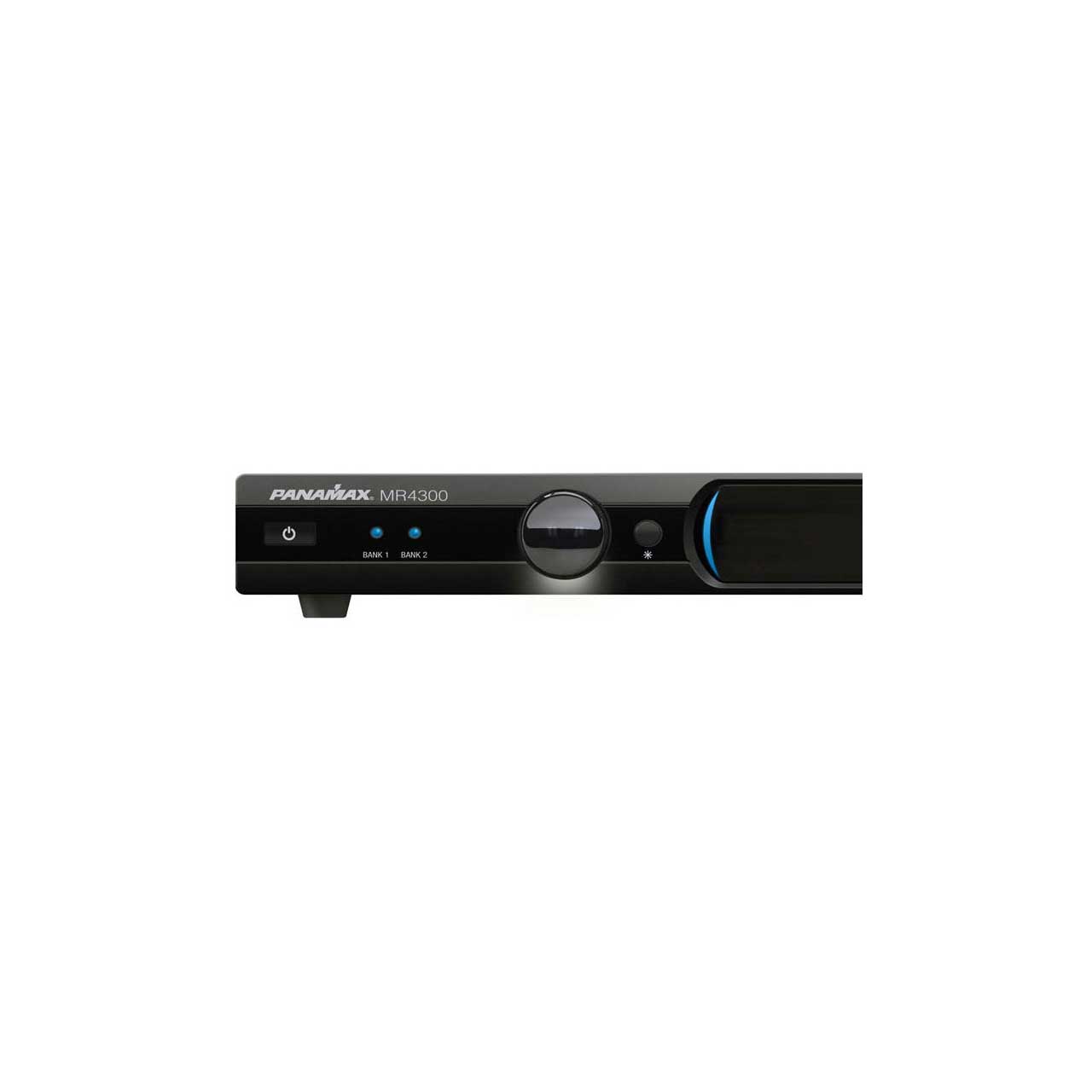

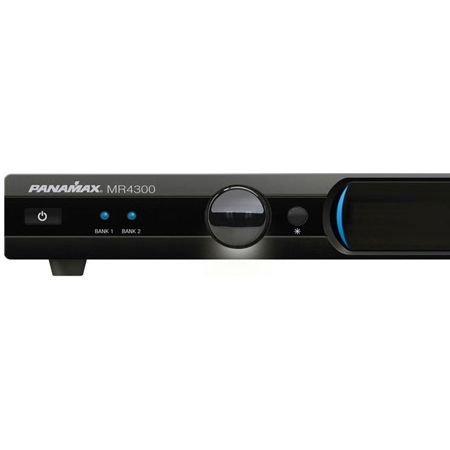

Panamax MR4300 9 Outlet Power Management Line Conditioner and Surge Protector

ITEM #: PMAX-MR4300 MFG #: MR4300

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$439.95

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    MR4300 - Overview

    Panamax MR4300 9 Outlet Power Management, specifically designed and engineered to provide protection, filtration and power monitoring for your home theater system. Media lights illuminate equipment.

    Panamax's MR Family of products offers several layers of surge protection. Panamax's patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

    The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

    Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life.

    • Features:

      • 9 Protected & Filtered Power outlets
      • Exclusive Automatic Voltage Monitoring (AVM)
      • Protect or Disconnect Technology
      • USB Charging (0.5V/5V)
      • Linear Level 3 Filtration (2 Total Isolated banks) with Dedicated High Current Outlet Bank (4 Outlets)
      • Antenna, Cable, or Satellite, LAN and TELCO signal protection
      • Rotating & Dimmable Media Lights Illuminate Equipment
      • 8 ft. Power Cable with Low Profile Plug
      • Rack ears included

    • Specifications:

      • General
      • Family: MR Series
      • Line Voltage: 120 (Volts)
      • Number of Outlets: 9
      • Number of Isolated Banks: 2
      • Outlet Descriptions: All 9 outlets filtered, and surge protected. Bank 2 outlets are high current
      • Rack Mountable: Yes
      • Rack Ears Included: Yes
      • Front Panel Meter(s): LED voltmeter
      • Front Media Light(s): 2 rotating, dimmable media lights
      • Control: On/Off control to all outlets through front panel power button.
      • Voltage Regulation: No
      • Compliance: cCSAus
      • USB Charging: 1 front panel USB charger
      • Low Voltage Trigger: N/A
      • AC Power Cord: 8 ft. captive, with low profile plug
      • Dimensions: 17"W x 6"D x 1.75" H, 2.19" H with feet
      • Weight: 6.5 lbs

        AC Protection
      • AC Protection Technology: Protect or Disconnect, Automatic Voltage Monitoring, L-N, L-G, N-G Protection Modes, Thermal Fusing
      • Under-Voltage Shutoff: 100V A ± 2V
      • Over-Voltage Shutoff: 140V A ±4V
      • Maximum Current Rating: 15 (Amps)
      • Initial Clamping Level: 200V Peak

        Filtration
      • Filtration TechnologyLiFT
      • Filtration Rating
      • Bank 1: -70dB min. @ 100kHz, -65dB min. @ 250kHz, -45dB min. @ 500kHz, Max filtration: -80dB @ 150kHz
      • Bank 2: High Current, Low Impedance, -50dB min. @ 100kHz, -60dB min. @ 250kHz, -45dB min. @ 500kHz, Max filtration: -63dB @ 250kHz
      • Signal Line Protection1 LAN, 1 Tel, 2 Cable/Satellite

        Shipping Info
      • Length: 19.6 (Inches)
      • Width: 12.1 (Inches)
      • Height: 5.2 (Inches)
      • Weight: 8 (Lbs)

      • Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): 330V
      • Single Pulse Energy Dissipation: 1575 Joules
      • Response Time: 1ns
      • Nominal Discharge Current (UL 1449 3rd Edition): 3,000A

        LAN Protection - Wires Protected: 8-Wires
      • LAN - Jacks: RJ-45
      • LAN - Compatibility: 10/100/1000bT
      • LAN - Clamping Level: 62V ± 6V @ 1 mA
      • TEL Protection - Wires Protected: 2 Wires, 1 Pair (4, 5)
      • Telco - Jacks: RJ-11
      • Telco - Fuseless/Auto-Resetting: Yes
      • Telco - Clamping Level: 260V
      • Coax Protection - Shielded: YesCoax - Insertion Loss: < 0.5 dB
      • Coax - HD 1080 i/p Ready: Yes
      • Coax - Frequency Range: 0 MHz - 2.2 GHz
      • Coax - Connections: Female "F", Gold Plated
      • Coax - Clamping Level: 75V
      • Coax - Bidirectional: Yes

    • Item Includes:

      • 1x Panamax MR4300 9 Outlet Power Management
