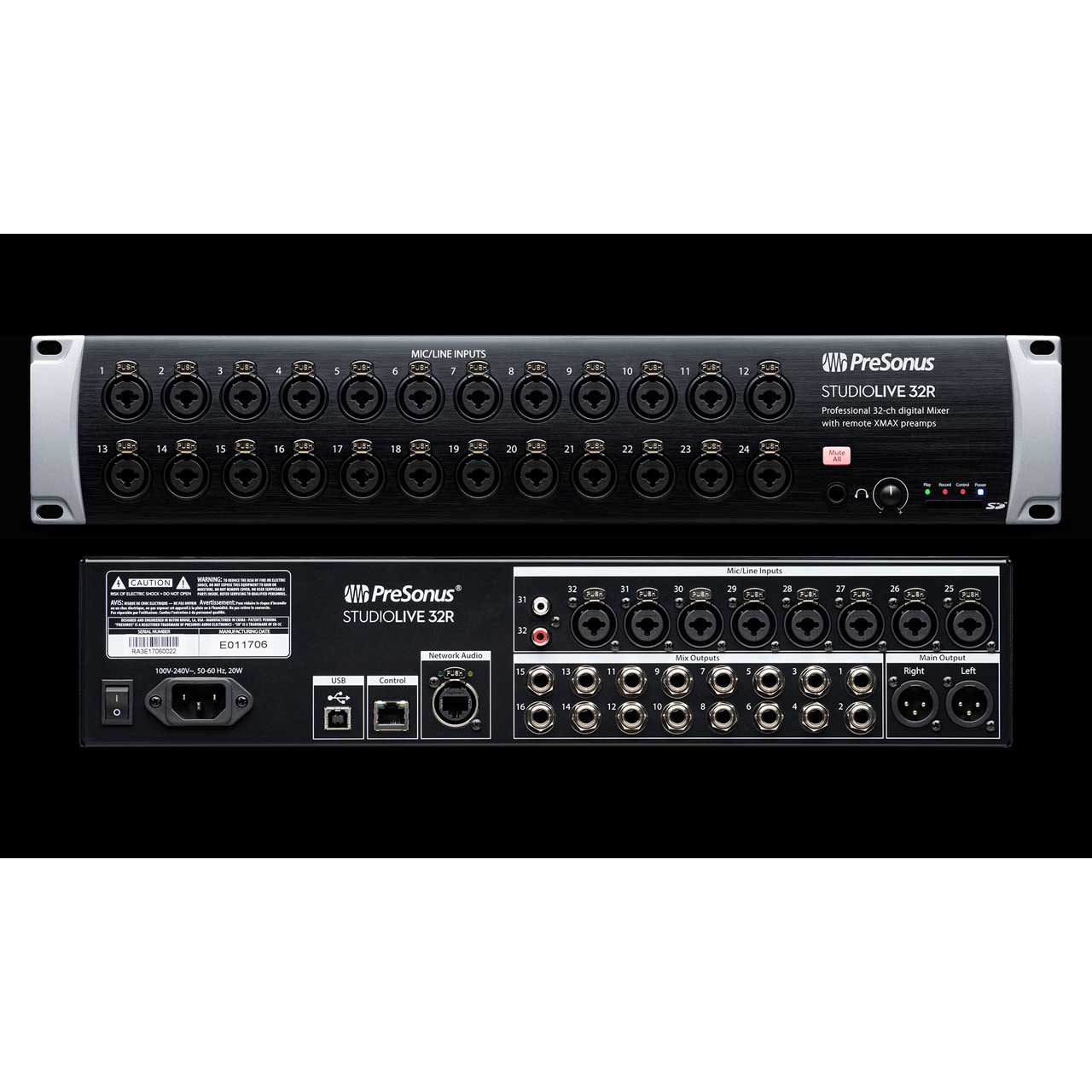

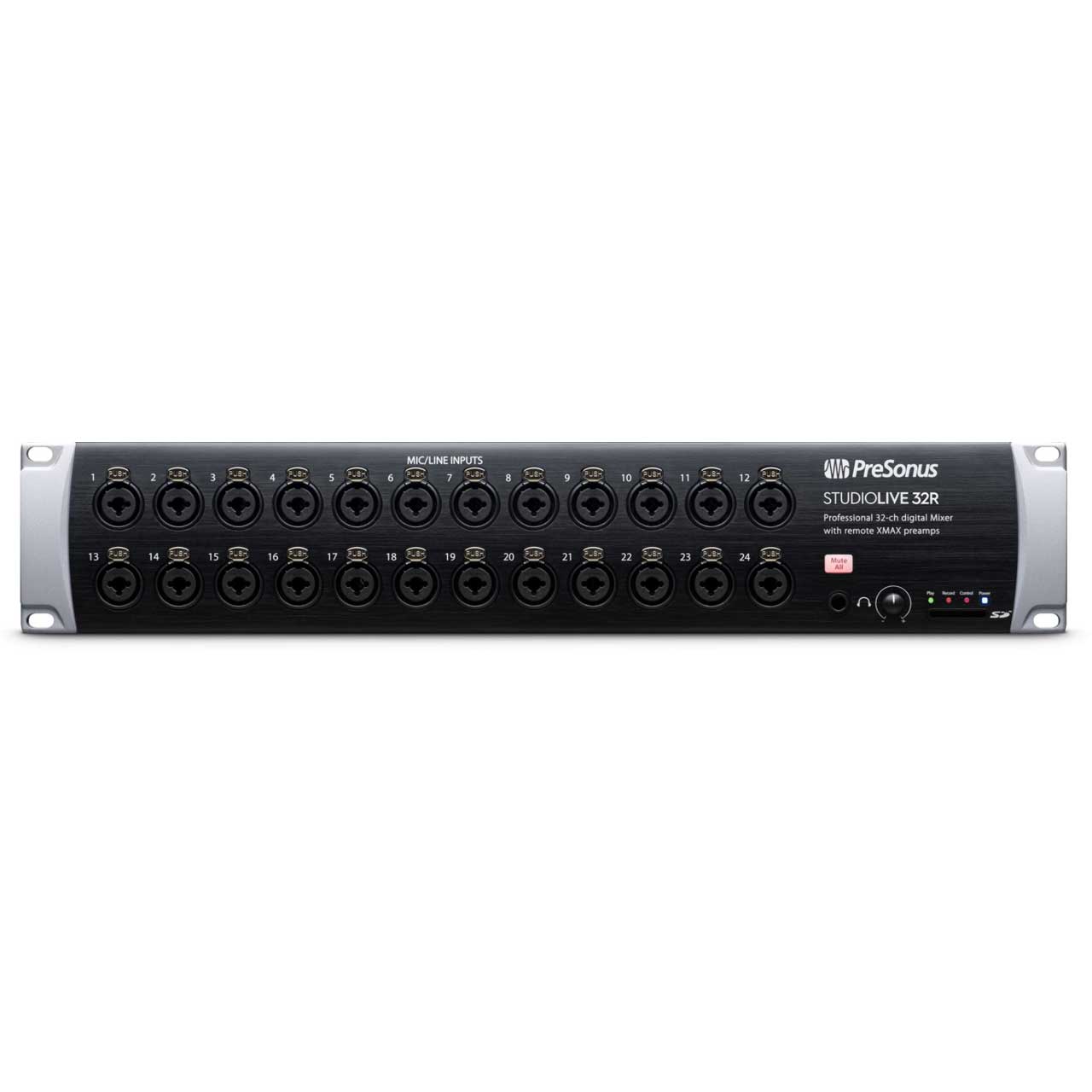

PreSonus StudioLive 32R 46x26 Digital Rack Mixer with 32 Recallable XMAX Preamps
  • PreSonus StudioLive 32R 46x26 Digital Rack Mixer with 32 Recallable XMAX Preamps
  • PreSonus StudioLive 32R 46x26 Digital Rack Mixer with 32 Recallable XMAX Preamps

Questions? Ask a Markertek Expert:
800-522-2025 Email

PreSonus StudioLive 32R 46x26 Digital Rack Mixer with 32 Recallable XMAX Preamps

Manufacturer: PreSonus

Item #: PRE-SL-32R   •   MFG #: STUDIOLIVE 32R



List Price:$1,999.95
Our Price:$1,399.95

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!





    The StudioLive 32R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 32R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake-and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 32R's preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 32R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class-all packed into just two rackspaces (2U).

    Networking isn't the future of professional audio systems; it's here now. StudioLive 32R Series III rack mixers come equipped with an AVB Ethernet connection that enables you to network multiple StudioLive Series III mixers and compatible computers and stream up to 55 channels of audio to and from a Mac or Windows PC. You also get 40x40 recording via USB 2.0, giving you a choice of computer recording methods. Each channel can independently access its analog input or its dedicated digital return from your computer. Alternatively, quickly and easily record the main mix-or any other stereo mix-to the built-in SD Card recorder. Upload a show for fans, give the band a reference recording, and more, no computer required. You can even simultaneously multitrack record to your laptop via USB or AVB and record in stereo to SD.

    In addition to the AVB recording connection, StudioLive Series III rack mixers sport a 1 Gb Ethernet port that can connect to a wireless router or directly to a computer, providing remote control of virtually all features. Mix wirelessly or over a wired network from anywhere using UC Surface for Mac, Windows, iPad, and Android tablet. Even add a second-or third, or even fourth!-screen for fast workflow. Musicians can control their monitor mixes onstage with QMix-UC for iPhone, iPod touch, or Android device without the need for large monitor networks. Go wireless, wired, or both.

    Now includes Studio Magic Plug-in Suite!
    This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.


    • Features

      • 32 min/line channel inputs + 2 RCA inputs
      • 16 1/4-inch TRS FlexMix outputs
      • 2 XLR (L/R) Main outputs
      • Stereo headphone output
      • 2 stereo aux inputs (AVB or USB)
      • 1 stereo digital return (SD Card, AVB, or USB)
      • 16 FlexMixes (can be designated as aux, subgroup, or matrix mixes); 4 dedicated subgroups; 4 internal effects sends
      • 24 Filter DCAs for easily and flexibly controlling groups of channels
      • 1 Ethernet control network port
      • 1 Locking XLR Ethernet AVB audio network port
      • Onboard stereo SD recorder
      • 40x40 USB recording interface
      • 55x55 AVB recording interface
      • Intuitive Fat Channel signal processing on every channel
      • Vintage EQ and compressor models available on every input
      • 8 31-band graphic EQs
      • 4 internal effects buses: combination of reverbs and delays with modern and vintage options
      • Built-in real-time analyzer
      • Create, save, and edit up to 100 scenes
      • Scene management with Scene Safe-prevents a scene change from affecting designated "safe" channels
      • Create, save, and edit channel settings and copy/paste between channels
      • Advanced channel preset options can save and recall
      • 8 Quick Scenes
      • 8 Mute groups
      • Studio-quality converters with 115 dB dynamic range
      • 48 kHz operation with 24-bit resolution (44.1 kHz option coming soon)
      • UC Surface touch control software for Mac, Windows, iPad, and Android
      • Studio One Artist digital audio workstation software for Mac and Windows
      • Capture multitrack recording software for Mac and Windows
      • QMix-UC aux-control software for iOS and Android available free from Apple App Store and Google Play

    • Specifications

      • Mic Preamp
      • Input Type: Combo locking XLR mic-1/4" TRS line
      • Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
      • Input Impedance: 1 kΩ
      • THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
      • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
      • Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
      • Gain Control Range (±1 dB): 0 dB to +60 dB
      • Maximum Input Level (unity gain): +12 dBu
      • Phantom Power (±2 VDC): 48 VDC, switchable per channel

        Unbalanced Inputs (Ch. 31-32)
      • Type: RCA Female, unbalanced (stereo pair)
      • Maximum Input Level: +12 dBu, ±0.5 dBu

        Main Outputs
      • Type: XLR Male, balanced
      • Maximum Output Level: +24 dBu, ±0.5 dBu
      • Output Impedance: 100Ω

        Mix Outputs
      • Type: 1/4" TRS Female, balanced
      • Maximum Output Level: +18 dBu, ±0.5 dBu
      • Output Impedance: 100±

        Headphone Output
      • Type: 1/4" TRS Female, active stereo
      • Maximum Output: 100 mW/ch. @ 60Ω load
      • Frequency Response: 20 Hz - 20 kHz (± 0.5 dB)
      • THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
      • S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

        Digital Audio and Control
      • ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
      • DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
      • USB Recording Port: USB 2.0, Type-B
      • Network Control Port: RJ-45
      • AVB Audio Network Port: Locking XLR Ethernet
      • Internal Processing: 32-bit, floating point
      • Sampling Rate: 48 kHz (44.1 kHz coming soon)
      • A/D/A Bit Depth: 24
      • Reference Level for 0 dBFS: +18 dBu
      • Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)

        Physical
      • Connector: IEC
      • Input-Voltage Range: 90 to 230 VAC (±10%)
      • Power Requirements (continuous): 85W
      • Recommended Ambient Operating Temperature: 32° to 104° F
      • Dimension (H x W x D): 3.5" x 19" x 12"
      • Weight: 11.2 lbs.
