    Z860 1505 00 - Overview

    Recoil - Professional Studio Monitor Isolator/Stabilizer

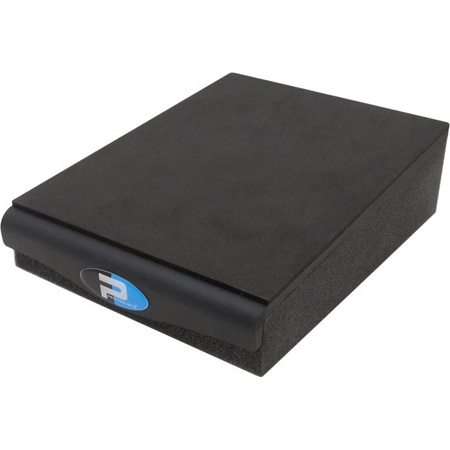

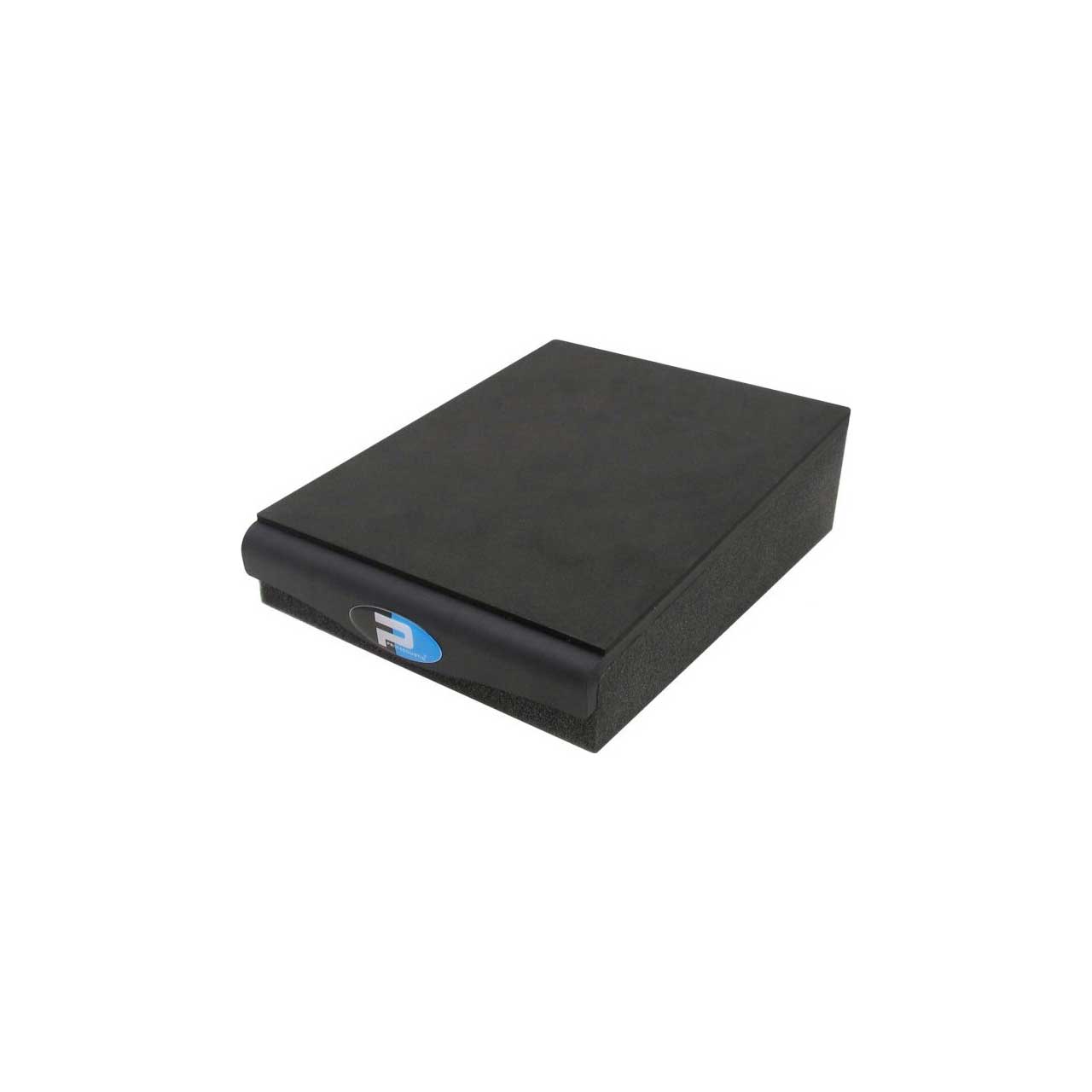

    Designed for nearfield monitors, the Primacoustic Z860 1505 00 Recoil Stabilizer™ is a unique speaker mounting device that at once eliminates disruptive resonant coupling from the loudspeaker to the stand, while providing a stable base that reduces the recoil caused by the forward energy of the loudspeaker motion.

    The Recoil Stabilizer is a loudspeaker platform that combines three basic components: a high-density urethane foam base to isolate the speaker from the shelf, monitor-bridge or stand; a heavy 1/4" laser-cut steel plate; and a thin neoprene top surface. The foam effectively decouples the loudspeaker to eliminate vibration-borne resonance that invariably introduces phase anomalies, while the steel plate introduces significant mass to the structure, stabilizing the speaker. The no-slip surface coats the top to ensure the monitor stays firmly in place.

    By reducing the backward 'recoil' as the speaker coil pushes energy forward, the initial transient no longer suffers lag and the sharpness of the resulting impulse is more defined. Upon first listening, one immediately notices more punch and extended low end. Upon further listening, one begins to notice greater detail at all frequencies, improved transient response and more defined depth of field. This not only makes mixing easier, but since the Recoils eliminate unknown resonance from contaminating the sound, your mixes immediately translate better to other rooms and audio systems.

    The Recoil Stabilizer is available in various sizes, weights and firing angles to address the vast array of speaker designs currently on the market and personal mounting preferences.

    The Recoil Stabilizer is a nearfield monitor platform that incorporates four different elements to create the whole. This includes:
    1. Retention pad - Thin no-slip neoprene surface secures the nearfield monitor to the top surface for maximum signal transfer.
    2. Steel platform laser cut 1/4" (6mm) steel platform adds the necessary stabilizing mass to rigidly hold the nearfield monitor in place.
    3. Curved front panel - curved front panel eliminates standing waves and adds mass to the platform without increasing the footprint.
    4. Isolation foam - High density open cell acoustic foam provides acoustic isolation to eliminate coupling between loudspeaker and shelf.

    Recoil Stabilizers are available in a variety of sizes and weights to coincide with various monitors being produced today. Use the table below to determine the best Recoil for your monitor.

    • Features:

      • Enhances transient response and imaging
      • Tightens up the bass for greater accuracy
      • Eliminates resonance and phase anomalies
      • Improves translation to other audio systems
    • Specifications:

      • Deck: 1/4" steel, black powder coated with 1/8" Neoprene pad
      • Base: High density polyurethane foam
      • Number per box: 1

        Deck Dimensions & Load Limit
      • Z860-1505: RX5-HF 7.5" (190.5mm) 9.5" (241mm) 1.87" (47.5mm) 32 lbs load limit.
      • Z860-1505-05 RX5-DF (5° down angle) 7.5" (190.5mm) 9.5" (241mm) 1.87" (47.5mm) 32 lbs load limit.
      • Z860-1505-10 RX5-UF ( 10° up angle): 7.5" (190.5mm) 9.5" (241mm) 1.87" (47.5mm) 32 lbs load limit.
      • Z860-1507 RX7-HF: 10.375" (263mm) 13" (330mm) 2.62" (66.5mm) 44 lbs load limit.
      • Z860-1507-05 RX7-DF (5° down angle): 10.375" (263mm) 13" (330mm) 2.62" (66.5mm) 44 lbs load limit.
      • Z860-1509 RX9-HF: 15" (381mm) 11" (279mm) 2.62" (66.5mm) 50 lbs load limit.
      • Z860-1509-05 RX9-DF (5° down angle): 15" (381mm) 11" (279mm) 2.62" (66.5mm) 50 lbs load limit.
      • Z860-1512 RX12-HF: 20" (508mm) 13" (330mm) 2.62" (66.5mm) 88 lbs load limit.
      • Z860-1512-05 RX12-DF (5° down angle): 20" (508mm) 13" (330mm) 2.62" (66.5mm) 88 lbs load limit.
      • Z860-1517 RX17: 17" (432mm) 17" (432mm) 2.62" (66.5mm) 88 lbs load limit.
      • Z860-1520 RX20: 20" (508mm) 22" (559mm) 2.62" (66.5mm) 144 lbs load limit.

      • Weight
      • RX5 - 5.75 lbs. (2.6 kg.)
      • RX7 - 10.8 lbs. (4.9 kg.)
      • RX9 - 12.5 lbs. (5.7 kg.)
      • RX12 - 22 lbs. (10 kg.)
      • RX17 - 22 lbs. (10 kg.)
      • RX20 - 36 lbs. (16.3 kg.)
    • GTIN:
