PTZOptics Move 4K 20x PTZ Camera and Elgato Stream Deck Studio Rack Mount 32-Key Control Surface Bundle - Gray

ITEM #: PT20X4KGYSDSTUBU MFG #: PT20X4KGYSDSTUBUN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$3,488.99

Special Price:

$3,248.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PT20X4KGYSDSTUBUN - Overview

Bring customizable workflow control and intelligent PTZ video together in one flexable solution!

The PTZOptics Move 4K 20x and Elgato Stream Deck Studio Bundle combines professional 4K PTZ camera performance with advanced broadcast control. Together, they create a streamlined workflow for live production, streaming, sports, education, houses of worship, corporate video, and broadcast environments. The Move 4K handles video capture and auto-tracking, while Stream Deck Studio puts essential production controls at your fingertips.

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind
Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities -- no need to run software on another computer -- freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Discreet Mounting Options
Mount your PTZ Move camera above, below or beside the action to capture the ideal view every time. The automatic video inversion feature senses the camera's orientation and saves time on installation and setup.

Pan, Tilt, Zoom, Track.
Control your production from behind the scenes - or right in front of them. In addition to the Move 4K's auto-tracking features, users will also have access to PTZOptics latest Web UI -- updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

A Game Changer For Broadcasting
Utilizing the power of Bitfocus software, the Stream Deck Studio is a game changer for broadcasting with its ability to deliver crosspoint routing, tally management and SNMP network monitoring. It offers native support for IS-04 and IS-05 for seamless IP-based streaming as well as an extendable control system with rich API access for deep workflow integration.

It's Time To Streamline
Compatible with hundreds of devices from the industry's favorite vendors, Stream Deck Studio helps you breeze through the most demanding workflows.

Powered by Buttons software, it's the new standard for broadcast control. Proudly brought to you by Elgato and Bitfocus.

One Control Surface To Rule Them All
Your workflow, your way. Stream Deck Studio is hyper-customizable, so you can personalize every key and dial for maximum efficiency and intuitive operation. Built to slot right into standard 19" racks, it's your all-in-one broadcast controller.

  • Features:

      PTZOptics Move 4K
    • Built-In Auto-Tracking
    • Advanced White Balance Modes
    • Wide Dynamic Range
    • Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
    • 3D Noise Reduction
    • SRT Support
    • Up to 4K Resolution @ 60fps
    • Blackmagic Switcher Integration
    • Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94

      Elgato Stream Deck Studio
    • Crosspoint Routing: Auto-generated inputs and outputs with tag-based filtering for easy configuration
    • SNMP: Built-in infrastructure and network monitoring for complete system oversight
    • NMOS/ST 2110: Native support for IS-04 and IS-05 for seamless IP-based broadcasting
    • Tally Management: Intuitive GPIO routing and logic engine simplifies signal management
    • API: Extendable control system with rich API access for deep workflow integration
    • Companion Modules: Supports all Bitfocus Companion connections for unlimited compatibility

  • Specifications:

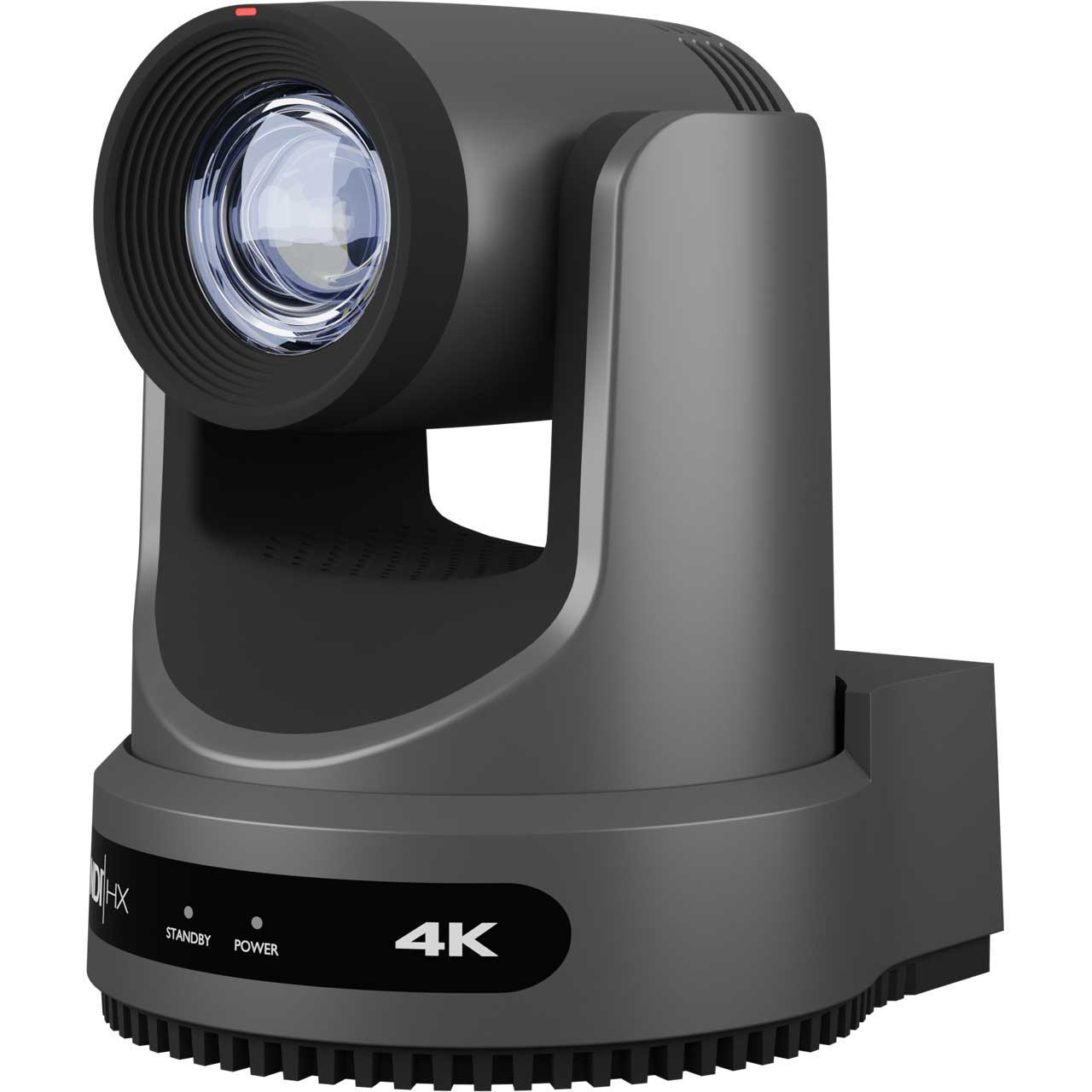

      PTZOptics Move 4K
      Image Sensor & Lens
    • Optical Zoom: 12x
    • Video Sensor and Frame Rate:
      - HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
      - SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
    • Digital Zoom: Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X (960x540), 8X (480x270), 16X (256x144)
    • Field of View:
      - 12x: Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
      - 20x: Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
    • Min. Lux: 0.5 Lux @ (F1.8, AGC ON)
    • Shutter: 1/30s ~ 1/10000s

      Pan/Tilt Movement
    • Pan Speed: 1.7° ~ 100°/s
    • Tilt Movement: +90° to -30
    • Tilt Speed: 1.7° ~ 69.9°
    • Presets: 255 Presets
    • Video Tracking: Supported
    • Image Flip, Mirror and Freeze: Supported

      Power Options
    • Power Supply: DC 12V / PoE+ (802.3at)
    • Input Power: 18W (Max)

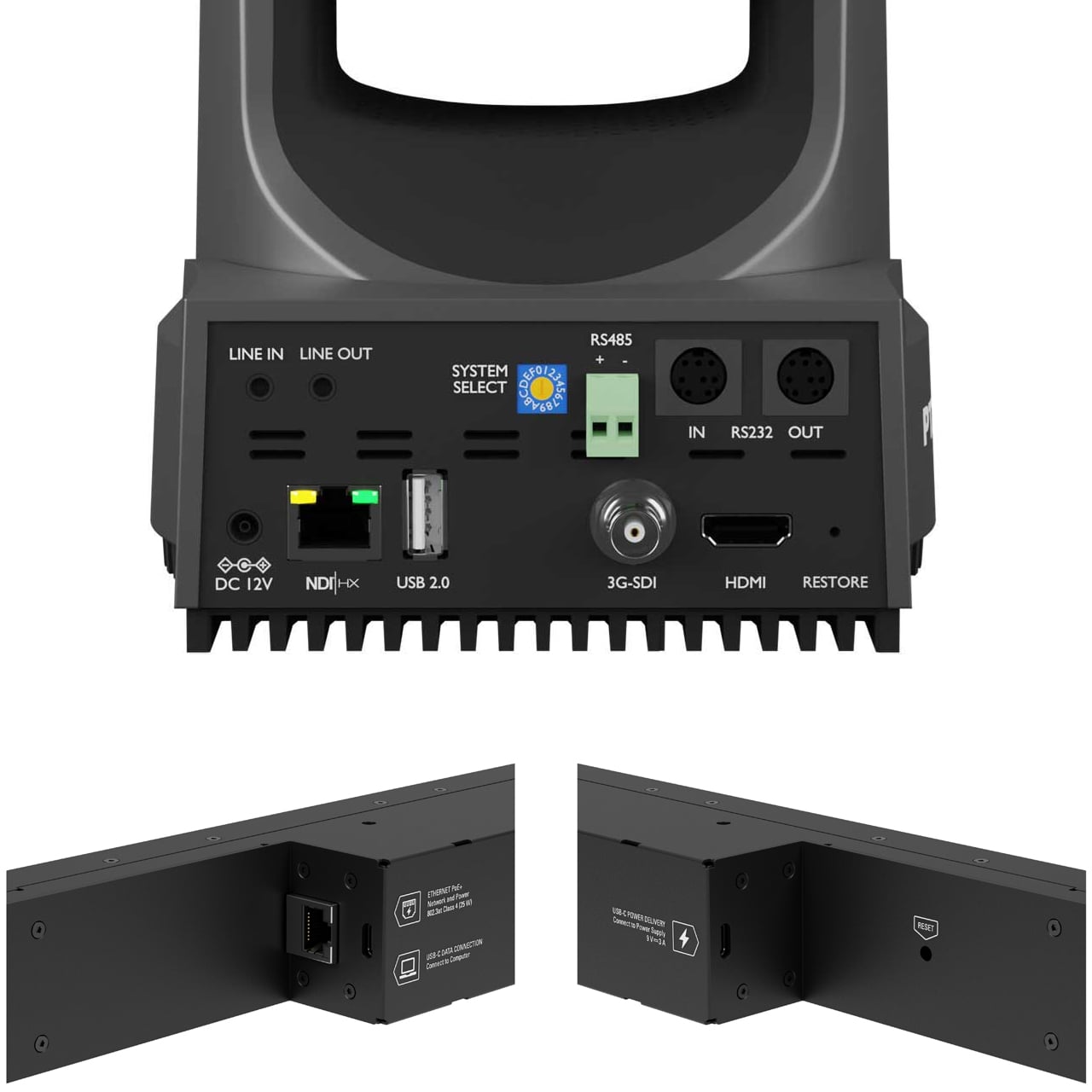

      Rear Board Connectors
    • HD Video Output:
      - 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
      - 1x HDMI: version 2.0
      - 1x USB 2.0: type A
      - 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
    • Audio Interface: 1x 3.5mm Line level Input
    • Communication Interface:
      - 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
      - 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
      - 1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
    • Network Interface: RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
    • Power Jack: JEITA type (DC IN 12V)

      Physical Specifications
    • Material: Aluminum, Plastic
    • Color: White
    • Dimensions (W x D x H): 5.57 W x 5.94 x 7.91 in
    • Weight: 3.25 lbs
    • Working Environment: Indoor
    • Operating Temperature: 14°F ~ 104°F
    • Storage Temperature: -40°F ~ 140°F

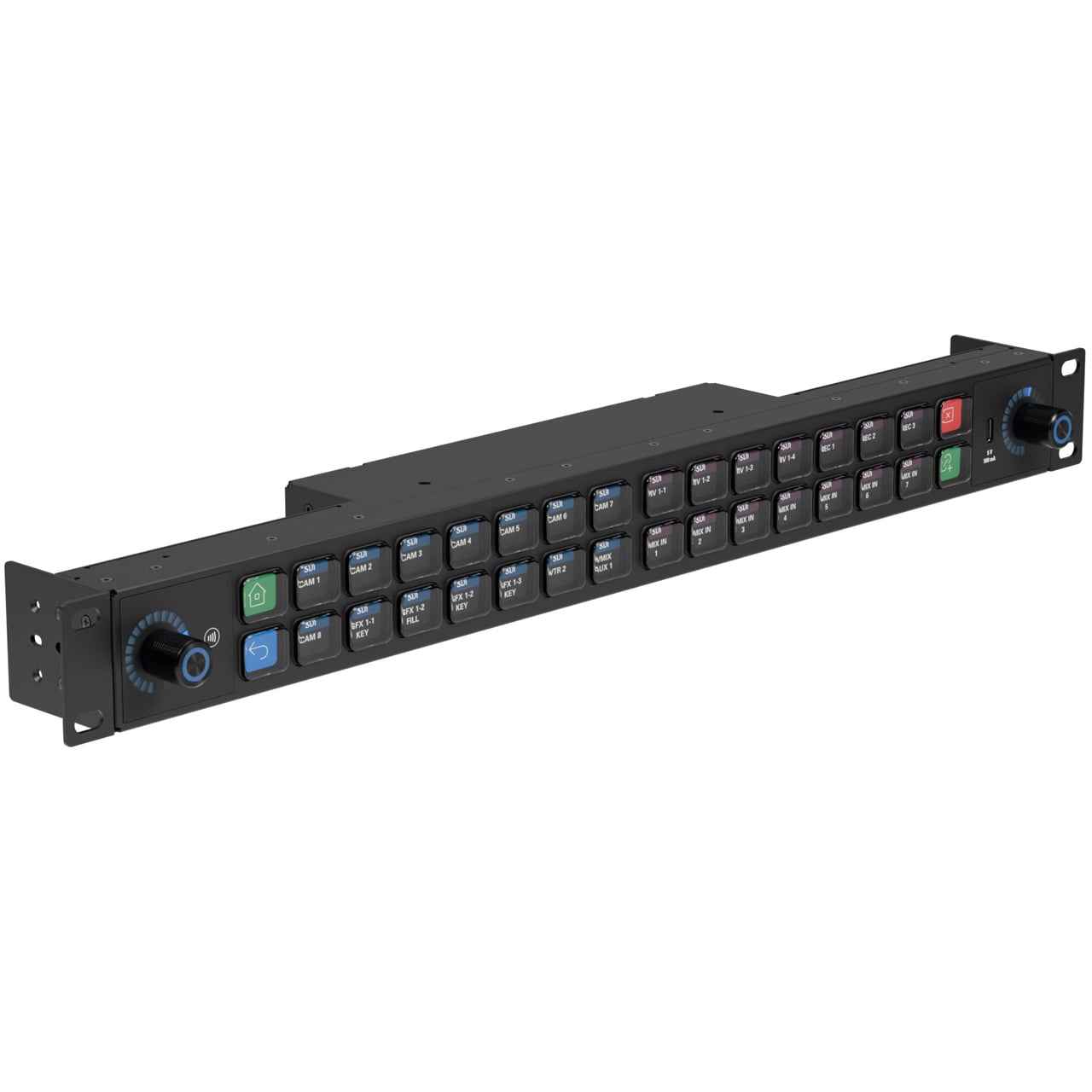

      Elgato Stream Deck Studio
    • Key: 32x customizable LCD keys
    • Dials: 2x 360° encoders with push function, LED indicator, and LED ring
    • Interface: RJ45 Ethernet PoE+ (100 Mb/s), USB-C
    • Power: RJ45 Ethernet PoE+ (802.3at Class 4), USB-C PD 3.0 (9 V, 3 A)
    • Power Consumption: Up to 15W

  • Item Includes:

    • 1x PTZOptics Move 4K 20x Gray
    • 1x AC Power Supply
    • 1x USB A-A Cable
    • 1x RS232 Cable
    • 1x Quick Start Guide
    • 1x IR Remote
    • 2x AA Batteries
    • 1x NDI HX License
    • 1x Elgato Stream Deck Studio
    • 1x Rack Mounting Brackets and Screws
    • 1x Quick Start Guide

  • Warranty:

    • 5 Year Parts & Labor Manufacturer Warranty (PTZOptics Move 4K 20x)
    • Limited 2-Year Manufacturer Warranty (Elgato Stream Deck Studio)
