PTZOptics PT-WC-G1 Wireless Cable Add-On Unit

ITEM #: PTZ-PT-WC-G1 MFG #: PT-WC-G1

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$578.00

Our Price:

$525.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    PT-WC-G1 - Overview

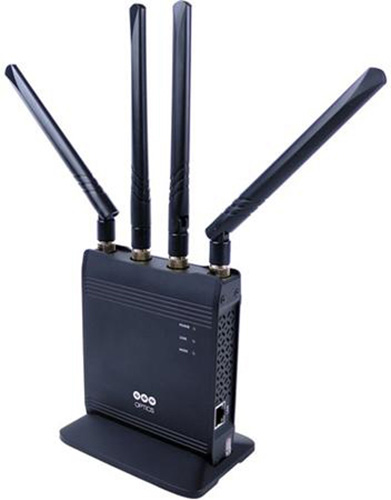

    The PTZOptics PT-WC-G1 WirelessCable is a wireless data transmission system that functions just like a Ethernet cable. With a maximum transmission distance of 400 meters (1300 feet) between 2 paired units, you can connect any device that utilizes a LAN connection. Multiple devices can be Daisy-Chained to increase the distance up to 1600m. The WirelessCable will make set up a breeze, allowing you to connect any device to your network without a physical cable.

    • Features:

      • Supports multi-level cascading
      • Supports a wide range of applications in wireless communication, live video, etc.
      • Up to 300Mbps wireless transmission bandwidth
      • 4x4 MIMO beamforming technology
      • 1/4-20 mounting screw on bottom and side of unit
      • Portable and easy to install
      • Infrastructure Mode
      • Daisy-Chain Mode
      • WPA2-AES & WPA2 + WPA Encryption

    • Specifications:

      • General
      • Frequency: 4.90 - 5.85 (GHz)
      • Bandwidth: 40MHz
      • Protocol: 802.11a/n
      • Receive Sensitivity: ≤ -70dBm
      • Transmitter Power: 17dBm
      • Max Speed Per Link: 300Mbps
      • Max Distance Between Units: 400m (Line of sight)
      • Daisy Chain Unit: Maximum 5 Total units
      • Infrastructure Mode: Limit 4 to 1

        Physical
      • Power Supply DC in: (6 ~ 17V) 2A (Max)
      • Dimensions (LxWxH) (No Bracket): 4.29 x 1.06 x 5.12" (109 x 27 130mm)
      • Dimensions (LxWxH) (Bracket): 8.63 x 7.86 x 2.25" (219.2 x 199.6 x 57.6mm)
      • Operating Temperature: 0° to 40°C (32° to 104°F)
      • Storage Temperature: -20° to 60°C (-4° to 140°F)
      • Weight: 1.54Lbs (0.7kg)

    • Item Includes:

      • 1x WirelessCable AP/ST
      • 1x Power Adapter + Cord
      • 1x LAN Cable
      • 1x Antennas (4)
      • 1x User Manual
      • 1x Mounting Base

    • Warranty:

      • 1 Year

    • GTIN:

      0737993162186


    PT-WC-G1 - Required Accessories

      PT-WC-G1 - Recommended Accessories
