PTZCam PTZC-3PTZ-PLUS-CS Three 1080p60 20x Zoom PTZ Streaming Camera Bundle with Control Surface and Camera Brackets

ITEM #: PTZC-3PTZ-PLUSCS MFG #: PTZC-3PTZ-PLUS-CS

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,399.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTZC-3PTZ-PLUS-CS - Overview

The PTZCam PTZC-3PTZ-PLUS-CS is a bundle featuring the UV510A camera. A full HD PTZ streaming camera with a 1080P/2MP lens and 20X optical Zoom. It's perfect for tele-education, lecture capture, webcasting, videoconferencing, tele-training, tele-medicine, interrogation, and emergency command systems.

Also included is a network PTZ controller with a built-in video preview screen for decoding IP camera feeds in real time. Simply select a camera and its video appears instantly on the 5", 1280x720 display, making it easy to confirm your shot before switching or adjusting. The 4D joystick gives you smooth, precise control over pan, tilt, zoom, and confirm functions, while dedicated buttons let you jump straight to presets and fine-tune image settings like exposure and white balance. The controller supports both ONVIF and Pelco-D/P protocols, so it works whether you're running an all-IP setup or integrating with existing Pelco-compatible cameras. Manage up to 254x cameras from a single controller - ideal for schools, houses of worship, and multi-room venues running several PTZ cameras from one control point. A single Cat5e/6 cable handles both power and data over PoE, or use the included DC12V adapter if PoE isn't available on your network.

  • Features:

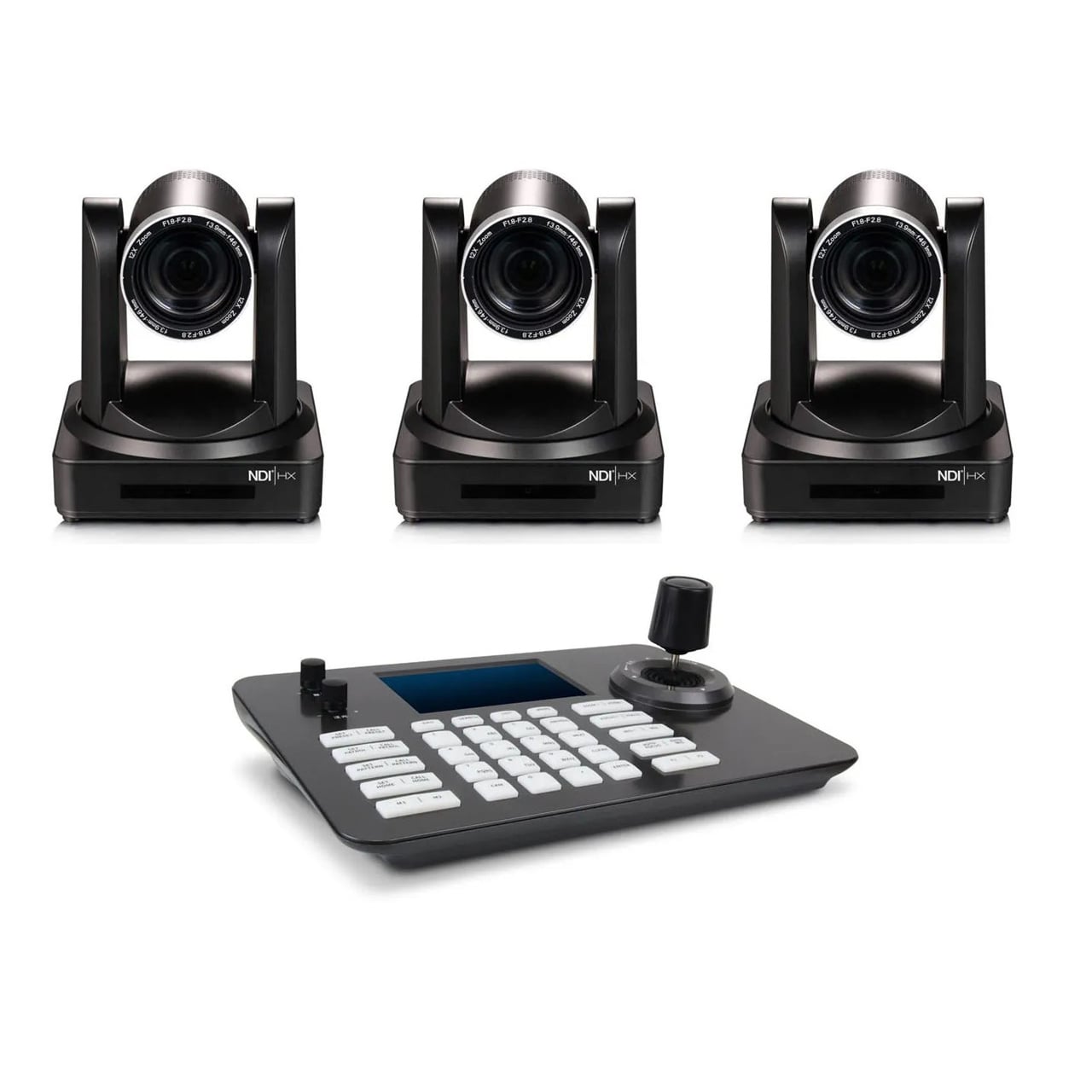

    • Bundle of 3x PTZCam UV510A 20X PTZ cameras and View IP PTZ controller

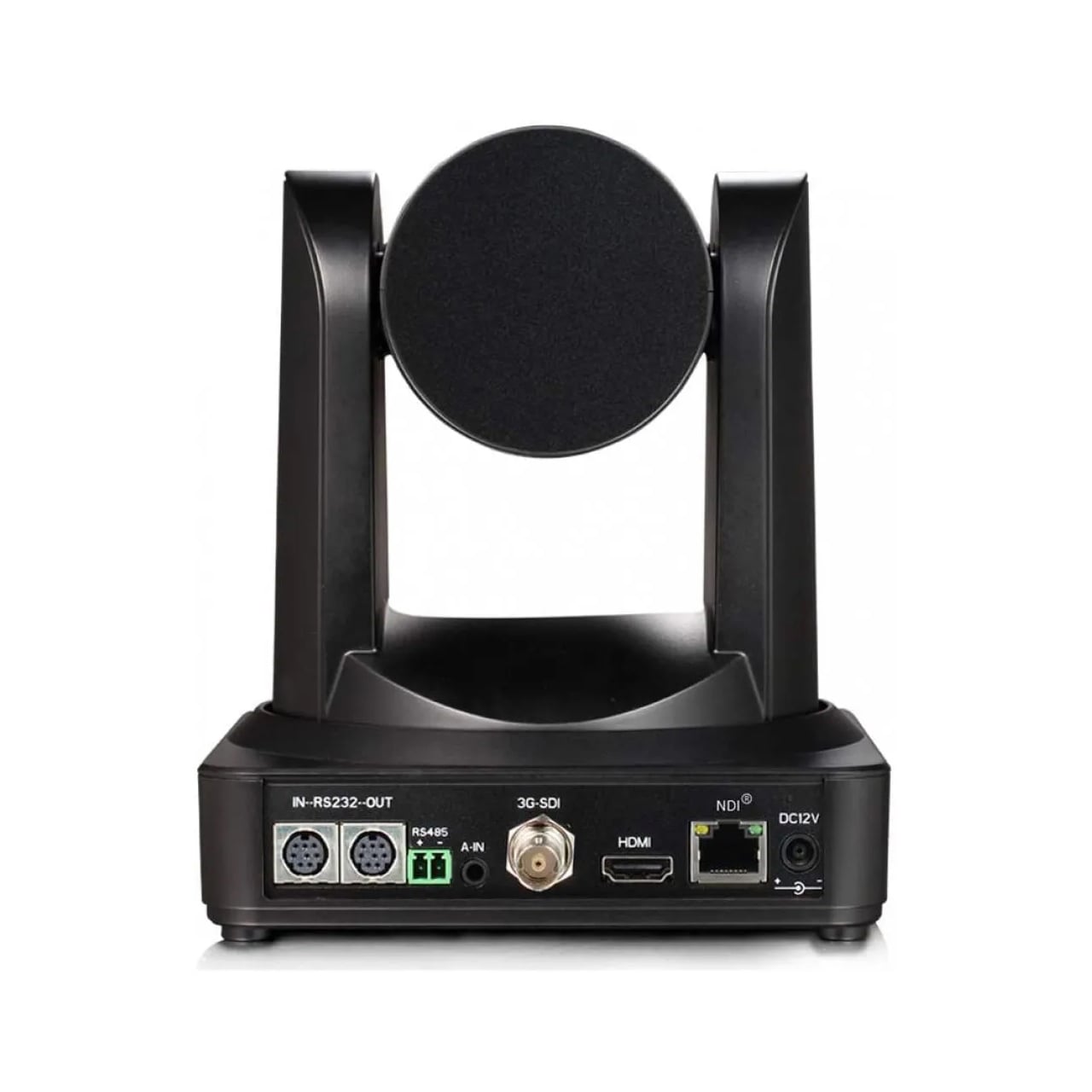

    • UV510 PTZ camera features 20x optical zoom, SDI, HDMI, and USB 3.0 outputs
    • AI auto-tracking and auto-framing, customizable through the web UI
    • View IP controller features easy connection to UV510 cameras via ONVIF or VISCA
    • Live preview of UV510 PTZ cameras built-in LCD

  • Specifications:

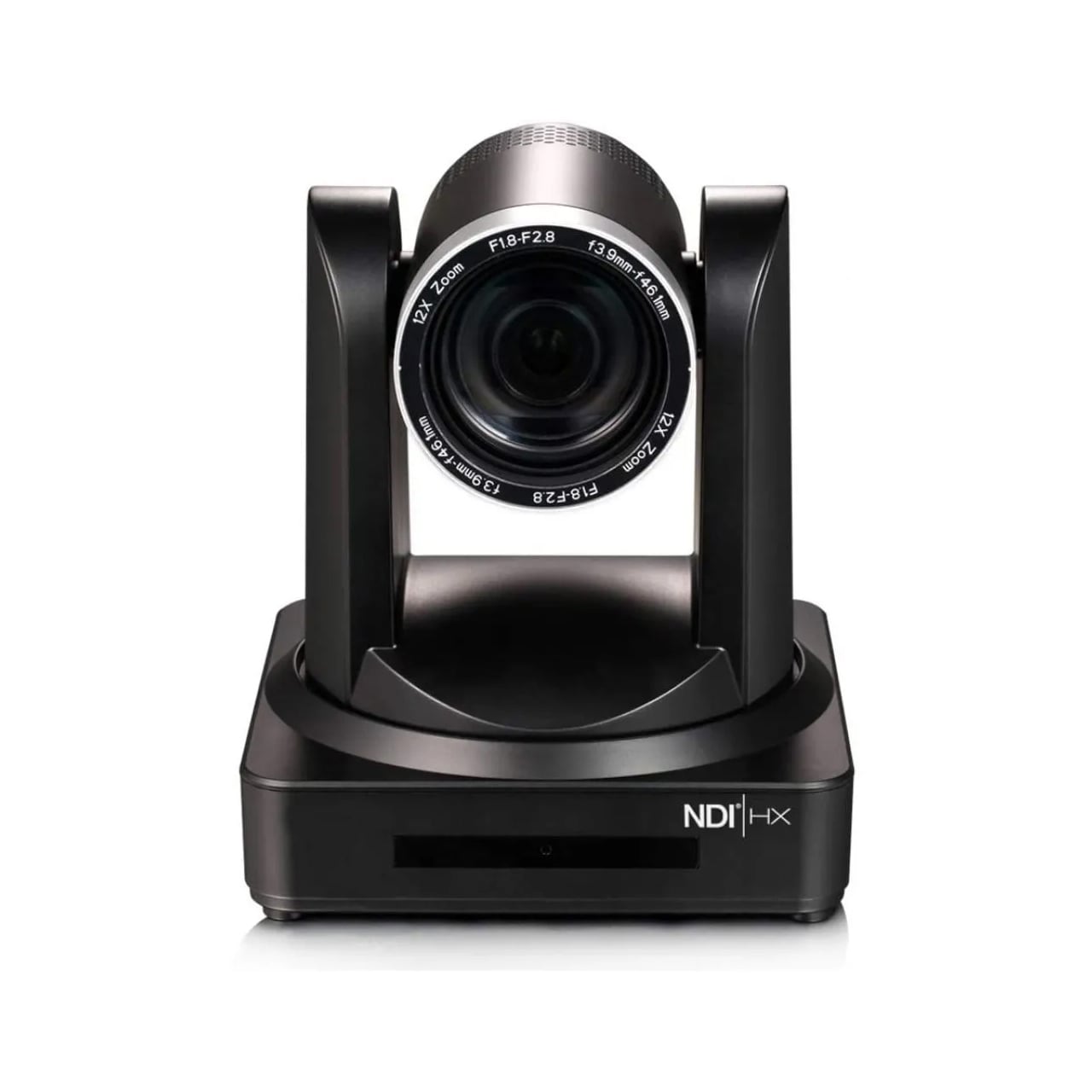

      UV510A
    • Image Sensor: 1/2.8"-Type CMOS
    • Sensor Resolution: Effective: 2 Megapixel
    • Shutter Type: Electronic Rolling Shutter
    • Optical Zoom Ratio: 20x
    • External Recording Modes: SDI/BNC/HDMI/RJ45 - 1920x1080p at 29.97/59.94fps
    • Broadcast Output: NTSC
    • IP Streaming:
      - H.264, H.265, NDI|HX, ONVIF, RTMP, RTP, RTSP, SRT
      - 1920x1080 at 25p, 29.97p, 30p, 50i, 50p, 59.94i, 59.94p, 60i, 60p
      - 1280x720 at 25p, 29.97p, 30p, 50p, 59.94p, 60p
    • Supports the following Control Protocols: IP/RS-232/RS-485/VISCA

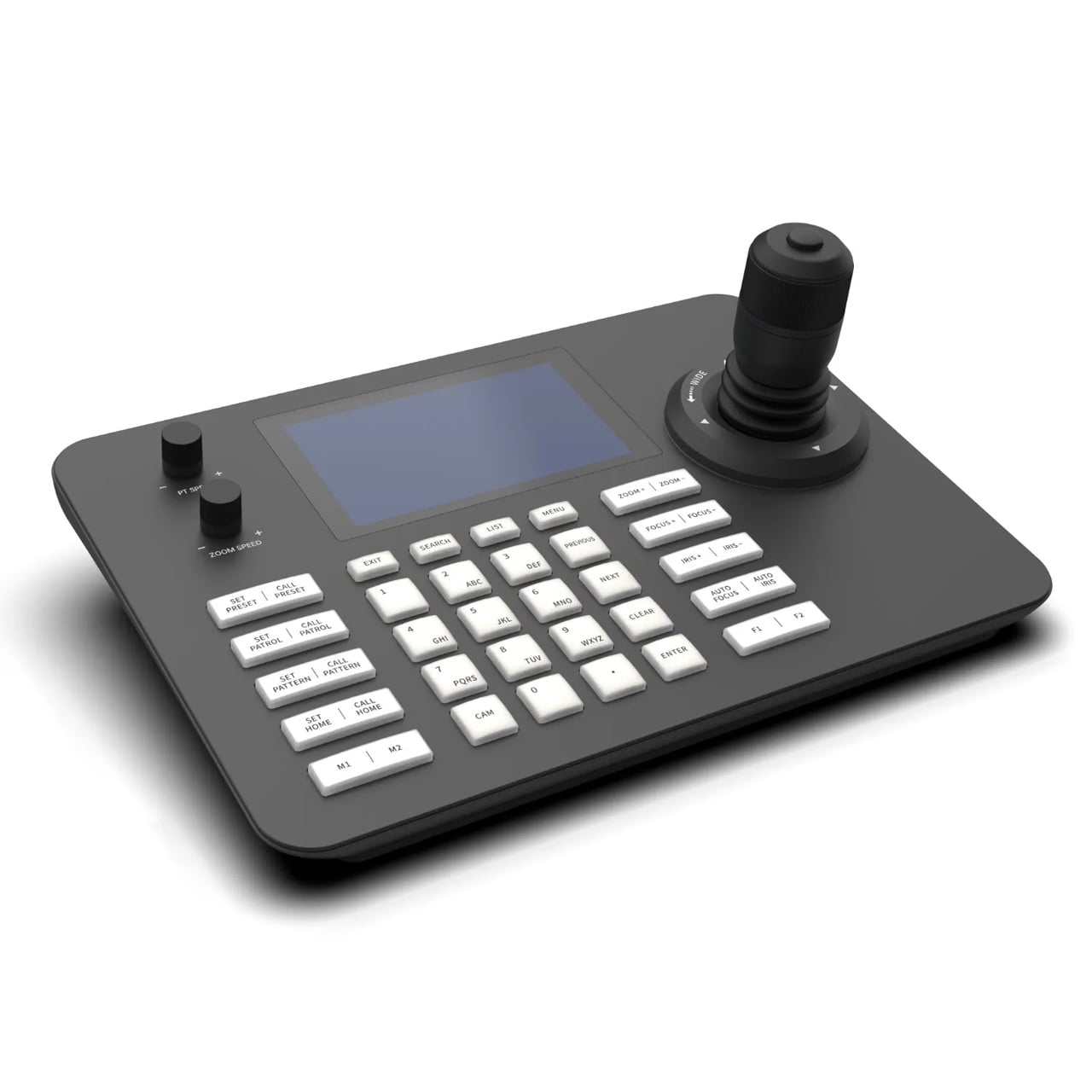

      View Control Surface
    • Protocol Support: ONVIF 2.8, Pelco-D/P
    • Max Connected Devices: Up to 254x
    • Decoding: H.264/H.265
    • Resolution: Max 1080p (1 channel): 1920x1080 @ 30fps
    • Joystick: 4D (up, down, left, right, zoom, confirm)

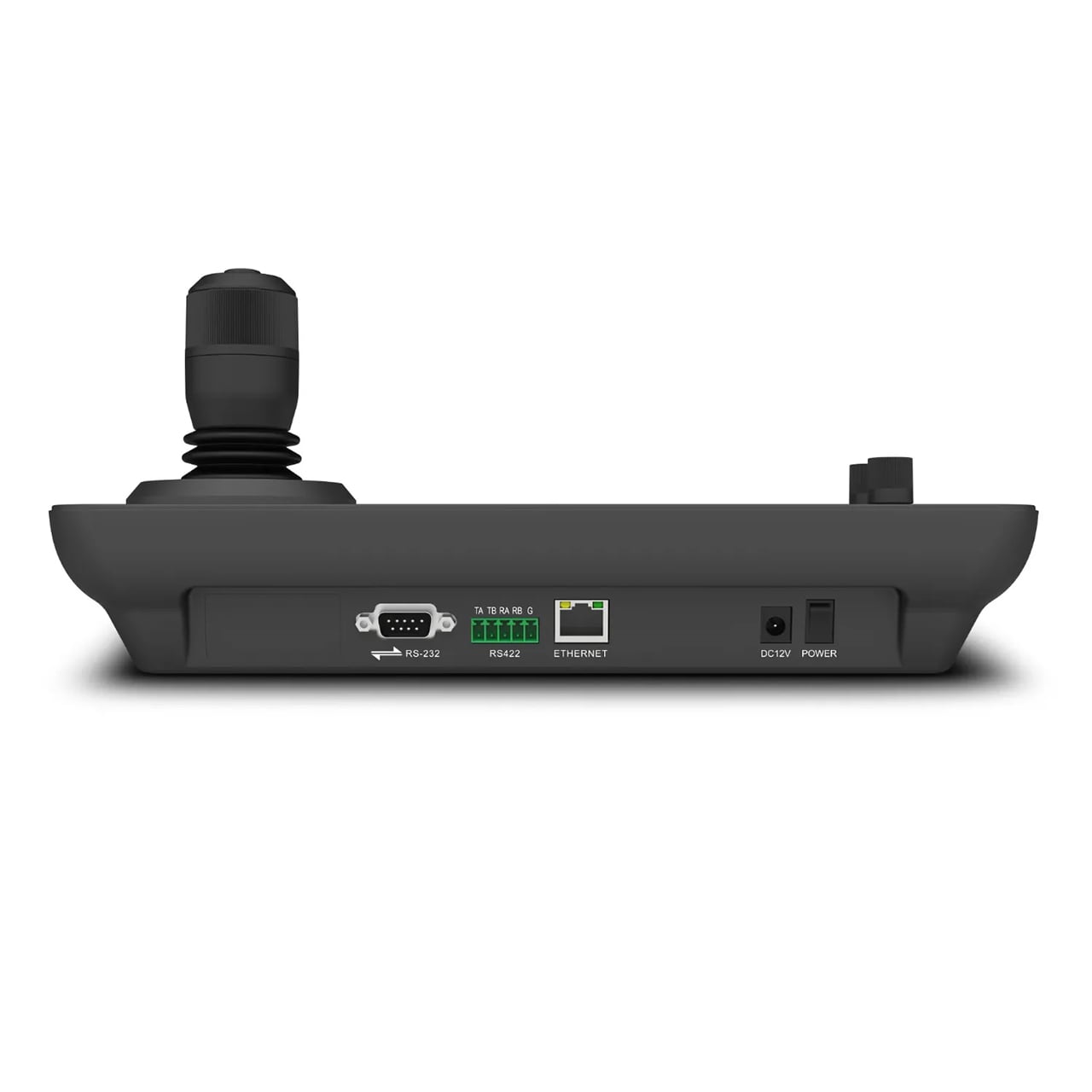

    • Interfaces:
      - 1x RJ45 (Network/PoE)
      - 1x RS422/RS485
      - 1x RS232 (Development Port)
    • Display: 5" LCD, 1280x720
    • Sound: Key-touch beep (on/off)
    • Power Supply: DC 12V/2A or PoE
    • Power Consumption: ≤5W
    • Dimensions: 11.69" x 8.26" x 4.67" (297mm x 210mm x 118.7mm)
    • Weight: 3.03lbs (1375g)

  • Item Includes:

    • 3x UV510A PTZ Cameras
    • 1x Network PTZ View IP Control Surface

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0616050682709
