PTZCam PTZC-3PTZ20X-CSNDI HD Auto-Tracking 20x Zoom PTZ 3-Camera Bundle with NDI / SDI / HDMI / USB Outputs & Controller

ITEM #: PTZC-3PTZ20CSNDI MFG #: PTZC-3PTZ20X-CSNDI

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$2,499.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


PTZC-3PTZ20X-CSNDI - Overview

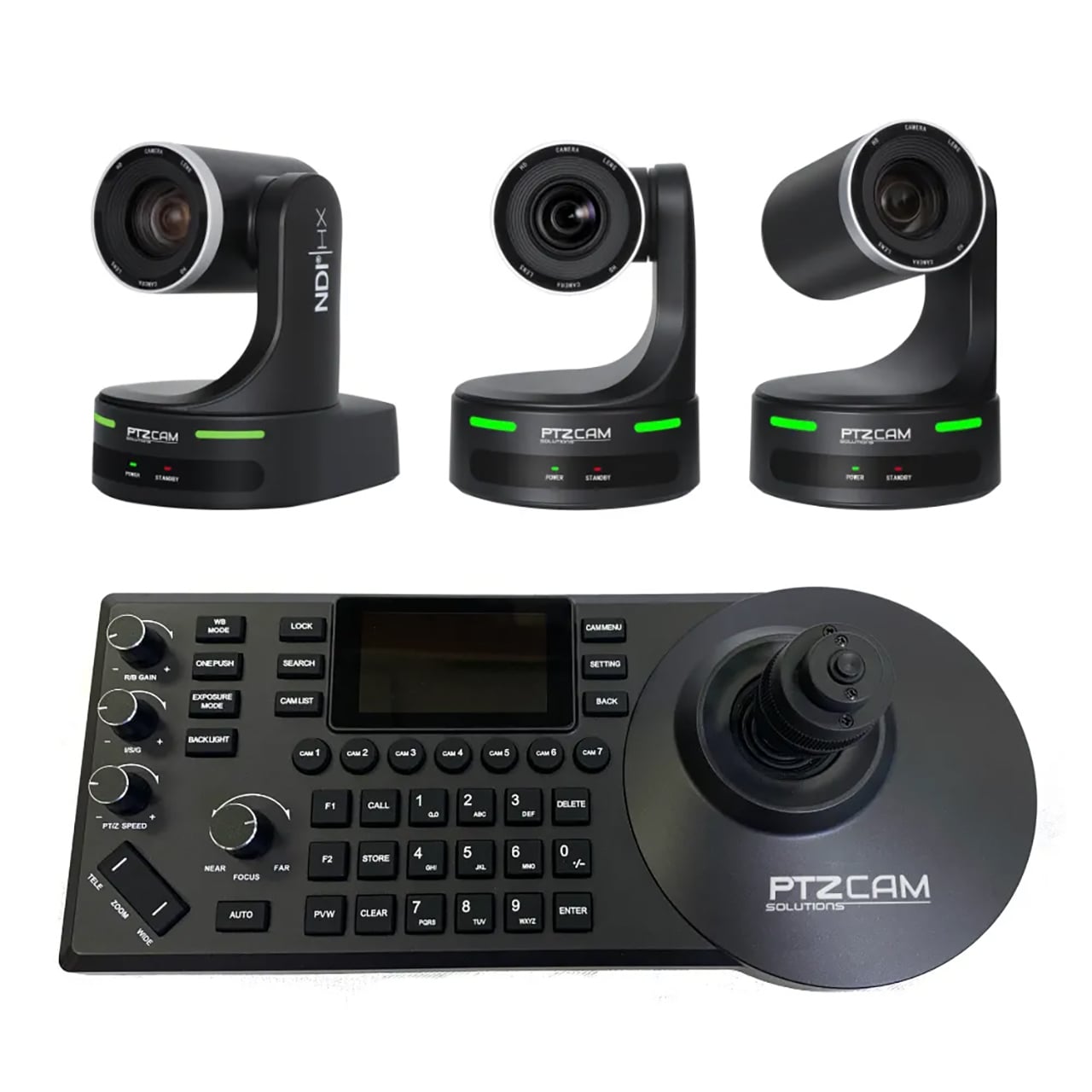

The PTZCam PTZC-3PTZ20X-CSNDI is a bundle of 3x PTZCam IP Pro 20 NDI|HX2 PTZ cameras and a View NDI PTZ controller.

Equipped with a 20X optical zoom, the IP Pro 20 is perfect for capturing clear, detailed footage in small to medium-sized rooms. The versatility of this camera is unmatched, featuring a wide range of output options such as 3G-SDI, HDMI, and USB. And if you need to transmit video over a network, its built-in H.264/H.265 streaming encoder supports up to 1080p60 in formats like NDI|HX2, RTMP, RTSP, SRT, and ONVIF. One of the standout features of the IP Pro 20 is its integrated AI-driven auto-tracking and framing. While you can still manually control the camera using traditional PTZ methods, enabling auto-tracking lets the camera intelligently follow human subjects, keeping them in the frame smoothly and naturally without any user intervention. This revolutionary feature simplifies the process of setting up lectures, sermons, or presentations-just a few clicks and the camera handles the rest.

The included View NDI controller is an elegantly designed and easy-to-use PTZ controller built for NDI-based live production workflows. With native support for NDI|HX cameras, the View NDI provides direct control of any NDI|HX2 camera*. In addition, the 3" color display can show a live preview of the active camera, making it simple to set up shots without an external monitor.

*Please Note: Only PTZ cameras with NDI|HX2 or higher are compatible.

  • Features:

    • Bundle of 3x PTZCam IP Pro 20 PTZ cameras and View NDI PTZ controller
    • IP Pro 20 PTZ camera features 20x optical zoom, SDI, HDMI, and USB 3.0 outputs
    • AI auto-tracking and auto-framing, customizable through the web UI
    • View NDI controller features easy connection to IP Pro 20 and other NDI-enabled PTZ cameras
    • Live preview of all NDI cameras and sources on built-in LCD

  • Specifications:

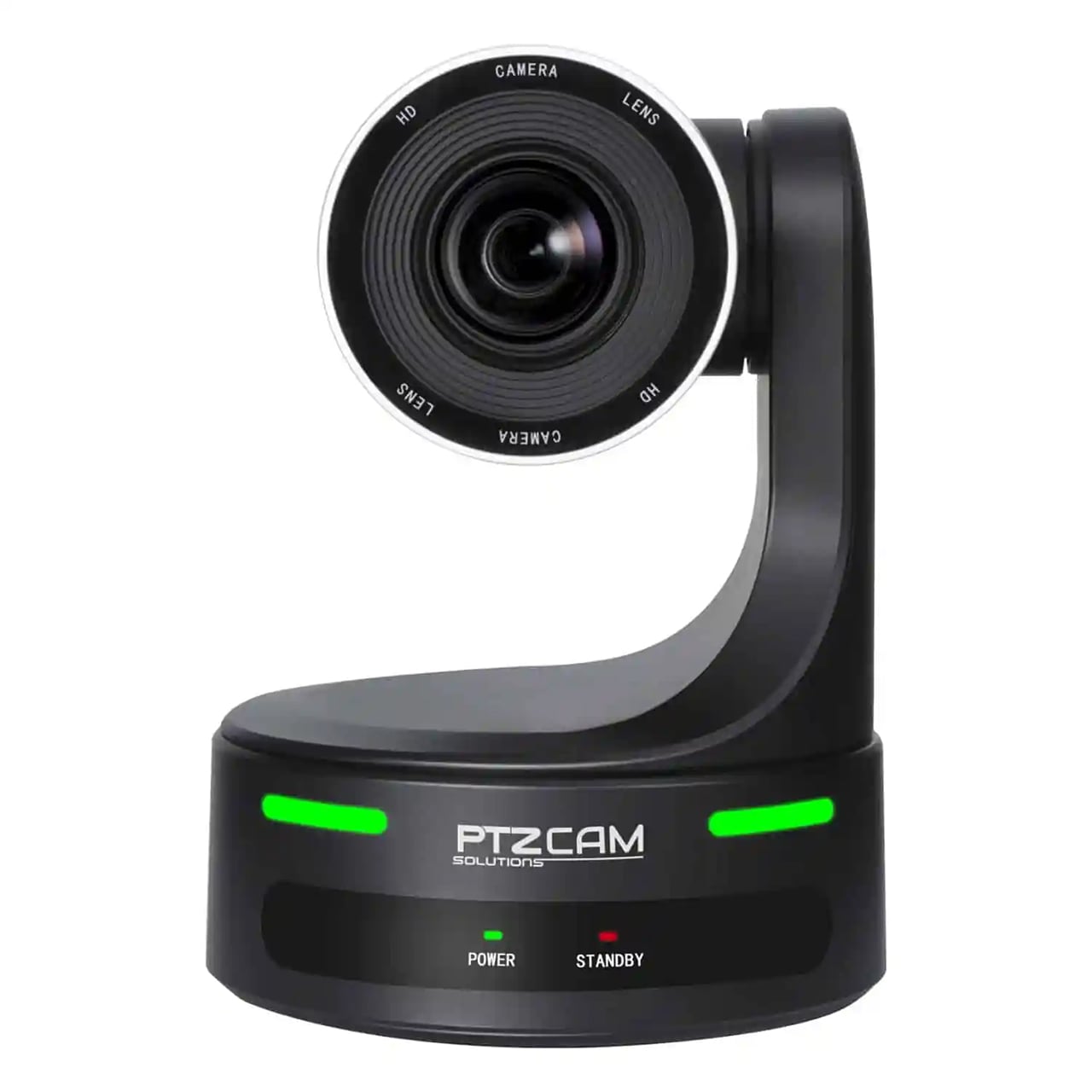

      IP Pro 20
    • Resolution:
      - HDMI: 1080p: 60/59.94/50/30/29.97/25, 1080i: 60/59.94/50, 720p: 60/50
      - SDI: 1080p: 60/59.94/50/30/29.97/25, 1080i: 60/59.94/50, 720p: 60/50
    • Image Sensor: SONY 1/2.8" CMOS
    • Pixels: 3.10 Megapixels, 2.07 Effective Megapixels
    • Scan Mode: Line by line
    • Lens: 20x Optical Zoom, f=5.2m (W) - 104mm (T)
    • Horizontal View Angle: 58.7° (W) - 3.2° (T)
    • Vertical View Angle: 32.2° (W) - 1.8° (T)
    • Focus System: Auto, Manual
    • Shutter Speed: 1/50s - 1/10000s
    • Minimum Illumination: 0.1 Lux @ (F1.5, AGC ON)
    • Exposure: Auto, Manual, Iris Priority, Shutter Priority, Brightness priority
    • White Balance: Auto, Indoor, Outdoor, One Push, Auto Tracking, Manual
    • Backlight Compensation: Support
    • Digital Noise Reduction: 2D & 3D Digital noise reduction
    • S/N Ratio: 50dB
    • Pan Angle: 355°
    • Tilt Angle: -30° - +90°
    • Pan Speed: 1° - 80°/s
    • Tilt Speed: 1° - 60°/s
    • Preset Positions: 9x preset positions by IR remote controller, 255x preset positions by joystick controller or PC
    • Preset Accuracy: 0.1° ±10%
    • Flip: Support
    • Image Freeze: Support
    • PoE: 802.3af (Optional)
    • Humanoid Tracking: Supported
    • Auto Framing: Supported
    • Protocol: UVC 1.1
    • Operating System: Windows 7 and above, macOS, Linux, Android
    • Video Compression: YUY2, MJPEG
    • Resolution: 1920x1080, 1280x720, 960x540, 800x600, 720x576, 720x480, 640x480, 640x360, 352x288, 320x240
    • Frame Rate: Max. 60
    • UVC: Control Support
    • Protocol: TCP/IP, HTTP, RTSP, RTMP, RTMPS, SRT, ONVIF, DHCP, VISCA Over IP, NDIrHX2
    • Video Compression: H.264, H.265
    • Code Stream: Main code stream, Sub code stream
    • Main Stream Resolution: 1920x1080, 1280x960, 1280x720, 720x576, 720x480, 640x480
    • Sub Stream Resolution: 640x480, 640x360, 480x360, 352x288, 320x240, 176x144
    • Bitrate Control: VBR, CBR
    • Audio Compression: AAC
    • Audio Bit Rate: 128kbps

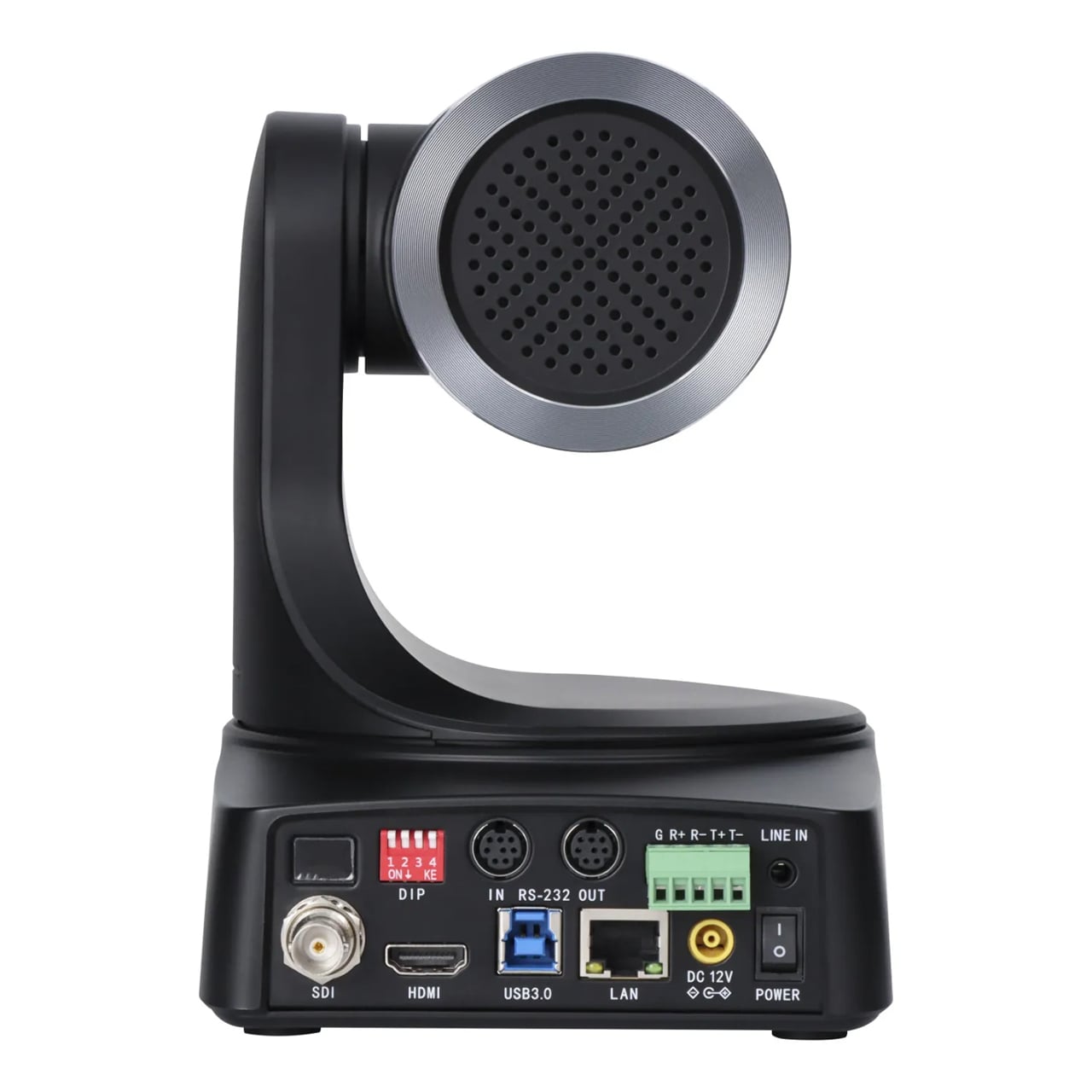

    • HDMI Interface: HDMI 1.4
    • SDI Interface: 3G-SDI
    • USB Interface: USB 3.0, Type-B Socket
    • Network Interface: RJ45: 10M/100M adaptive Ethernet port
    • Audio Interface: Line In, 3.5mm jack
    • Serial Interface:
      - RS232 In/Out: 8-pin mini DIN, Up to 98.4ft (30m), VISCA/Pelco-D/Pelco-P Protocol
      - RS422/485: 5-pin Phoenix Interface, Up to 1200m, VISCA/Pelco-D/Pelco-P Protocol
    • Power Interface: JEITA RC-5320A Type 4
    • Tally Light: Support
    • Input Voltage: DC 12V
    • Input Current: Max. 1.5A
    • Power Consumption: Max. 18W
    • Color: Black
    • Dimension: 5.25" x 6.85" x 7.36" (134mm x 174mm x 187mm)
    • Weight: 2.65lbs (1.2kg)

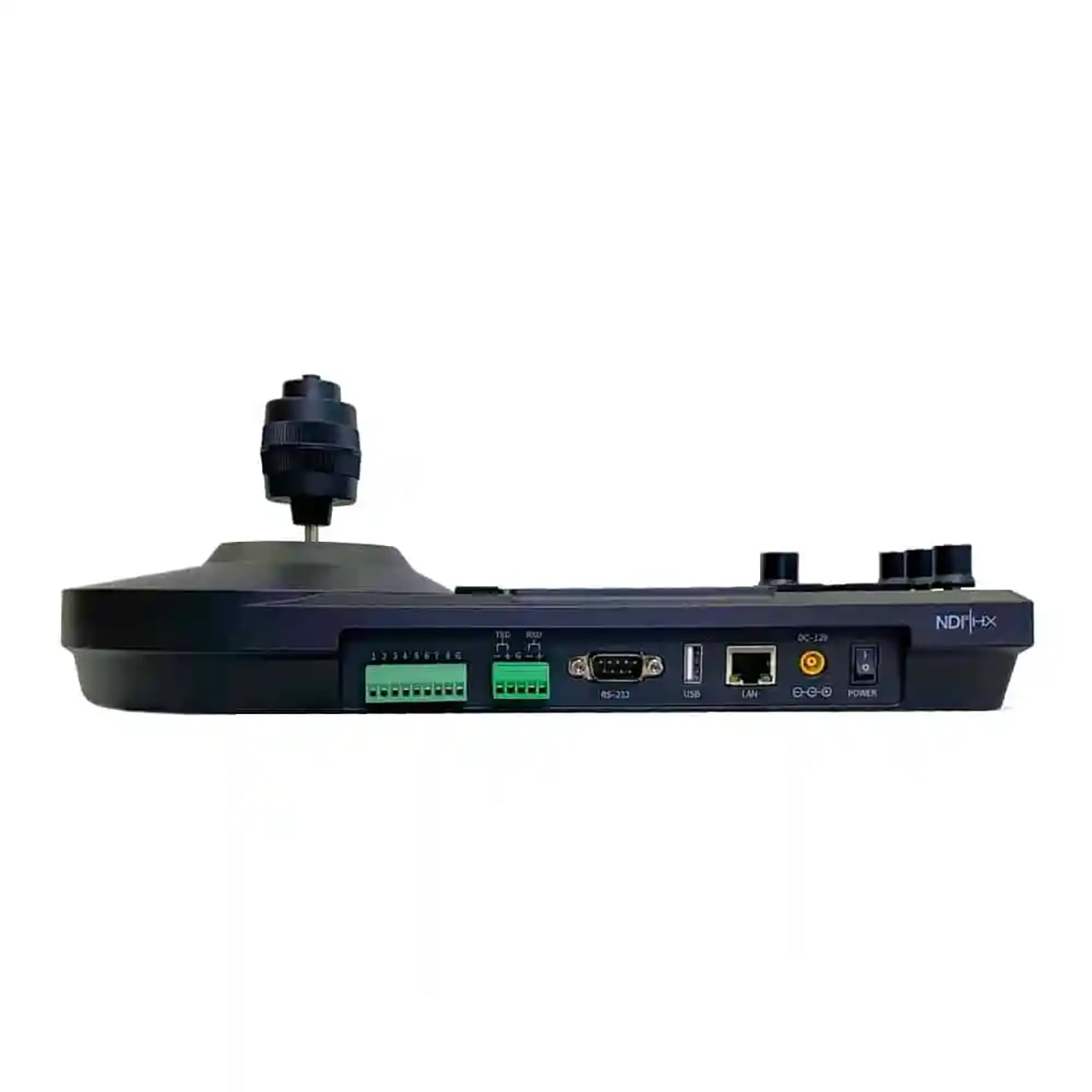

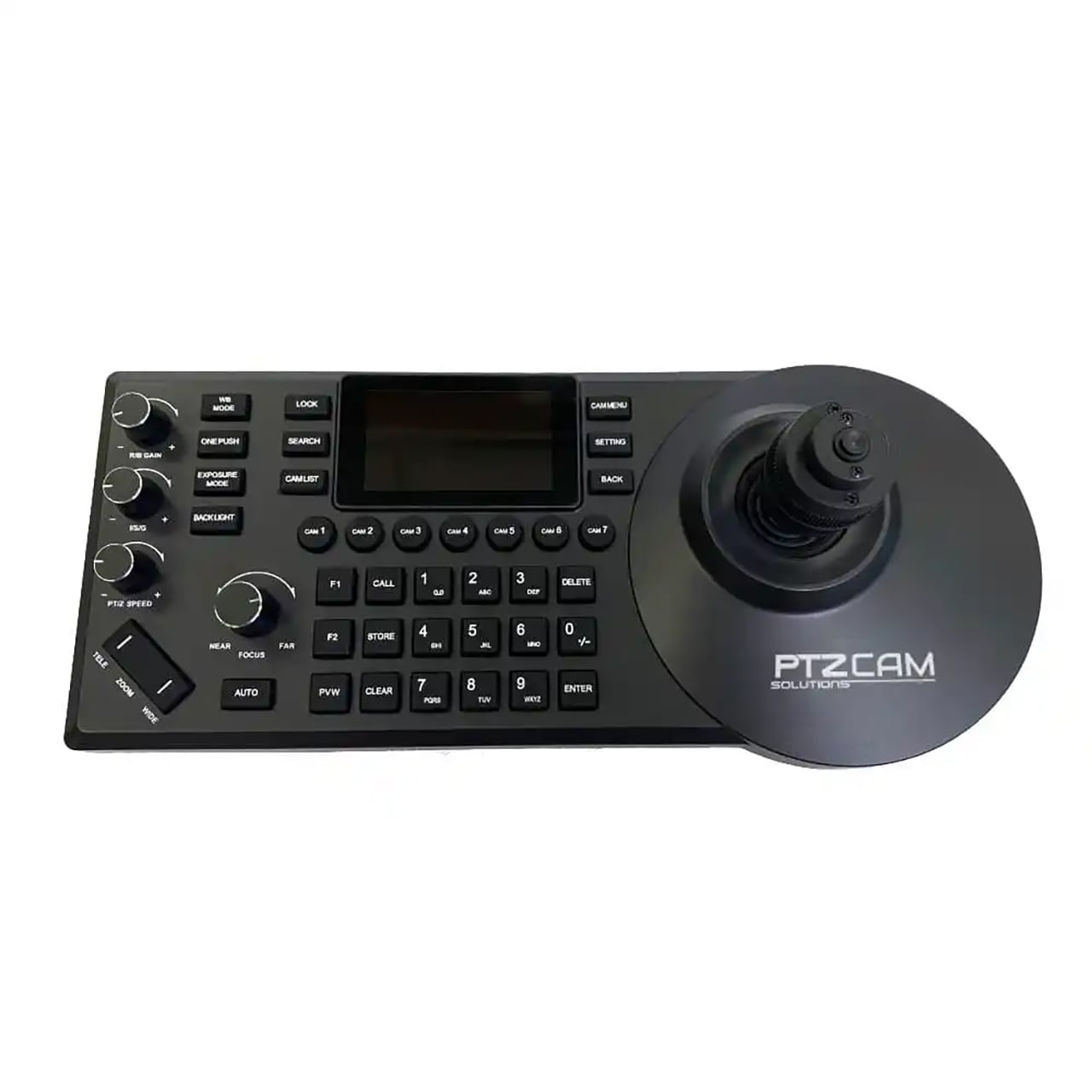

      Controller
    • Joystick: 4D precision Joystick
    • Knobs: 3D knobs, support scale rotation to adjust parameters, support button function to select mode
    • Buttons: High-quality silicone buttons with white and red two-color backlight
    • Screen: 3" LCD color display
    • Shortcut Button: Supports 7x camera shortcut button settings
    • Button Sound: Toggle On/Off
    • Lock Button: One-key lock function
    • Maximum Preset Positions: 255
    • Control Interface: RJ45 support POE and NDI|HX2, RS-232, RS-422/485
    • IP Control Protocol: Onvif, VISCA Over IP, VISCA TCP, NDI
    • Serial Port Protocol: VISCA, Pelco D, Pelco P
    • Input Voltage: 12V
    • Input Current: 0.25A
    • POE: 802.3af
    • Rated Power: 3W
    • Tally: Support up to 8x channels
    • Operating Environment: Indoor
    • Dimensions:
      - Without Joystick: 13.07" x 5.35" x 2.28" (332mm x 136mm x 58mm)
      - With Joystick: 3.07" x 5.35" x 4.56" (332mm x 136mm x 116mm)
    • Weight: 1.76lbs (0.8kg)

  • Item Includes:

    • 3x PTZCam IP Pro 20 PTZ cameras
    • 1x View NDI PTZ controller

  • Warranty:

    • 1 Year Limited Warranty

  • GTIN:

    0601961419346
