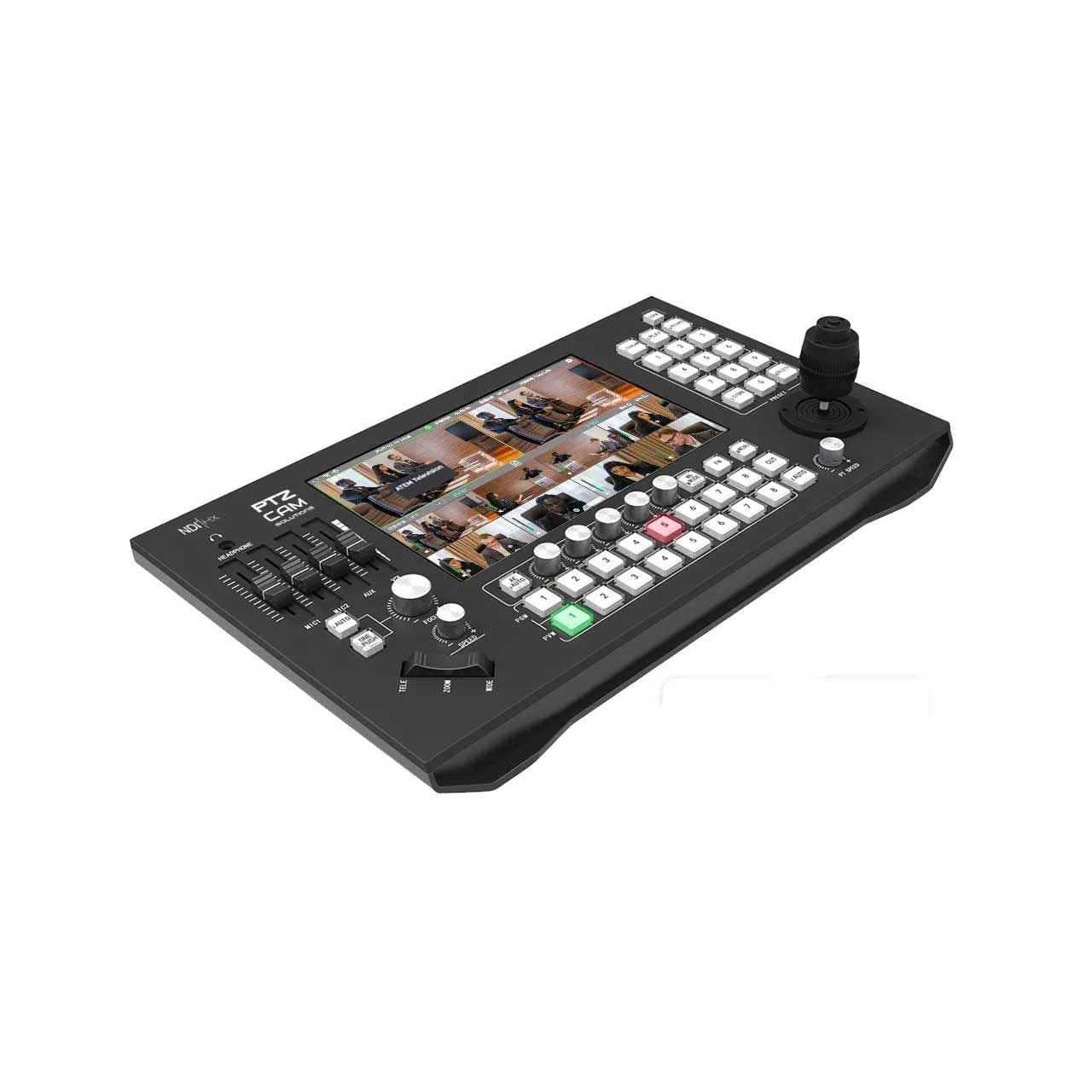

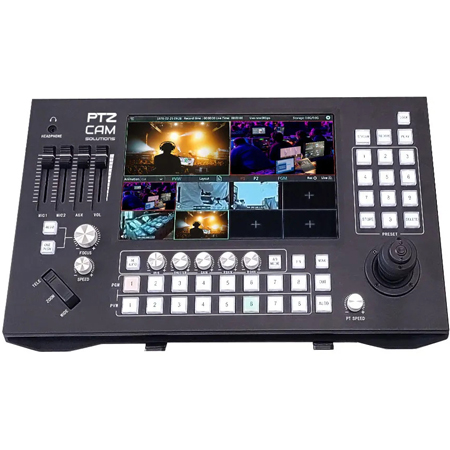

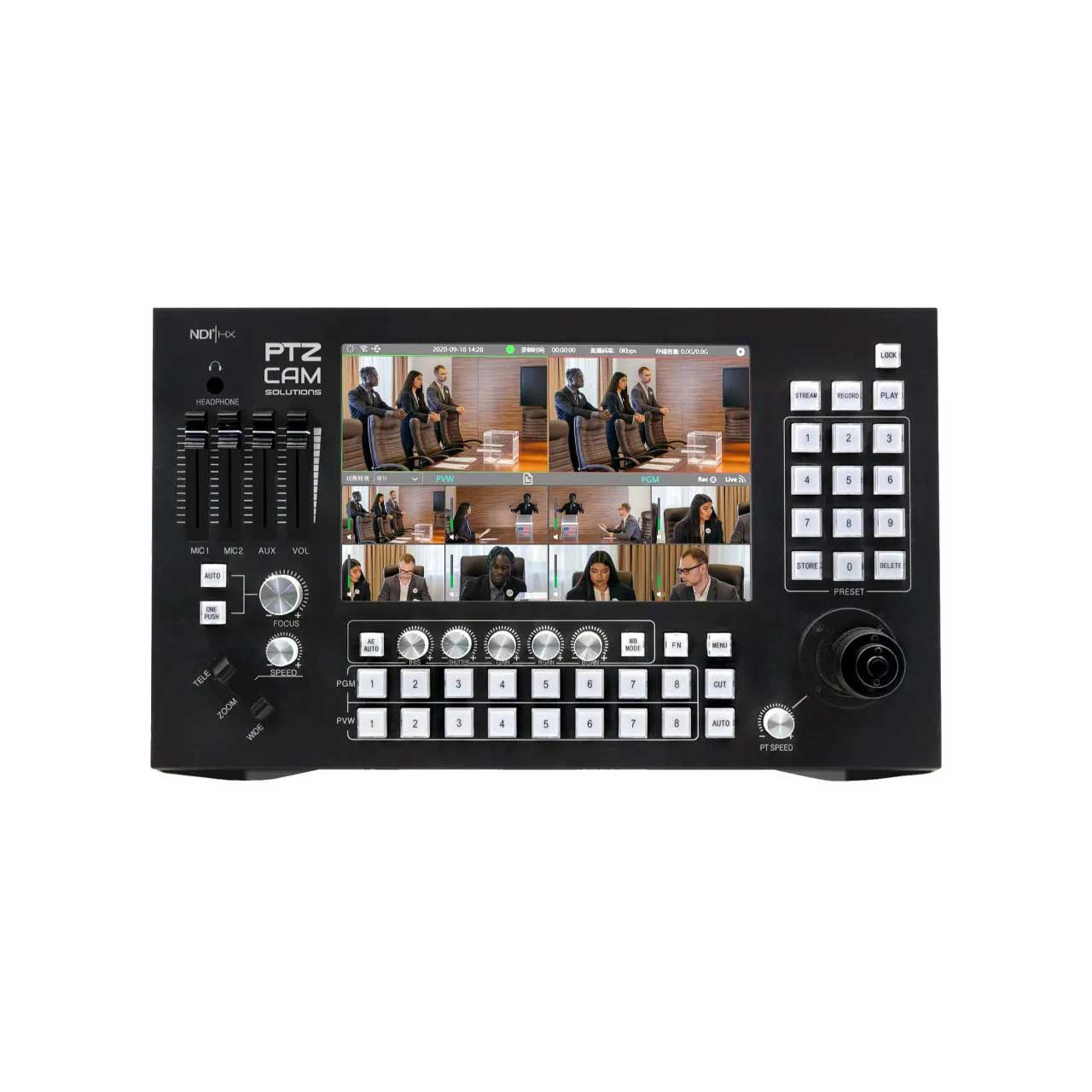

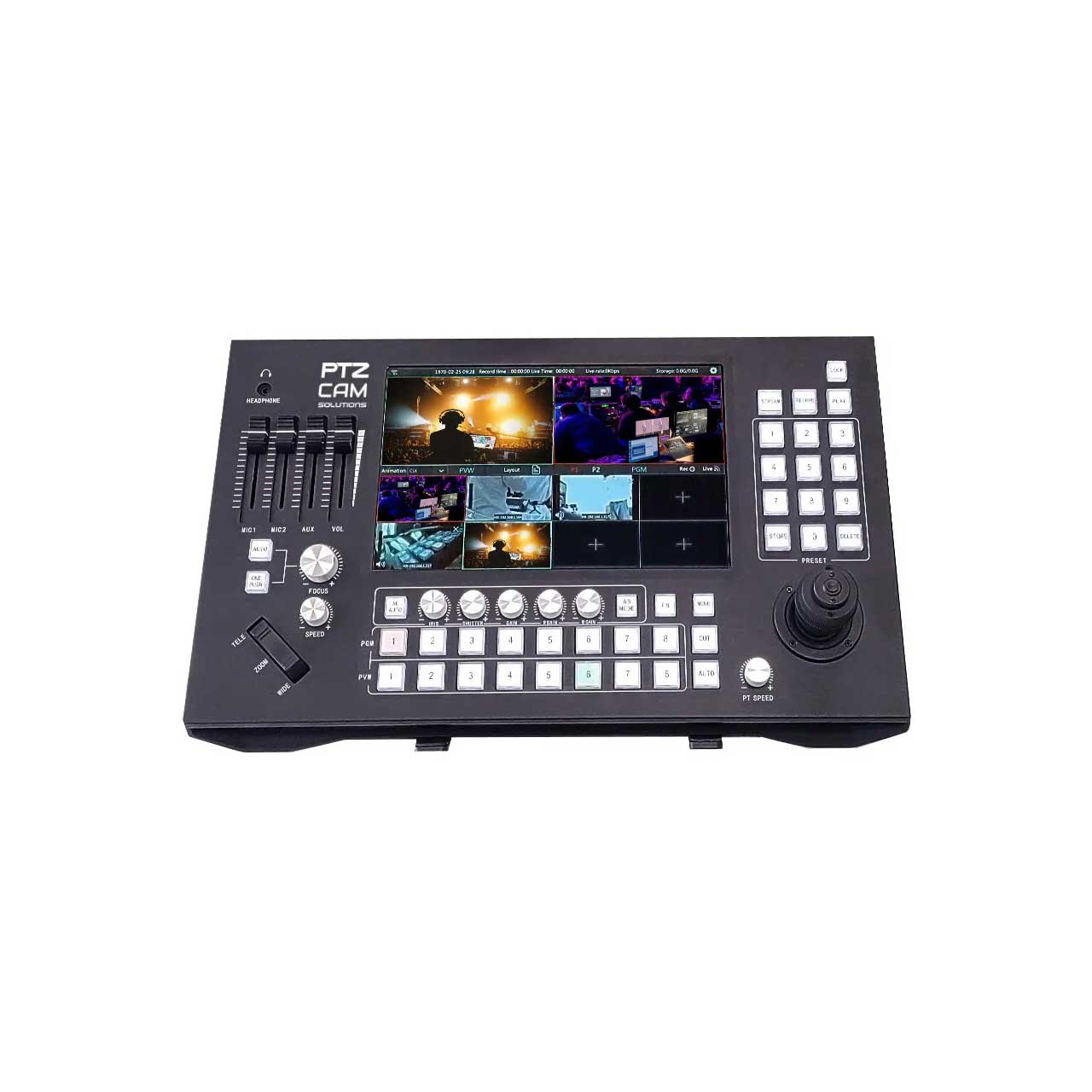

PTZCam PTZC-SWITCH-N8 8-channel NDI/HX2 Hybrid Switcher and PTZ Camera Controller

PTZC-SWITCH-N8 - Overview

PTZ Camera Controller and Switcher In One Powerful Device

• Features:

  • 10.1" Touch Screen
  • Live monitoring of all video signals without the need for an external display
  • Touch control for input switching, overlay placement, and editing parameters

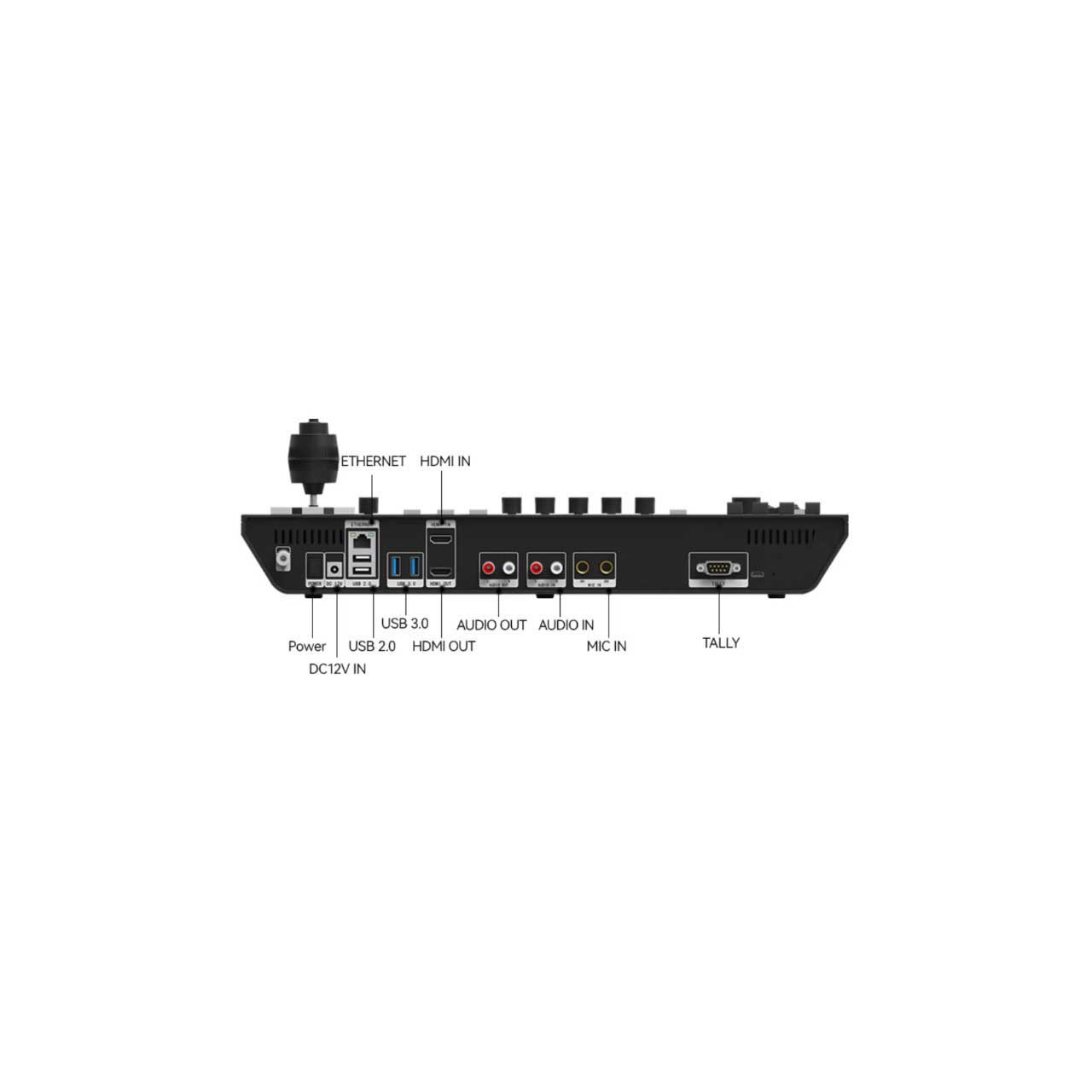

  • The Switch N8 offers all the connections you need for networking, video capture, audio, tally lights, and recording storage.
  • Up to eight (8) NDI inputs
  • HDMI Output
  • Mix audio levels from your connected cameras and other sources.
  • 1080p60 video is supported on all inputs, ensuring the highest level of detail and motion.
  • Add custom logos and text for a professional looking broadcast.
  • Four (4) physical faders and eight (8) internal digital faders give you complete control of your audio mix.
  • Stream to two (2) locations independently with separate encoding profiles.
  • Play video clips as part of your productions or record the whole event to disk (requires USB 3.0 flash drive)


• Specifications:

  • Video format: Full HD
  • Video processing capability: Input: Up to eight (8) channels 1080p60 Output: Up to 1080p60 (HDMI) + 1080p60 (IP) + 720p60 (IP)
  • Video input: 8 channels IP video capture + 1 channel HDMI + local video file
  • Video output: 1 channel IP video streaming + 1 channel HDMI + local recording
  • Live video encoding format: H.264, H.265
  • Live video bitrate: 512Kbps ~ 16384Kbps
  • Live video bitrate mode: CBR
  • Network input protocol: NDI/HX2, RTSP, RTMP
  • Network output protocol: RTSP, RTMP
  • Audio input: Stereo RCA left/right input, Stereo TRS 6.3mm (1/4") - Compatible with active and passive signals, Video embedded audio input
  • Audio output: Stereo RCA left/right output, Video embedded audio output
  • Audio mixer: 4 physical audio faders + 8 digital audio faders
  • Transition control: T-Bar, cut/auto buttons, touch screen
  • Subtitle overlay: Supported
  • Logo overlay: Supported
  • Tally: DB9 output
  • USB Port: 2x USB3.0, 2x USB2.0
  • Camera Control: Supports PTZ, focus, exposure, white balance, preset position control
  • Input voltage: DC 12V
  • Input Current: 3A
  • Rated power: 36W
  • POE: Optional 802.3AT
  • Usage environment: Indoor
  • Operating temperature: 32°F~104°F (0°C~40°C)
  • Storage temperature: 14°F~122°F (-10°C~50°C)
  • Dimensions (WxDxH)(height includes joystick): 16.54" x 10.14" x 4.77" (420mm x 257.52mm x 121.2mm)


• Item Includes:

  • 1x PTZC-SWITCH-N8 8-channel NDI Switcher and PTZ Controller


• Warranty:

  • 1-Year Limited Warranty


• GTIN:

  0616050682464
