Add tally lights to your production!

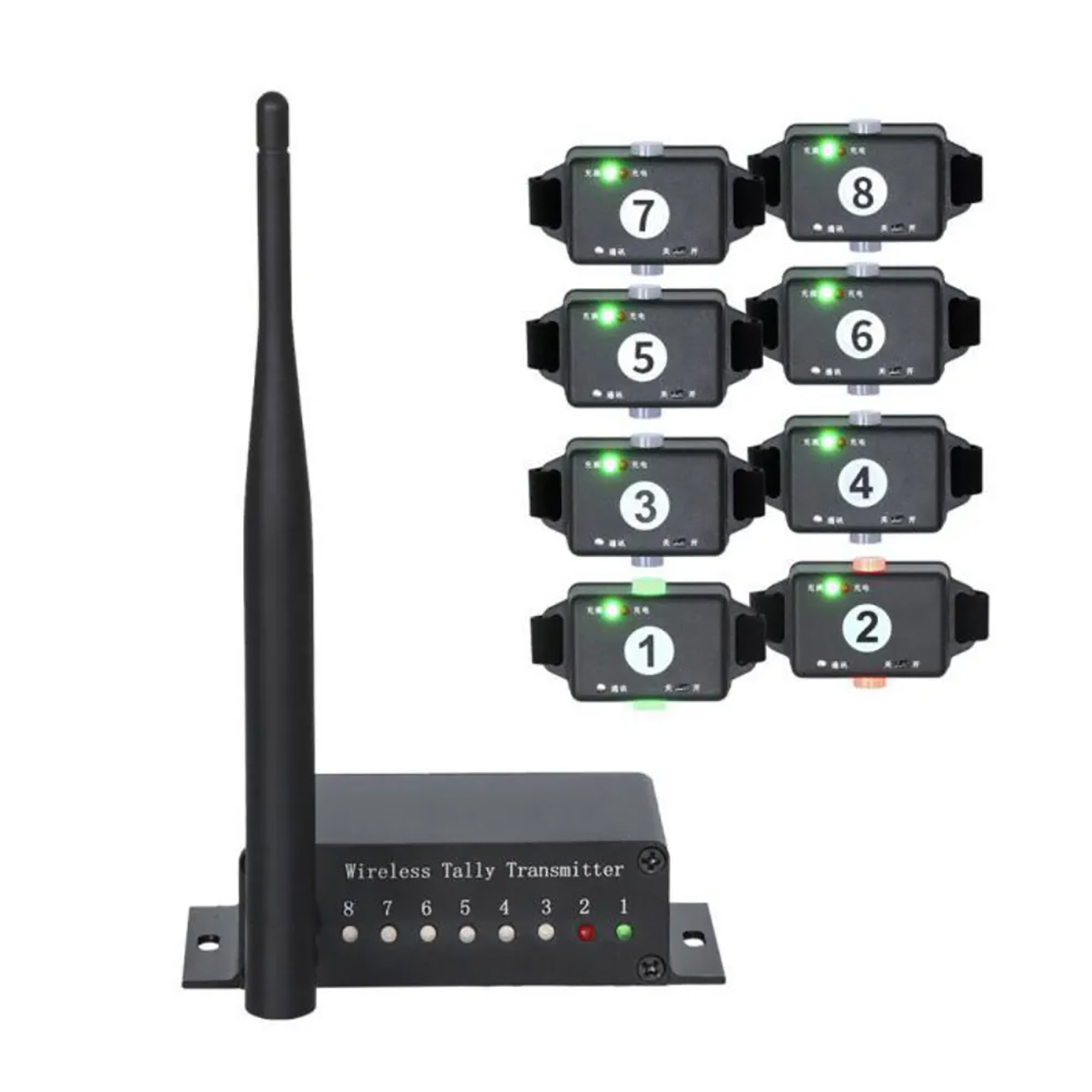

The PTZCam PTZC-TALLY8 lets you easily add 8x wireless tally lights to any camera and control them in conjunction with the PTZCam N8 switcher or Switchblade VMC12 control panel.
-
- Wireless Host Unit and 8x Tally Lights
- Works with PTZCam Switch N8 and Switchblade VMC12 controller
- Connect Tally Lights up to 984 Feet Away
- 200ms Response Time
- Built-In Batteries in Host & Lights
- Low Transmission Power
- Lights Feature Two Colors (Green and Red)
-
- Interface: DB25 Port
- Communication Carrier Frequency: 433MHz spread spectrum
- Transmission Distance: 1km in an open area, 300 meters away from the city
- Battery Specification: Built-in 2000mAh battery, approx 20 hours runtime
- Charging Port: Micro USB
- Charging Voltage: DC 5V
- Recharging Current: 400mA
- Generating Power: 500mW
- Host Size: 2.56" x 4.13" x 0.7" (65mm x 105mm x 17.9mm)
- Antenna Size: 6.69" (171mm)
- Weight: 1.1lbs (0.5kg)
- Indicator Light: Two-color indicator light
- Installation Method: Integrated hot shoe wrist strap
- Signal Indicator Status:
- Blue indicator light: flickering after receiving the Tally signal from the host
- Red indicator light: always on when the battery is not charging, and the power is less than 40%
- Green indicator light: always on when the battery is not charging, and the battery is less than 80% - Charging Port: Micro USB
- Tally Size: 1.4" x 2.65" x 0.75" (36mm x 67.3mm x 18.8mm)
- Tally Weight: 0.44lbs (0.2kg)
-
- 8x Wireless tally lights
- 1x Wireless host station
- 1x Host station power adapter
-
-
