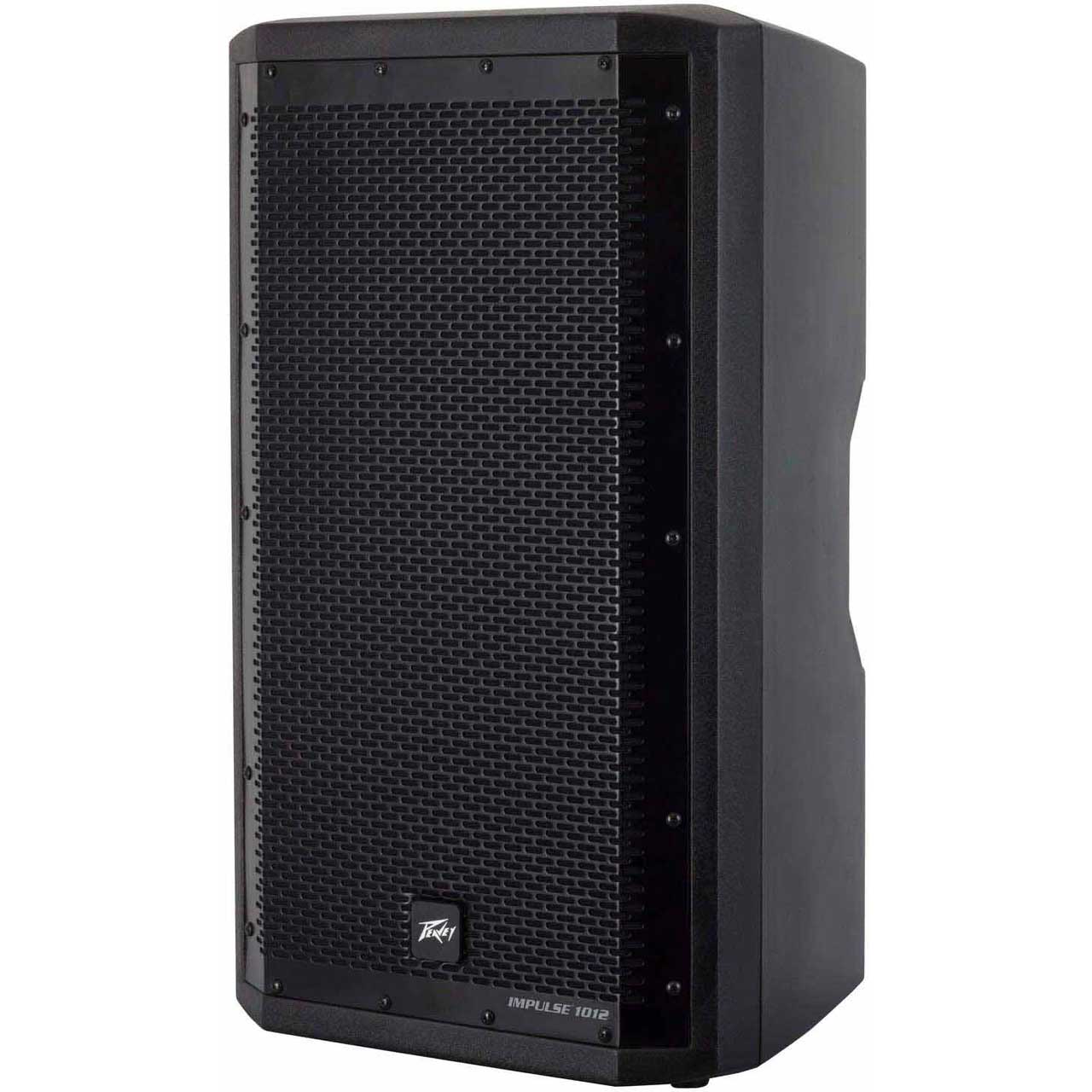

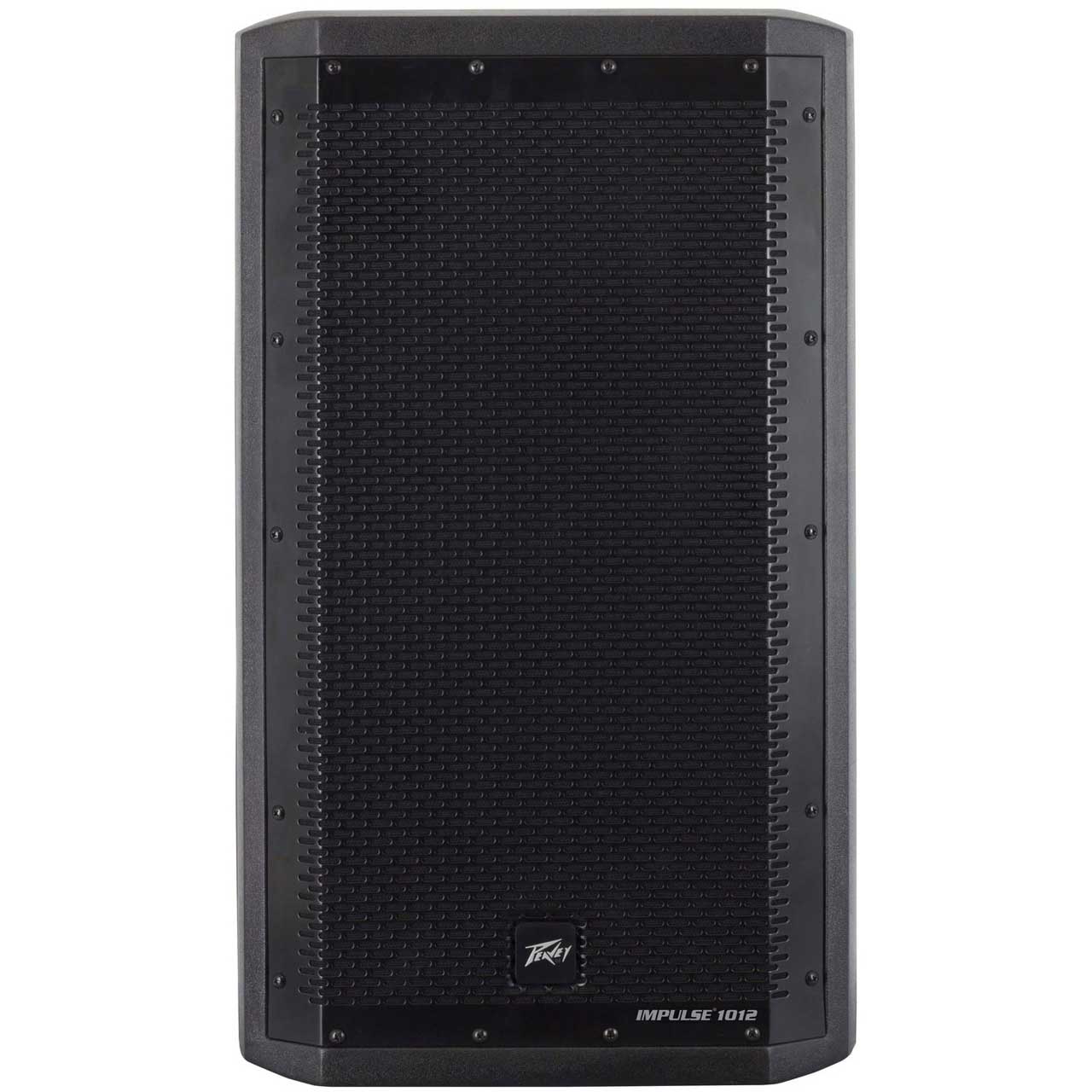

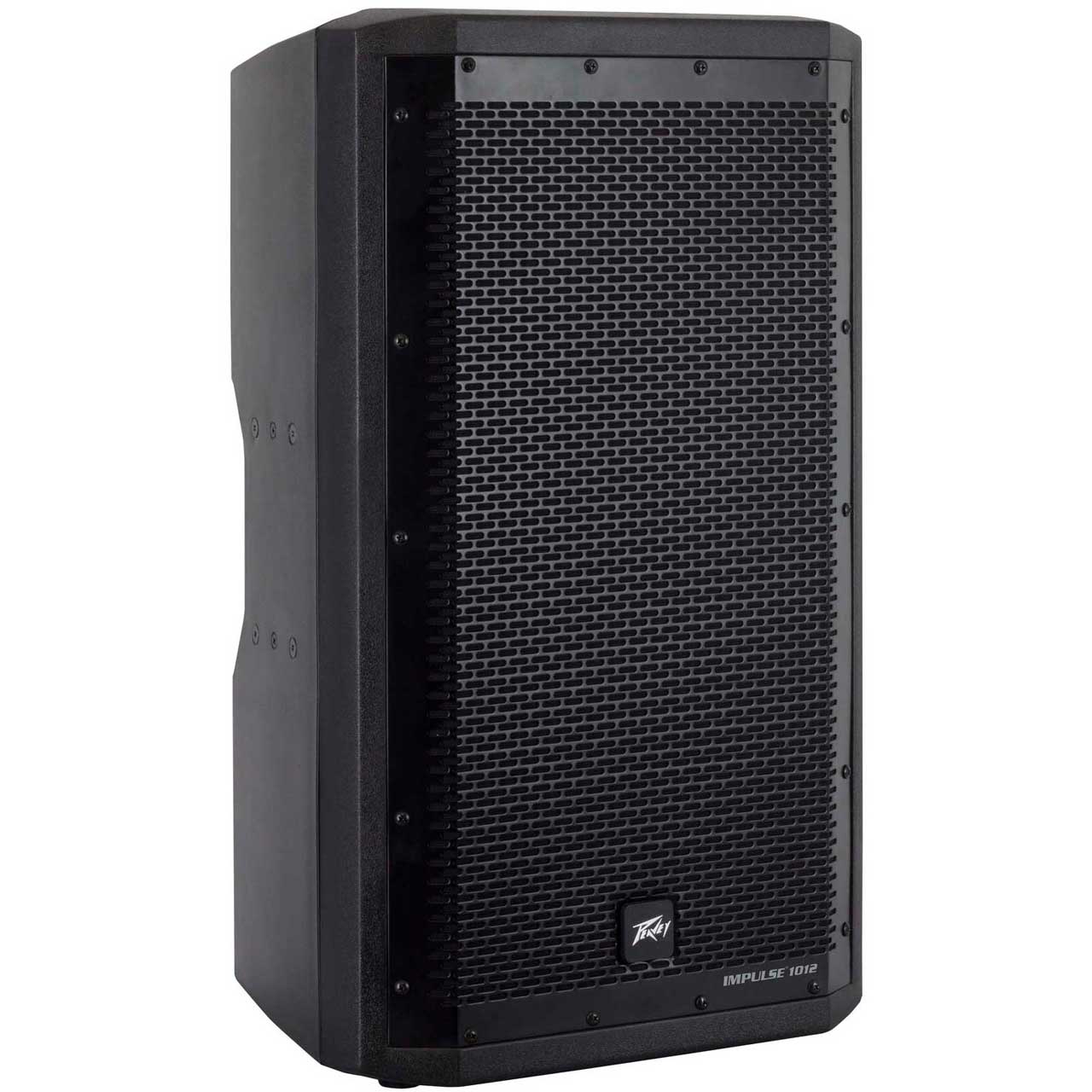

Peavey 03617480 Impulse 1012 Weather-Resistant Loudspeaker - 8 Ohm - Black

03617480 - Overview

• Features:

  • 2-way full range sound reinforcement system
  • Black Widow® long-throw woofer
  • RX™22N Neodymium compression driver
  • Power Handling: 2000 W peak, 1000 W program
  • HF Driver protected by Sound Guard™ III
  • Patented Quadratic Throat Waveguide™ technology, 110 by 80 degree coverage
  • Rugged plastic injection-molded trapezoidal enclosure
  • Cabinet has dual rear corner angled sides for floor monitor use
  • Full-coverage perforated steel grille, with powder coat finish
  • Pole mount molded-in for 1 3/8" diameter poles
  • M6 metric fly points for VM-70, top and left side of cabinet
  • Weather-resistant for sheltered outdoor use
  • Overall system weatherization rating of IP44


• Specifications:

  • Frequency Response: 67 Hz to 18 kHz, 1 meter on axis, swept sine in anechoic environment
  • Usable Low Frequency Limit (-10 dB point anechoic): 55 Hz
  • Nominal sensitivity (1W @1M, swept sine input in anechoic environment): 96 dB (average)
  • Maximum Sound Pressure Level (1 meter): 123 dB continuous, 129 dB SPL peak with music
  • Radiation Angle measured at -6 dB of Polar Response: Nominal - 110 degrees horizontal X 80 degrees vertical (Axis of the vertical main polar lobe is angled down 10 degrees, resulting in the angular pattern with respect to straight ahead being +30, -50 degrees)
  • Low Frequency Section: 1 X 12" woofer, vented, Black Widow® 1208-8 BMX WR SS SF (03617970)
  • High Frequency Section: 1 X 1.0" exit, 50 mm voice coil, RX™22N Neodymium compression driver on asymmetrical Quadratic Throat CD Horn
  • Box Tuning Frequency: 51 Hz
  • Electro-acoustic Crossover Frequency: 2 kHz
  • Crossover Type: Internal passive two-way crossover with driver EQ, and driver level matching incorporated.
  • Crossover Slopes: 12 dB/octave (2nd order) each driver, both with staggered poles and driver EQ.
  • Impedance (Z) in ohms (Ω): Nominal - 8.0 Ω, Minimum - 5.1 Ω

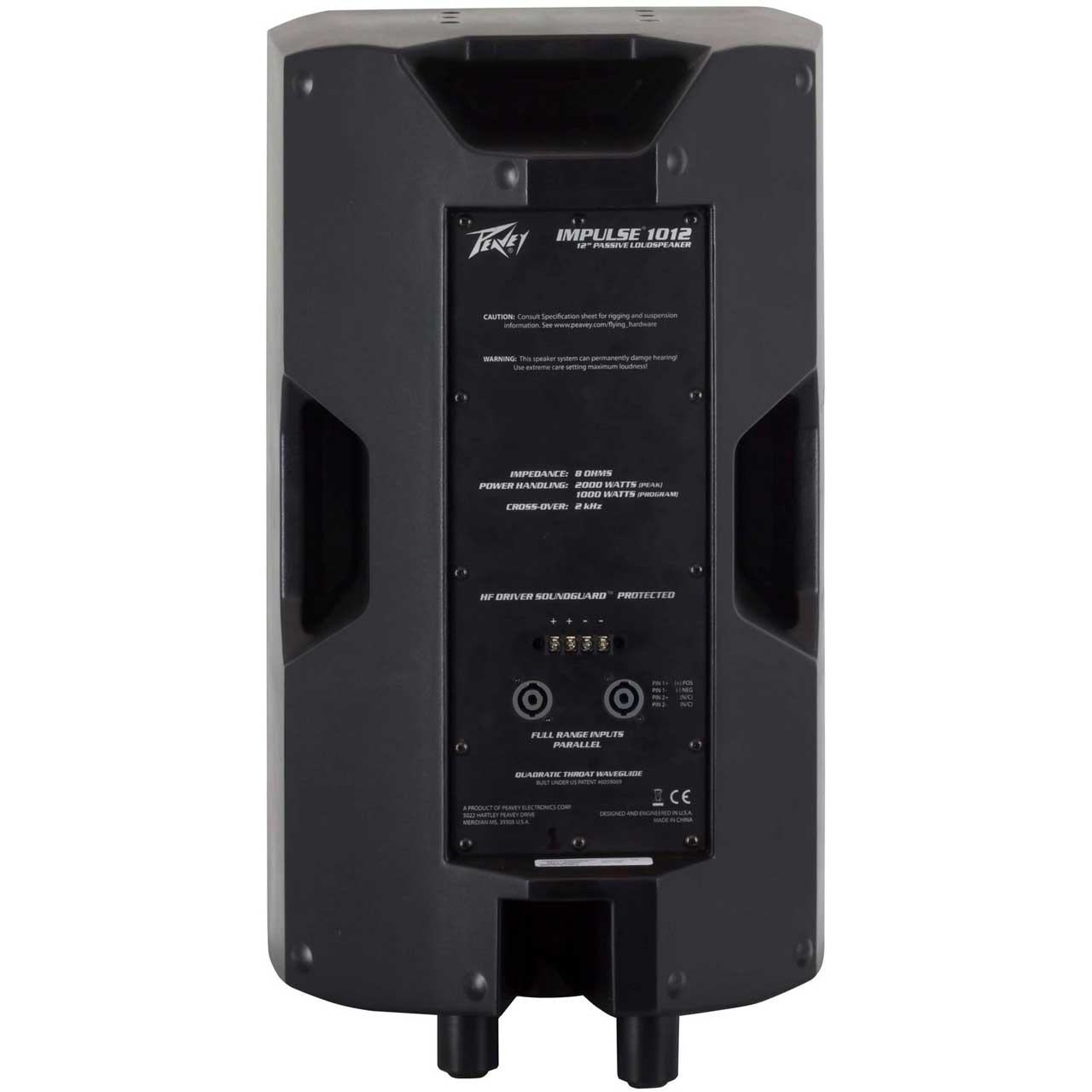

  • Input Connections: Two NL-4 twist-lock jacks in parallel with a 4 position screw terminal barrier strip.
  • Enclosure Materials & Finish: Black polypropylene plastic with textured surface, black powder-coated perforated full-coverage grille.
  • Mounting Provisions: Four rubber feet provide vibration free floor or stage use, and a molded-in stand mounting cup is on the bottom for use with 1 3/8" stand poles. Unit has two four insert mounting groups (8 inserts total) of M6 metric inserts, for use with the Peavey VM 70 mounting bracket, one on the left side, and one on top.
  • Overall Dimensions ( H x W x D ): 25.3"H x 14.38"W x 14.00"D
  • Net Weight: 45 lbs. (20.4 kg)


• Item Includes:

  • 1x Peavey 03617480 Impulse 1012 Weather-Resistant Loudspeaker - 8 Ohm - Black
