ProX XT-F32-328 3.28 Foot F32 I-Beam Vertical or Horizontal Segment Truss W-2mm Wall

ITEM #: PXG-XT-F32-328 MFG #: XT-F32-328

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Shipped truck freight.
  • Special Order Item: non-cancelable, non-returnable, non-refundable.

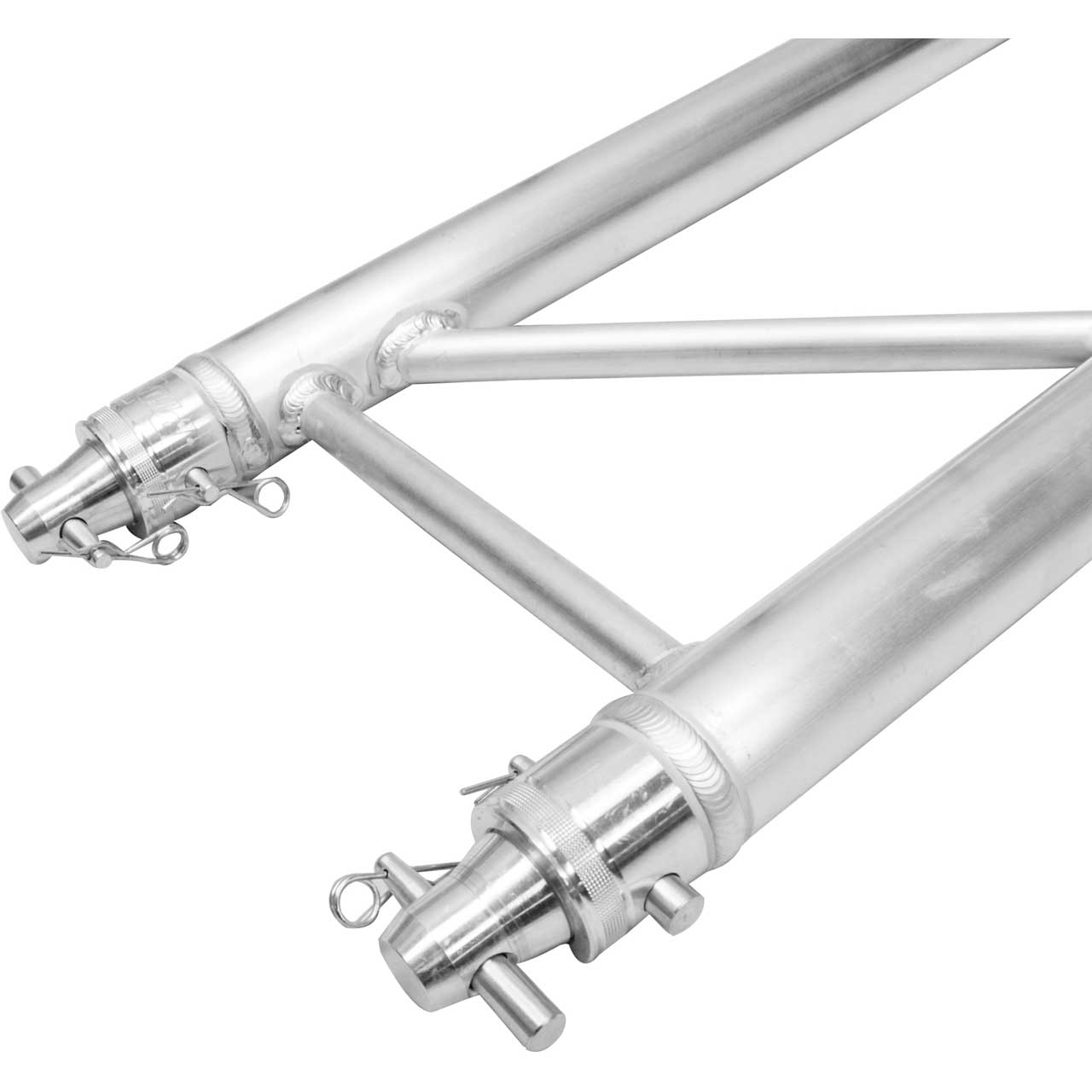

XT-F32-328 - Overview

The ProX XT-F32-328 truss system in 2-point design is particularly well suited for trade shows and shop construction, as well as event technology and as a support system for lighting fixtures. Due to its compact design combined with high load capacity, this system is ideally suited from a simple exhibition to stand up to a complex rig construction project.

ProX Truss has the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged yet lightweight trussing solution perfect for mobile DJs, bands, outdoor performances, nightclubs, live mobile productions, or permanent installations.

At the heart of the system is a square truss that utilizes a standard conical connector system, which easily mates with other brands of truss of the same size and connector style, and is available in a variety of lengths to suit your designs. It also works with different types of corners, base plates, connectors, and accessories that add stability while expanding on limitless configurations.

  • Features:

    • Tolerance Free Standard Conical connector
    • Main tube wall thickness of .08in (2mm)
    • Manufactured in ProX's Factory!
    • Material: EN-AWT6 6082 Aluminum
    • TUV Certified Aluminium Welding
    • Includes 1 Set Connecting Hardware

  • Specifications:

    • Shipping Dimensions & Weight: Box 1 of 1: 40.00"L x 12.00"W x 2.50"H - Shipping Weight: 8.00 lbs

  • Item Includes:

    • 1x ProX XT-F32-328 3.28 Foot F32 I-Beam Vertical or Horizontal Segment Truss W-2mm Wall

  • GTIN:

    0019372412045
