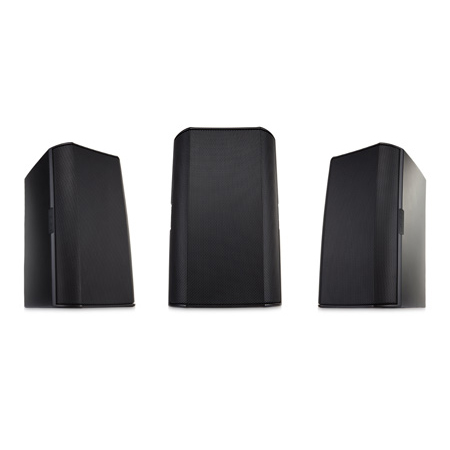

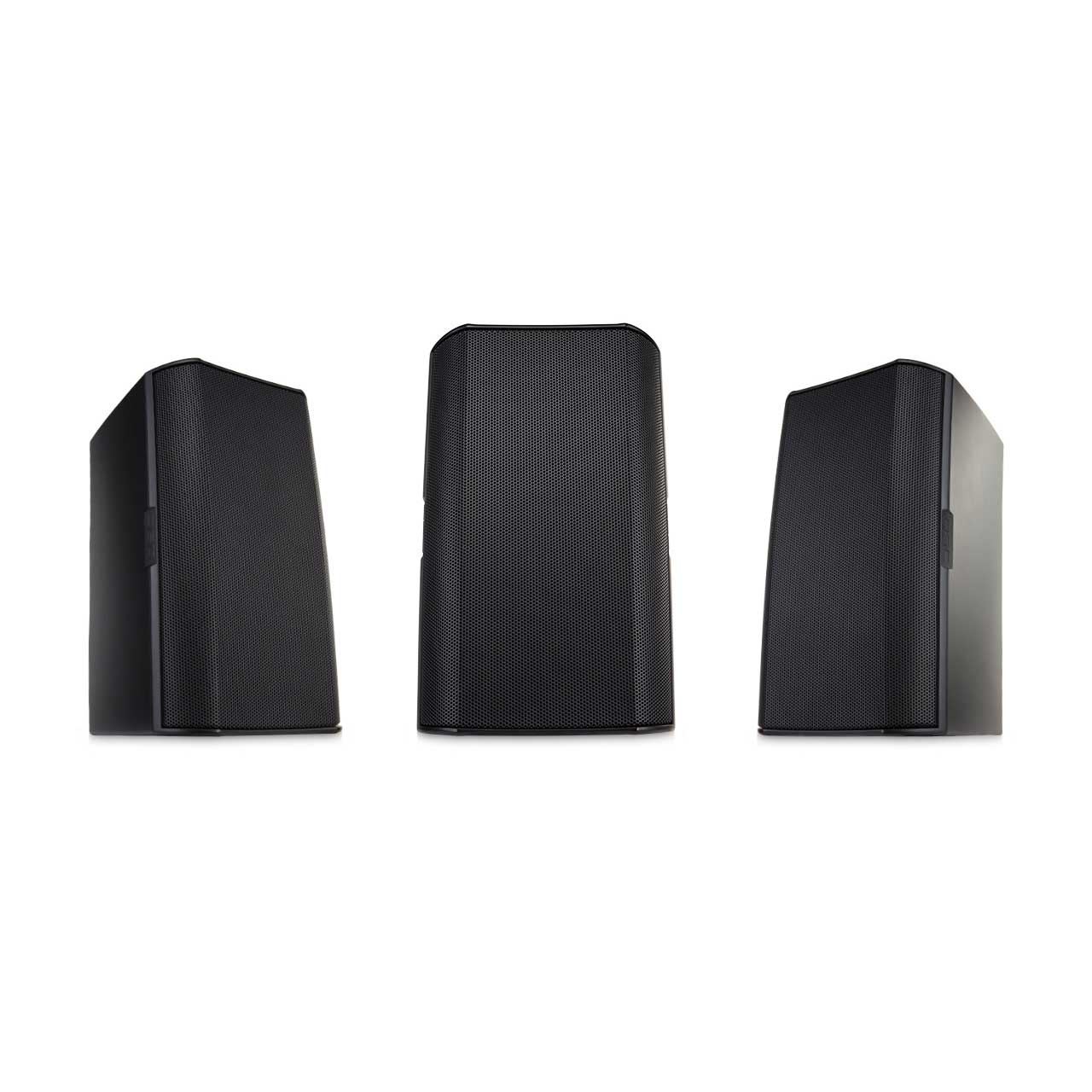

QSC AD-S4T-BK Two-Way 4 Inch Surface Mount Loudspeaker- Black - Pair
  • QSC AD-S4T-BK Two-Way 4 Inch Surface Mount Loudspeaker- Black - Pair
  • QSC AD-S4T-BK Two-Way 4 Inch Surface Mount Loudspeaker- Black - Pair

Questions? Ask a Markertek Expert:
800-522-2025 Email

QSC AD-S4T-BK Two-Way 4 Inch Surface Mount Loudspeaker- Black - Pair

Manufacturer: QSC

Item #: QSC-AD-S4T-BK   •   MFG #: AD-S4T-BK




Our Price:$368.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    AcousticDesign surface loudspeakers offer a variety of models specifically taylored for demands of higher fidelity applications. Designed for clarity and presense, these loudspeaker systems deliver pristine audio reproduction for installations requiring a refined audio experience. Models ship complete with the award winning X-Mount system and weather input cover.

    Consistent and even conical coverage is achieved through Directivity Matched Transition (DMT), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.

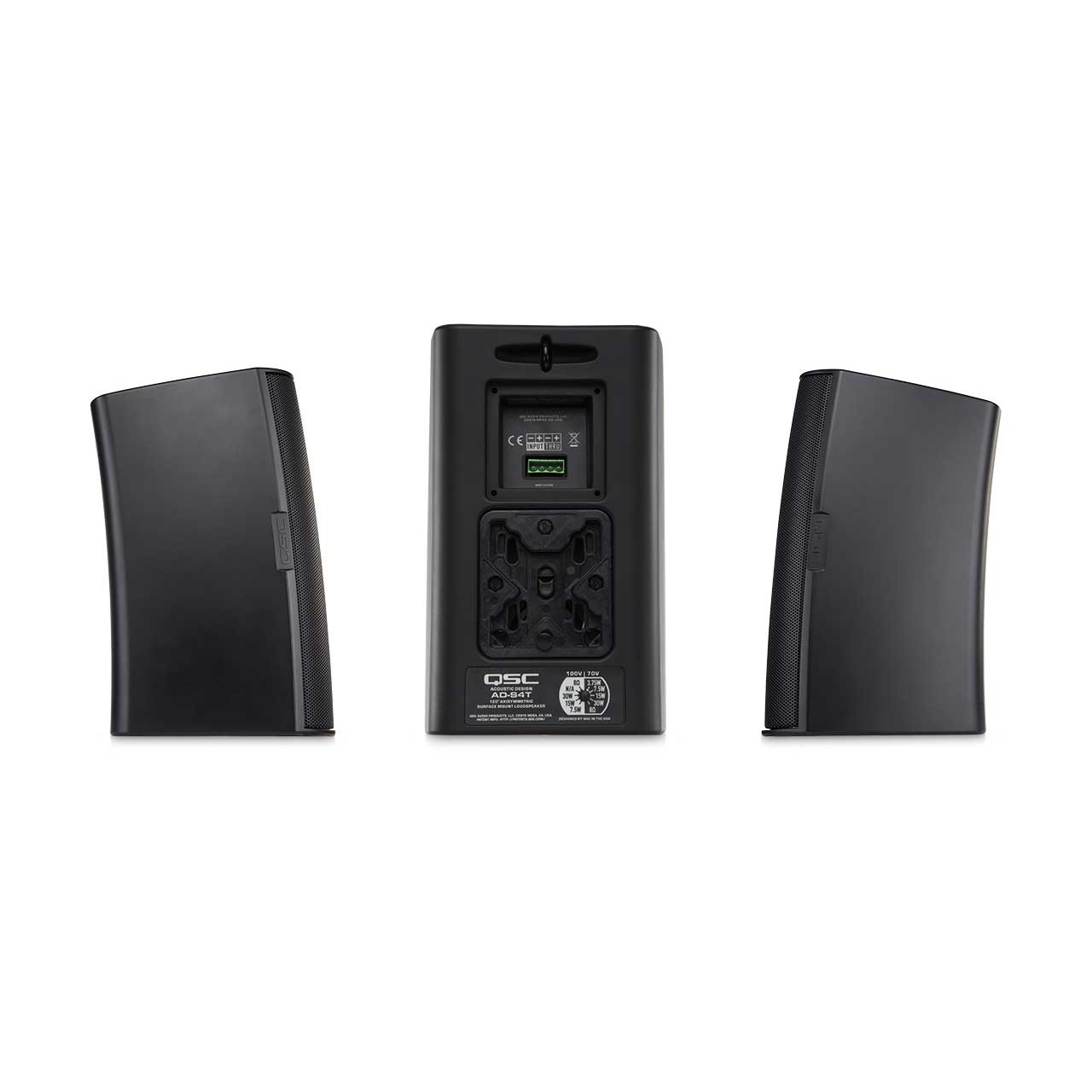

    AcousticDesign models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8Ω bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.

    To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction techniques are available via Q-SYS networked audio processing or CXD amplifier platforms for a complete QSC systems solution.


    • Features

      • 4" weather treated woofer; 0.75" silk dome tweeter
      • 120° conical DMT coverage
      • 30 watt low-saturation and low-loss 70/100V transformer with 8O bypass
      • Maximum peak SPL 110 dB (8 ohm bypass)
      • DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
      • X-Mount system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
      • Advanced voicing filter sets using QSC Intrinsic Correction, available through either Q-SYS processing or CXD amplifier platforms
      • Lightweight ABS enclosures offer long-term durability and lasting good looks
      • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
      • Meets IEC60529 IP-54 for dust and splash resistance
      • Available in black or white

    • Specifications

      • Effective frequency range1 68 Hz - 20 kHz
      • Rated noise power / voltage2 50 watts / 20 volts (rms)
      • Broadband sensitivity3 87 dB SPL
      • Coverage angle (-6 dB) 120° conical DMT
      • Directivity factor (Q) 6
      • Directivity Index 8 dB
      • Maximum continuous SPL4 104 dB
      • Maximum peak SPL4 110 dB
      • Rated impedance 8 ohms
      • Recommended amplifier power (loudspeaker "program" power) 100 watts
      • Transformer taps 70 V: 30, 15, 7.5, 3.75 W and 8Ω bypass
      • 100V: 30, 15, 7.5 W and 8Ω bypass
      • HF transducer 0.75" silk dome tweeter / 0.75" voice coil, horn loaded
      • LF transducer 4" weather resistant paper cone woofer
      • 1" / 25 mm voice coil
      • Input connector type Euroblock connector with parallel output terminals
      • Enclosure material Painted ABS polymer
      • Grille material Powder coated aluminum
      • X-Mount material Powder coated aluminum
      • Enclosure Details
      • Ingress protection IP-54
      • Operating environment Designed for indoor and outdoor use
      • Testing The AD Series loudspeakers qualified for outdoor use using the following tests:
      • Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.
      • Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
      • High and low temperature: tested to QSC internal standards between -20° and 50° C
      • Net weight 6.5 lb / 2.9 kg
      • Product dimensions (HWD) inches 10.3 x 6.34 x 6.42
      • Product dimensions (HWD) mm 261 x 161 x 163
      • Shipping weight 16.8 lb / 7.65 kg (pair packed)
      • Shipping dimensions (HWD) inches 15.5 x 10.3 x 18 (pair packed)
      • Shipping dimensions (HWD) mm 394 x 261 x 458 (pair packed)
      • Included accessories X-Mount mounting system, Euroblock connector, input panel cover

    • GTIN:

      0684284066534
