QSC CB10 Compact 10-Inch 440W Battery-Powered Portable Loudspeaker System

ITEM #: QSC-CB10 MFG #: CB10

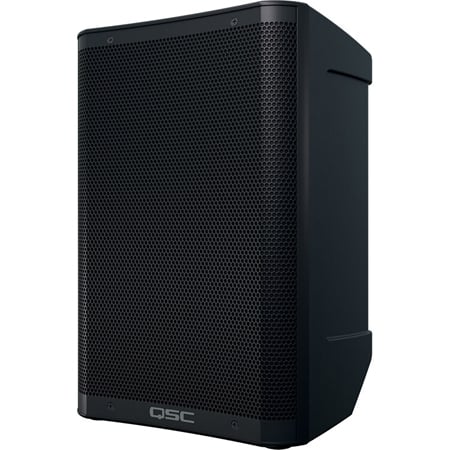

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$933.34

Our Price:

$799.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CB10 - Overview

Professional, Portable Audio

The QSC CB10 is the ultimate compact loudspeaker system, offering unrivaled audio performance, unmatched versatility and battery-powered portability. Ease-of-use is further enhanced with Bluetooth audio and control via the QSC Loudspeaker Control App. The CB10 is ideal for DJs and mobile entertainers, event production professionals, musicians and bands, and any application where high performance audio is needed with the portability and versatility of a battery-powered system. The CB10's compact but powerful 10" LF driver delivers exceptional low-end reproduction and extension, while its class-leading 1" compression driver ensures superior high-frequency response and coverage, without distortion. The integrated 3-channel mixer allows simple and easy connections of microphones and instruments, as well as the option to stream Bluetooth music. Input presets and DSP further optimize system performance and ease of setup, while the intuitive rear panel coupled with expanded control via the QSC Loudspeaker Control app, offers simple plug-and-play operation and more expansive customization. Additionally, programmable room delay makes the CB10 an ideal system extension for distributed PA deployments. The CB10 can be mounted on a loudspeaker stand or deployed on the floor via its tilt-back angle.

  • Features:

    • High-performance, compact 2-way system
    • High excursion 10" (254mm) low-frequency driver and a 1" (25.4mm) compression driver for clear high-frequency response without distortion.
    • Light and portable with battery and AC power options for versatile use
    • Integrated 3-channel mixer with remote control via QSC Loudspeaker Control App for easy operation and customization
    • 2x combo XLR inputs with independent factory presets, ideal for small event's needs
    • Useful on-board Room Delay (up to 200ms) for larger distributed PA deployments.
    • Tilt-back angle for perfect floor deployment and sound coverage; can also be stand or pole mounted.
    • Bluetooth 5.1 for control and audio with True Wireless Stereo (TWS) for low latency pairing between loudspeakers and music source.

  • Specifications:

    • Configuration: Two-way Rechargeable Loudspeaker System
    • LF Transducer: 10" (254mm), cone
    • HF Transducer: 1" (25.4mm), compression driver
    • Frequency Response (-6dB): 51Hz - 18kHz
    • Frequency Range (-10dB): 47Hz - 20kHz
    • Nominal Coverage Angle: 90° Axisymetric
    • Maximum Rated SPL1: 127dB @ 1m
    • Amplification (Peak): Class D, 440W
    • Cooling: Convection cooling

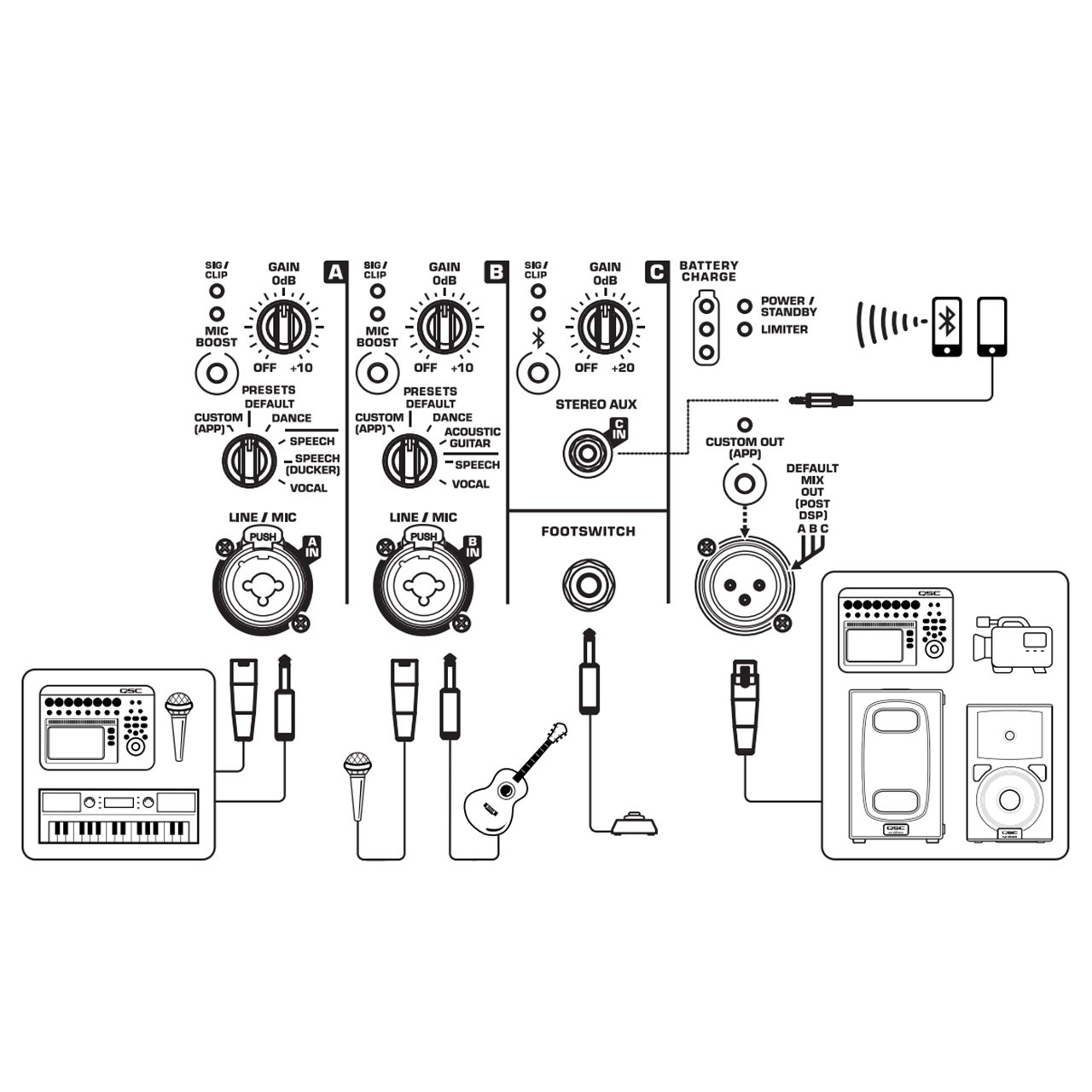

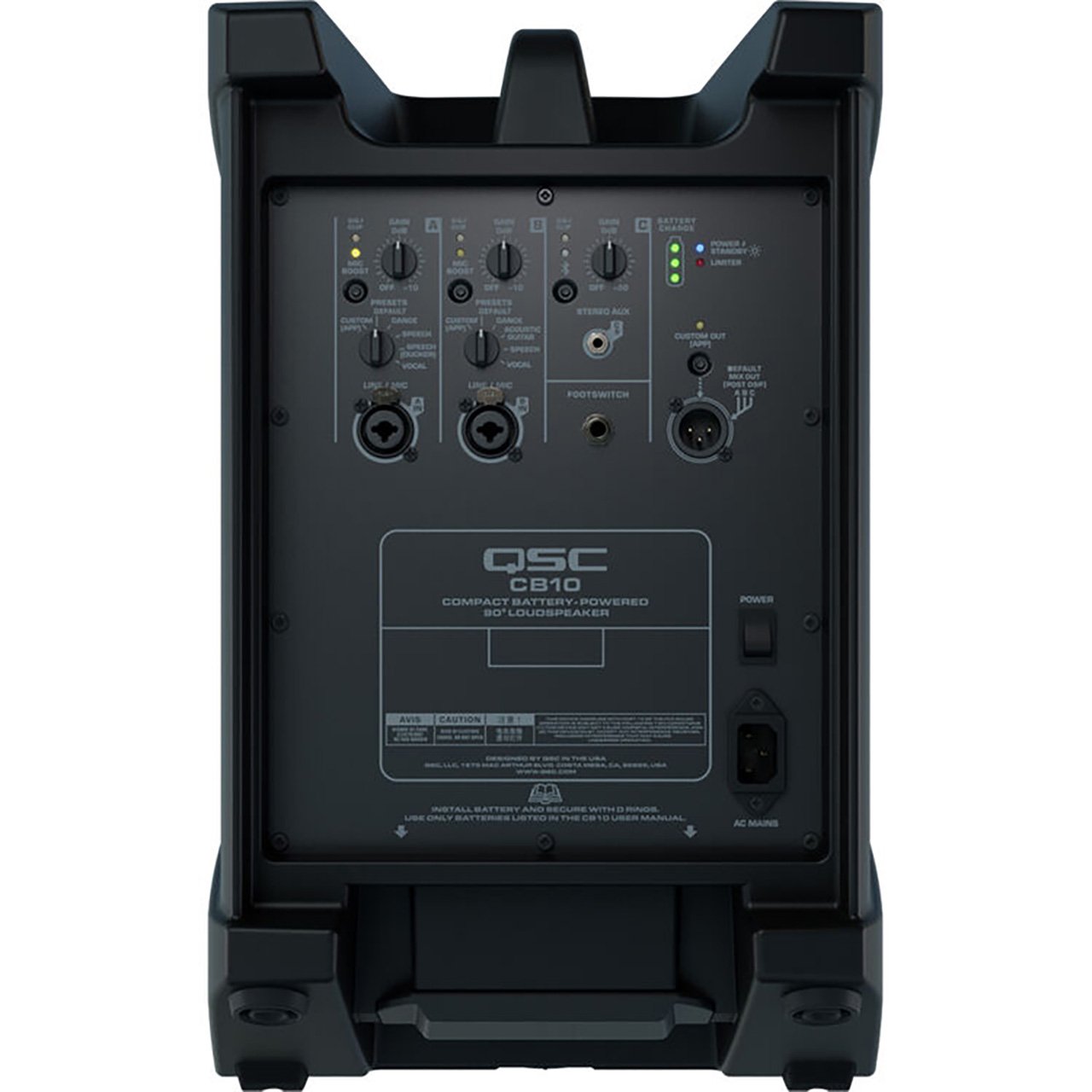

    • Backpanel Controls:
      - 3x Rotary level potentiometers (Gain)
      - 2x MIC Boost Push-Switch
      - 2x 6-way Contour Selection Rotary-Switch (featuring CUSTOM APP controls)
      - 1x Bluetooth Switch
      - 1x Output Select Switch
      - 1x AC Power Switch
    • Backpanel Indicators:
      - 3x Input Signal/Clip LEDs
      - 2x MIC selected LEDs
      - 3x Battery Charge LEDs
      - 1x Limiter Active LED
      - 1x Bluetooth LED
      - 1x Output Select LED
      - 1x Power/Standby LED
    • Connectors:
      - 2x Locking XLR/F 1/4" combo (Line Input and Mic/Line Input)
      - 1x 3.5mm TRS (Stereo Input)
      - 1x 1/4" TS (Footswitch)
      - 1x XLR/M (Mix Output)
      - 1x Locking IEC Power Connector
    • DC Power (Battery): Rechargeable Lithium-ION 22.2V, 4400mAh, 97Wh Battery Module (1x unit included with CB10)
    • Battery Life: Up to 12 hours
    • Battery Charging Time: approx. 4 hours
    • AC Power Input - Universal Power Supply: 100V - 240VAC, 50/60Hz
    • AC Power Consumption: 100VAC, 1A/120VAC, 0.9/240VAC, 0.5A
    • Enclosure Material: Polypropylene
    • Color: Black
    • Grille: Powder-coated steel with internal lining (18 Gauge)
    • Loudspeaker Dimensions (HxWxD): 18.3" x 12.3" x 11.3" (465mm x 313mm x 287mm)
    • Carton Dimensions (HxWxD): 22" x 16" x 15" (559mm x 406mm x 381mm)
    • Net Weight: 26.9lbs (12.2kg)
    • Shipping Weight: 32lbs (14.5kg)
    • Battery Chemistry: Lithium Nickel Manganese Cobalt Oxide
    • Regulatory: CE, WEEE, TUV, China RoHS, RoHS II, FCC Class A

  • Item Includes:

    • 1x CB10 Compact 10 Inch 440W Battery-Powered Portable Loudspeaker
    • 1x Power Cable

  • Warranty:

    • 1 Year Limited Warranty
