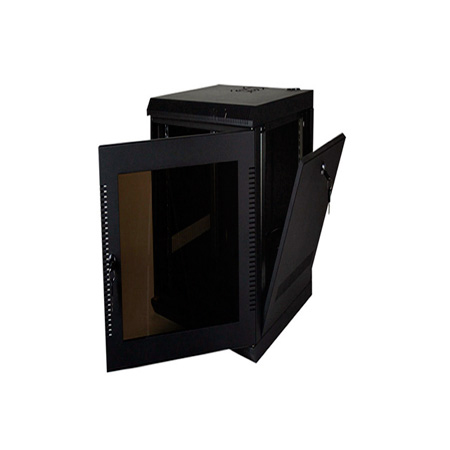

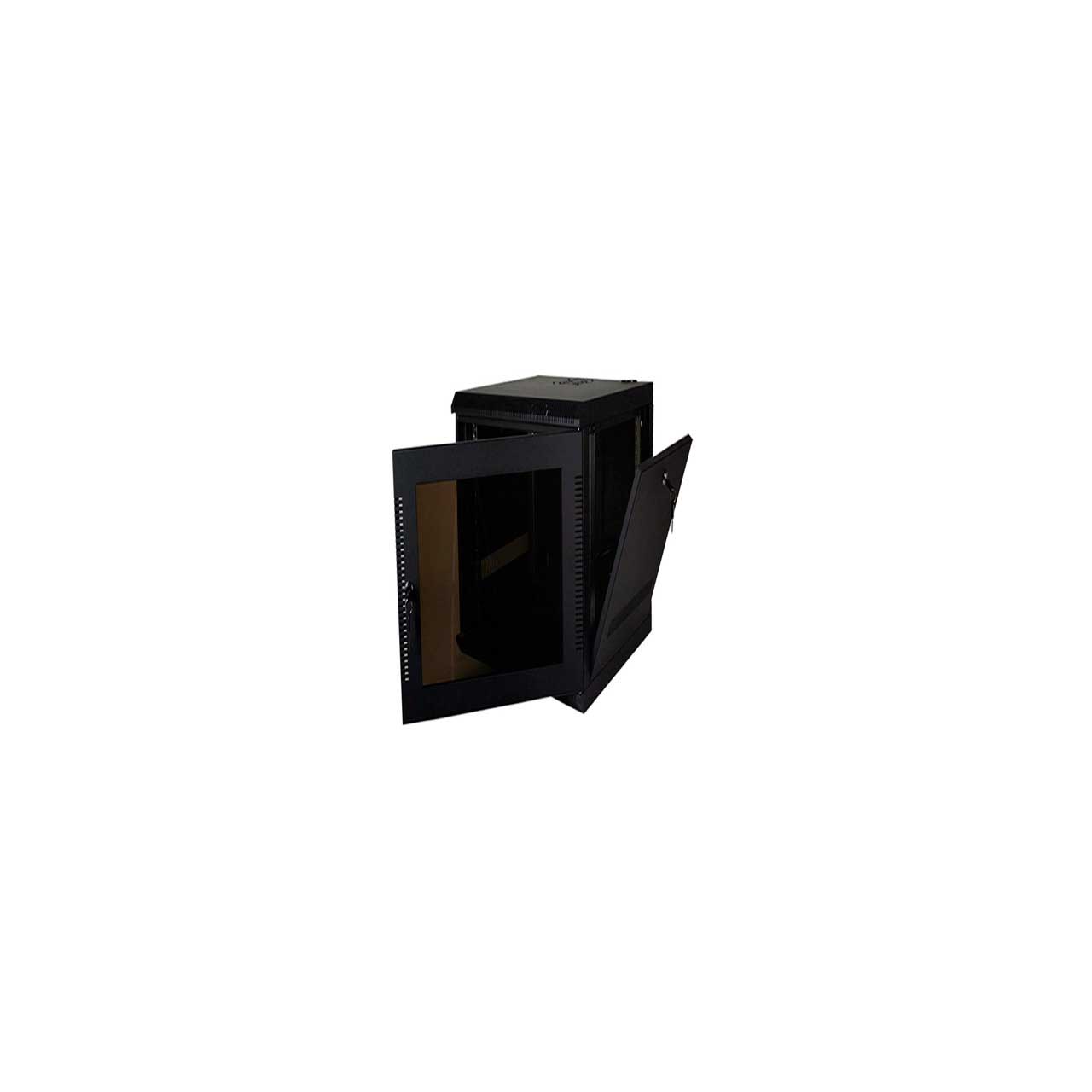

Quest WM2019-16-02 200 Series Wall Mount Enclosure - 16U Black

ITEM #: QST-WM2019-16-02 MFG #: WM2019-16-02

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the QST-WM2019-16-02

WM2019-16-02 - Overview

Quest 200 Series Wall Mount Enclosures provide equipment access through the smoked acrylic reversible front door, as well as through the removable vented side panels. They include one preinstalled 80 CFM fan for ventilation, come complete with both front and rear cage nut rails, are available in eight sizes, and come in a choice of ivory or black powdercoat microfinish.

  • Specifications:

    • Rack Size Width External (Internal): 21" (19")
    • Rack Size Depth External (Internal): 5U-16U: 20" (16") 20U-28U: 28" (24")
    • Mounting Format (Internal): 19"
    • Reversible Front Locking Door : Smoked Acrylic
    • Vented Side Panels: Removable
    • Hinged Swing Out Design: No
    • Reinforced Door Frame: Yes
    • Cage Nut Rails: Front & Rear
    • Cage Nuts, Screws & Washers: 12
    • Key Lock Set (2 Keys per Set): 1 Set
    • Cable Access : Top: Cutouts Bottom: Cutouts
    • Structure & Fabrication: 18AWG Steel
    • Electrostatic Powdercoat MicroFinish: Black (-02)
    • Preinstalled 80CFM 110V Fans: 1
    • Compliance: EIA-310D
    • Delivery Style: Assembled
