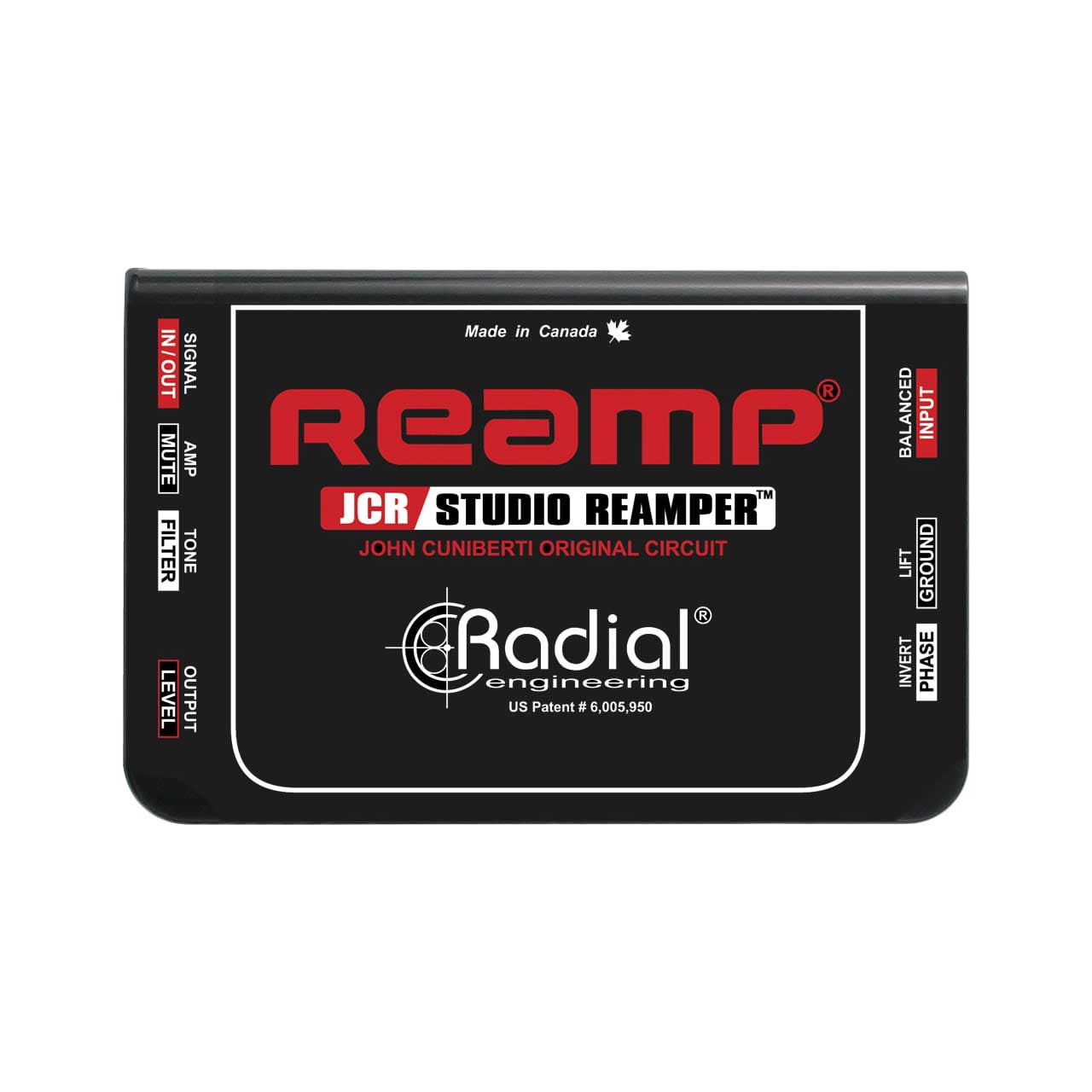

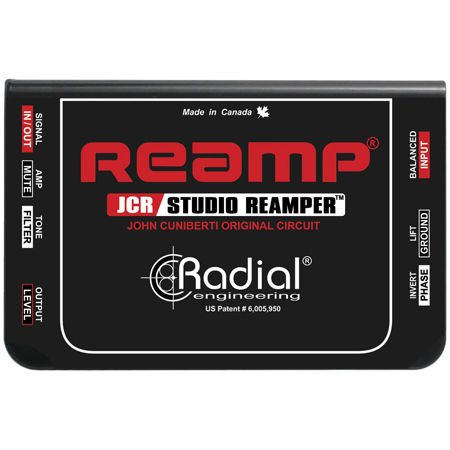

Radial Engineering Reamp JCR Passive John Cuniberti Studio Reamper with Level Control & Filter

ITEM #: RAD-REAMP-JCR MFG #: R800 1030

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$300.00

Our Price:

$249.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    R800 1030 - Overview

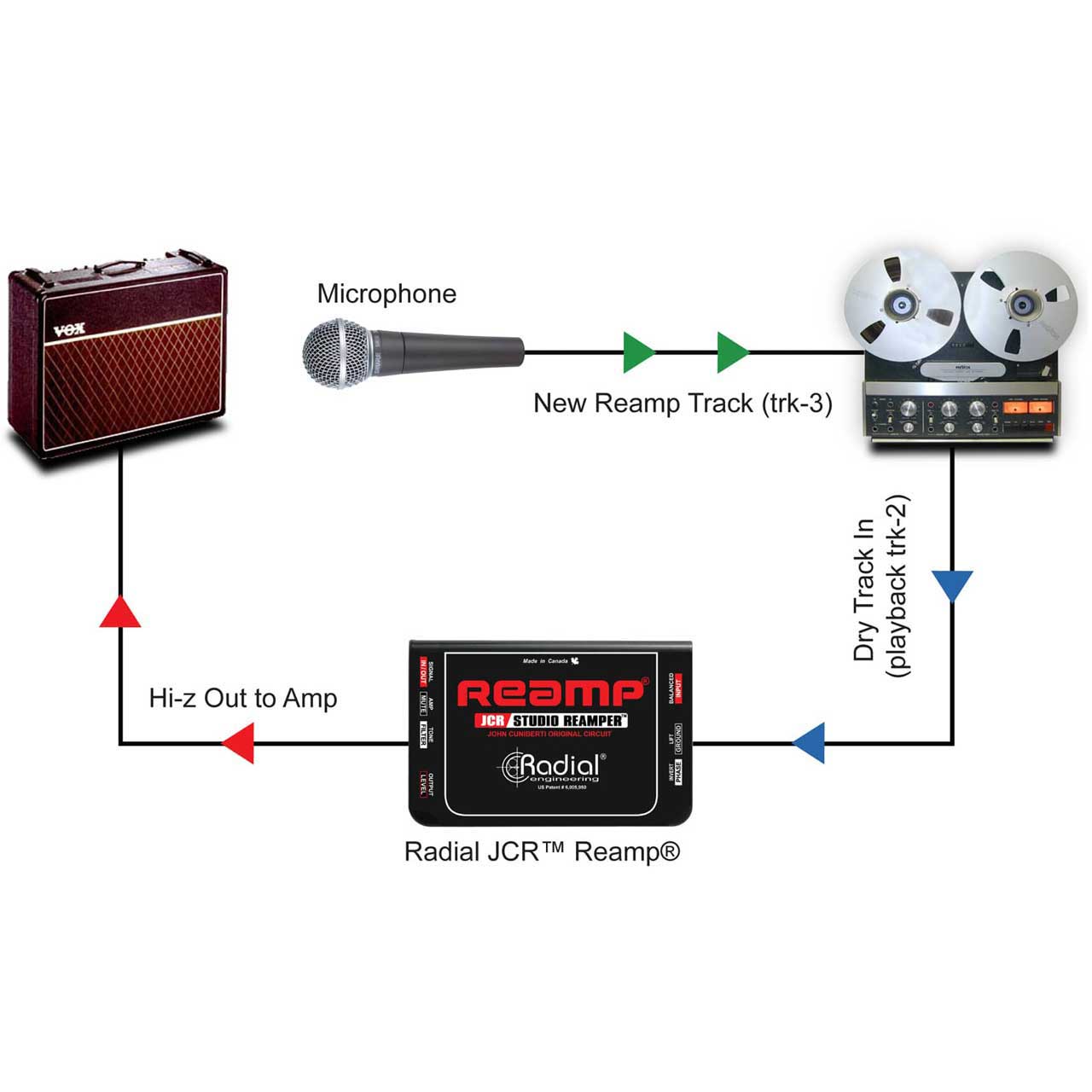

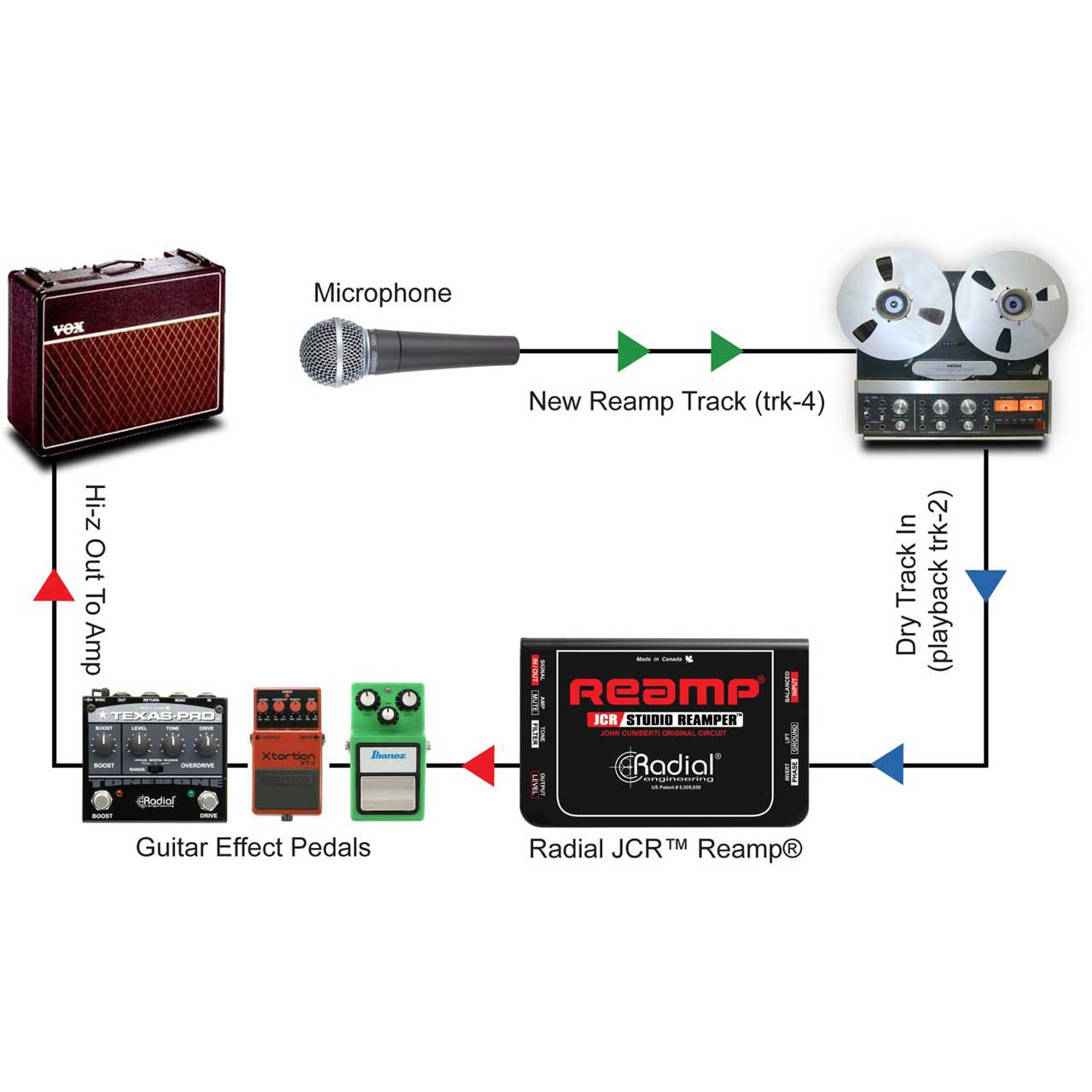

    The Radial Engineering Reamp JCR is a high-performance passive Reamper that gives you the ability to take a pre-recorded track and send it through a guitar amp or pedal chain, allowing you to explore new sonic textures and experiment with microphone placement, amp and pedal settings without limit. The JCR utilizes the original Reamp circuit designed by recording industry legend John Cuniberti, providing exceptional audio quality that preserves every detail of the original recording while optimizing it to feed amplifiers and effects pedals.

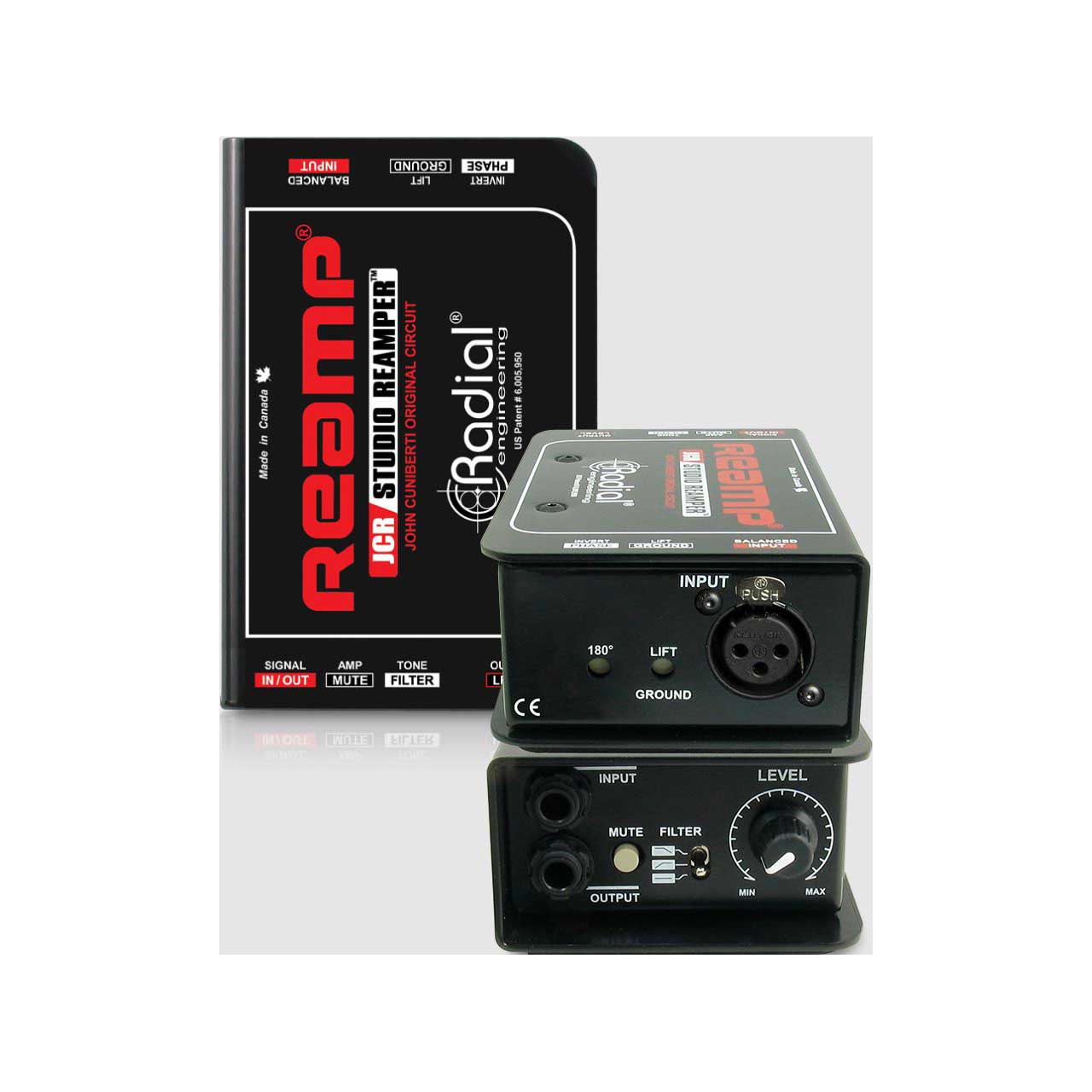

    The Radial Reamp JCR is the latest version of the original Reamp that was designed and patented by John Cuniberti. It features a 100% passive design with John's original custom wound 'Made in the USA' transformer and circuit. The latest Radial version features separate XLR and ¬" TRS input connectors, variable output level plus a three-position filter that lets you tame excessive highs, warm up the lows or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to allow you to shut off the signal going to the amps when making adjustments or moving mics around the studio.

    • Features:

      • Lets you re-record tracks through a guitar or bass amp
      • Original Reamp circuit designed by John Cuniberti
      • Easy to use, Plug-and-play passive design
      • Improves productivity while expanding creative options

    • Specifications:

      • Audio circuit type: Passive, transformer isolated
      • Frequency response: 20Hz ~ 20kHz (+/-1dB)
      • Dynamic range: 140dB
      • Total harmonic distortion: 0.001% @ 1kHz/0dBu input
      • Intermodulation Distortion: 0.0025% @ 1kHz/-10dB input
      • Phase Deviation: 2§ @ 100Hz; 0§ @ 800Hz
      • Input Impedance: 1800 Ohms
      • Output Impedance: 4.8k Ohms
      • Common Mode Rejection Ratio: -55dB @ 55Hz
      • Noise Floor: -115dBu
      • Maximum Input: +26dBu
      • Input Connectors: 1/4" TRS, XLR
      • Output Connectors: 1/4" unbalanced
      • Construction: 14-gauge steel chassis & outer shell
      • Size (L x W x D): 3.3" x 5.0" x 2" (84 x 127 x 48mm)
      • Weight: 1.32lb (600g)
      • Shipping size (L x W x D): 4" x 3" x 6.5" (102 x 76 x 165mm)
      • Shipping weight: 1.85lb (840g)
      • Power: Passive, no power required
      • Conditions: For use in dry locations only between 5°C and 40°C

    • GTIN:

      0676101040315
