RCF ART-732A-MK5 Active 2-Way 12-Inch Powered Speaker with 3-Inch HF Compression Driver

ITEM #: RCF-ART-732A-MK5 MFG #: ART-732A-MK5

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    ART-732A-MK5 - Overview

    The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 12" woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

    Powerful Class D Amplifiers
    RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

    Superior Compression Drivers
    The ND840 Compression Driver in pure Titanium with a 3" voice coil allows a crossover point at only 800 Hz. This allows a better impulse response, fast decay, and superior efficiency. Lightweight and powerful, RCF neodymium drivers are a reference in performance and reliability.

    Potent Woofer
    The low-frequency transducer is a high-power 12" woofer with a 2.5'' voice coil that delivers tight, punchy bass. Reproduction of the mid-bass frequencies is accurate, transparent, and free from distortion.

    Experience The Depths of Sound
    XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

    Your Ideal Stage Partner
    The ART 7 speakers are the perfect choice for musicians and sound provider alike. Their cabinets are molded from a proprietary polypropylene composite engineered to quell vibrations, even at the highest volume levels. This translates to exceptional reliability and resilience under rigorous stage conditions.

    New perspective on linearity
    RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

    Bring ART With You

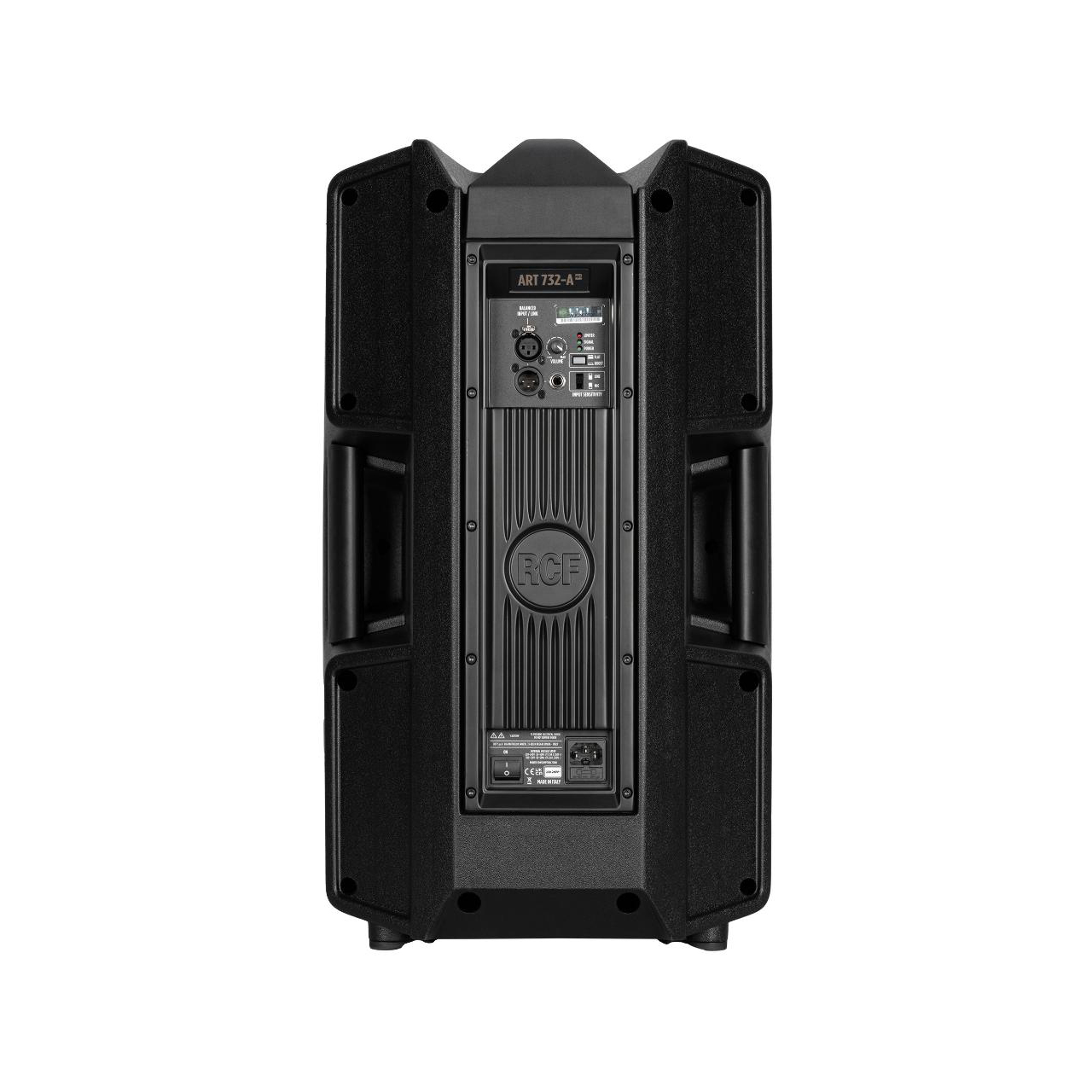

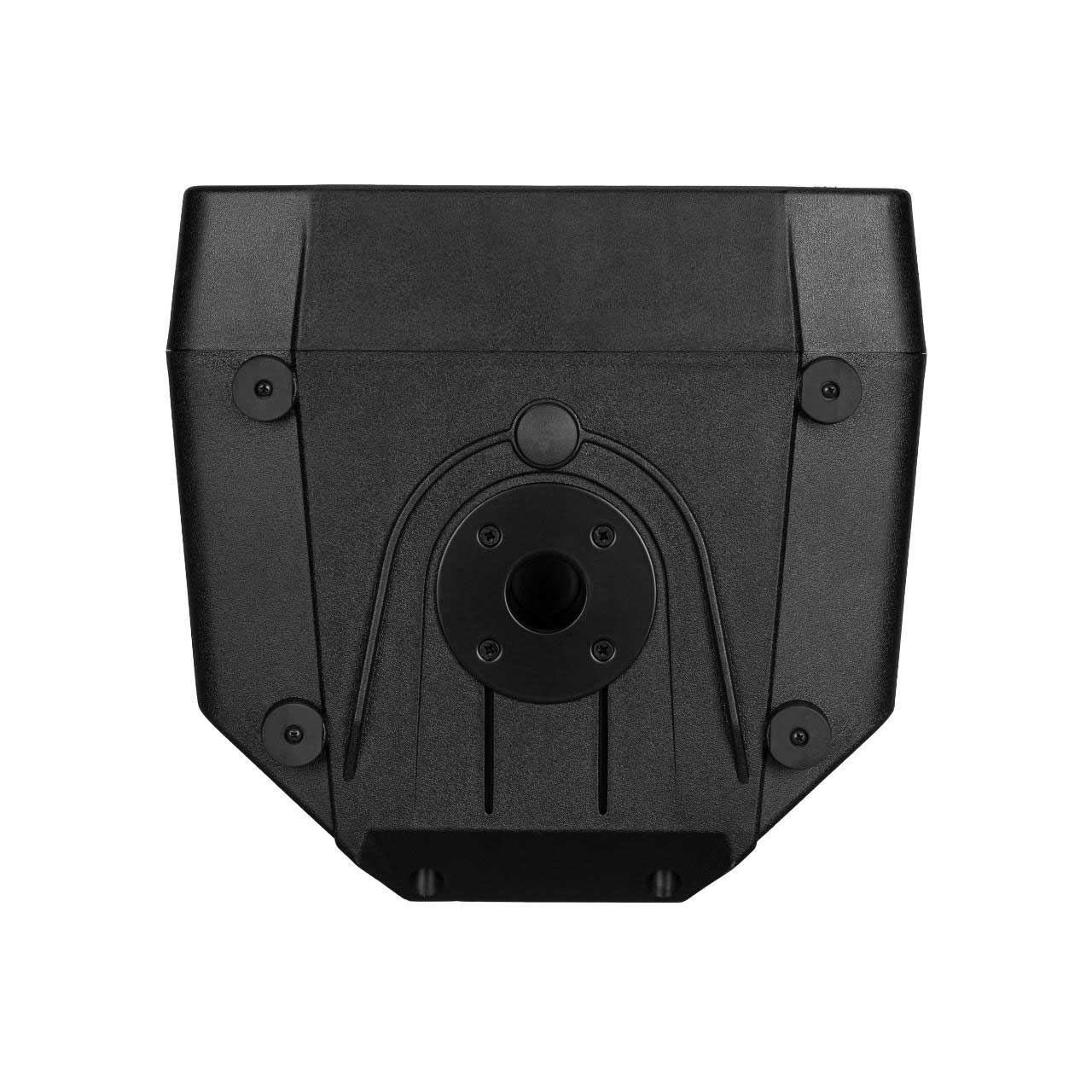

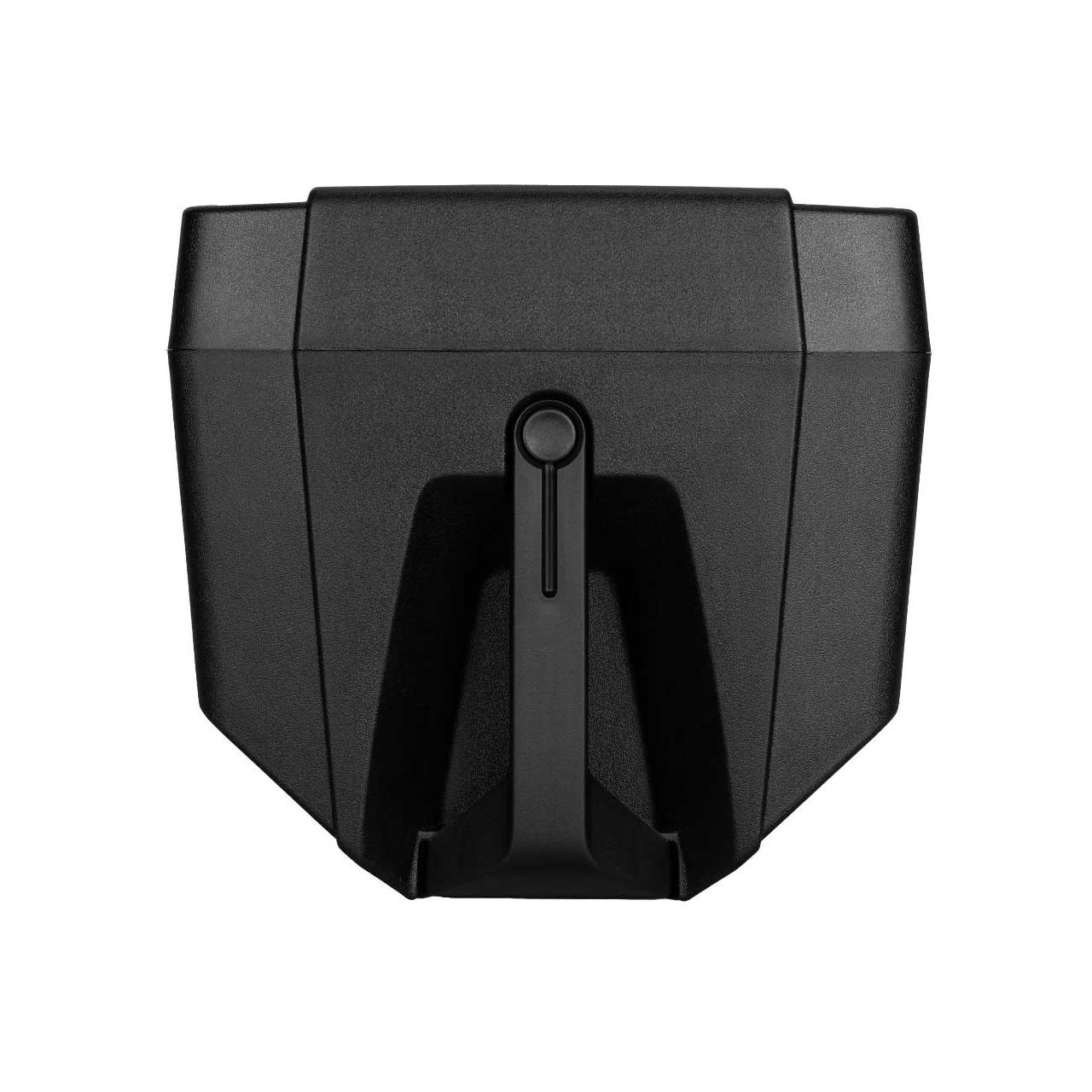

    The sturdy, ergonomic cabinet is easy to carry, thanks to either the handle at the top or the practical handles on both sides. The base of each speaker includes a steel pole socket for mounting on a stand or on a subwoofer pole. Stability and safety are assured. The rear of the cabinet is shaped to also be used as a floor monitor. Internal reinforcement prevents any deformation of the cabinet.

    • Features:

      • 31 dB Max SPL
      • 1400 WATT 2-way peak power
      • 90° x 60°, Wide dispersion constant directivity horn
      • Innovative DSP Processing
      • 3,0" Titanium diaphragm Compression Driver.
      • 12" Woofer
      • FiRPHASE Technology
      • XBOOST Low Frequencies Enhancer
    • Specifications:

      • Acoustical Specs:
      • Frequency Response: 50 Hz ö 20000 Hz
      • Max SPL @ 1m: 131 dB
      • Horizontal coverage angle: 90°
      • Vertical coverage angle: 60°

      • Compression Driver: 1 x 1.0" neo, 3.0" v.c
      • Woofer: 12", 2.5" v.c

      • Input signal: bal/unbal
      • Input connectors: XLR, Jack
      • Output connectors: XLR
      • Input sensitivity: -2 dBu/+4 dBu
      • Mic. Input Sensitivity: -32 dBu

      • Crossover Frequencies: 700
      • Protections: Thermal, RMS
      • Limiter: Soft Limiter
      • Controls: Volume, Boost, MIC/Line

      • Total Power: 1400 W Peak
      • High frequencies: 400 W Peak
      • Low frequencies: 1000 W Peak
      • Cooling: Convection
      • Connections: VDE

        Physical Specs:
      • Hardware: 2 x M10
      • Handles: 1 on top, 1 each side
      • Pole mount/Cap: Yes
      • Color: Black

      • Height: 637 mm / 25.08 inches
      • Width: 387 mm / 15.24 inches
      • Depth: 363 mm / 14.29 inches
      • Weight: 17.8 kg / 39.24 lbs

        Shipping Dimsneions:
      • Package Height: 680 mm / 26.77 inches
      • Package Width: 440 mm / 17.32 inches
      • Package Depth: 420 mm / 16.54 inches
      • Package Weight: 20.6 kg / 45.42 lbs
    • Item Includes:

      • 1x VDE power cord
    • GTIN:
