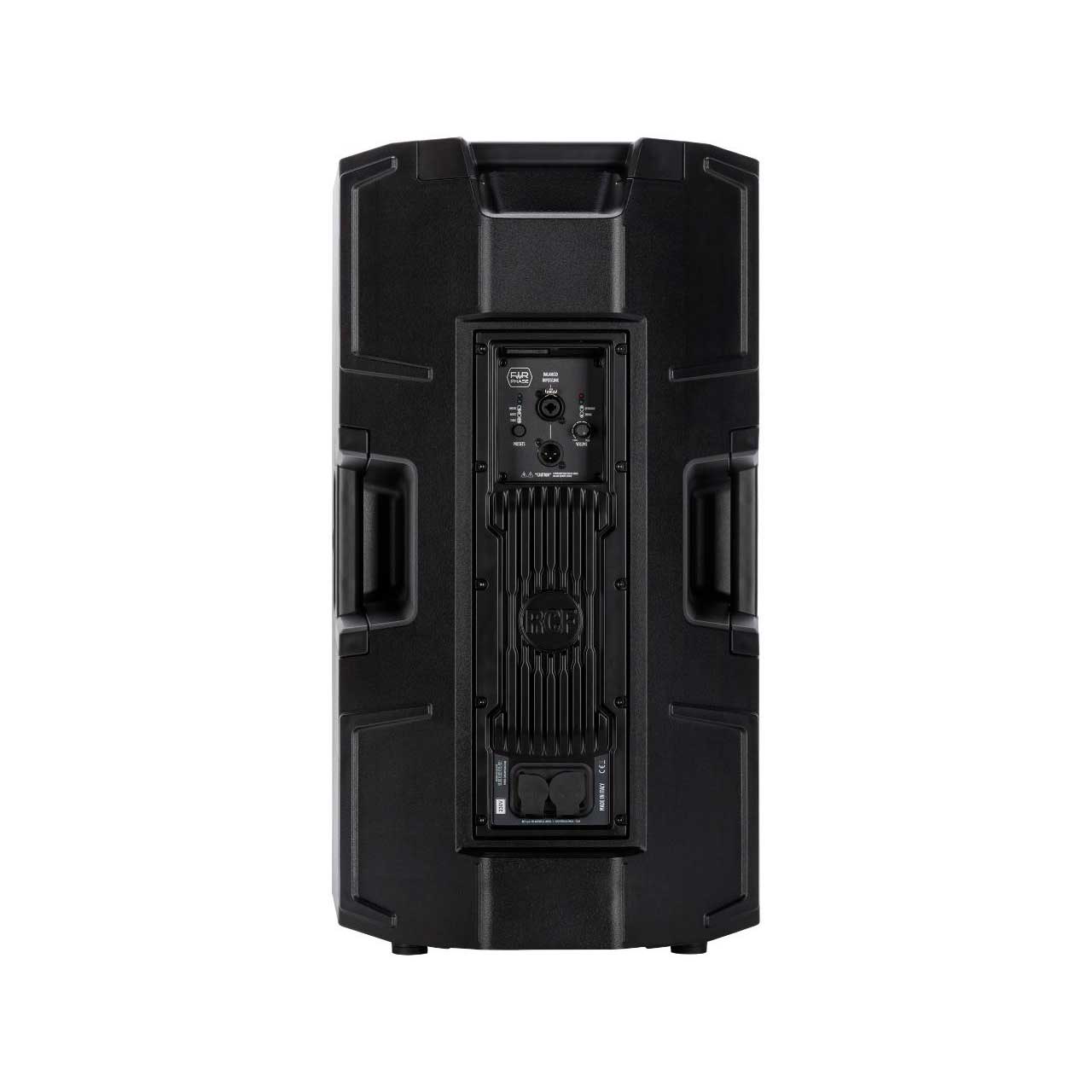

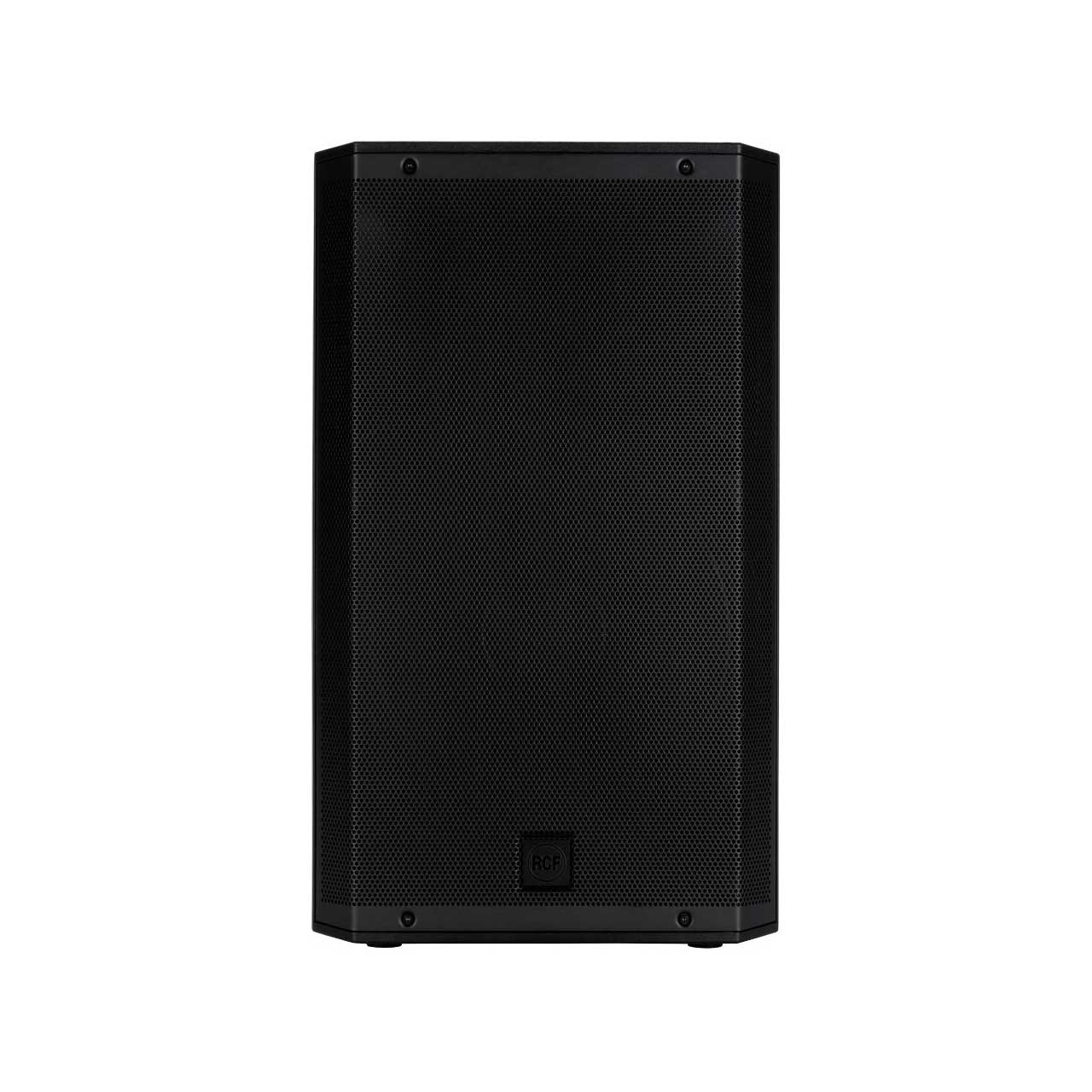

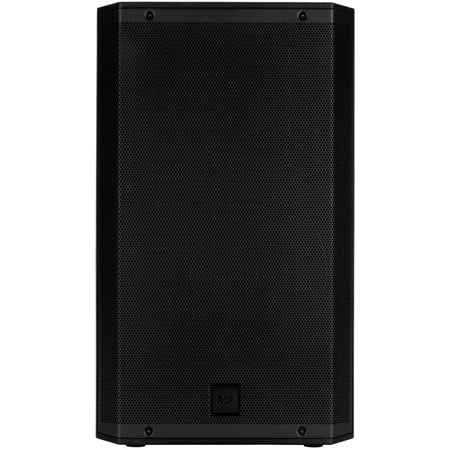

RCF ART 945-A Professional Active Speaker 4-Inch Titanium Compression Driver 15-Inch Woofer - 2-Channel 2100W Amplifier

ITEM #: RCF-ART-945-A MFG #: ART 945-A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,249.00

Our Price:

$1,999.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ART 945-A - Overview

    ART 945-A is masterfully engineered to deliver stellar audio performance and versatility for intensive audio applications. The combination of neodymium transducers - 4" titanium compression driver, 15" woofer - two-channel 2100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with up to 135 dB SPL, distortion-free sound. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute clarity and deep, powerful bass response. The sleek cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

    • Features:

      • Up to 135 dB Sound Pressure Level
      • 2100W Class-D Bi-Amplification
      • 45-20000 Hz linear frequency response
      • 4" Titanium/Neodymium Compression Driver
      • 15" Neodymium Woofer
      • FiRPHASE zero degrees phase technology
      • Bass Motion Control woofer excursion management

    • Specifications:

      • Acoustical Specifications
      • Frequency Response: 45 Hz ~ 20000 Hz
      • Max SPL @ 1m: 135 dB
      • Horizontal coverage angle: 100°
      • Vertical coverage angle: 60°

        Transducers
      • Compression Driver: 1 x 1.4" neo, 4.0" v.c
      • Woofer: 15" neo, 3.5" v.c

        Input/Output Section
      • Input signal: bal/unbal
      • Input connectors: XLR, Jack
      • Output connectors: XLR
      • Input sensitivity: -2 dBu/+4 dBu

        Processor Section
      • Crossover Frequencies: 650Hz
      • Protections: Thermal, RMS
      • Limiter: Soft Limiter

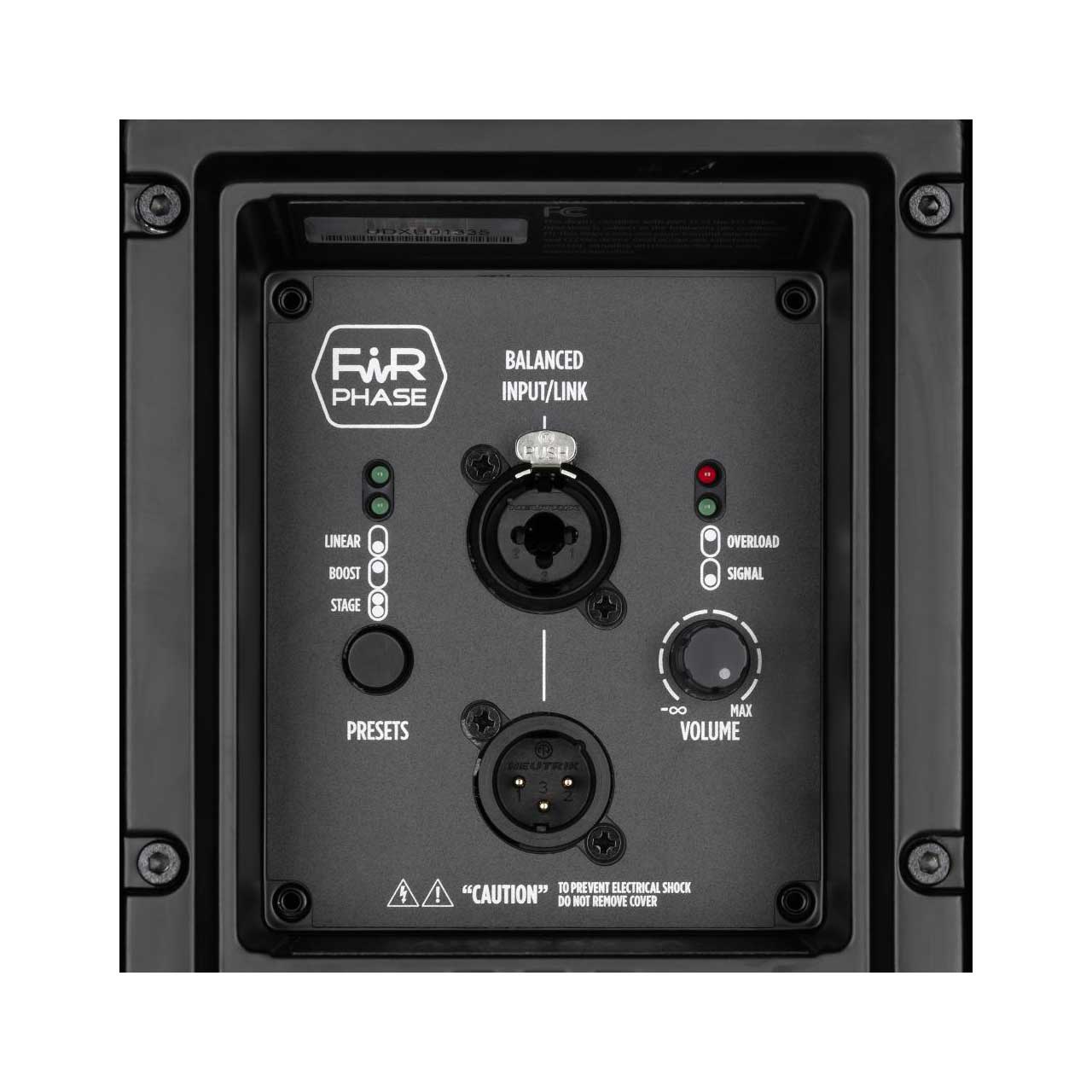

      • Controls: Linear, Boost, Stage, Volume

        Power Section
      • Total Power: 2100 W Peak
      • High frequencies: 700 W Peak
      • Low frequencies: 1400 W Peak
      • Cooling: Convection

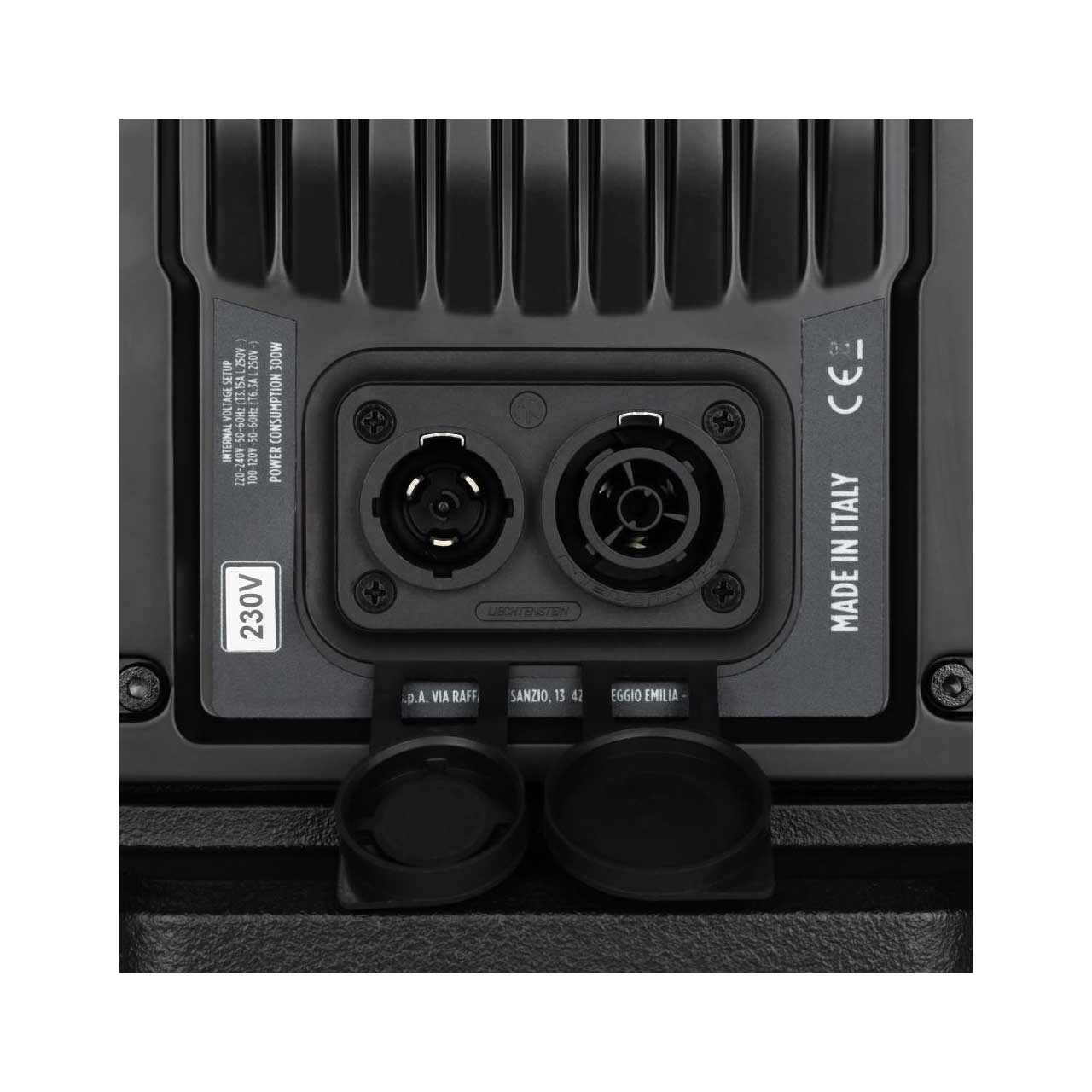

      • Connections: Powercon TRUE1 TOP IN/OUT

        Standard Compliance
      • Safety agency: CE compliant

        Physical Specifications
      • Cabinet/Case Material: PP Composite
      • Hardware: 1 x M10 Top, 1 x M10 each side
      • Handles: 1 Top , 1 each side
      • Pole mount/Cap: Yes
      • Grille: Steel
      • Color: Black

        Size
      • Height: 717mm / 28.23"
      • Width: 415mm / 16.34"
      • Depth: 410mm / 16.14"
      • Weight: 22.4kg / 49.38Lbs

        Shipping Information
      • Package Height: 760mm / 29.92"
      • Package Width: 475mm / 18.7"
      • Package Depth: 470mm / 18.5"
      • Package Weight: 26.2kg / 57.76Lbs

    • GTIN:

      8024530019297
