RCF COMPACT M 12 2-Way Professional Speaker - 129dB Max SPL - Black

ITEM #: RCF-COMPACT-M-12 MFG #: COMPACT M 12

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,799.00

Our Price:

$1,299.00

Availability: In Stock - Ships Factory Direct, Typically in 6 Business Days.
Please Email, Chat or Call (800) 522-2025
iAvailability Description Popup


COMPACT M 12 - Overview

The RCF COMPACT M 12 includes a wide range of high quality 2-way passive loudspeakers for fixed installations and is the ideal solution for small to medium size projects. This series covers 6 models. Models from M 06 to M 12 are equipped with a high power handling `Low Impedance Compensated Crossover', having an electronic protection for the driver. The front grilles are made of steel and the front RCF logo is easily rotatable. Several rigging points are available on each model, in order to match with any application needs.

  • Features:

    • 300W RMS power handling
    • 129dB max SPL
    • 55Hz/20kHz frequency range
    • 90° x 70° constant directivity coverage angle, rotatable horn
    • One 12" high power woofer
    • One 1.4" voice coil compression driver
    • High quality plywood cabinet
    • Steel front grille with clothing
    • Installation points available on rear, top and bottom panels

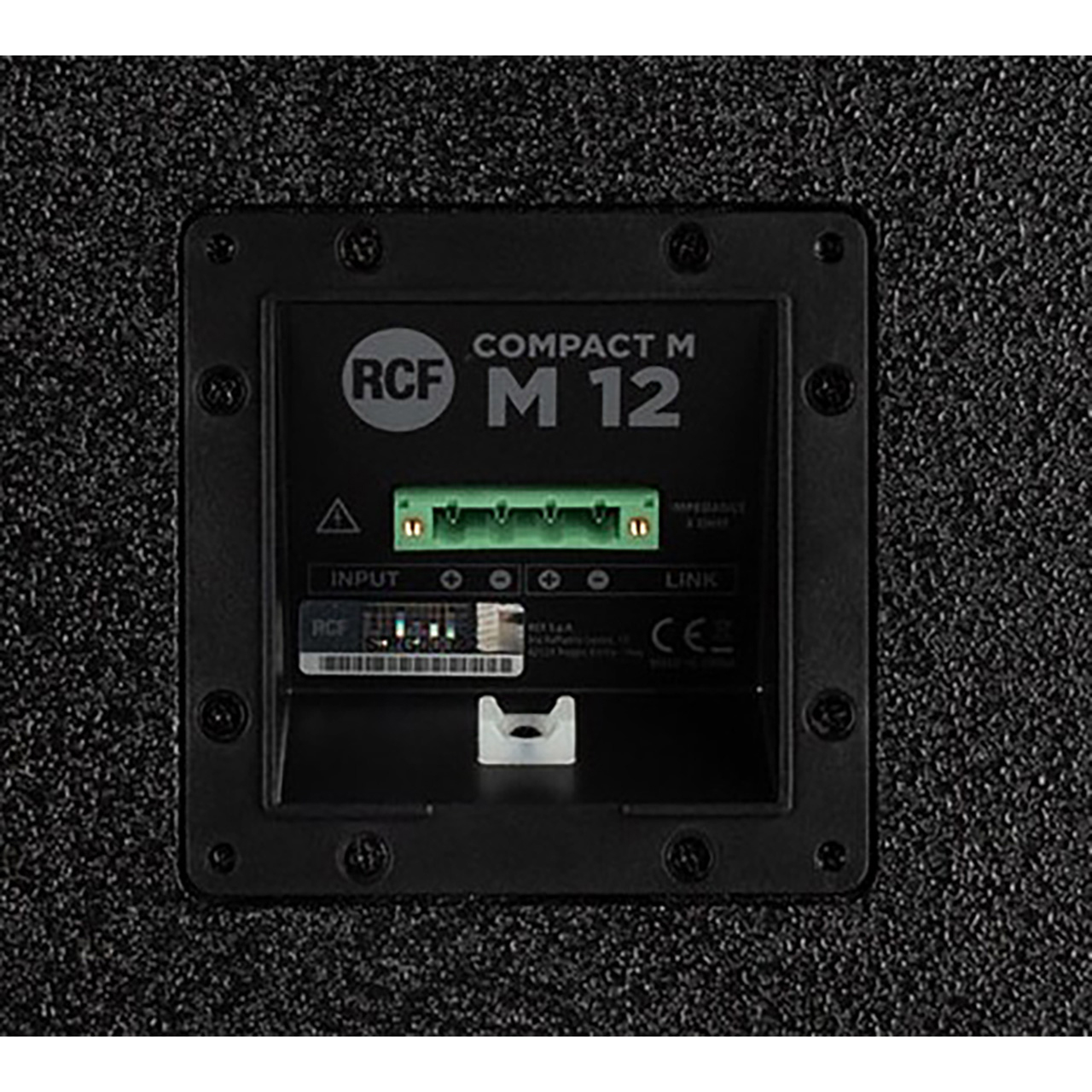

    • 4-pole EUROBLOCK connector (audio input and parallel link output)

  • Specifications:

      Acoustics
    • Frequency Response (-10dB): 55Hz - 20kHz
    • Max SPL @ 1m: 129dB
    • Horizontal Coverage Angle: 90°
    • Vertical Coverage Angle: 70°
    • Directivity index Q: 9
    • System Sensitivity: 98dB

      Power
    • Amplification: Full Range
    • Nominal Impedance: 8Ω
    • Power Handling: 300W
    • Peak Power Handling: 1200W PEAK
    • Protections: Dynamic active mosfet
    • Crossover Frequencies: 1800Hz
    • Recommended Amplifiers: XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504
    • Transducers Compression Driver: 1x 1.0", 1.4" v.c
    • Woofer: 1x 12", 2.5" v.c

      Input/Output
    • Input Connectors: Euroblock
    • Output Connectors: Euroblock

      Physical
    • Cabinet/Case Material: Plywood
    • Hardware:
      - 8x M8
      - 8x M10
    • Grille: Steel with clothing
    • Color: Black - RAL 9005
    • Dimensions (LxWxH): 15.9" x 17.4" x 25.8" (404mm x 442mm x 655mm)
    • Weight: 56.22lbs (25.5kg)

  • Item Includes:

    • 1x COMPACT M 12
    • 1x 4-pin EUROBLOCK connector

  • Warranty:

    • 2 Year Limited Warranty
