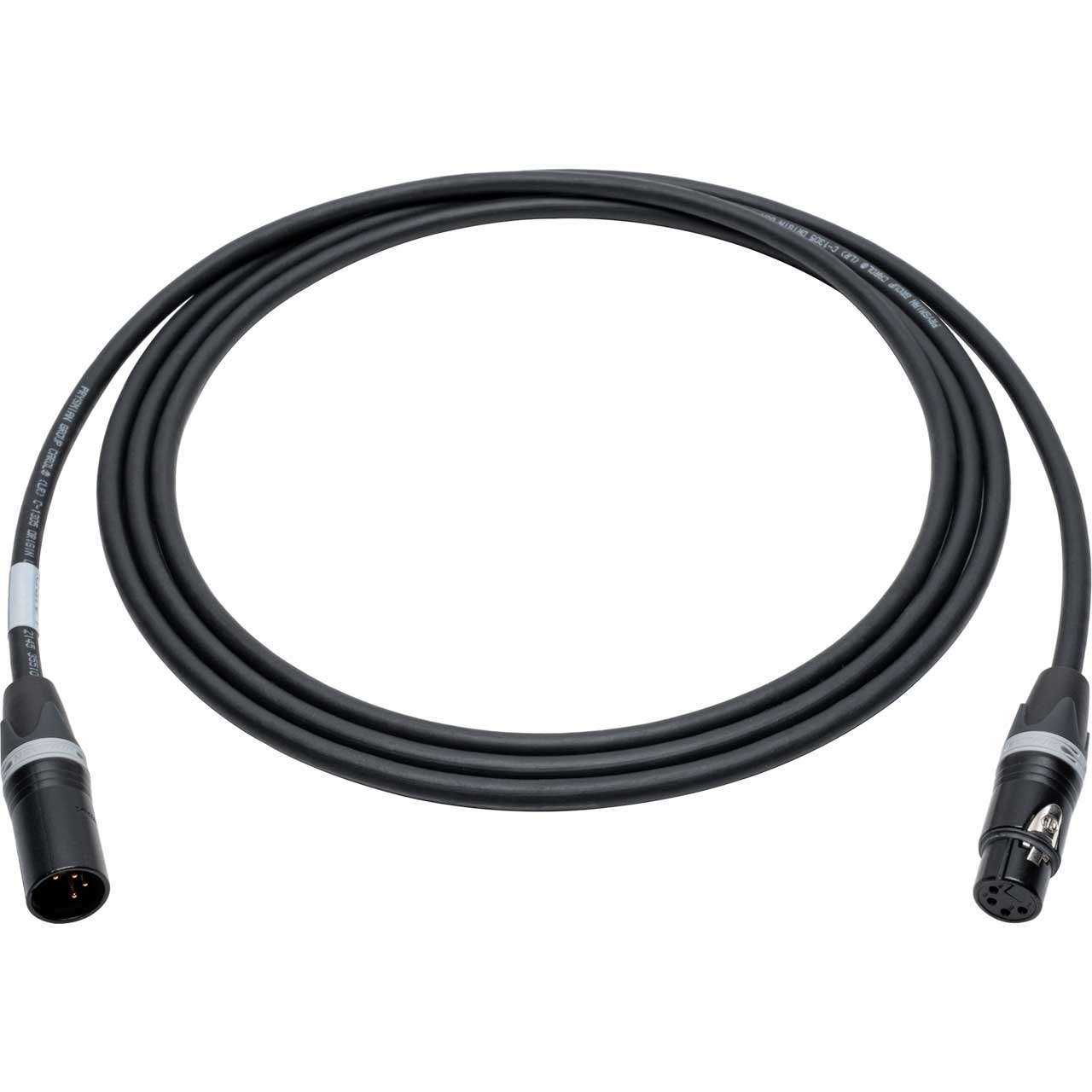

Laird RD1-PWR18 12V DC Power Cable 4-Pin XLR-M to 4-Pin XLR-F - 3 Foot

ITEM #: RD1-PWR18-03 MFG #: RD1-PWR18-03

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$55.95

Our Price:

$50.49

Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


RD1-PWR18-03 - Overview

Powering Professional video equipment requires reliability, durability, and consistency-the Laird RD1-PWR18 series delivers all three. Designed for gear that follows Sony's 4-Pin XLR D.C. power pinout, these cables ensure clean, stable power distribution for cameras, field monitors, and other broadcast devices. Whether you're on set, in the studio, or in the field, this series provides a rugged, yet flexible solution built to handle the demands of professional production environments.

At the core of the RD1-PWR18 series is Laird's high-quality multi-conductor cable with four 20-gauge annealed stranded tinned copper conductors. The stranded-wire design enhances flexibility, enabling easy routing and coiling without compromising signal integrity.

  • Features:

    • Wired According to Sony 4-Pin XLR D.C. Power Pinout
    • 4-Conductor 20-Gauge stranded
    • Highly flexible and durable
    • High-quality Neutrik 4-Pin XLR Connectors
    • Impact and Abrasion-Resistant Rubber Jacket

  • Specifications:

      Laird Multi-Conductor Cable
    • Number of Conductors: 4
    • Conductor AWG Size: 20
    • Conductor Stranding: 26/34
    • Conductor Material: Annealed Stranded Tinned Copper
    • Insulation Material: Rubber
    • Nom. Insulation Thickness: 0.020" (0.51mm)
    • Shield Material/Coverage%: Tinned Copper Braid/80%
    • Jacket Material: Rubber
    • Nom. Jacket Thickness: 0.035" (0.89mm)
    • Nom. O.D.: 0.300" (7.62mm)

      Neutrik 4-Pin XLR Connectors
    • Capacitance Between Contacts: ≤ 7 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1.5 kVdc
    • Insulation Resistance: > 10 GΩ
    • Rated Current per Contact: 10 A
    • Rated Voltage: < 50 V
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Locking Device: Latch lock
    • Protection Class: IP 40

  • Warranty:

    • Limited Lifetime
