Laird RD1-PWR18 12V DC Power Cable 4-Pin XLR-M to 4-Pin XLR-F - 7 Foot

ITEM #: RD1-PWR18-07 MFG #: RD1-PWR18-07

Primary Image
Laird Digital Cinema
Free Shipping with $49 Minimum Order

List Price:

$65.95

Our Price:

$59.49

Add to Wish ListLeasing Options
Availability: 2+ Weeks.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

RD1-PWR18-07 - Overview

We have the largest collection in the industry of professional equivalent cables for the Red One, Epic & Scarlet cameras for digital cinema applications. We offer a full complement of broadcast cables,power cables, lens drive cables & command cables for standard and 3D videography. Interface your Red One, Red Epic and Red Scarlet Digital Cinema Camera Gear with professional 3D Rigs! All cables undergo a 100% bench testing procedure and are made of the finest components from Lemo, Hitachi, Belden, Neutrik and others and are designed to meet or exceed manufacturers specifications. Laird Brand Digital Cinema Cables are Designed for Professionals who Know the Difference.

  • Features:

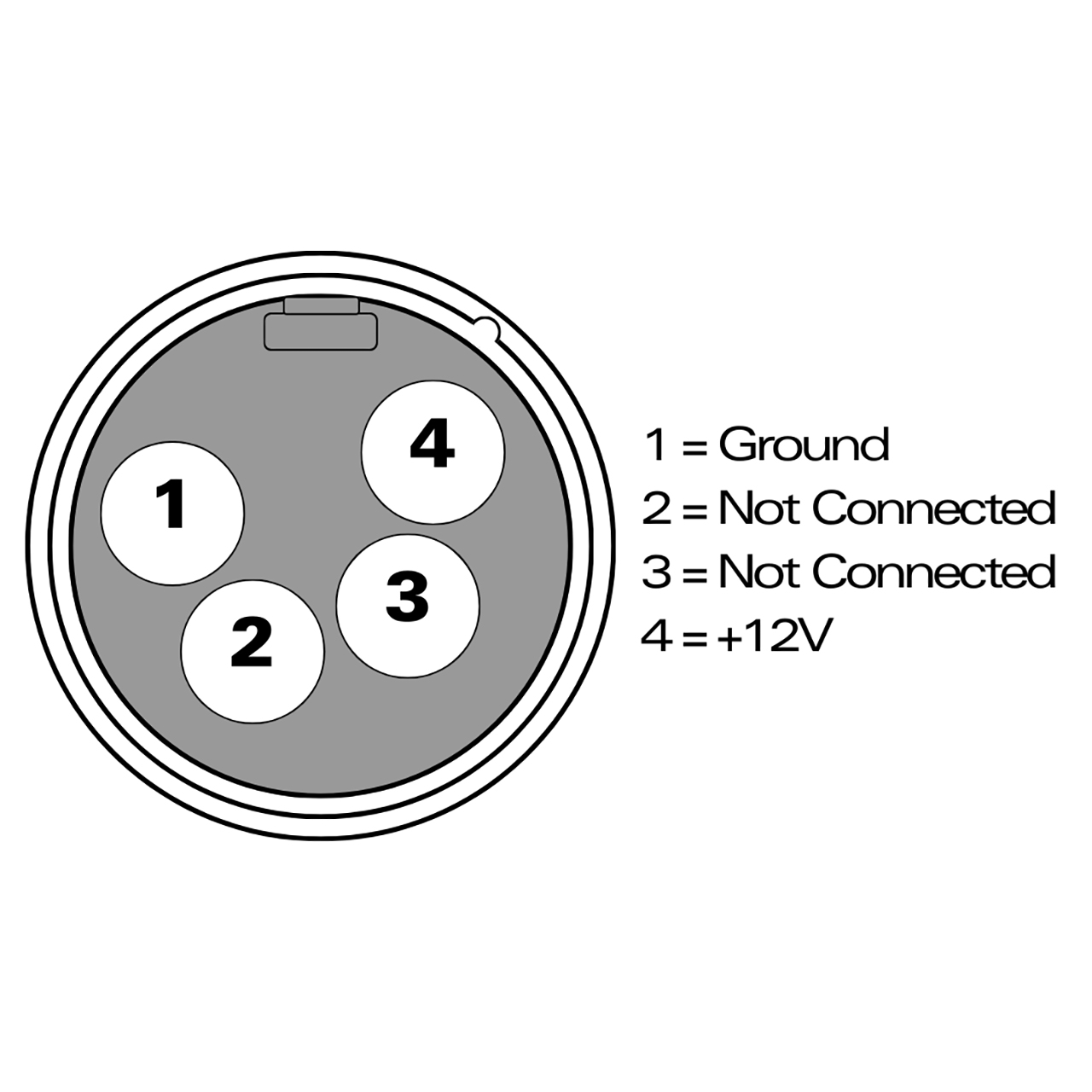

    • Wired According to Sony 4-Pin XLR D.C. Power Pinout
    • 4-Conductor 20-Gauge stranded
    • Highly flexible and durable

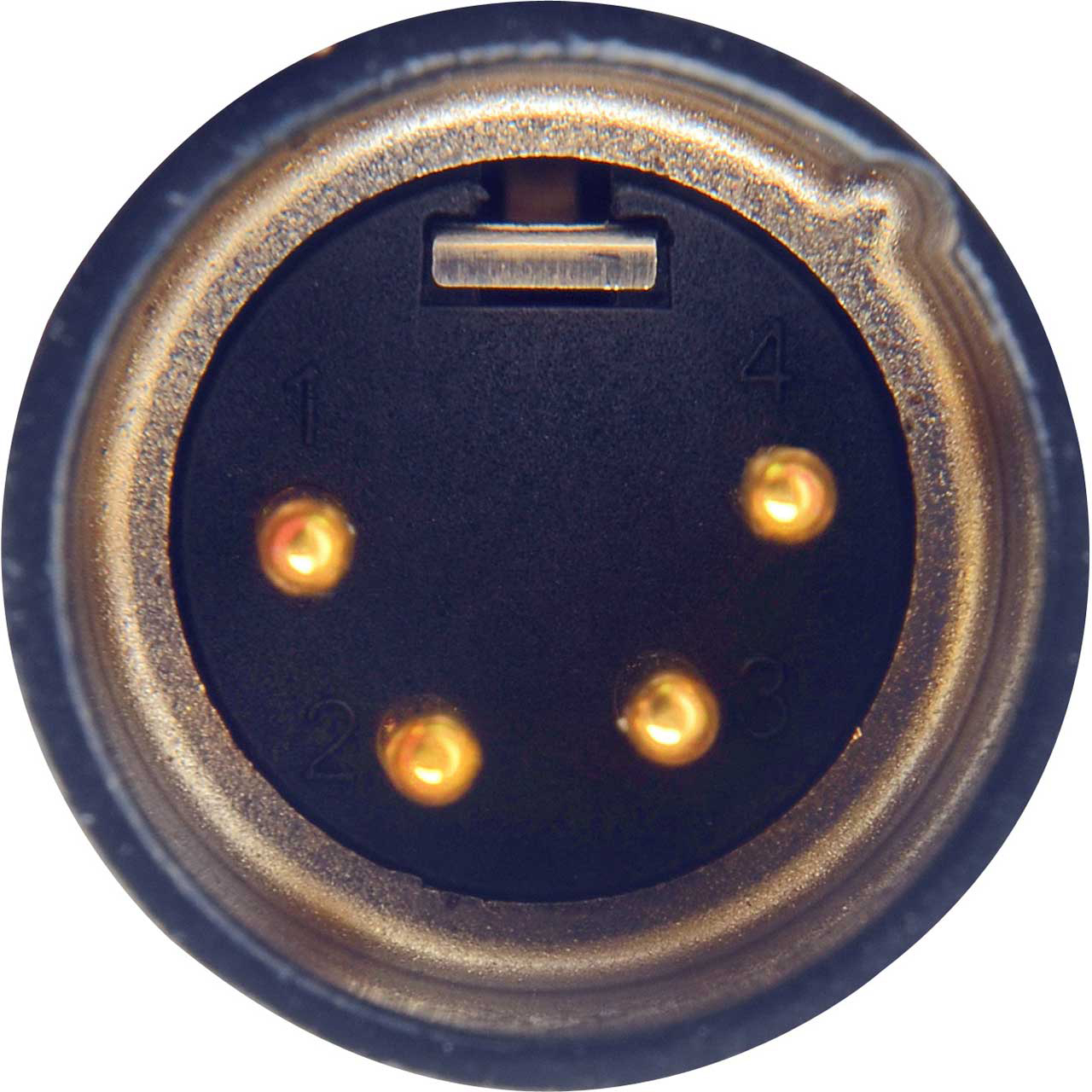

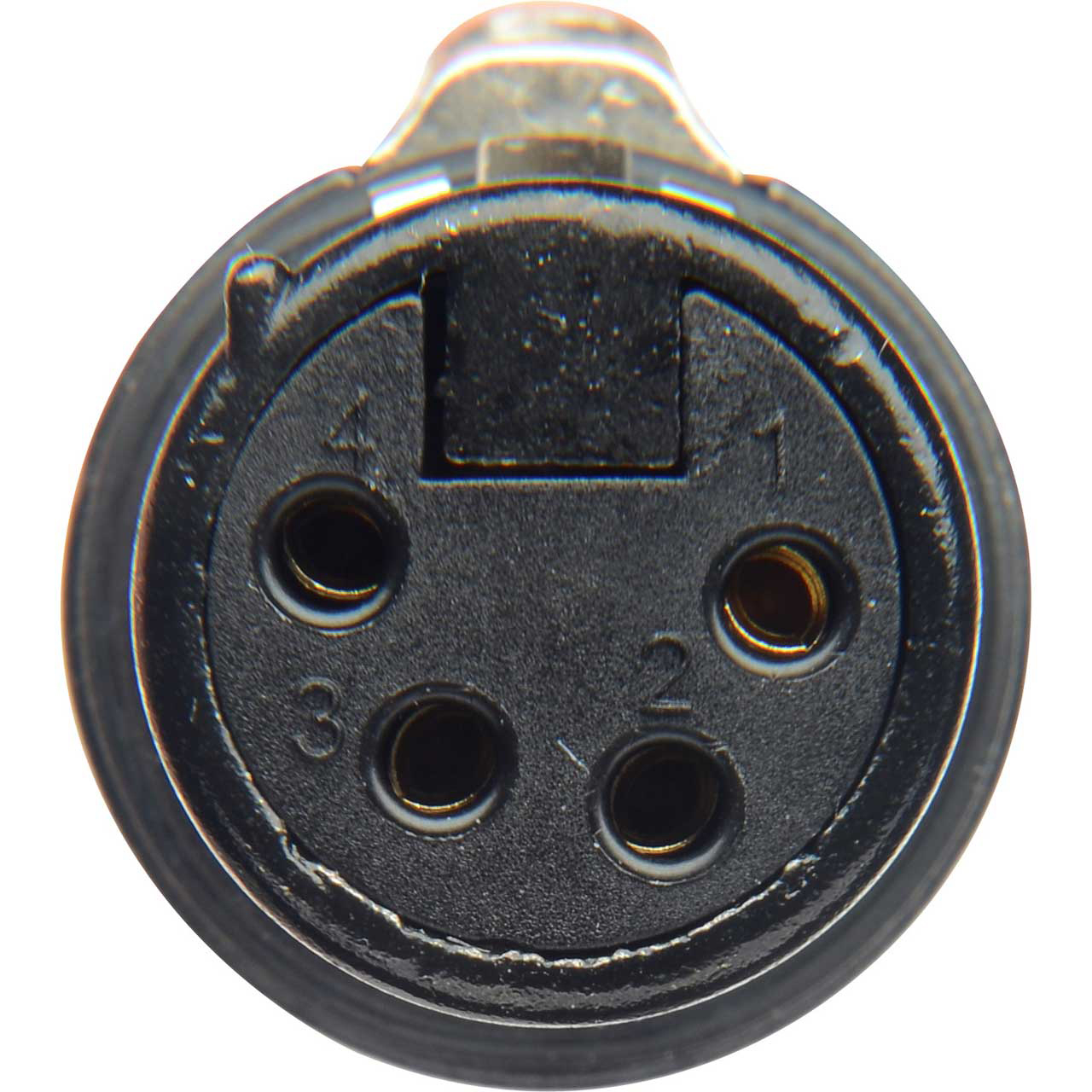

    • High-quality Neutrik 4-Pin XLR Connectors
    • Impact and Abrasion-Resistant Rubber Jacket


  • Specifications:

      Laird Multi-Conductor Cable
    • Number of Conductors: 4
    • Conductor AWG Size: 20
    • Conductor Stranding: 26/34
    • Conductor Material: Annealed Stranded Tinned Copper
    • Insulation Material: Rubber
    • Nom. Insulation Thickness: 0.020" (0.51mm)
    • Shield Material/Coverage%: Tinned Copper Braid/80%
    • Jacket Material: Rubber
    • Nom. Jacket Thickness: 0.035" (0.89mm)
    • Nom. O.D.: 0.300" (7.62mm)

      Neutrik 4-Pin XLR Connectors
    • Capacitance Between Contacts: ≤ 7 pF
    • Contact Resistance: ≤ 3 mΩ
    • Dielectric Strength: 1.5 kVdc
    • Insulation Resistance: > 10 GΩ
    • Rated Current per Contact: 10 A
    • Rated Voltage: < 50 V
    • Insertion Force: ≤ 20 N
    • Withdrawal Force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Locking Device: Latch lock
    • Protection Class: IP 40


  • Warranty:

    • Limited Lifetime
