RDL D-J2 Line Input Assembly

ITEM #: RDL-D-J2 MFG #: D-J2

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$90.73

Our Price:

$68.04

Availability: In Stock
iAvailability Description Popup


    D-J2 - Overview

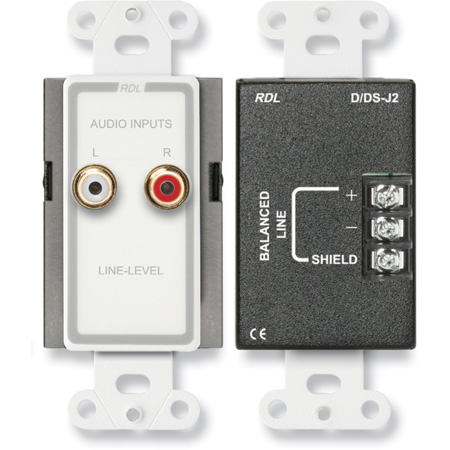

    The D SERIES-J2 is a complete unbalanced audio input panel assembly. The front panel features two phono jacks intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. A balanced line-level output is provided on the rear-panel terminal block for connection to 10 kΩ or higher input impedance line level module or equipment inputs. The back of the D SERIES-J2 is finished with a metal enclosure clearly labeled for easy installation.The D SERIES-J2 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

    • Features:

      • Wall Mounted Line-Level Audio Input Panel
      • Gold Plated Phono Jacks
      • Hum Cancellation on Unbalanced Line Inputs
      • Transformer Isolation for Unbalanced Line Inputs
      • Balanced Output for Unbalanced Line Inputs

    • Specifications:

      • Input Connectors (2): Phono jacks with gold contacts
      • Output Connector: Terminal block
      • Output Connections (3): +, -, SHIELD
      • Frequency Response (line in): 30 Hz to 20 kHz (±1 dB)Power Requirement: PassiveDimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
      • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 0.475 lbs.
      • WEEE weight: 0.325 lbs.
      • Tariff code: 8536.69.4030

    • GTIN:

      0813721015273
