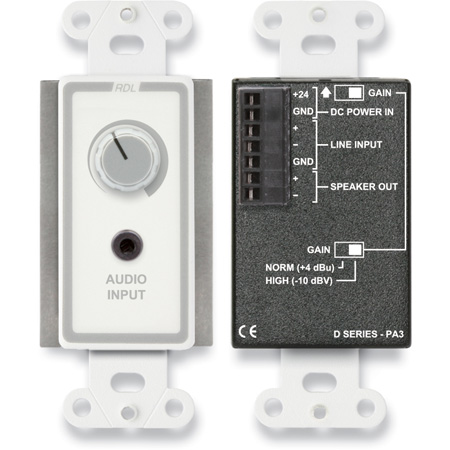

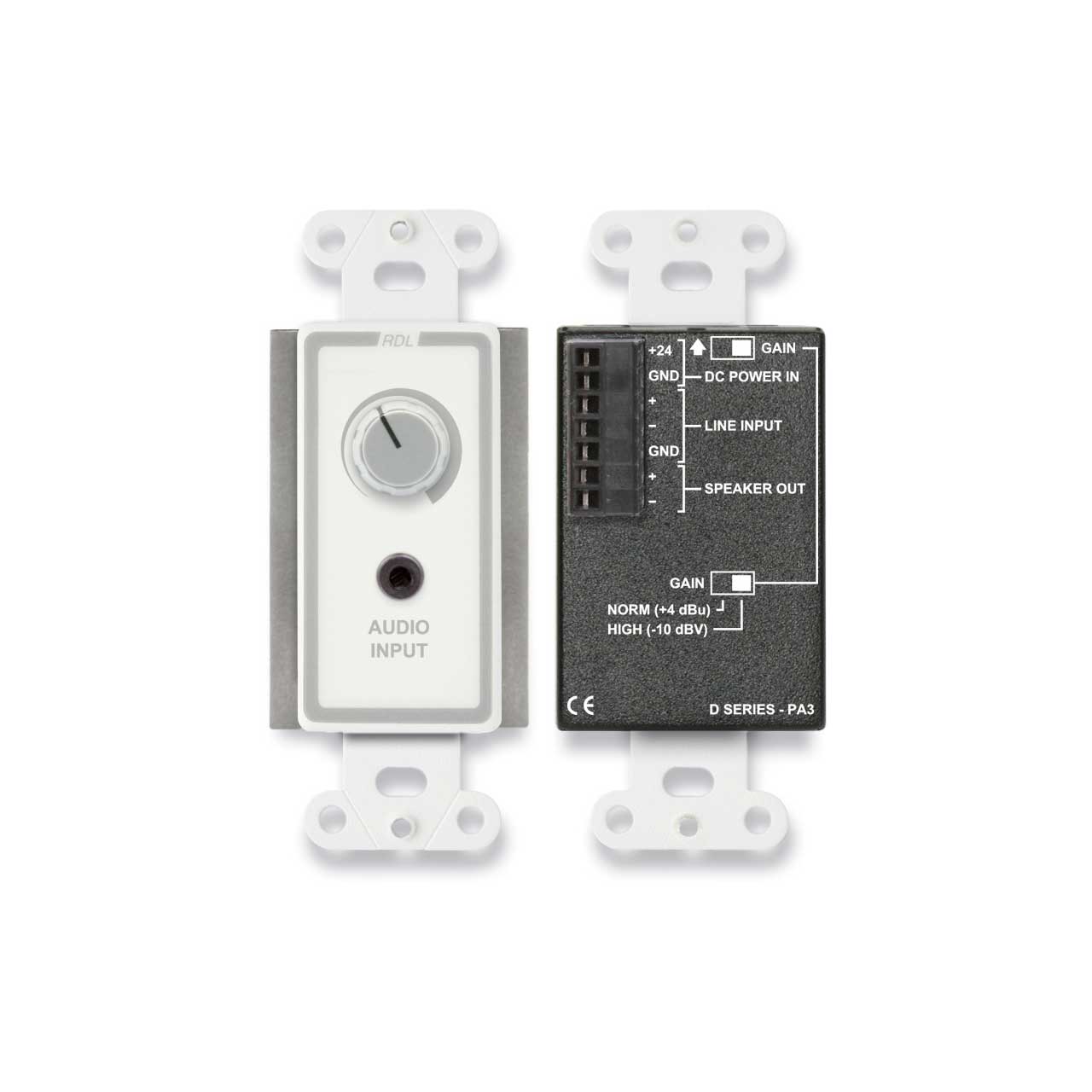

    RDL D-PA3 3.5 Watt Audio Amplifier

    Manufacturer: Radio Design Labs

    Item #: RDL-D-PA3   •   MFG #: D-PA3



    List Price:$249.38
    Our Price:$168.75

    free ship


    Availability:
    More on the way, usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The D SERIES-PA3 is a high efficiency 3.5 W power amplifier with two line inputs and an amplified output to drive a 4 or 8 ohm speaker. The -PA3 features a balanced line level input that may be connected unbalanced. The gain range will accommodate standard unbalanced levels as well as professional balanced levels.The amplifier features a stereo Mini-Jack input on the front panel. The input is designed to receive standard -10 dBV consumer level signals from sources such as a computer or personal media player. The left and right audio signals received on the Mini-Jack are summed to mono and amplified. When a source is connected, the rear-panel input is switched off. The amplified output level is controlled by a front-panel volume control.A recessed slide switch on the side of the chassis is set during installation. This switch determines the sensitivity of the balanced rear-panel input.Amplification is provided by a high-efficiency Class D power stage with audio filtering tailored for crisp, pleasant audio clarity. The high-efficiency Class D output stage produces negligible heat for all levels of expected voice or music modulation.The D SERIES-PA3 is designed to be mounted in a wall box. The front panel does not include any illuminated indicators, making the -PA3 ideally suited to installation in dark rooms or areas. Wiring is connected through a rear-panel detachable terminal block. Module operation is from a 24 Vdc ground-referenced power supply.


      • Features

        • Wall-Mounted Amplifier with 2 Inputs
        • Balanced Input on the Rear Panel
        • Mini-Jack Input on the Front Panel
        • Automatic Switching Between Inputs
        • Source Selection Using Solid-State Switching
        • Front-Panel Gain Adjustment
        • 3.5 Watt RMS Audio Amplifier into 8 Ohms
        • 6.5 Watt RMS Audio Amplifier into 4 Ohms
        • Output Drives 4 or 8 Ohm Speaker
        • Speaker Output on the Rear Panel
        • High-Efficiency Class D Operation
        • Speaker Output Connection on Detachable Terminal Block
        • Ultra-Compact All Metal Construction
        • Thermal and Short-Circuit Protection

      • Specifications

        • Inputs (2): 20 kΩ balanced or unbalanced bridgingInput Level: +4 dBu nominal (Balanced, LowInput sensitivity); -15 dBV nominal (Unbalanced, HighInput sensitivity)
        • MinimumInput Level: -18 dBu (Balanced, Max. gain); -19 dBV (Unbalanced Mini-Jack, Max. gain)
        • MaximumInput Level: +22 dBu (LowInput sensitivity); +4 dBu (HighInput sensitivity)
        • Gain Adjustment: Single-turn audio taper (Front-panel)
        • Output Power: 3.5 W RMS (Max., into 8 ohms); 6.5 W RMS (Max., into 4 ohms)
        • Frequency Response: 20 Hz to 20 kHz (± 1 dB)
        • THD+N: < 0.1% (@ 1 kHz, 1 W)
        • Noise: < -80 dB (below 1 W RMS, balanced input); < -70 dB (below 1 W RMS, Mini-Jack input)
        • CMRR: > 50 dB (50 Hz to 120 Hz)Power Requirement: 24 Vdc @ 30 mA (Idle); 55 mA (1/8 power; normal voice or music); 225 mA (3.5 W into 8 ohms)Ambient Operating Environment: 0° C to 40° C Maximum; 20° C RecommendedDimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
        • Package Type: Cardboard Box
        • Package Dimensions: 3.625 x 4.625 x 2.125 in.
        • Shipping Weight: .405 lbs.
        • WEEE weight: .270 lbs.
        • Tariff code: 8518.40.2000

      • GTIN:

        0813721015921
