RDL DB-CIJ3 Consumer Input Jacks - Mono - Black

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

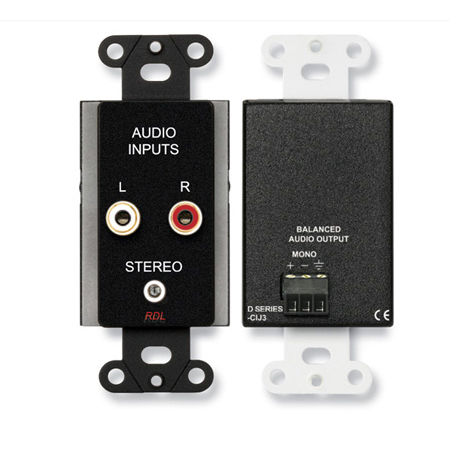

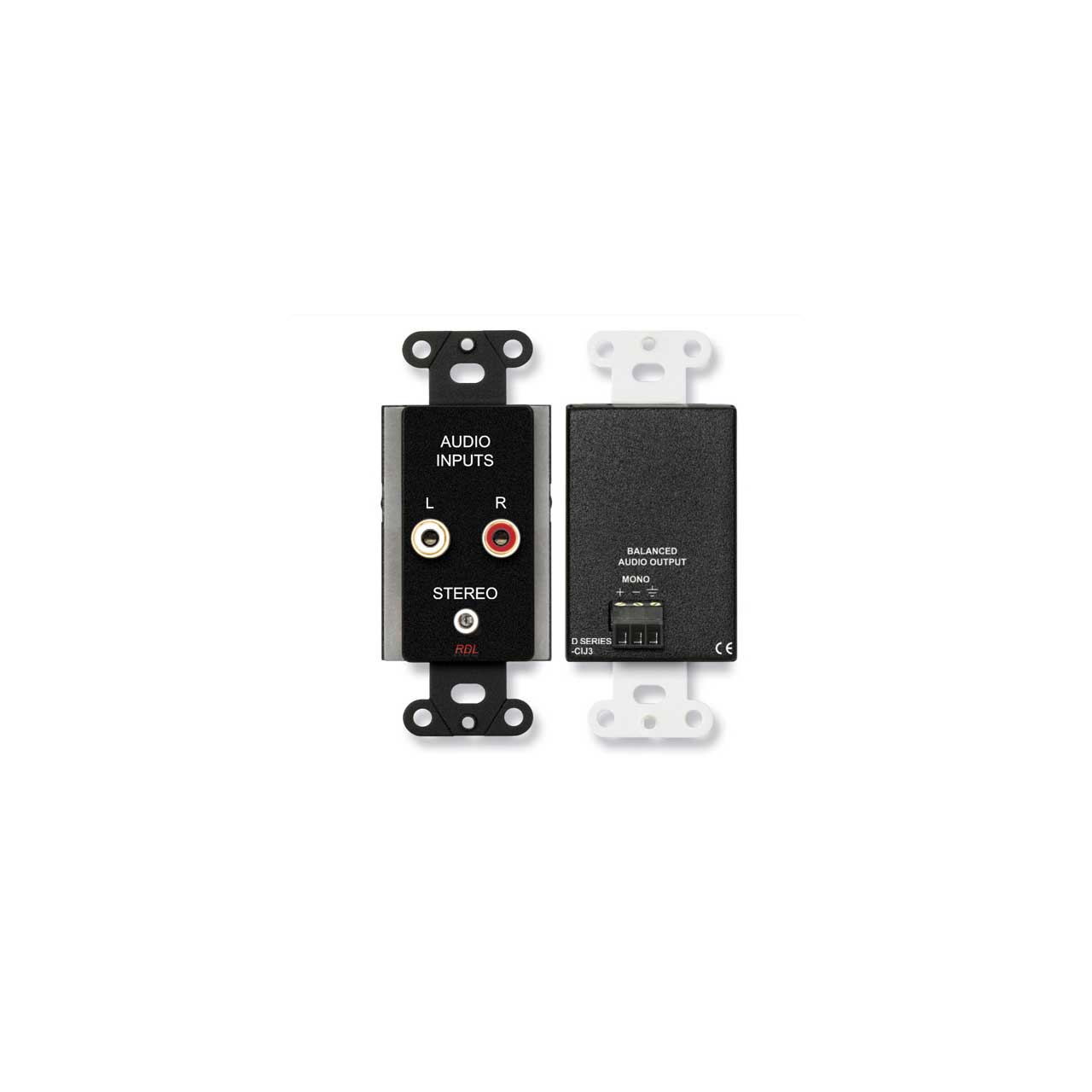

    RDL DB-CIJ3 Consumer Input Jacks - Mono - Black

    Manufacturer: Radio Design Labs

    Item #: RDL-DB-CIJ3   •   MFG #: RDL-DB-CIJ3



    List Price:$105.73
    Our Price:$74.49

    free ship


    Colors:



    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.



      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      The D/DS/RCX-J3 is a complete audio input panel assembly. The front panel features a female XLR jack and two phono jacks. The XLR is connected directly to the rear-panel barrier block. The phono jacks are intended for mono or stereo consumer level sources. LEFT and RIGHT are combined and balanced through audio transformers configured to reject induced hum. The line-level output is provided on the rear-panel terminal block for connection to 10 k Ohm or higher input impedance line level module or equipment inputs. The back of the D/DS/RCX-J3 is finished with a metal enclosure clearly labeled for easy installation.

      The D/DS/RCX-J3 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.


      • Features

        • Wall Mounted Audio Inputs
        • XLR Microphone Input with Gold Contacts
        • Gold Plated Phono Jack Line Inputs
        • Hum Cancellation on Unbalanced Line Inputs
        • Transformer Isolation for Unbalanced Line Inputs
        • Balanced Mono Output for Unbalanced Mono or Stereo Line Inputs

      • Specifications

        • Input Connectors: XLR female with gold contacts (1); Phono jacks with gold contacts (2)
        • Output Connector: Terminal block
        • Output Connections (5): Line: +, -, SHIELD; Mic: SHIELD (XLR pin 1), + (XLR pin 2), - (XLR pin 3)
        • Frequency Response (line in): 30 Hz to 20 kHz (±1 dB)
        • Power Requirement: Passive
        • Dimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.15 in. 5.47 cm
        • Mounting Box Req.: Width: 1.80 in. 4.57 cm; Depth: 1.75 in. 4.45 cm
