RDL DB-SFRC8L Audio Selector for SourceFlex Distributed Audio System

ITEM #: RDL-DB-SFRC8L MFG #: DB-SFRC8L

Primary Image
Radio Design Labs
Free Shipping with $49 Minimum Order

List Price:

$307.55

Our Price:

$230.66

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    DB-SFRC8L - Overview

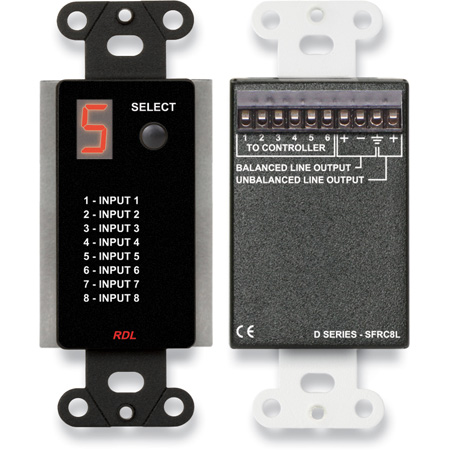

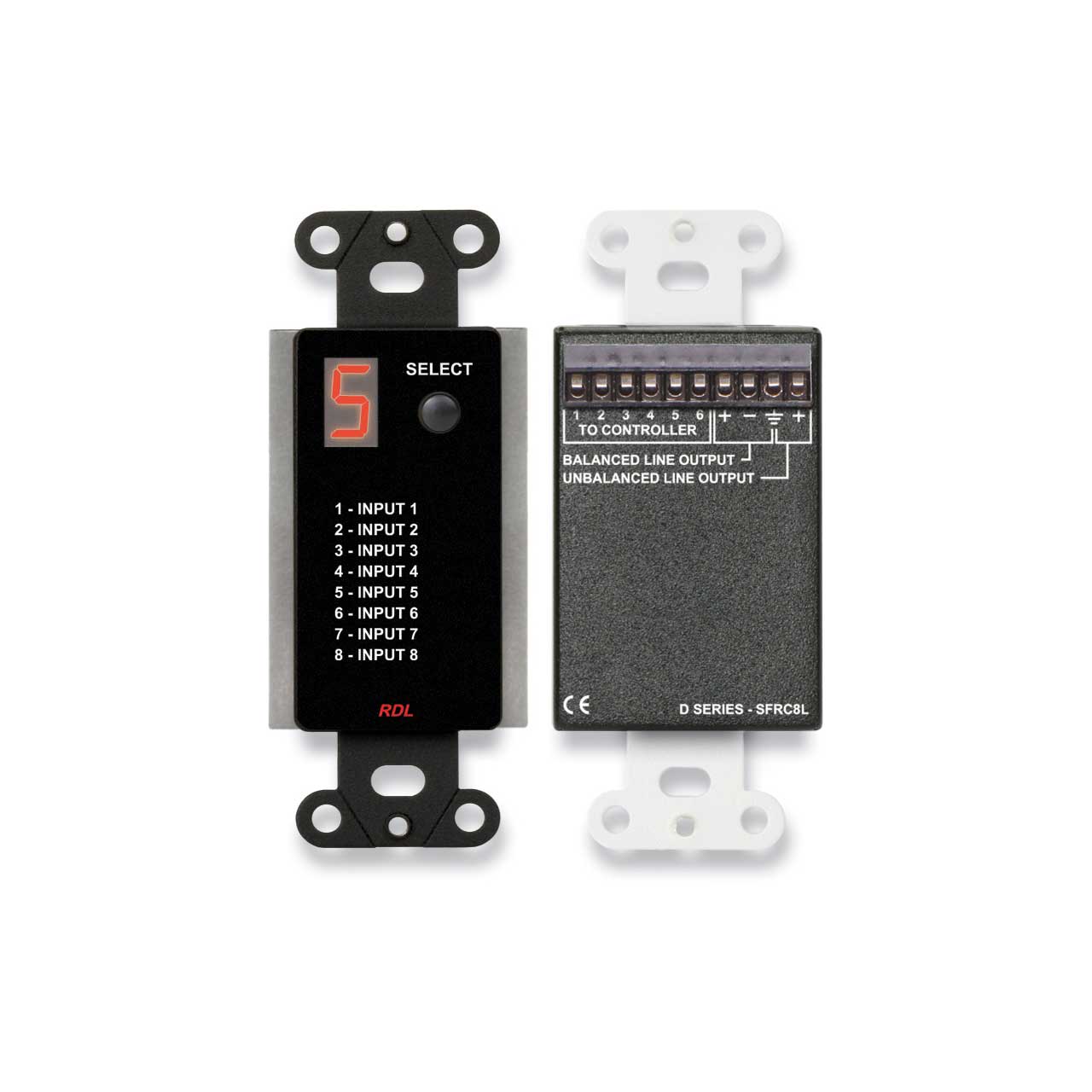

    The D SERIES-SFRC8L Audio Selector is a SourceFlex module for wall mounting in a room, providing source selection from up to 8 audio sources. A numeric display shows the selected source. There are two line-level audio outputs on the rear of the unit, balanced and unbalanced, to feed an external power amplifier.The balanced line output level is +4 dBu nominal. The unbalanced output is -10 dBV.The D SERIES-SFRC8L is designed to be mounted in a wall box. Wiring is connected through a rear-panel detachable terminal block. The -SFRC8L is ideal for office distributed sound systems with background music and a paging source.

    • Features:

      • Single Room Listening Station with In-Wall Controls
      • Source Selection Pushbutton
      • Selection From up to 8 Audio Sources
      • Line-Level Audio Output
      • Mounts In Wall Using US Single Gang Electrical Box or RDL® WB-1U
      • Compatible with Other RDL Wall Plates and Controls
      • Ideal for Office Distributed Sound Systems with Music and Paging


    • Specifications:

      • Input: 10-position detachable terminal block
      • Display: 7-segment red LED (0 = off or Paging; 1 through 8 = selected channel)
      • Selector: Momentary button channel SELECT
      • Frequency Response: 20 Hz to 20 kHz (±0.1 dB)
      • THD+N
      • 0.1% (20 Hz to 20 kHz)
      • Noise: < -85 dB (Below +4 dBu)
      • Control Signals: dc (DISPLAY RAMP and CONTROL conductors between remote Listening Station and Controller)
      • LineOutputs (2): +4 dBu balanced, -10 dBV unbalanced, nominalPower Requirement: 24 Vdc @ 30 mA, Supplied from SourceFlex controllerAmbient Operating Environment: 0° C to 50° C Maximum; 20° C RecommendedDimensions: Height: 4.13 in. 10.49 cm; Width: 1.7 in. 4.32 cm; Depth: 2.05 in. 5.21 cm
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: .44 lbs.
      • WEEE weight: 0.305 lbs.
      • Tariff code: 8518.40.2000


    • GTIN:

      0813721016027
