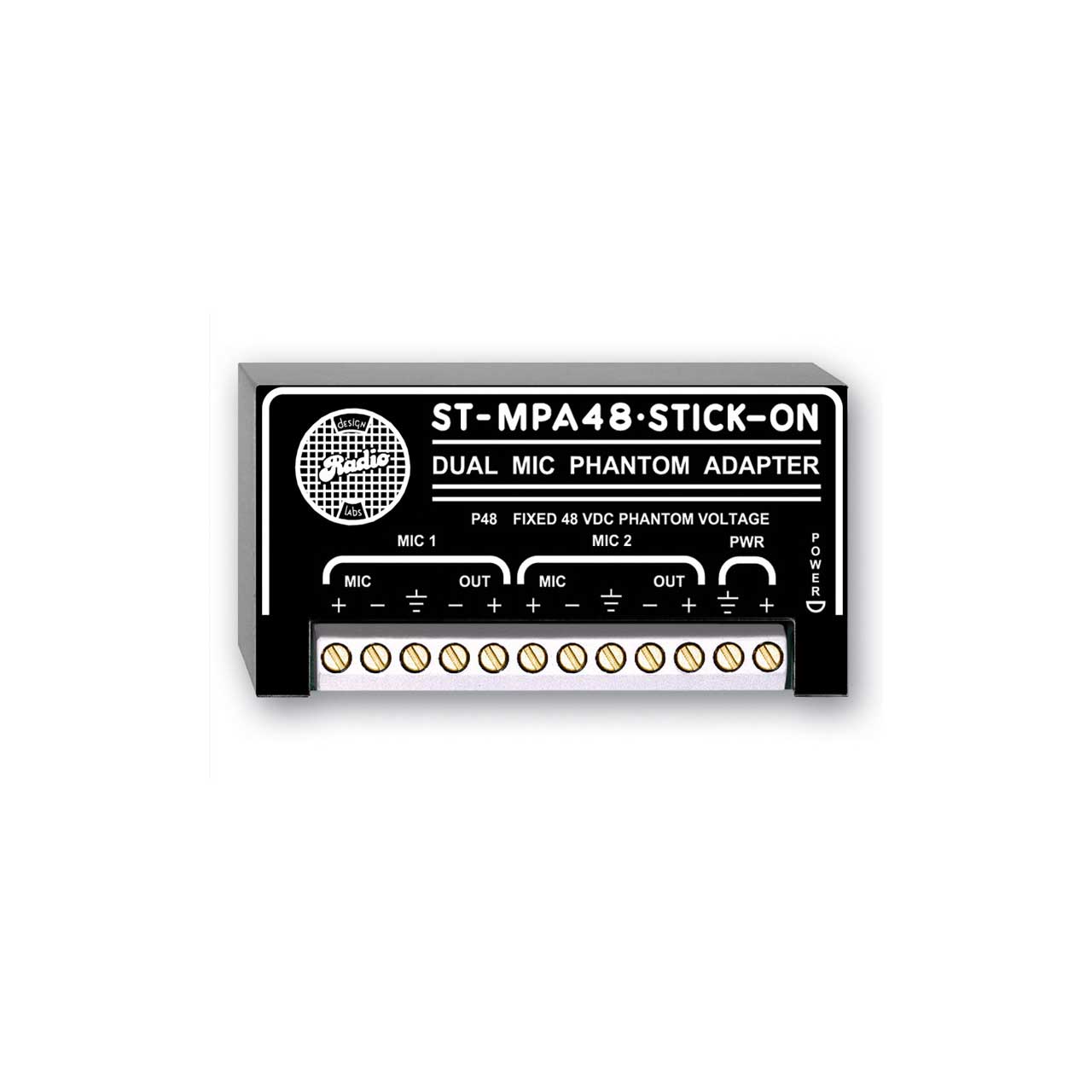

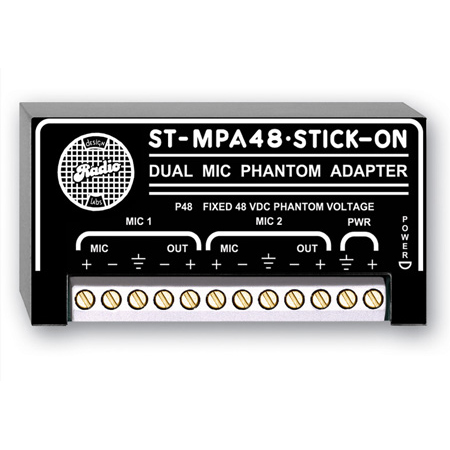

RDL ST-MPA48 Dual Microphone Phantom Adapter - 48 V

ITEM #: RDL-ST-MPA48 MFG #: ST-MPA48

free ship

List Price:

$217.60

Our Price:

$151.95

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    ST-MPA48 - Overview

    The ST-MPA48 contains two identical phantom power circuits and a common power supply input. If only one mic input is to be converted for phantom operation, only one circuit needs to be used. Each circuit has a mic input and a mic output. Phantom voltage appears on each of the mic input terminals. Therefore, the ST-MPA48 can convert any existing mic input into a 48 Vdc phantom powered input. Phantom voltage is not present on the output terminals.The power supply input terminals may be fed with any dc voltage from 10.5 volts to 26 volts.

    • Features:

      • Phantom Adapter for Two Mics
      • 48 Vdc Fixed Phantom Voltage
      • P48 per IEC 61938
      • Operates From External 12 V Battery or 24 V Power Supply
      • Phantom Conversion with Full Frequency Response

    • Specifications:

      • Channels: 2
      • Frequency Response: 20 Hz to 100 kHz (± 0.025 dB, 150 Ω source, 1 kΩ load)
      • Phantom Voltage: P48, 48 Vdc
      • Standard for Phantom: IEC 61938: 2013Input Voltage Range: 10.5 Vdc to 26 Vdc (for 48 Vdc output)Ambient Operating Environment: 0° C to 55° CPower Requirement: GROUND-REFERENCED, 12 Vdc @ 150 mA (with 20 mA load), 24 Vdc @ 80 mA (with 20 mA load)

    • GTIN:

      0813721012357
