710-0333-02 - Overview

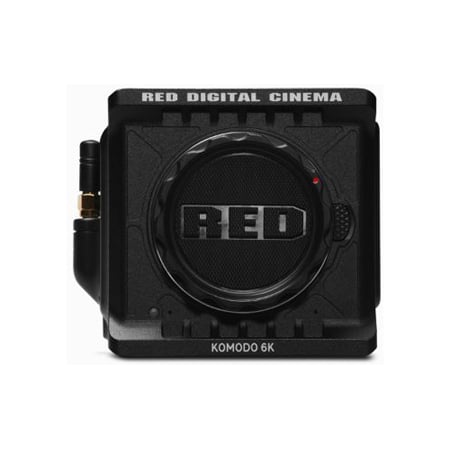

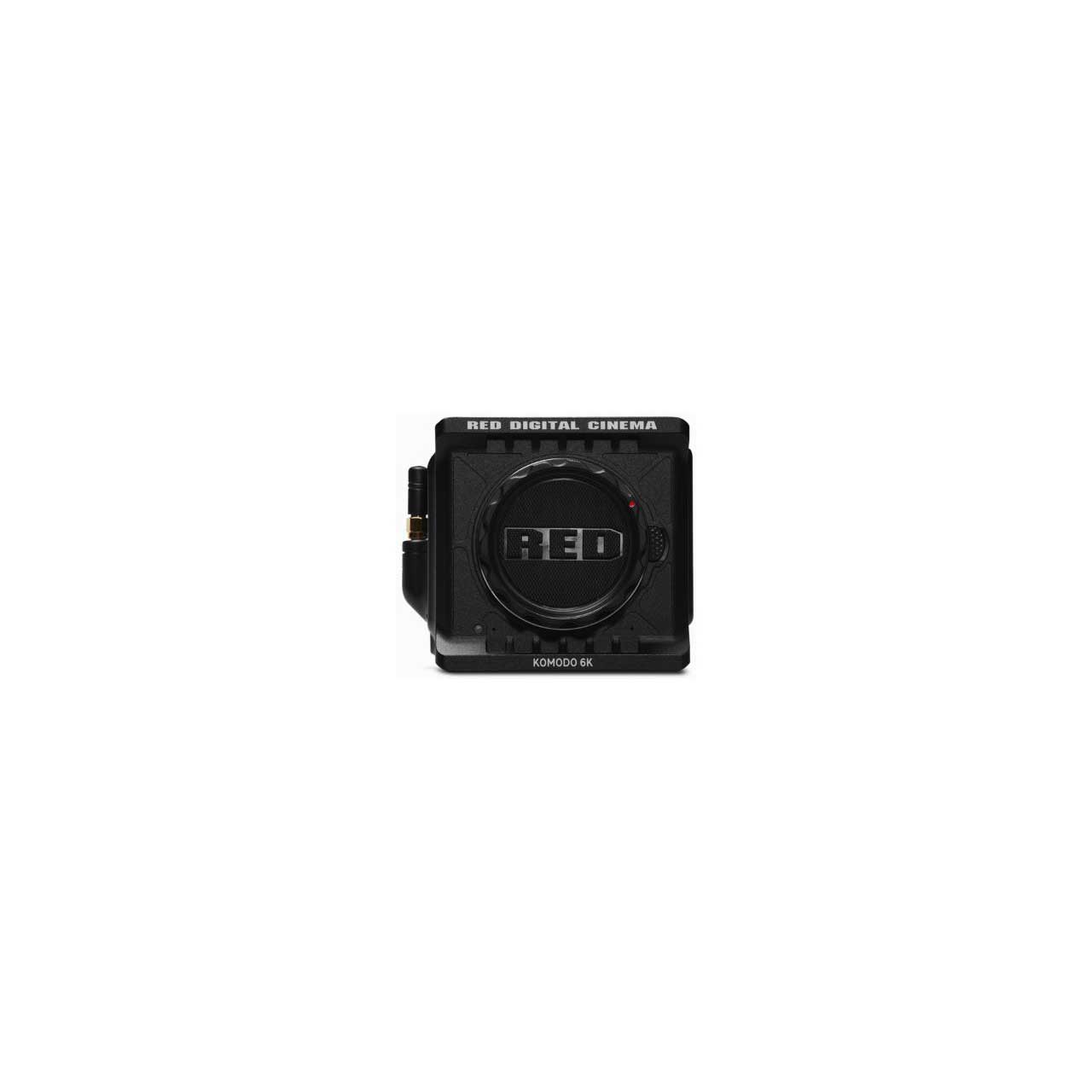

The KOMODO® 6K is the latest breakthrough product in RED's long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera. It features RED's cinema grade image quality, color science and sensor technology into a portable form factor so users can take it anywhere and adapt it to any shooting scenario.

The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range and meets the RED standard of unmatched imagery without any creative or technical compromises. KOMODO also features a built-in Canon RF mount allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.

In-Camera Language Support: English, Simplified Chinese, Japanese, German, Spanish, French.

NOTE: The KOMODO 6K has an adaptable RF lens mount. KOMODO requires a lens mount adapter, i.e. RF to EF, RF to PL, in order to shoot. Canon Mount Adapter EF-EOS R included with camera.

  • Specifications:

    • Sensor Type: KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS
    • Effective Pixels: 6144 x 3240
    • Sensor Size: 27.03 mm x 14.26 mm (Diagonal: 30.56mm)
    • Dynamic Range: 16+ Stops
    • Mount Type: RF mount. Accepts Canon RF Mount Based Lenses and Adapters. Supports Canon EF with full electronic communication via compatible Canon RF Mount Adapters
    • Max Data Rates: Up to 280 MB/s using RED Pro CFast or other qualified CFast 2.0 media cards [1]
    • REDCODE® RAW Max Frame Rates: 40 fps at 6K 17:9 (6144 x 3240), 50 fps at 6K 2.4:1 (6144 x 2592), 48 fps at 5K 17:9 (5120 x 2700), 60 fps at 4K 17:9 (4096 x 2160), 120 fps at 2K 17:9 (2048 x 1080)
    • Playback Frame Rates (Project Time Base) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
    • Best Available REDCODE® Settings: REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps<, REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps, REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps, REDCODE® RAW
    • Acquisition Formats: 6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x, 5K 17:9 (5120 x 2700), 4K 17:9 (4096 x 2160) and 16:9, 2K 17:9 (2048 x 1080)
    • Apple ProRes 4K (4096 x 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps, 2K (2048 x 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
    • Construction: Aluminum Alloy
    • Weight: 2.10 lbs (without body cap and Cfast card)
    • Battery Type: Two slots for BP-9XX series batteries
    • DC Power Input: +7 to +17 V DC via the integrated 2-pin DC-IN port
    • Operating Temperature: 32°F to 104°F
    • Storage Temperature: -4°F to 122°F
    • Storage Relative Humidity: 0% to 85% non-condensing
    • Color Management: Image Processing Pipeline 2 (IPP2), Supports 33x33x33 3D LUTs, Supports import of CDLs
    • Audio: Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz. Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
    • Remote Control: Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT Port Wired control via KOMODO Link Adaptor, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
    • Monitor Outputs: Integrated 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes - 12G-SDI: Up to 4096 x 2160 4:2:2 for 60p, 6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 3G-SDI: Up to 2048 x 1080 4:2:2 for 60p, 1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p, SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

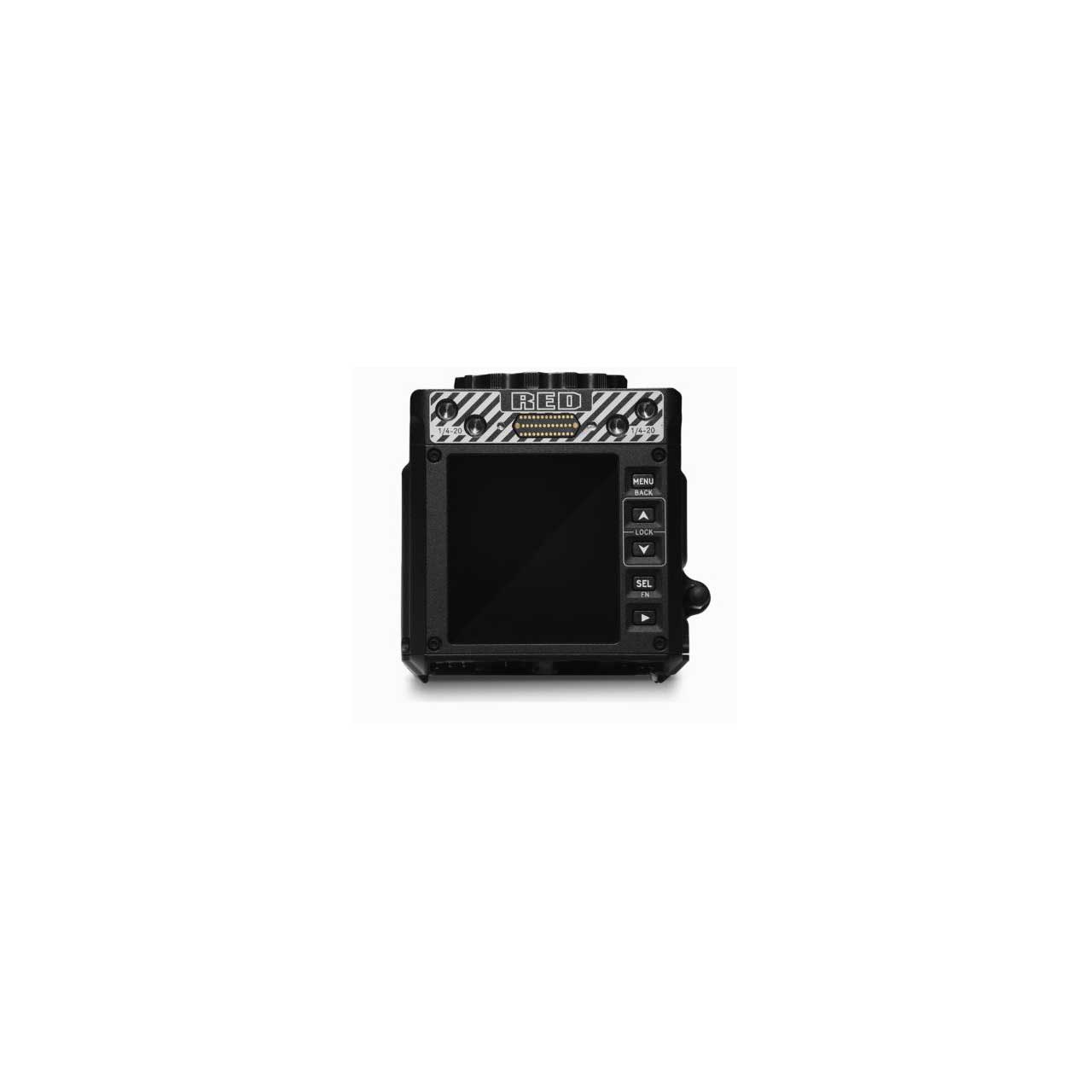

    • Monitor Options: Integrated 2.9" 1440x1440 touchscreen LCD with preview and camera control. Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
    • RED Control: Access full camera controls and live preview from iOS or Android devices. Available from the Apple App Store and Google Play Store (coming soon). RED Control works wirelessly or wired via the KOMODO Link Adaptor (sold separately). 1. For more information on compatible accessories, go to red.com/third-party-accessories. Tech specs reflect both current and projected information. Everything is subject to change.

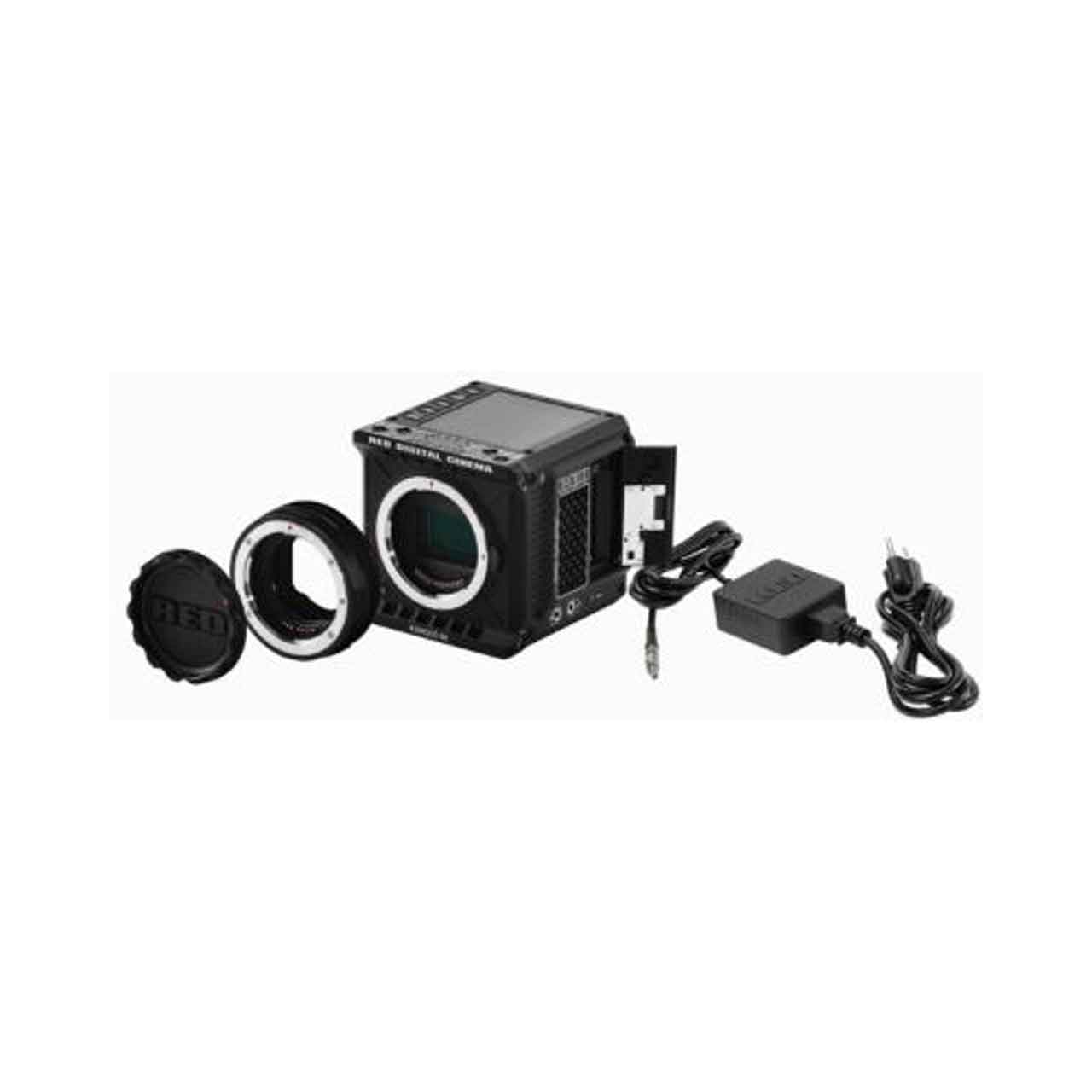

  • Item Includes:

    • 1x KOMODO 6K Body
    • 1x AC Power Adaptor 45W
    • 1x Mini World Travel Adaptor Kit
    • 1x RED Logo Sticker
    • 1x KOMODO Information Card (incl. registration and support info)
    • 1x Box with plastic / foam (standard minimalist markings)
    • 1x Canon Mount Adapter EF-EOS R

  • Warranty:

    • 1 Year Standard Warranty

  • GTIN:

    0810016941491
