    MEONLIFE - Overview

    The MEON LiFe (internal Lithium-Iron-Phosphate [LiFePO4] battery), is a self-contained power system that provides up to 18 Amps* of 12 Volt DC and 20 Amp-hours of internal Lithium-Iron-Phosphate battery backup to ten standard 4-pin outlets all in a single, silent, 1-rackspace module weighing less than 14 pounds. The chassis is constructed of durable and lightweight powdercoated aluminum, and the removable mounting ears can be adjusted and reversed to allow mounting in a variety of configurations. An illuminated voltmeter is included, and the MEON LiFe can connect to Remote Audio's RM or RS accessories which enable remote ON/OFF capability and battery monitoring. Two USB output jacks are available at the front panel for charging or powering standard 5VDC USB devices.

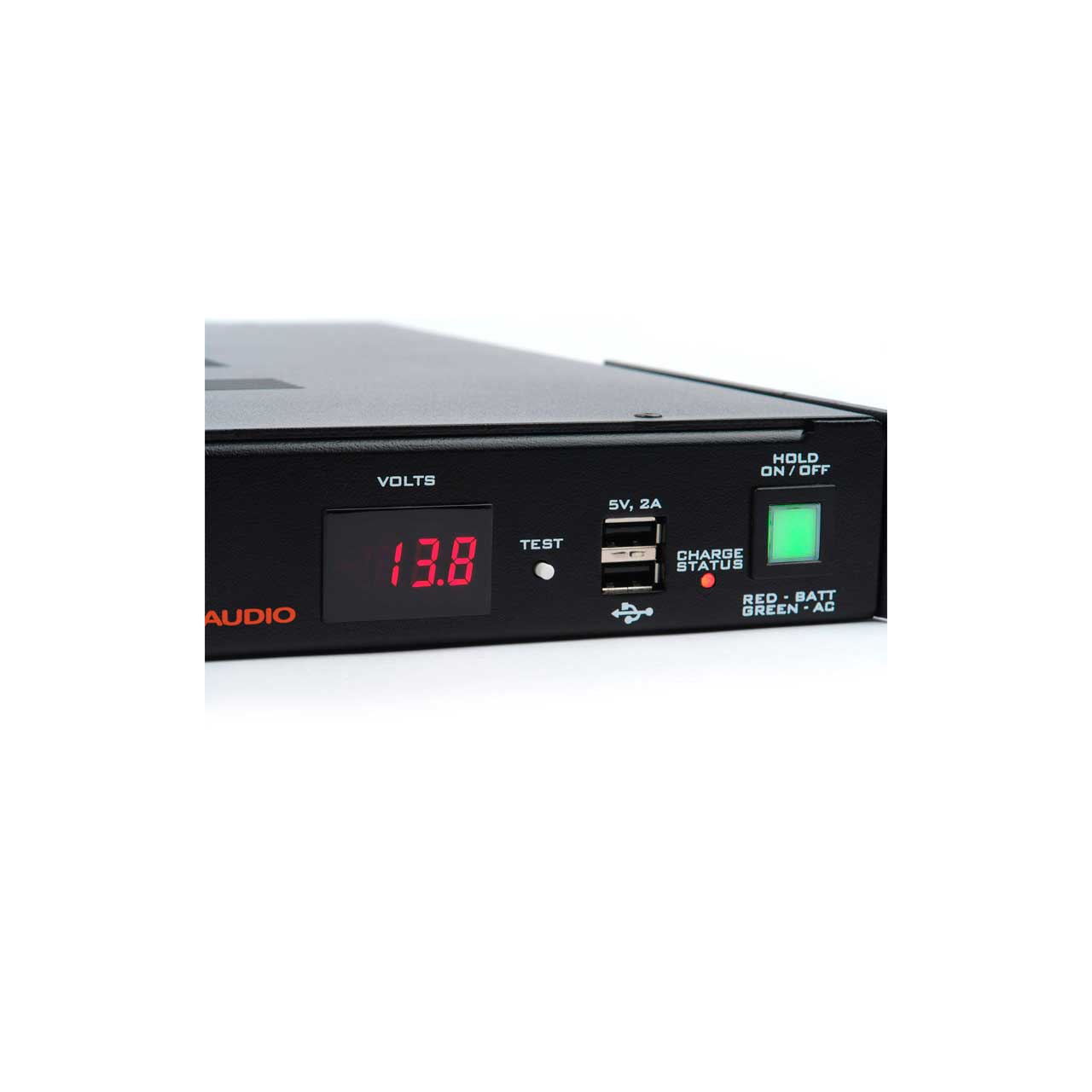

    The MEON LiFe employs an illuminated single-button ON/OFF system which requires the user to hold the button for approximately 2 seconds. This helps prevent accidental power cycling of the system. When the unit is receiving 90VAC-264VAC power, the power button glows GREEN, and current is provided by a low-noise AC-DC power supply able (up to 18A). When AC power is present, the internal battery is bypassed from the outputs and charged via its own dedicated, internal, 5A charger. When AC power is unavailable or interrupted, the battery seamlessly takes over. The power button then glows RED. When AC power is restored, the AC-DC supply takes over again, the battery resumes charging, and the power button glows GREEN - conveying the origin of your power at all times.

    • Features:

      • XLR Outputs
      • USB Power
      • Internal Battery Backup
      • Supplemental Batteries
      • Monitoring

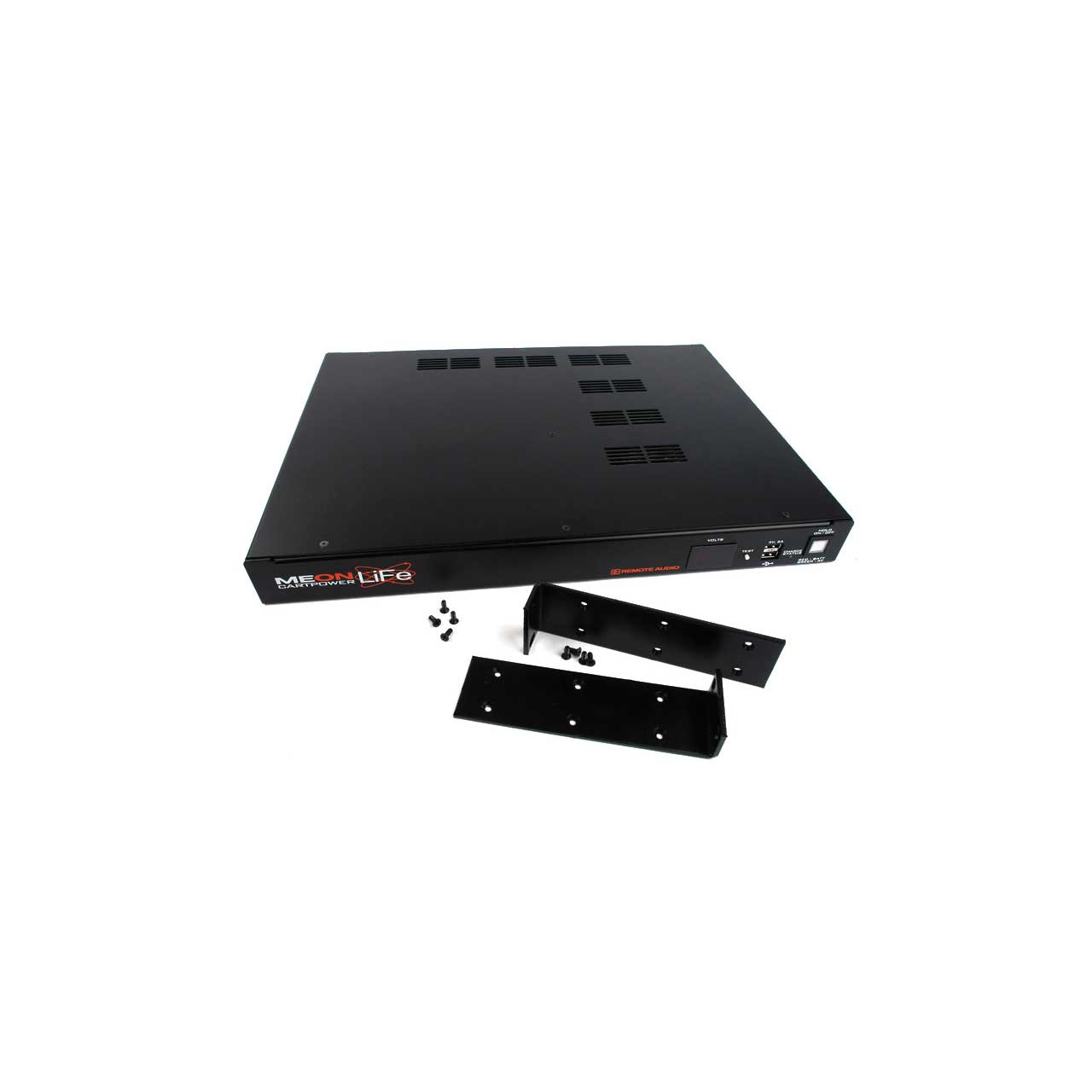

      • Flexible Rack Mounting
      • Remote Port
      • Convection cooling prevents the need for noisy internal fans.
      • Automatic 10V cutoff circuit protects external lead-acid batteries from over-discharge.
      • Internal battery can be fully recharged in 3 hours or less.
      • The complete system weighs less than 13 pounds.
    • Specifications:

      • Dimensions: 19.00" x 13.00" x 1.75" (1 Rack Space)
      • Weight: 12.6 lbs
      • AC Input Voltage: 100-120 or 200-240VAC, 50-60Hz
      • DC Input Voltage: 12V Nominal Lead Acid or LiFePO4
      • DC Output Voltage: 12V Nominal, shutdown below 10V
      • Output Current: 18A Max Total (AC), 14A Max Total (Internal Batt.)*
      • Output Connectors: 3x Neutrik 4-Pin XLR Female, rated at 9A each; 7x Neutrik 4-Pin XLR Female, rated at 5A each
      • Battery Capacity: 20 Ah (40Ah and 60Ah with optional Satellite battery modules)
      • Battery Charge Time: Approximately 3 hours without a supplemental battery connected
      • Power Switch: Front and Rear mounted; Green = AC connected, Red = AC disconnected; 2 sec. Delay ON/OFF
      • USB Ports: x2, Max Combined Total of 2A @ 5V (10W)
      • * 14A with Meon LiFe alone; 18A with optional "Extra LiFe" battery module
