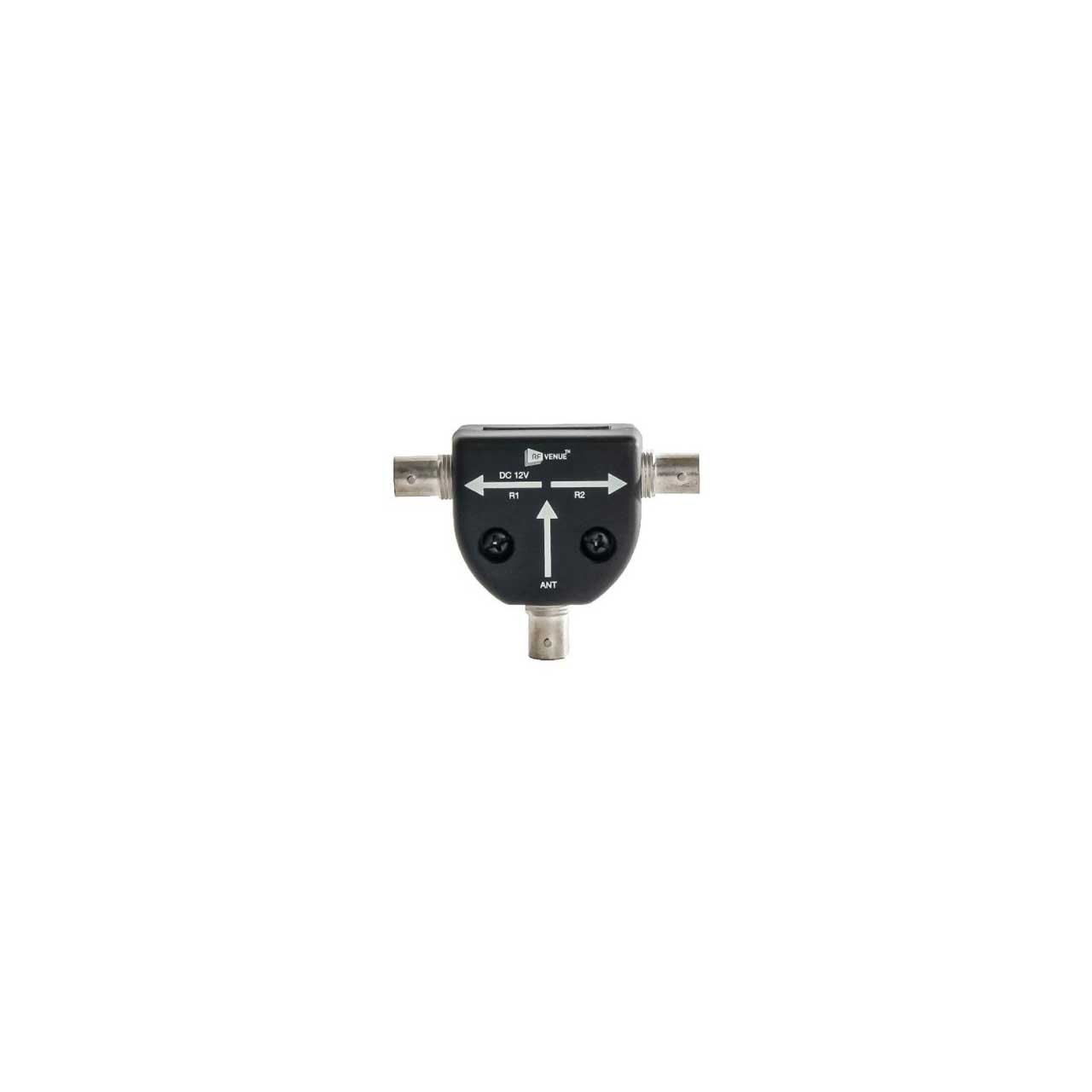

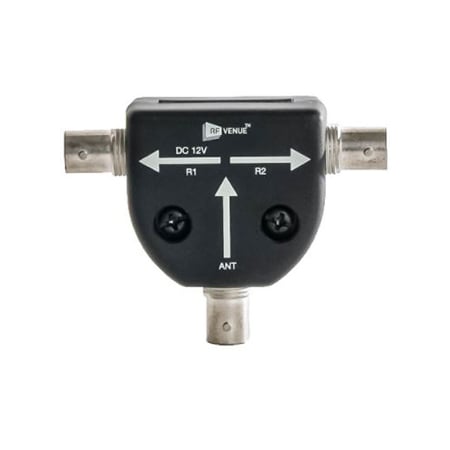

RF Venue 2X1SPLIT Passive 2X1 RF Signal Splitter/Combiner with BNC Female Connectors

ITEM #: RFV-2X1SPLIT MFG #: 2X1SPLIT

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
RF Venue
Free Shipping with $49 Minimum Order

List Price:

$104.00

Our Price:

$99.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    2X1SPLIT - Overview

    The RF Venue 2x1SPLIT is a passive 2X1 RF Signal Splitter/Combiner with BNC female connectors intended for use with wireless audio systems. It is compatible with all major brands of wireless microphones and in-ear monitors.

    • Features:

      • One BNC antenna in and two BNC out, or two BNC antennas in and one BNC out.
      • R1 channel passes 12VDC if DC over coax is provided.


    • Specifications:

      • Electrical
      • RF Carrier Frequency Range: 10-1,000 MHz
      • VSWR: 1:2
      • Impedance: 50Ω
      • Isolation: 20 dB
      • Insertion Loss: 2 dB
      • Max power into ANT input: 30 dBm
      • Max power to each of R1 & R2: 26 dBm
      • Power requirements: 12V DC, 100ma


    • GTIN:

      0718122340712
